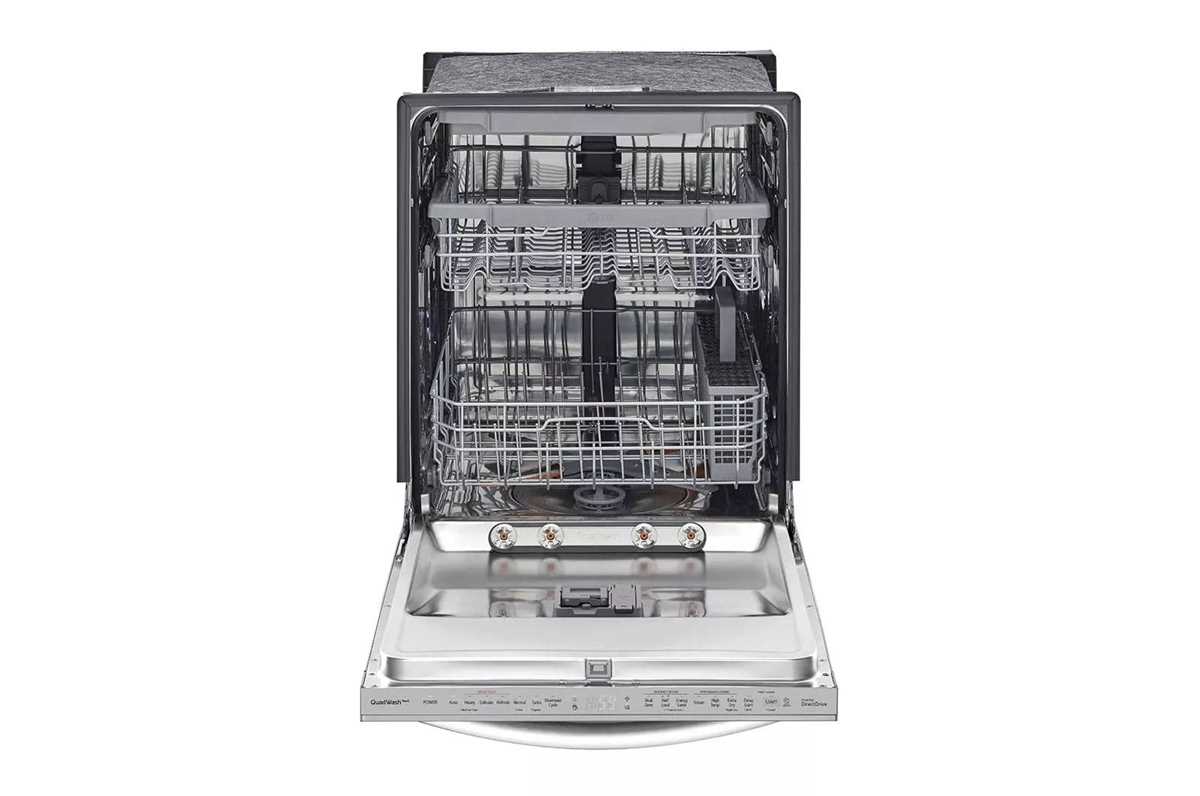

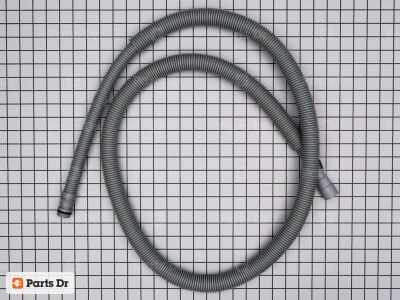

Begin by locating the component breakdown document specific to the TS5552 variant. The manufacturer’s official service manual typically includes a numbered list of all modular pieces alongside their stock codes. If the original document is unavailable, cross-reference the assembly with known third-party schematics for comparable models–look for SHX-5500B or KX-5200E, which share identical PCB layouts. Verify compatibility by matching resistor and capacitor values at key nodes (e.g., R22, C14).
Trace the primary power delivery path first. The TS5552’s mainboard feeds voltage through a four-pin connector labeled J3–confirm continuity here before proceeding. Secondary circuits (e.g., output regulation) branch from this connector, often marked in red or yellow wire diagrams. Misalignment at this stage risks damaging the voltage regulator IC (LM2596), a frequent failure point in undocumented repairs.
For missing sections, use a multimeter in continuity mode to map unmarked traces. Probe from known ground points (commonly the chassis or large electrolytic caps) toward smaller SMD components. Label each step directly onto a printed board photo–avoid relying solely on digital overlays, as scaling errors distort later reference. If digital copies are necessary, export schematics at 300 DPI minimum for legible silkscreen text.
Critical areas to inspect include:
- Heat sink attachment for the main switching transistor–ensure thermal paste thickness matches 15–20 microns for optimal dissipation;
- The flyback diode (often a Schottky type) near the inductor coil–reverse polarity here causes immediate failure;
- Any jumper wires added post-factory, as these often indicate aftermarket modifications that alter original signal paths.
Store verified schematics in .PDF with OCR for text searching, and archive raw images separately in TIFF to preserve resolution. For repairs, pre-test all replacement parts (especially ICs and MOSFETs) on a dedicated breadboard before soldering–even slight deviations in specifications can destabilize the entire assembly.
Practical Breakdown of the 5552 Switching Module Components
Start by locating the main switching IC on the board–typically a TO-220 or SOIC package marked with a manufacturer code (e.g., STP16NF06L or IRFZ44N). This transistor handles primary current paths. Trace its connections: the gate (G) links to the control circuit via a 10kΩ resistor, while the drain (D) and source (S) form the power path. Use a multimeter in diode mode to verify continuity; expect ~0.5V drop between D and S when forward-biased.
Next, identify the auxiliary components: the flyback diode (1N4007) positioned antiparallel to the transistor, snubber networks (RC pairs: 47Ω + 0.1µF), and bootstrap capacitors (22µF/50V). The diode prevents inductive kickback; test it with a multimeter (reverse mode should show >10MΩ). Snubbers suppress voltage spikes–measure their ESR (10ms during switching; replace if leakage exceeds 0.1µA at 25°C.
Critical Control Circuit Elements
| Component | Typical Value | Failure Symptoms | Test Method |
|---|---|---|---|
| PWM Controller (e.g., SG3525) | N/A | No output pulses, erratic switching | Oscilloscope on pins 11/14: verify 50-500kHz square waves |
| Gate Resistor | 10-100Ω | Slow turn-on, overheating | Check resistance; replace if >±5% tolerance |
| Current-Sense Resistor | 0.01-0.1Ω | Overcurrent trips, false faults | 4-wire Kelvin measurement: ensure ±1% accuracy |
For high-power variants, inspect the current-sense amplifier (e.g., LM358)–this monitors load conditions. Inputs (pins 2/3) should see scaled voltages (0-5V) proportional to load current. If the output (pin 1) saturates (stuck at VCC/GND), suspect amplifier failure or shorted sense resistor. Replace the resistor if its power rating (TL431) must regulate output within ±2% of the reference voltage (e.g., 2.5V). Test this by loading the output–fluctuations >±5% indicate loop instability.
Thermal management components–heatsinks and thermal vias–require direct attention. The switching transistor’s case temperature should not exceed 85°C during operation; use a thermocouple to confirm. Thermal vias (if present) should have overtemp protection PTCs (e.g., MF-R050)–their trip threshold (typically 120°C) must align with the transistor’s max rating. Finally, confirm auxiliary supply stability: the 5V LDO (e.g., AMS1117) should maintain ±1% regulation under full load; ripple >50mVpp suggests decoupling capacitor failure (replace with 10µF/X7R).
Locating Critical Elements in the Circuit Layout
Trace the main power rails first: the primary input voltage line typically runs along the upper edge of the board, marked VIN or +12V, while the ground plane occupies the lower section. Use a multimeter to verify continuity between test points labeled GND and the negative terminal of smoothing capacitors–these should register near 0 ohms. Identify the switching regulator IC by its heatsink pad; in this reference design, it’s an 8-pin SOIC package with identifiers like AP6502 or similar.
- Boost inductor sits adjacent to the IC, usually a shielded coil with ferrite core; measure inductance (10–47 µH range) to confirm functionality.
- Output capacitors flank the load-side terminals–electrolytic or ceramic types–check for markings COUT; ESR values below 50 mΩ ensure stable voltage.
- Feedback resistors form a voltage divider near the IC’s FB pin; typical values are 10 kΩ (upper) and 1.8 kΩ (lower), setting output to 5V.
- Enable pin (EN) often connects to a pull-up resistor (~100 kΩ)–verify logic high (2.5V+) to activate the regulator.
Examine the protection components: a Schottky diode (marked D1) handles freewheeling current, while a thermistor (NTC) at the input protects against inrush. For debugging, probe the SW node–the IC’s switching node–with an oscilloscope; expect clean waveforms (200–500 kHz) without ringing. If output voltage sags, isolate faults by checking each stage sequentially: power stage (inductors/caps), feedback loop (resistors), and control signals (EN/FB pins).
Identifying Power Input and Output Terminations on Schematics
Begin by scanning the top or bottom edges of the circuit layout–most engineers place DC rails along the periphery for clarity. Look for thick lines or bold traces, typically labeled with “+VIN,” “VCC,” “VBAT,” or “PWR_IN” for input, and “VOUT,” “LOAD,” or “SYS_PWR” for output. These connections often use wider copper pours to handle higher current, making them visually distinct from signal paths.
Check for annotations adjacent to connector symbols (e.g., J3, P5) or screw terminals–these frequently mark physical entry/exit points. If the schematic uses hierarchical blocks, locate the “Power” or “Regulator” sub-page first, as it consolidates all high-current nodes. Annotations like “24V DC INPUT” or “5V OUTPUT” may also appear near the boundary of sections, especially if multiple voltage domains exist.
Symbols for power inputs often include:
- Barrel jacks (⏚–|) with polarity marks.
- Battery icons (|▯▯|) or fuse symbols to denote protected lines.
- Arrowheads or dots at junctions where power splits to subsystems.
Output connections frequently show:
- Load resistors (R15) with values like “5W” indicating power dissipation.
- Inductors (L2) or capacitors (C8) for filtering, positioned immediately after regulators.
- Test points (TP1) for probing output stability.
If the layout uses color coding, red traces or fills usually denote positive rails, while blue/green may indicate returns or ground planes. Ground symbols (⏚) near input/output terminals confirm reference points–verify these lines connect to the main ground plane without splits, as poor grounding causes noise or voltage drops.
Isolate regulator circuits by searching for ICs labeled “LM2596,” “TPS5430,” or “MP2307″–these components sit between input and output. The pin labeled “VIN” on a switching regulator will link to the power source, while “VOUT” or “SW” pins feed downstream circuits. Follow these traces; they’ll intersect with capacitors (for bulk storage) and inductors (for energy transfer).
Cross-Referencing Physical Board Silkscreen
Match silkscreen labels like “J1_PWR” or “CON2_5V_OUT” to the schematic–these markers appear on both PCB and diagram near solder points. On the board itself, look for:
- Large through-hole pads or SMD tabs (often tinned or gold-plated).
- Heatsinks bonded to MOSFETs or regulators, indicating high-current paths.
- Stencil outlines for screw terminals or spade connectors.
Descriptions like “MAX 3A” near pads specify current ratings–exceeding these values risks overheating.
Use a multimeter in continuity mode to trace wires from input/output connectors to their schematic counterparts. Probe both the physical terminal and the corresponding copper pad; a beep confirms the link. For ambiguous lines, measure DC voltage–input rails should match the supply (e.g., 12V), while outputs align with downstream requirements (e.g., 5V). Disconnect the load to isolate output voltage readings from dynamic fluctuations.
Mapping Signal Routes Between Dual-Chip Modules in PCB Assemblies
Begin by identifying the primary input/output pins on each IC using a continuity tester or multimeter in diode mode–focus on ground-referenced pins first, as they simplify voltage drop measurements. Mark these nodes directly on the board with a non-conductive marker, avoiding traces thinner than 0.2mm, which often serve as high-impedance routes prone to interference. For circuits operating above 10MHz, prioritize verifying signal integrity at the trace midpoint; reflections and crosstalk manifest here first, especially if terminating resistors are incorrectly sized or omitted.
Use an oscilloscope with a 50Ω input impedance probe to capture transitions at critical junctions–specifically, the transitions between digital logic outputs and analog stages. Trigger on the rising edge of the clock signal (if present) and adjust the time base to 5-10ns per division to isolate ringing or overshoot. If the board lacks ground pours near high-speed traces, temporarily solder a 0.1μF ceramic capacitor between the trace and nearest ground plane to reduce noise during testing. Record voltage levels at each stage: TTL-compatible outputs should swing between 0V and 3.3V/5V, while open-collector configurations require external pull-up resistors to validate.
Decoupling Artifacts and Unexpected Leakage
Check for unintended coupling by measuring AC voltage across decoupling capacitors; anything above 50mV at 1kHz suggests parasitic induction or inadequate grounding. Replace electrolytic capacitors with MLCCs for frequencies above 1MHz, as ESR degradation in through-hole components often distorts signal fidelity. If the schematic includes optocouplers or level shifters, probe both sides of the isolation barrier with differential probes to confirm galvanic separation–common-mode noise exceeding 100mV indicates compromised isolation.
Trace power delivery paths backward from the IC to the voltage regulator. Low-dropout regulators delivering less than 1A should use a minimum 10μF input capacitor and 22μF output capacitor; undersized values cause ripple-induced glitches on shared rails. For modules with separate analog and digital supplies, verify the star-ground topology–mixed grounds introduce ground loops, detectable as 50/60Hz hum on analog outputs. If the layout forces shared return paths, insert a 0Ω resistor in series with the ground trace to break the loop during diagnostics.
Final Validation with Load Simulation
Attach a dummy load matching the IC’s maximum output current (e.g., 33Ω for a 100mA source) to confirm stability under worst-case conditions. Monitor thermal rise with an infrared thermometer–hotspots exceeding 60°C indicate insufficient thermal vias or improper heatsink attachment. For pulse-width modulated outputs, use a logic analyzer set to 100MHz sample rate to detect duty cycle drift; deviations over ±2% often stem from unfiltered power supply noise coupling into the feedback loop. Document all measurements in a spreadsheet with trace widths and lengths to correlate signal deviations with physical constraints.
