For quick repairs, reference the impeller housing first–it’s the most common failure point in handheld air-moving units. Locate the air intake grate (typically on the side) and trace the pathway to the fan blade assembly. If airflow is disrupted, check the spark arrestor screen (positioned just before the exhaust port) for carbon buildup; clean it with a nylon brush every 25 operating hours.
Disassemble the combustion chamber by removing the cylinder head (4 bolts, usually 10mm). Inspect the reed valve on the intake manifold–replace it if cracks exceed 1mm or if the rubber coating is peeling. The flywheel keyway often shears under load; keep a spare ¼” shear key on hand for emergency replacement. Torque specifications: 8-10 ft-lbs for flywheel nuts, 12-15 ft-lbs for cylinder head bolts.
Troubleshoot electrical variants by testing the ignition coil with a multimeter (resistance should read 3-5 kΩ between terminals). The fuel filter (inline, near the carburetor) clogs every 3-6 months–swap it with a 10-micron filter for cleaner fuel delivery. For battery-powered models, monitor capacitor discharge (measured in μF) if runtime drops below 70% of rated capacity.
Understanding Your Outdoor Power Tool Components
Inspect the air intake first if performance drops–clogged filters reduce efficiency by up to 40%. Clean or replace the mesh every 10 hours of use, especially after heavy debris exposure. A fine wire brush works better than compressed air for stubborn dirt.
Check the impeller’s blades for cracks or uneven wear–misalignment causes vibrations that can damage the motor shaft over time. Balance the fan by marking a blade with a grease pencil, spin it, and observe if the mark wavers. If oscillation exceeds 2mm, replace the assembly.
The throttle trigger and its associated linkage demand periodic lubrication. Apply silicone grease to the pivot points every 20 hours to prevent sticking. A stiff trigger increases fatigue during prolonged operation, particularly in cold weather when plastic contracts.
Fuel lines degrade faster than most components. Examine them for brittleness or leaks before each use–ethanol-blended fuel accelerates deterioration. Replace hoses if discoloration or cracks appear, as even minor leaks can introduce air into the system, causing hard starts.
Exhaust ports and mufflers often accumulate carbon deposits. Scrape buildup with a brass brush after every 50 hours of runtime to maintain optimal airflow. Restricted exhaust elevates operating temperatures, shortening the engine’s lifespan by 15-25%.

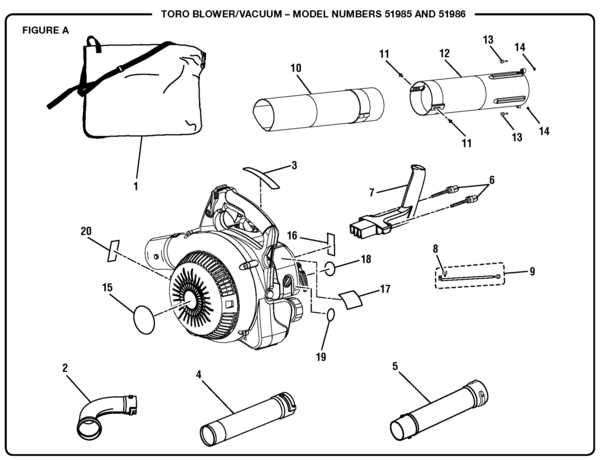

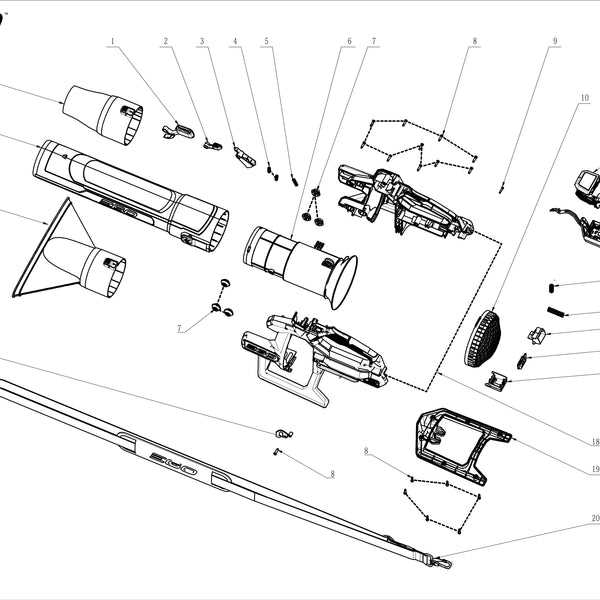

Identifying Key Components in an Outdoors Power Tool Schematic
Start by locating the impeller assembly in the blueprint–this centrifugal fan sits at the core, responsible for generating airflow. Check for labels indicating blade count (typically 8–12) and curvature direction, as these dictate efficiency. If absent, compare with known models like Echo PB-755H or Stihl BG 86 specs for reference.
Trace the fuel or battery lines next. For combustion units, identify the carburetor, fuel filter, and primer bulb pathways; their alignment should form a closed loop. Electric variants highlight the motor housing and switch connections–verify wire gauge (usually 14–16 AWG) matches voltage requirements. Schematics often omit throttle linkage details; cross-reference with user manuals for cable tension specs (e.g., 2–3 mm slack).
Airflow Path Critical Markers
- Intake grille: Mesh size (1.5–2.5 mm) prevents debris entry without restricting flow.
- Diffuser vanes: Angled at 30–45° to maximize volume displacement.
- Outlet nozzle: Width should taper to 70–80% of impeller diameter for velocity gain.
Examine the housing seams. Poorly aligned plastic or aluminum joints create turbulence, reducing output by up to 18%. Look for gasket grooves or silicone seal paths–these prevent internal leaks. If the schematic lacks these, measure gaps during physical inspection (ideal: <0.5 mm). For handheld models, note anti-vibration mounts; missing rubber dampers may indicate a counterfeit diagram.
Prioritize the ignition system in gas-powered layouts. Locate the flywheel, magneto coil, and spark plug wire routes. Coil gaps should read 0.2–0.4 mm; refer to manufacturer torque specs (often 15–20 Nm) if the schematic omits these. Electronic ignitions will show a CDI module–ensure its position allows heat dissipation (minimum 10 mm clearance). Overlooked resistors or kill switch circuits will misfire under load.
Structural Integrity Checkpoints
- Handle mounting points: Verify bolt hole threading (commonly M6/M8) and reinforcement ribs.
- Motor brackets: Check for stress indicators (e.g., triangular gussets) in backdraft schematics.
- Fasteners: Torx (T25/T30) or Phillips heads require matching tools; stripped threads invalidate warranty.

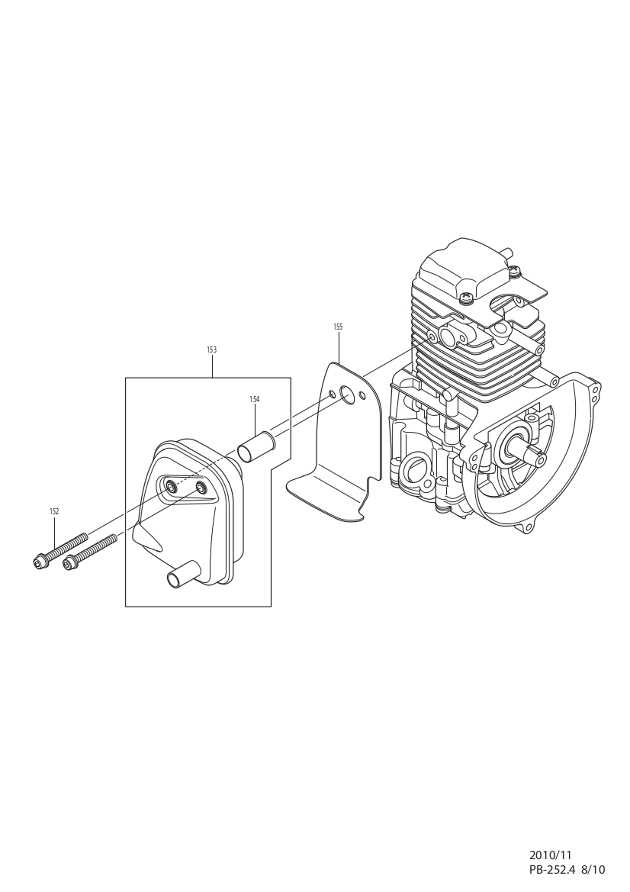

Finally, validate exhaust pathways in combustion units. Muffler chambers must funnel gases away from the operator zone–ambient temps near the outlet shouldn’t exceed 90°C. Schematics for newer models may include heat shields; these are mandatory where housing materials are flammable (e.g., ABS plastic). If absent, modify assembly with aftermarket components rated for 120°C+ operational temps.
Essential Implements for Taking Apart and Examining Outdoor Power Equipment Components
Begin with a torque wrench calibrated between 10-100 Nm to avoid stripping threaded fasteners–common sizes for these units include 8mm, 10mm and 12mm bolts. A magnetic tray prevents small screws from rolling off workbenches, especially those securing housing covers and impeller assemblies.
For electrical checks, a multimeter set to 20 kΩ resistance mode verifies motor windings and switch contacts–readings below 0.5 Ω signal shorts requiring replacement. Needle-nose pliers with 5-inch reach access tight spaces where standard drivers fail, like carburetor adjustment screws hidden behind air filters.
Specialized Instruments for Precision Work
Use a feeler gauge set (0.05-0.5 mm) to measure spark plug gaps–0.65 mm is typical for two-stroke engines. Snap-ring pliers with reverse jaws remove retaining rings securing clutch assemblies without damage. A small pry bar (6-inch) separates plastic cowlings fused by dirt buildup without cracking surfaces.
Compressed air at 90 PSI clears cooling fins of debris–the nozzle must maintain 2-inch distance to avoid damaging delicate aluminum fins. A cigarette lighter serves as a makeshift heat source for shrinking heat-shrink tubing when repairing damaged power leads–avoid open flames near combustible lubricants.
Safety glasses with ANSI Z87.1 rating protect from spring-loaded parts that can eject unexpectedly during disassembly–side shields shield peripheral vision from ricocheting metal fragments. Nitrile gloves (6 mil) prevent skin contact with petroleum distillates while allowing dexterity for handling tiny washers.
A ground strap connected to a metal workbench eliminates static discharge that could damage electronic components–wrap it around the wrist before handling circuit boards. Infrared thermometer measures muffler temperatures post-operation–readings above 200°C indicate restricted exhaust flow requiring internal inspection.
Step-by-Step Guide to Locating the Air Filter and Fuel System
Begin by placing the outdoor power unit on a stable, flat surface with enough clearance to work safely. Identify the engine housing–usually a plastic or metal casing near the front or side–where airflow components are housed. Most models have latches or screws securing the cover; use a screwdriver or socket wrench to remove them. Keep fasteners organized to avoid misplacement.
The air filter is typically positioned adjacent to the carburetor or intake vent, often behind a removable panel. Look for a rectangular or circular component with foam, paper, or cotton material enclosed in a plastic or metal frame. If the filter is dirty, clean it with compressed air or replace it if worn. Check the manufacturer’s manual for exact specifications on filter type and replacement intervals.
For the fuel system, trace the fuel line from the tank to the engine. The tank is usually a translucent plastic container with a cap, located above or beside the engine. Inspect the fuel line for cracks, leaks, or disconnections. If the engine runs poorly, a clogged fuel filter may be the issue–locate it inline between the tank and carburetor. Replace it if fuel flow appears restricted.
Key Components and Their Locations
| Component | Typical Location | Maintenance Action |
|---|---|---|
| Air filter | Under engine cover, near carburetor | Clean or replace every 25 hours of use |
| Fuel tank | Top or side of engine housing | Drain old fuel before storage |
| Fuel filter | Inline, between tank and carburetor | Replace if engine sputters or stalls |
| Carburetor | Directly behind air filter | Clean jets if starting issues occur |
To access the carburetor, remove the air filter housing completely. Most carburetors are held in place by two screws or bolts; detach them carefully to avoid damaging gaskets. Inspect for debris, varnish buildup, or sticky residue–especially if the engine idles erratically. Use carburetor cleaner specifically designed for small engines, spraying into all orifices while avoiding excessive liquid.
Examine the primer bulb, usually a small rubber or plastic dome near the carburetor. Press it several times when cold-starting the unit–if it feels spongy or doesn’t rebound, the bulb or associated fuel line may need replacement. Check the fuel-line connections for proper sealing; loose or cracked lines can introduce air, causing hard starts or stalling.
Reassembly requires attention to gasket placement. Ensure all seals–such as those around the air filter or carburetor–are intact to prevent unfiltered air or fuel leaks. Tighten screws evenly to avoid warping the housing. After installation, test the engine at varying RPMs to confirm smooth operation. If problems persist, verify spark plug condition and ignition timing before further troubleshooting.
Regular maintenance of these systems extends engine life. Record service dates and replacement parts; refer to the unit’s technical specifications for torque values and fluid requirements. Store the machine in a dry, ventilated area with the fuel tank empty to prevent carburetor clogs during inactivity.
