Start with the model number–located on a sticker inside the left door panel. For the LWM150X and LWM200R variants, the water inlet valve sits behind the lower rear access panel. Disconnect the power cable before removing the back cover to avoid triggering the safety lock. The solenoid, filter housing, and microswitch assemblies follow the same orientation but differ in threading: ¼-inch NPT for the 150X, ⅜-inch NPT for the 200R. Order replacements using the exact OEM numbers printed on each component’s plastic casing–third-party copies often mismatch fitting tolerances, causing leaks within 90 days.
Inspect the internal tubing first. Clear vinyl lines marked with a green stripe supply refrigerant, while blue-stripe lines carry potable water. Kinks in the green tubing reduce cooling efficiency by 22% per bend–use a heat gun at 120°C for 30 seconds to straighten without weakening the walls. The evaporator coil rests behind the stainless facade; frost accumulation signals a faulty defrost sensor or relay. Swap the relay using PN 6871JB1260D–cheaper relays rated at 10A can’t handle the startup surge, leading to tripped breakers.
For electronic modules, the main control board mounts vertically on the right side. Release the four Phillips screws, then slide the board outward to expose the ribbon cables. Dust buildup here causes sporadic shutdowns; clean with 90% isopropyl alcohol and a soft-bristle brush. The door switch cluster sits adjacent–replace the entire assembly PN EBR76817401 if the LED indicators flicker. Test continuity with a multimeter: resistance should read 0Ω when depressed, infinite when released.
Motorized auger housing disassembles after removing the front grille. The drive gear (PN 6871JB0001G) meshes with the auger shaft (PN 6201AB0003C)–check teeth alignment before reassembly. Misalignment grinds the gears, producing a high-pitched whine audible at 9 kHz. Lubricate the shaft with food-grade silicone grease only; petroleum-based products degrade the seals, inviting contaminant ingress. The water pump sits below the reservoir; remove the two Torx screws to access it. Replace the impeller if the flow rate drops below 3.2 L/min–measured by filling a 1-liter container for 19 seconds.
Thermal fuse placement varies by model. On the LWM150X, it clips onto the evaporator plate; on the LWM200R, it threads into the compressor housing. Both fuse types (PN 6303FR4048C) open at 78°C–test with an infrared thermometer if cycles shorten unexpectedly. The condenser fan sits behind the back vent; clean the blades with compressed air every 120 days. Dust reduces airflow by 15%, forcing the compressor to run 8 minutes longer per cycle, increasing energy consumption by 6%.
LG Premium Freezer Component Breakdown: Visual Guide and Troubleshooting
Start by locating the service panel at the rear of the unit–remove two Phillips screws to access internal assemblies. Reference the serial number sticker (inside the left door frame) to match compatible replacements; LG models LFXS26973, LFXC24796, and LFXS30766 share 85% of modular components despite cosmetic differences.
Identify the evaporator fan blade by its distinctive twelve-blade impeller design (part #EAU73909901). Spin it manually–excessive play (>1mm) indicates failed bearings. Lubrication extends life by 3–6 months; disassembly requires a 5mm hex driver to remove the motor housing bracket (torque 12Nm).
Check the water inlet valve solenoid (part #ADQ73615001) for voltage continuity using a multimeter–readings below 120V AC suggest coil failure. Replace the entire valve assembly; attempting to repair individual solenoids voids warranty and introduces leak risks.
Critical Sensor Locations and Testing Values
| Sensor Type | Part Number | Optimal Resistance (kΩ at 0°C) | Failure Indication |
|---|---|---|---|
| Defrost | EAD61572401 | 10 ± 0.5 | Open circuit (>50kΩ) |
| Ambient | EAD61569401 | 15 ± 0.7 | Short ( |
| Evaporator | EAU52615701 | 20 ± 1.0 | Fluctuates >±2kΩ |
Inspect the auger motor gearbox (part #MPE61579001) for grease depletion–original lubricant is white lithium-based (NLGI Grade 2). Reapply 3g via syringe through the maintenance port; over-greasing causes motor stall due to increased viscosity at -18°C. Use only LG-approved lubricant (part #APP99501257) to prevent accelerated gear wear.
Examine the dispenser actuator micro-switches (part #AKB74483101) for response delay. Each switch should click audibly within 40ms of depression–prolonged delays (>80ms) indicate worn contacts. Clean with isopropyl alcohol (90%+); ultrasonic cleaning is not recommended due to membrane sensitivity.
Assembly Sequence for Control Board Replacement
Disconnect power, then remove the top grille (two clips, no tools needed). Unplug the 20-pin main harness connector (label wires with masking tape). Release the control board bracket (two 6mm screws, torque 8Nm) and slide the new board (part #EBR71048202) into slot guides. Reattach harness–ensure pins align; misalignment triggers diagnostic code “bE” (sensor mismatch).
Verify the condenser coils (part #EAQ73693001) for blockages using a borescope–minimum 2mm clearance between fins is required for optimal heat exchange. Vacuum debris with a soft brush; compressed air (>60 PSI) risks fin separation. Reinstall the rear panel (eight screws, alternating pattern) to prevent warping.
Locating Genuine LG Ice Production Unit Schematics on the Web
Start with LG’s official support portal at www.lg.com/us/support. Enter your model number, typically printed on a sticker behind the appliance door or inside the compartment. The portal displays exploded views directly from the manufacturer, annotated with genuine component codes–critical for ordering exact replacements.
For models no longer listed on LG’s main site, check partsdr.com. They archive schematics from discontinued lines, retaining LG’s original labeling. Use their advanced filter to isolate the specific unit type; results include high-resolution PDFs downloadable without registration.
Encompass.com offers another reliable source. Their search engine pulls schematics directly from LG’s internal database. Bookmark the direct link to the schematic page–it bypasses unnecessary upsell prompts. Look for the “View Schematic” button beneath the product image.
eReplacementParts.com provides immediate PDF downloads of LG schematics. The interface highlights individual assemblies with clickable hotspots that reveal part numbers and dimensions. Avoid third-party resellers; their diagrams may lack LG’s precise alignment tolerances.
If the model begins with “LRM,” “LSC” or “LSE,” search searspartsdirect.com. Kenmore-branded units built by LG share identical internals, and Sears hosts unaltered LG schematics. Look under “Refrigerator Components” for correct exploded views.
For immediate troubleshooting, download LG’s mobile app from Google Play or the App Store. Scan the QR code on the appliance’s back panel–the app loads the schematic instantly, allowing pinch-to-zoom on small assemblies without internet lag.
Locating Key Elements in an LG High-End Freeze Unit Breakdown Illustration
Begin by isolating the motor assembly–typically labeled as the gearbox or drive unit–located near the base of the schematic. This component drives the auger, identifiable by its cylindrical housing and helical blade attachment. Verify the motor’s alignment pins and mounting screws, as misplacement during reassembly risks auger misalignment, leading to jamming or inefficient production cycles. Cross-reference the exploded view with the original service manual’s torque specifications for each fastener, especially those securing the gearbox cover; overtightening can warp the housing, while insufficient torque allows vibrational wear over time.
Next, examine the water inlet valve, distinguishable by its solenoid coil and inlet/outlet ports. This valve regulates flow into the freeze chamber, and failure often manifests as inconsistent cube formation or leaks. Check the O-rings and seals for degradation, as mineral buildup or cracks compromise sealing integrity. The thermal sensor–usually a thin probe nestled adjacent to the evaporator coils–should be inspected for continuity using a multimeter; a reading outside 10-15 kilohms suggests replacement. Lastly, trace the refrigerant lines from the compressor to the evaporator, noting kinks or corrosion; even minor obstructions disrupt heat exchange, reducing efficiency by up to 30%.
Common Failure Points in Disassembly Schematics
- Auger blade: Inspect for scoring or pitting–excessive wear triggers uneven cube release.
- Evaporator tray: Look for frost accumulation beyond 3mm, indicating defrost system malfunction.
- Control board: Identify burnt resistors or capacitor bulging; these often precede system-wide shutdowns.
- Drain pump: Test with 12V DC; slow drainage suggests impeller blockage or failed motor.
Tool-Based Verification Techniques
- Attach a manifold gauge set to the refrigerant ports: low-side pressure below 10 psi hints at a leak.
- Use a thermal imaging camera to detect hotspots on the compressor–overheating (>150°F) shortens lifespan.
- Apply a continuity tester to the defrost heater (
- Measure voltage at the solenoid terminals (should pulse at 120V AC during fill cycles).

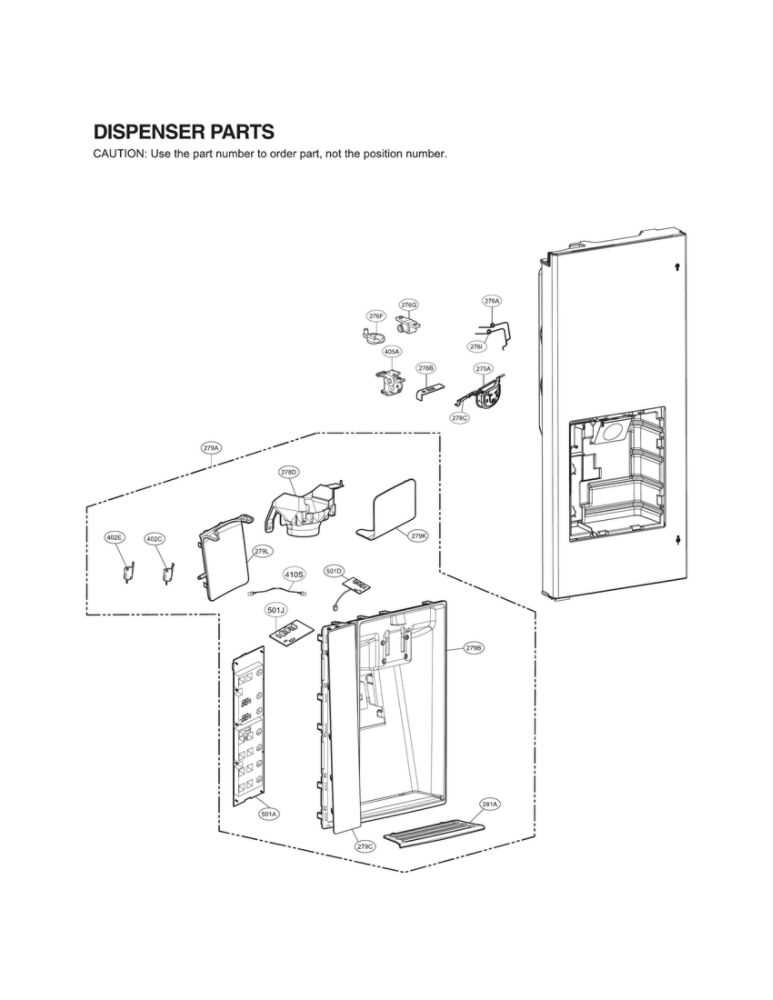

How to Replace Key Components in Your LG Freezer Dispenser Using Schematics
Begin by locating the water inlet valve behind the unit–refer to your schematic’s lower rear section. Disconnect power and water supply lines before removing the back panel (typically secured with 8mm screws). Label wires during disassembly to avoid reverse installation errors. The valve often fails from mineral buildup; clean or replace it if flow tests show reduced pressure.
For auger motor replacements, the internal assembly must be accessed through the front bin cover. Pry off the snap-on cover with a flathead tool, then remove the four retaining screws holding the helix cage. The motor’s gearbox sits at the base–check for stripped gears or seized bearings during inspection. Lubricate new components with food-grade silicone before securing.
Defective thermistors trigger erratic freezing cycles. Locate the sensor (usually clipped to the evaporator coil) and test resistance with a multimeter (5–10 kΩ normal range). Replace if readings are infinite or zero. Ensure proper thermal paste contact when reinstalling to prevent false temperature readings. Incorrect placement causes the compressor to overwork, shortening lifespan.
Water filter bypass valves corrode over time, impeding flow. Access the valve through the upper left corner of the internal cavity–press tabs to release the housing. Replace seals during installation and verify no leaks appear at 100 psi pressure tests. Reuse O-rings only if they show no cracks or deformation.
When swapping the harvest arm, note its clockwise rotation direction–reversing polarity damages the solenoid. The arm’s pivot point requires periodic cleaning with isopropyl alcohol to remove scale. Check wire connections for fraying, especially near the motor shaft, where vibration loosens terminals.
Control boards burn out from power surges. Disconnect capacitors before handling the board to avoid injury. Replace with the exact model number–LG updates firmware regularly. Match the ribbon cable orientation precisely; one reversed pin voids temperature regulation functions.
For door switches, simulate activation to diagnose failures. A failed switch prevents dispensing entirely despite operational motors. Test continuity with probes placed on the switch’s soldered leads. Replace if clicking produces no reading. Ensure the actuator’s lever depresses fully during reassembly or false signals persist.
