Replace the main control board (EBR73533301) immediately if error code LE appears. This component governs motor function and water intake cycles–visible on the rear upper-left panel when the back cover is removed. Remove the top panel first by unscreting the two 8mm hex bolts at the rear edges (use a T25 driver). The control board sits beneath a plastic shield secured by three Phillips screws.
For detergent dispenser issues (model ADS74825901), detach the entire upper assembly by pressing the retaining clips on both sides. The dispenser’s locking mechanism often traps powder residue–clean the rubber seal inside the drawer cavity with isopropyl alcohol to restore smooth operation. If the water inlet hose (part 4681EA2001T) leaks, replace the integrated mesh filter; it’s threaded directly into the cold-water valve inlet.
The tub bearing (kit 4812ER0001C) requires full disassembly when squealing occurs. Remove the rotor (component 6326ER2001A) by unscrewing the central 17mm bolt, then split the tub halves–four tub support clips secure them. Lubricate the new bearing with high-temperature grease (NLGI Grade 2) before reattaching the spider arm (part 4860ER0004A).
Door latch malfunctions (part EBT67473201) trigger error dE–test continuity with a multimeter (expected 500–1200Ω resistance). Replace if readings drop below 200Ω. The latch connects via a 4-wire harness; align the cam notch precisely before tightening the mounting screws. For spin cycle imbalance, check the shock absorbers (pair 4811ER1002R)–bend them slightly rearward if the drum rocks excessively during agitation.
Download the exploded view PDF 3829ER7002D-Exploded-View-EN.pdf from LG’s official support portal for torque specifications–most screws require 4–6 Nm of force, except tub bolts (12 Nm). Cross-reference serial numbers with supplier listings: genuine parts begin with “E” followed by numeric codes, while third-party alternatives (e.g., RepairClinic #1196901) may vary in structural integrity.
LG Front-Load Washer Component Breakdown: Key Elements for Repairs
Locate the main control board behind the lower front panel–remove two screws near the drain pump access door and snap off the plastic clips. This board coordinates all cycles; check for burn marks near connectors C201-C205 before ordering replacements (6871EC1024B). If the washer fails to start, test the door lock assembly (EBF49897501) with a multimeter–resistance should read 200-400 ohms when engaged. Replace if readings exceed 1kΩ.
- Motor stator (
4417EA1001C): Verify coil continuity between terminals T1-T4; shorts here trigger error LE. - Suspension rods (
4901FA2472A): Replace all four simultaneously if one fails–mismatched damping causes excessive vibration. - Drain pump (
5859EA1003A): Check impeller for debris; 24VDC should spin it freely when disconnected from wiring.
For water inlet valves, focus on the dual-solenoid assembly (5221FR2031A). Cold valve failure prevents filling; test resistance at 500-1.5kΩ. If the tub fails to balance, inspect the rear shock absorbers (4A73246412)–wear here misaligns the drum, triggering error UE. Always disconnect power before probing electrical components.
- Remove soap dispenser drawer: Press release tab and pull firmly–clean mold buildup in channels with vinegar.
- Access rear bearings: Split the outer tub along the seam (torx T20); bearing kit (
4280FR4048J) includes sealant. - Verify hall sensor alignment: Misaligned magnets on the drum backplate cause spin cycle failure.
Locating Key Elements Inside Your LG Front-Load Washer
Before disassembling, unplug the appliance and turn off the water supply valves. The main control board sits behind the lower front panel–remove the three screws securing the toe panel and slide it downward to reveal the board. This 12-layer PCB manages cycle selection, water temperature, and motor operation; label each wire harness connector with masking tape before detachment to simplify reassembly.
Access the drive motor by tilting the machine backward at a 45-degree angle against a stable wall–never lay it flat to avoid damaging the drum suspension. The motor is mounted directly beneath the stainless steel drum, secured with four Torx T25 bolts. Inspect the carbon brushes for wear if the drum fails to spin; replacement brushes must match the original 17mm length to ensure proper contact with the commutator.
Water Inlet and Drain Assembly
Shut off both hot and cold water hoses before servicing. The dual-solenoid inlet valve is positioned behind the top rear panel, accessible after removing two Phillips screws. Trace the black and red solenoid wires to the control board if the tub fails to fill–continuity tests should read 3.5–5 kΩ across each coil. The drain pump, located at the bottom front corner, is secured with a single screw and clamped hose connections; check for foreign objects obstructing the impeller before assuming pump failure.
Suspension and Counterweight Verification
The two rod-type shock absorbers attach between the outer tub and frame–compress each rod by hand to detect leaks or stiffness, replacing both if one shows signs of wear. The heaviest concrete counterweight sits bolted to the front of the outer tub, while the secondary weight is mounted at the top rear; torque specs for all bolts are 18–22 Nm. Misaligned or cracked counterweights produce excessive vibration during extraction cycles–ensure rubber gaskets are intact beneath each weight before reinstallation.
Step-by-Step Disassembly for Accessing LG Front-Load Washer Internals
Unplug the appliance and disconnect the water supply hoses before proceeding. Place the machine on its back using a padded surface to prevent scratches to the cabinet. Remove the lower rear access panel by unscrewing the four hexagonal fasteners–two at the top and two at the bottom. Set the panel aside and disconnect the drain pump electrical connector located at the bottom left corner.
Rotate the washer upright and open the door. Pry off the door boot seal clamp using a flat-head screwdriver, working carefully around the circumference to release the retaining band. Once the clamp is removed, peel the seal inward toward the drum. Locate the three Torx screws securing the door lock assembly–one at the top right, one at the top left, and one at the bottom. Remove these screws and set the assembly aside.
Lift the top panel by sliding it backward approximately 2 inches. Tilt the panel upward and support it with a prop or have an assistant hold it. Disconnect the user interface ribbon cable near the right side by pressing the locking tab and pulling gently. Remove the six screws–three along the front edge and three along the rear edge–that secure the control housing. Lift the housing away from the chassis.
Disassembling the Outer Drum
| Component | Fasteners | Removal Tool | Notes |
|---|---|---|---|
| Suspension rods | 4 retaining clips | Pliers | Unclip from mounting brackets before removing springs |
| Counterweight (top) | 2 M10 bolts | 17mm socket | Lift straight up to avoid damaging weight guides |
| Outer drum bolts (rear) | 8 M8 bolts | 13mm socket | Mark positions for reassembly alignment |
Release the four suspension rods by squeezing the retaining clips with pliers and pulling downward. Support the outer drum as the rods detach. Remove the top counterweight by unscrewing the two M10 bolts with a 17mm socket–rotate counterclockwise while stabilizing the weight with your other hand. Detach the heating element connector located at the rear left side of the drum.
Remove the eight M8 bolts securing the outer drum to the chassis, noting their positions for reassembly. Two are located at the rear near the motor mount, three span the left side, and three span the right side. Lift the outer drum assembly upward while guiding the motor and pulley away from the rear chassis mounting point. The drum inner tub remains suspended by the shock absorbers–lower it carefully to avoid disconnecting the wiring harness.
Accessing Internal Mechanisms
Disconnect the shock absorbers by removing the four retaining pins–two at the bottom front and two at the bottom rear. Use a screwdriver to depress the locking tab on each pin before pulling it out. Rotate the inner tub to expose the bearing housing at the rear center. Remove the three Phillips screws securing the bearing retainer plate. Tap the spindle shaft with a rubber mallet to free the bearing assembly from the tub–apply even pressure to prevent misalignment.
Inspect the stator assembly mounted behind the drum’s rear wall. Disconnect the two electrical connectors–one for the stator and one for the temperature sensor. Remove the four Torx screws securing the stator to the back plate. Slide the stator outward, maneuvering around the drum’s rear opening. Replace components only if continuity tests or visual inspections reveal faults–rewashing cycles typically exceed 1,000 loads before routine servicing requirements.
How to Pinpoint Key Components in Your LG Front-Load Washer Using the Schematic
Locate the drive belt first–it’s usually marked near the motor pulley in the lower rear of the assembly layout. The schematic labels it as a serpentine strip with reference codes like 4414EA0103A or 4414EA0102E, depending on the revision. Check for cracks or fraying; if present, order the exact OEM replacement using these codes–third-party belts often misalign with the tensioner.
For frequent issues, cross-reference these components on the exploded view:
- Door lock assembly (6721EA2001A): Test with a multimeter for 120V at the lock terminals when the cycle starts. If voltage exists but the latch fails, replace the mechanism–don’t attempt to repair microswitches.
- Water inlet valves (3977ER2003A): Each solenoid (hot/cold) shows coil resistance between 500–1500 ohms. Lower readings indicate failure; compare both sides before ordering.

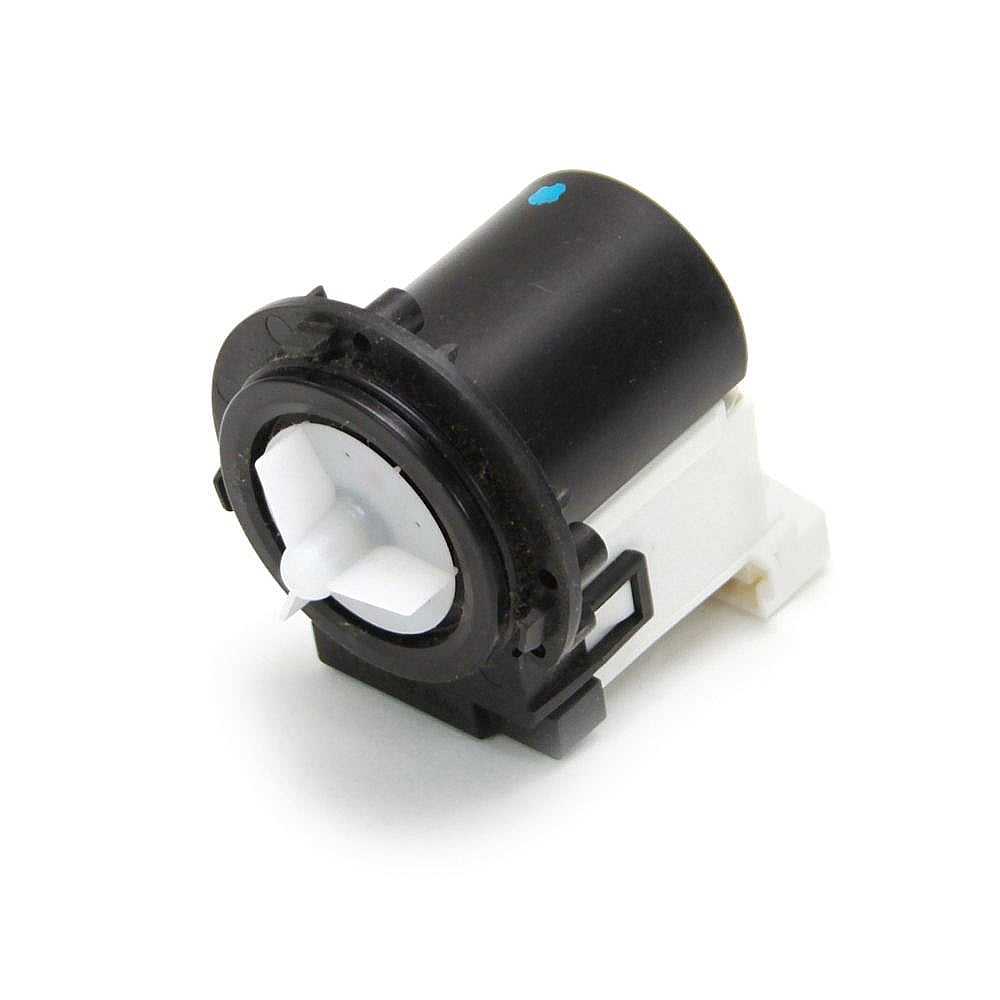

- Drain pump (4681EA2001C): Remove the lower front panel to access. Shake to detect debris rattling–if silent, measure for ~10 ohms across the winding. Replace if open or shorted.
- Suspension rods (4901EA2001L): Inspect for rubber degradation at the pivot mounts. Replacement requires stabilizing the drum–refer to step 6 in the repair manual for torque specs (25–30 N·m).
Always disconnect power and verify the absence of residual voltage before handling electrical elements. The schematic’s item numbers match the OEM catalog–use them to avoid compatibility errors. For motors or PCBs, prioritize identical replacements; modified versions may trigger error codes or cause premature failure.
