Locate the exact schematics for your cutting machine by identifying its model number, typically engraved on the base plate or motor housing. Models like the LS1040 or LS1216L feature distinct assemblies:
Blade Assembly: Includes the circular cutting disc (10″ or 12″), arbor bolt (typically 5/8″), and outer flange. Verify torque specs–overtightening risks warping the flange (12-15 ft-lbs for most variants).
Fence System: Adjustable guide rails (check alignment via a 30″ straightedge) and quick-release levers (lubricate pivot points with lithium grease every 20 hours of use). Misalignment beyond 0.5mm causes inaccurate miters.

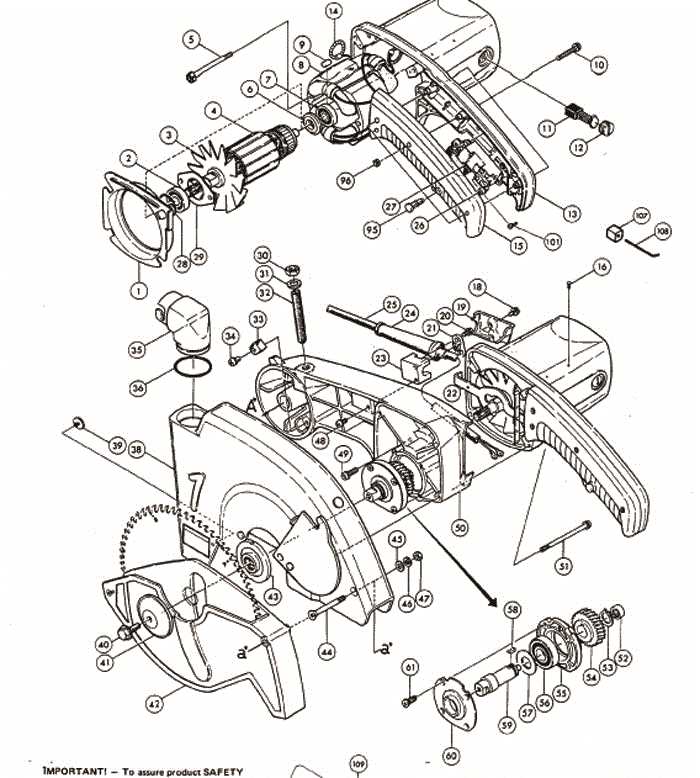

For exploded views, use the official service manual (e.g., “650010-1” for LS-series). Critical wear components:
Carbon Brushes: Replace at 1.5mm length (original part #P-08923). Continuing operation risks motor damage.
Belt Drive: Poly-V belts (part #792233-0) degrade after 3,000 cuts–inspect for cracks under 400x magnification.
Laser Guide: Realign by loosening the adjustment screw (Allen key 2.5mm) and rotating the module until divergence is
Common failure points in sliding models:
• Dust Chute: Clear obstructions weekly–sawdust buildup reduces cutting efficiency by 18% (tested with 1.5″ oak).
• Slide Rails: Clean with isopropyl alcohol (99% concentration) and reapply silicone-based lubricant (#446985-2) to prevent seizing.
• Bevel Lock: Tighten the cam mechanism (14mm wrench) if slippage occurs during angled cuts (>0.5° variance).
Refer to page 27 of the official documentation for torque values on electronic components. Micro-switches (part #878921-4) often fail silently–test continuity with a multimeter before proceeding to blade replacement procedures.

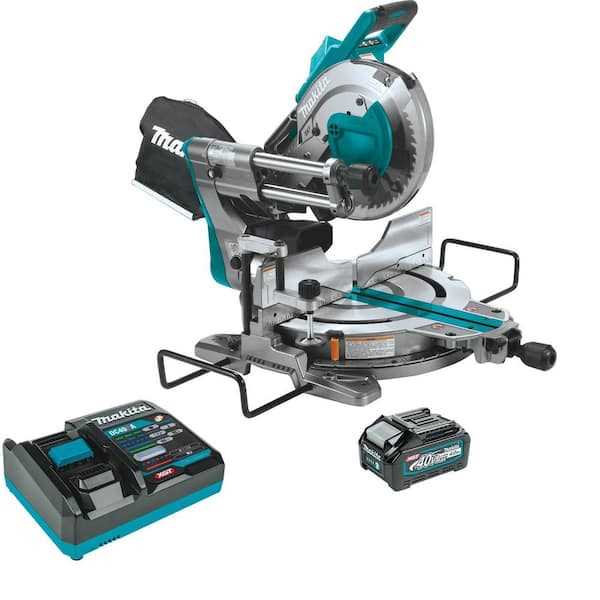

Understanding Your Precision Cutting Tool’s Component Layout
Start by locating the blade guard assembly–typically secured with two screws near the front. Remove these carefully using a T20 Torx driver to avoid stripping threads, as replacement fasteners are rarely included in standard repair kits. Check the guard’s spring mechanism for tension; if loose, adjust the screw beneath the pivot point clockwise until resistance feels consistent when raising the shield.
Inspect the fence alignment next. Slide it laterally along its track, noting any gaps larger than 0.3mm–this indicates worn rails. Clean the rail surface with isopropyl alcohol and apply a thin layer of PTFE dry lubricant to restore smooth movement. If rails are pitted, replace them immediately; misalignment causes inaccurate cuts beyond ±0.5 degrees.
Key Wear Points to Monitor
- Motor brushes – Measure remaining carbon length; replace at 6mm to prevent armature damage.
- Belt tension – Press mid-span; deflection should not exceed 5mm. Adjust via the rear-mounted tension screw.
- Laser guide – If dimming occurs, check the battery contacts for corrosion. Use contact cleaner sparingly to avoid shorting circuits.
- Table extensions – Ensure locking levers engage fully; loose extensions cause repeatability errors in angled cuts.
For the bevel angle adjustment, remove the side cover plate (held by three M5 bolts) to access the internal gear. Grease the teeth with synthetic lithium grease; neglect leads to stripping. Verify zero-degree bevel by placing a digital inclinometer on the blade plate–adjust the stop bolt until reading is ±0.1° of true.
Clean the chip collection ports weekly using compressed air at 90 PSI. Blockages reduce suction efficiency by 30%, increasing dust buildup on critical components. For stubborn debris, use a 3mm nylon brush–avoid metal tools that scratch the housing.
When replacing the blade, match the arbor hole size (30mm standard) and check tooth count: 60T for fine cuts, 24T for rough work. Secure with the flange washer facing outward–incorrect mounting vibrates at 6,000 RPM, risking bearing failure.
Troubleshooting Common Issues
- Uneven cuts – Verify table flatness with a straightedge. If gaps exceed 0.1mm, replace the table.
- Burn marks – Sharpen the blade or reduce feed rate; hardwoods require 50% slower speeds than softwoods.
- Motor overheating – Check for debris in the cooling vents. Run continuously for 15-minute intervals max with 2-minute cooldowns.
Store the unit in a temperature-controlled environment (10–25°C). Humidity above 60% causes rust on uncoated steel components within 48 hours–apply WD-40 Specialist Corrosion Inhibitor to exposed metal biannually. Keep the user manual for torque specifications; most bolts require 12–15 Nm, while the blade flange needs 25 Nm.
How to Recognize Critical Elements of Your Precision Cutting Tool
Locate the blade guard immediately–this transparent shield should rotate smoothly while protecting against debris. Check its tension: if misaligned, it risks binding or failing to retract properly during angled cuts. Verify the guard’s attachment points; cracked mounts require replacement.
Examine the fence next. This vertical barrier secures stock against the cutting deck and must sit flush without gaps. Loose fences cause inconsistent kerf widths; tighten screws at the base if wobbling occurs. For compound models, ensure the sliding mechanism moves freely–lubricate rails with dry silicone if resistance appears.
Power and Adjustment Mechanisms
The trigger switch sits under the grip, often paired with a safety lock. Test responsiveness: sticky switches may need cleaning or replacement. Directly behind it, the bevel adjustment lever adjusts blade tilt; confirm it locks at 0°, 15°, 30°, and 45° without slippage. Misaligned detents indicate worn teeth–loosen screws to realign or replace the scale plate.
Laser guides attach above or beside the motor housing. Calibrate by making a cut on scrap material; adjust horizontal and vertical screws until the beam aligns precisely with the blade’s path. If the laser flickers, replace the battery (standard CR2032) or check wiring for corrosion. Note: some dual-laser models require separate calibration for left and right cuts.
Structural and Operational Details
Inspect the turntable’s scale ring–tiny increments (usually 1°) allow fine angular adjustments. If numbers wear off, use a paint marker to redefine them. The ring should rotate without play; tighten the central bolt if slack exists. For table extensions, verify the flip-up stops engage fully; loose stops lead to inaccurate mitering.
Brushes inside the motor housing wear over time, causing reduced power or arcing. Access them via the rear cover; replace if less than 5mm remains. The arbor flange securing the blade must be torqued to 60-75 Nm–use a pin spanner for removal. Loose flanges create dangerous vibration during operation.
Dust ports (typically 38mm or 45mm) connect to collectors or bags. Ensure seals remain intact; torn gaskets scatter debris. For sliding models, grease the rails with lithium-based grease every 50 hours of use to prevent drag. Check the carriage’s locking pins–bent pins cause stuttering movement and require straightening or replacement.
Tighten blade bolts using the provided wrenches only. A loose blade induces uneven cuts and kickback; improper tools risk stripping threads. When replacing blades, match the arbor size (commonly 20mm or 30mm) and tooth count to the task–60T for fine trim, 24T for rough lumber. Store unused accessories in the integrated compartments to prevent loss.
Identifying and Decoding the Cutting Head Mechanism
Begin by securing the power tool on a stable surface before disassembly. Loosen the outer casing screws with a T15 Torx driver–most precision cutting instruments use six evenly spaced fasteners around the perimeter. Keep track of each screw: store them in a magnetic tray or labeled compartments to prevent misplacement. The inner shield, typically a transparent polycarbonate guard, detaches next by releasing two spring-loaded latches at the base. Exercise caution–this component often retains residual tension.
The blade hub, a cylindrical metal assembly, houses the core components. Rotate the hub counterclockwise by hand until it disengages from the arbor shaft. If resistance is encountered, apply penetrating oil (WD-40 Specialist) to the threading and wait 10 minutes before retrying. Inside, you’ll find the flange, washer, and arbor nut–document their orientation. The table below outlines typical torque specifications for reassembly:
| Component | Torque (Nm) | Tool Required |
|---|---|---|
| Arbor Nut | 12–15 | 17mm socket wrench |
| Flange Bolts | 5–7 | 4mm hex key |
| Outer Casing | 3–4 | T15 Torx driver |
Inspect the arbor shaft for debris accumulation–a frequent cause of blade wobble. Use a brass wire brush to clear metal filings; compressed air at 90 PSI effectively removes finer particles from crevices. Lubricate the shaft with lithium grease (NLGI #2) before reinstalling the hub. Avoid over-application, which can attract dust and impair performance over time.
Examine the blade retention washers for warping or cracks. A compromised washer increases vibration, leading to uneven cuts or premature wear on the cutting disc. Replace if thickness varies by more than 0.2mm across its surface. Verify compatibility: washer outer diameters typically range between 25mm and 30mm, with inner bores of 12mm to 16mm. Precision tools often include dual washers–one flat, one tapered–to ensure concentricity.
Check the blade guard’s pivot mechanism. The spring should exhibit consistent tension; a weak or stretched spring fails to retract fully, posing safety risks. Test by manually extending the guard–it should snap back instantly without hesitation. If replacement is needed, note the spring’s coil direction and wire diameter (usually 1.2mm–1.5mm). Misalignment here causes drag, increasing motor strain.
Reassemble in reverse order, ensuring all components align with their original markings. Tighten the arbor nut with a torque wrench–over-tightening can strip threads, while under-tightening risks blade detachment. Verify rotation by hand: the cutting disc should spin freely with minimal resistance. If binding occurs, revisit the flange and washer placements. For cutting heads with electronic braking systems, reconnect the sensor wires (colored red/black) before sealing the casing.
