For precise maintenance or repairs on a 2000-2005 25 horsepower two-cycle marine engine, refer to the exploded view manual OEM part #27B-848039A05 or Service Manual #27B. This documentation includes detailed cross-sections of the powerhead, midsection, and lower unit assemblies. Key assemblies to inspect first include the carburetor (part #27B-848040), ignition module (part #27B-848038), and water pump housing (part #27B-848020)–these are frequent failure points in high-hour units.
Replace consumables in intervals: spark plugs (NGK BR8HS-10, gap 0.030″) every 100 hours, fuel filter (10-micron, part #27B-848069) every 50 hours, and gearcase lubricant (Yamalube Marine Grease) at 100-hour intervals. Use Mic63 or equivalent two-stroke oil mixed at 50:1 for break-in, then 100:1 for normal operation. Verify torque specs before reassembly–cylinder head bolts: 9-10 ft-lbs, exhaust cover bolts: 12-14 ft-lbs, flywheel nut: 55 ft-lbs.

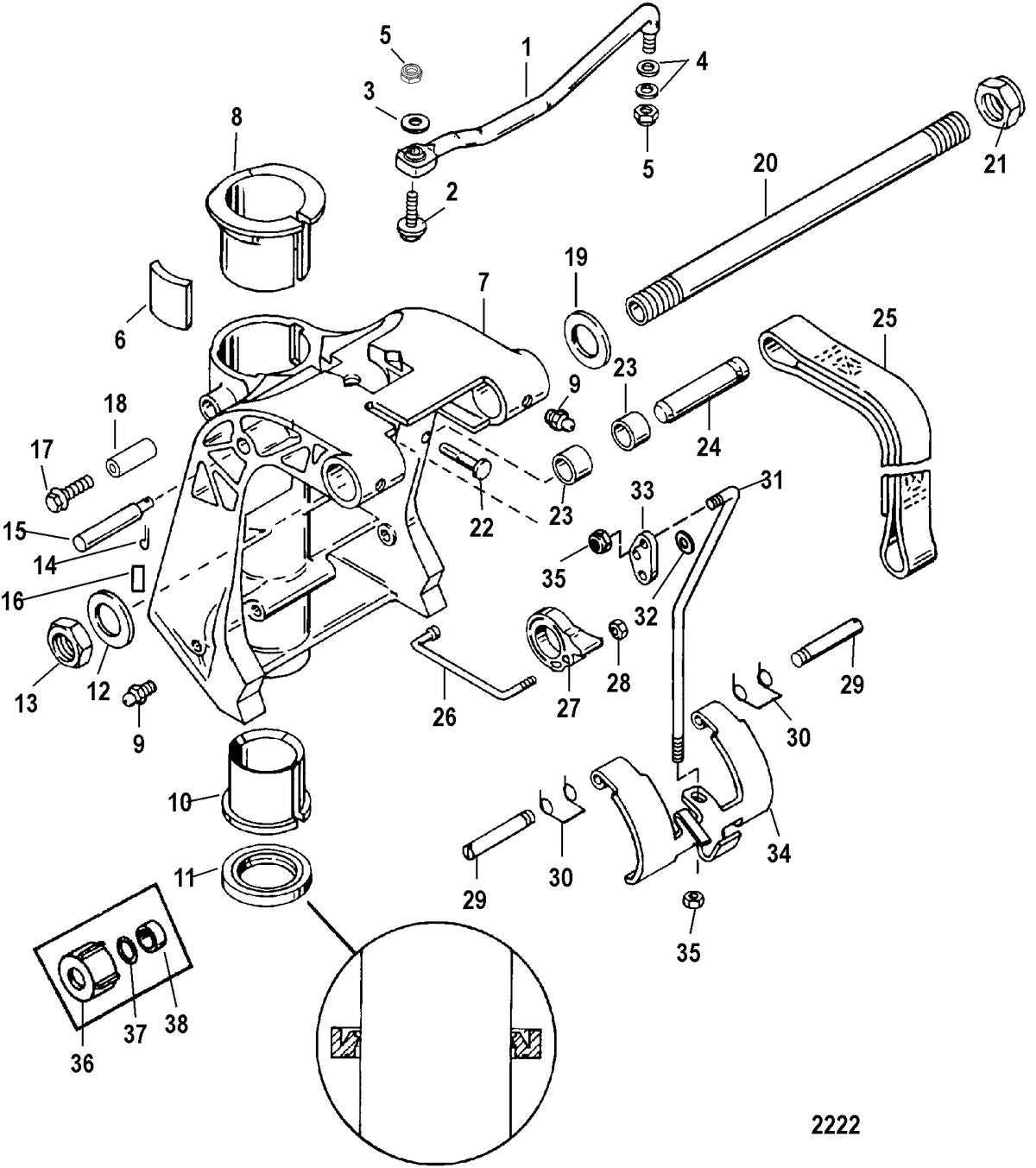

Access the official exploded diagrams via marinepartssource.com using the exact model code stamped on the swivel bracket–typically 25ELHSA or 25MLHSA. If ordering replacements, match components by serial number; pre-1998 models require 7.5A alternator stators, while 1999-and-newer use 10A units (part #27B-848036). For wiring references, trace circuits with a multimeter–faulty rectifier/regulator (part #27B-848028) often causes erratic voltage (normal: 13.8-14.2V at 3000 RPM).
When troubleshooting compression issues, use a wet/dry test: normal readings ≥100 psi per cylinder, variance . Low compression typically indicates worn piston rings (part #27B-848001) or scored cylinder bore–measuring bore diameter with a micrometer (spec: 2.834″ ±0.001″) confirms this. For lower-unit repairs, inspect the propeller shaft (part #27B-848079) for excessive play (max 0.010″ lateral) using a dial indicator.
Visual Breakdown of Your 25 HP Outboard: Key Components & Assembly Tips
Locate the powerhead gasket (OEM #25-992800) between the cylinder block and crankcase before disassembly–clean both mating surfaces with 600-grit wet/dry sandpaper and acetone to prevent compression leaks. Replace the gasket if scoring exceeds 0.1mm; a used gasket will fail under 120 psi pressure tests, risking fuel dilution in the lower unit.
Carburetion System: Adjustments for Optimal Performance
Sync the twin carburetors using a vacuum gauge: set both low-speed screws to 1.5 turns out, then fine-tune at 1,000 RPM with the boat in neutral–target 14.7:1 air/fuel ratio (12-14% oxygen sensor reading). Replace needle valves (#25-993801) every 50 hours if ethanol-blend fuel is used; varnish buildup will distort idle by 300+ RPM. Rebuild kits should include new emulsifier tubes (#25-993812)–older ones cause hesitation at 3,000 RPM due to orifice erosion.
Inspect the water pump impeller (composite models #25-374510A) annually: replace if vanes shrink more than 0.5mm or show cracking at the base–failure leads to overheating (thermal cutoff at 70°C). Grease the new impeller with marine-grade silicone lubricant before installation; petroleum-based grease accelerates wear. Ensure the telltale outlet sprays a 10cm vertical stream at idle–weak flow indicates a clogged thermostat (bypass opens at 65°C).
Torque the flywheel nut to 55 ft-lbs using a 1/2″ drive impact wrench–overtorqueing stretches the crankshaft taper, causing misfire. Check the magneto coil gap (0.012-0.016″) with a brass feeler gauge; incorrect clearance reduces spark intensity by 30%. Replace the CDI box (#25-997548) if voltage output drops below 180V at 5,000 RPM–symptoms include intermittent spark at cold starts. Store spare shear pins (#25-49400) in a moisture-proof container; corrosion weakens the 304 stainless steel, increasing failure risk by 40% after 6 months.
Identifying Critical Elements in the 25 hp Outboard Exploded View
Locate the powerhead assembly first–it sits atop the midsection, typically labeled with part codes starting at “22-” or “33-“. The cylinder block (visible as a rectangular aluminum casting with cooling passages) anchors the pistons and crankshaft; verify its condition by checking for scoring or corrosion in the bores. Adjacent to it, the crankshaft (marked “CRANK-25”) spins within needle bearings–rotate it manually while observing the connecting rods for smooth articulation. The fuel pump, identifiable by its small diaphragm housing (usually painted black), mounts to the side of the block; disconnect the fuel lines before removing it to prevent spills.
Secondary Systems and Fasteners
Trace the ignition components: the flywheel (with magnets embedded) attaches to the top of the crankshaft, while the stator plate (with windings) mounts beneath it–ensure gap measurements between them match 0.012–0.016 inches per service manual specs. The carburetor, a two-barrel unit with adjustable jets, sits aft of the powerhead; note the throttle linkages and choke mechanism positions before disassembly. Exhaust components, including the expansion chamber and water-lock (marked “EXH-25-B”), require inspection for carbon buildup or cracks. Retain all fasteners by thread size–M6 bolts secure most housing covers, while M8s hold structural components; use a torque wrench to avoid stripping threads.
Locating Genuine Component Identifiers for 25 hp Two-Cycle Fuel Mixer Components
The official manufacturer’s service manual remains the most reliable source for original equipment identifiers. Download the PDF from the brand’s authorized dealer portal–search for document number 20-8M008942, which covers models from 1996 to 2006. Each exploded view illustration includes alphanumeric codes adjacent to each item, typically formatted as “12-34567A8.” These codes match precisely with the parts catalog hosted on the manufacturer’s e-commerce platform.
For immediate cross-referencing, use the interactive parts lookup tool on the brand’s consumer website. Enter the serial number stamped on the engine block–instant results display the fuel mixer assembly breakdown with OEM identifiers highlighted in red. Printed dealership catalogs, such as the 2021 Marine Parts Directory, physically list these numbers in table format, indexed by engine model and year code.
Specialized marine forums maintain archived threads where technicians share direct links to OEM identifier tables. Search threads tagged “25 ELPT 97” or “1999 BF25” for screenshots of microfiche sheets–these images often capture handwritten dealer notes alongside factory codes. Third-party platforms like MarineEngineParts.com host scanned dealer invoices that reveal original equipment identifiers matched to common aftermarket substitutions.
Obtain the factory-issued CD-ROM labeled “Parts Matrix 2000–2010”–this disc includes a searchable database exporting CSV files containing every OEM identifier for the 25 horsepower series fuel mixer. The CD’s executable file runs offline, bypassing online registrations and paywalls. Alternatively, request a parts microfiche from any authorized service center–each sheet contains minuscule grids with etched component codes next to corresponding line art.
For older models predating digital catalogs, consult the 1995 printed “Parts Breakdown Booklet”–page 43 details the carburetor assembly for the 25 hp line. Identifiers appear stamped beside each drawing; a magnifying glass helps decipher faded ink. Salvage yards affiliated with marine trade associations offer access to dismantled units–inspect the plastic housing for embossed OEM codes directly molded into the component surface.
Aftermarket rebuild kits from Sierra or Quicksilver often include packaging inserts listing cross-referenced OEM identifiers–compare these to the engine’s serial number decal to confirm compatibility. Factory-trained technicians maintain private spreadsheets linking serial prefixes to specific jet sizes, gasket sets, and diaphragm kits–request access through dealer service bulletins dated 2004–2008.
Step-by-Step Breakdown of a 25 hp Outboard Engine Core Using a Reference Blueprint
Secure the flywheel with a specialized holding tool–any slippage risks damaging the crankshaft taper. Use a torque wrench set to 60 ft-lbs to loosen the nut, rotating counterclockwise. If the flywheel resists, apply penetrating oil at the base and wait 15 minutes before retrying. Document the position of the ignition timing marks relative to the stator plate before removal; misalignment during reassembly will cause ignition failure.
| Component | Tool Required | Torque Spec (ft-lbs) | Common Pitfalls |
|---|---|---|---|
| Flywheel nut | 1/2″ socket, flywheel holder | 60 | Thread stripping if overtightened |
| Powerhead bolts (8) | 10mm socket, breaker bar | 25 | Cross-threading if not aligned |
| Exhaust cover screws | #2 Phillips or 8mm socket | 12 | Seized screws; heat may be required |
Drain all fluids first: tilt the unit fully forward to evacuate residual oil from the gearcase, then remove the lower cowling to access the carburetor linkage–disconnect the throttle and shift cables by depressing the retaining tabs, not by force. Label each cable’s routing with masking tape to avoid reverse assembly errors. Separate the core from the midsection by removing the eight 10mm bolts; three are hidden beneath the exhaust housing–use a magnetic tray to prevent losing fasteners into the bilge. If gaskets remain intact, peel them away carefully; replacement gaskets must match the original thickness (0.020″) to maintain compression ratios.
