For precise repairs or upgrades, refer to the official schematics provided by the manufacturer–third-party interpretations often omit critical tolerances or assembly nuances. The bow-mounted unit’s structural integrity relies on six key assemblies: the lower housing, shaft assembly, propulsion mechanism, control module, steering system, and powerhead. Start diagnostics by isolating each segment; misalignment in the gearcase alone can reduce efficiency by 18-23%.
The shaft assembly includes a tempered stainless steel core rated for 1,200 lbs of thrust, paired with a two-stage seal system to prevent water ingress. Replace O-rings every 500 operating hours–failure rates spike after 700 hours, particularly in brackish conditions. For the propulsion mechanism, inspect the nylon composite prop for stress fractures; hairline cracks propagate rapidly under load, leading to catastrophic failure. Use a torque wrench to secure the prop nut at 45 ft-lbs–over-tightening distorts the thrust bearing.
Electrical diagnostics demand a multimeter with a 0.1-ohm resolution. Check the control module’s 12-way connector for corrosion; even a 0.3-volt drop across pins 3 and 7 triggers erratic steering behavior. The steering system operates via a 48V brushless motor–lubricate the worm gear with marine-grade synthetic grease every 200 hours. For the powerhead, measure amperage draw at full throttle: deviations above 6% indicate bearing wear or commutator pitting.
Order replacements directly from the OEM–aftermarket components often substitute materials, compromising durability. A full parts manifest includes:
- Gearcase assembly (P/N 2884023)
- Steering motor (P/N 181150)
- Control PCB (P/N 2954209)
- Bearing kit (P/N 280382)
Always cross-reference serial numbers–versions 112A and 112B differ in voltage regulation circuits.
Understanding the Schematic for Your High-End Trolling Motor Components

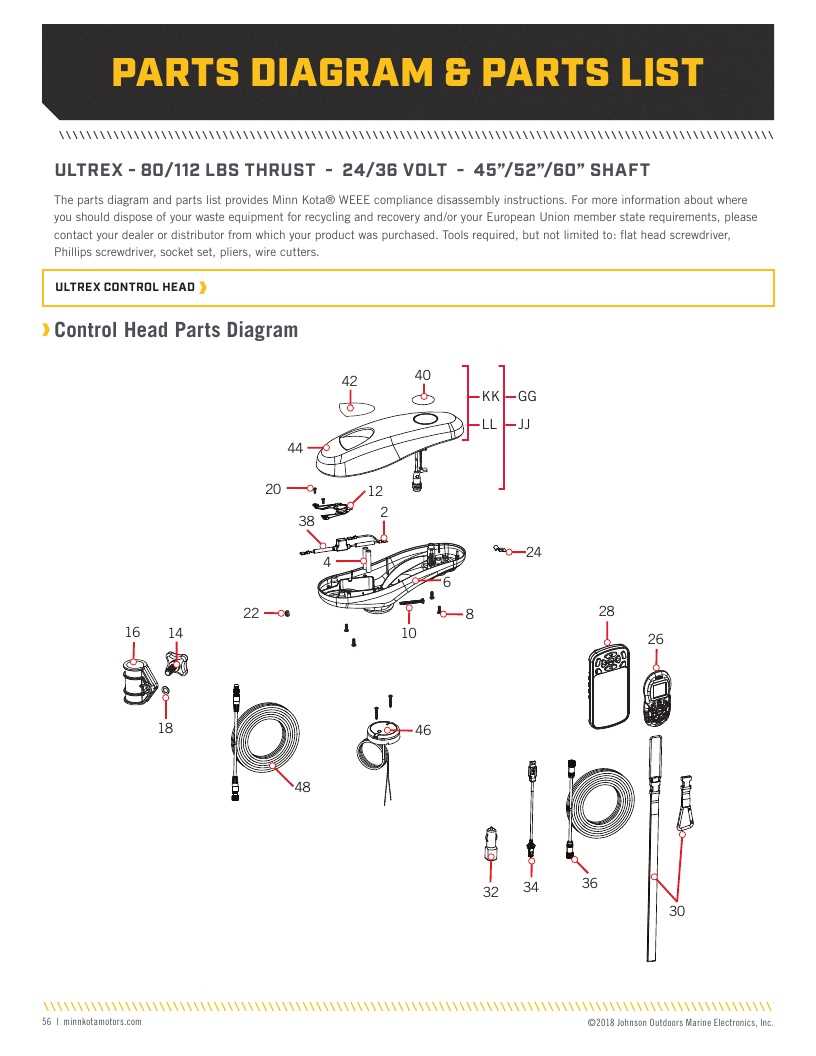

Locate the exploded view schematic by referencing the official model number 1368210–this document details every mechanical and electrical piece, including torque sensors (part #2760351) and steering cables (part #2760353). Download the PDF from the manufacturer’s support portal rather than third-party sources, as revisions occur annually to correct compatibility issues with newer firmware updates.
When replacing the foot pedal assembly–specifically the Ultrex-specific potentiometer–match resistance values (±5% tolerance) to avoid erroneous thrust readings. The integrated circuit board (part #2760355) requires a static-safe workspace; discharge stored voltage by grounding the housing before handling sensitive components. Misalignment here triggers error code EC-42, often misdiagnosed as a power issue.
For propulsion unit disassembly, begin with the lower housing bolts (M8 x 1.25, grade 8.8)–use a torque wrench set to 25 Nm during reassembly to prevent seal leaks. The impeller (part #2760357) demands inspection for cavitation pitting; replace if blade edges exceed 0.3mm wear. Lubricate the shaft bushings with marine-grade grease (NLGI 2, lithium complex) to ensure smooth articulation under load.
Wire harness connectors (part #2760360) degrade from saltwater corrosion–apply dielectric grease sparingly to pins before reconnection, targeting the four central contacts (pins 3–6) that carry thrust calibration signals. Store the schematic digitally on a corrosion-resistant SSD; printed manuals absorb moisture, obscuring critical tolerance specifications for critical seals like the housing gasket (part #2760359).
Locating the Authorized Exploded Component Illustration for Your Saltwater Trolling Motor
The direct source for the official breakdown schematic is the manufacturer’s dedicated support portal. Visit Johnson Outdoors Marine Electronics Support and select the “Product Manuals” section. Enter the model number (e.g., 1369251) in the search bar–this filters results to display the precise schematic, including internal assemblies, mounting hardware, and gearcase subcomponents. Download the PDF for offline reference; it includes torque specifications and sequential disassembly notes.
Alternative Verified Sources
- Dealer Portals: Authorized service centers receive updated schematics through proprietary platforms like DealerTrack or BRP Connect. Contact a local dealer with your serial number–some provide watermarked excerpts if warranty queries apply.
- Manufacturer Hotline: Call +1-800-227-6433 (U.S.) and request “technical documentation.” Agents email exploded views within 24 hours, often including bulletins for revised O-ring kits (e.g., PN 282600).
- Industry Forums:
iBoats.comhosts thread “Ultrex IPX7 Repair Thread” where verified members upload scanned schematics. Verify filenames contain “Rev B” or later to ensure inclusion of prop shaft seal updates.
For third-party platforms, use PartsTy–input your unit’s length and thrust rating to generate an interactive BOM. Confirm cross-references (e.g., shaft coupling PN 186931 matches the official manual’s callout #14). Avoid generic “fish finder” sites; these frequently mislabel tilt tubes or omit thrust bearing assemblies.
Marine salvage yards occasionally archive paper manuals for decommissioned units. Search “salvage motor manuals” on industrial auction sites like GovDeals–target listings specifying “OEM documentation included.” Physical copies often detail older lens shroud assemblies (e.g., PN 299501) excluded from digital revisions.
Detailed Disassembly and Reassembly of Advanced Trolling Motor Systems
Begin by securing the lower unit in a padded vise, clamping only the anodized housing flats to prevent scoring. Detach the propeller assembly by unscrewing the single anti-reverse pin–use a 5/16-inch hex key and apply counter-clockwise torque while stabilizing the drive shaft with pliers. Inspect the zinc anode for erosion exceeding 50%; replace if grooves deeper than 1.5mm are visible, as compromised cathodic protection accelerates gear wear. Label each O-ring (sizes 222, 212, and 204) by position–bow-mount seals differ in durometer, and swapping them causes leaks under 20 PSI pressure.
Gear Mechanism Inspection and Lubrication Protocol
With the lower unit disassembled, check the stainless-steel helical gears for pitting–utilize a magnifying loupe to detect micro-fractures on teeth; even hairline cracks propagate under 1,200 RPM loads. Clean internal cavities with denatured alcohol, removing all factory grease remnants, then pack cavities with 8 oz of marine-grade PTFE lubricant (NLGI #2, chlorofluorocarbon-free). Align the worm gear with the sector shaft precisely–misalignment of 0.003 inches causes binding at full left/right articulation. Reinstall the thrust washers in sequential order (thickness: 0.032″, 0.040″, 0.063″), ensuring they sit flush against the bronze bushings.
Calibrate the steering torque potentiometer post-reassembly by connecting a multimeter to the 3-pin JST connector (resistance range: 50–100 kΩ). Rotate the shaft through its full 60° arc while monitoring voltage–deviations above 0.1V indicate gear lash or wiring corrosion; address by bending the stop screw ¼ turn clockwise. Test propulsion in a 55-gallon barrel with water heated to 68°F–verify stator currents remain within 4–6 amps under 50% throttle. If amperage spikes occur, reduce magnetic drag by sanding stator surfaces with 1200-grit wet/dry paper until uniform grain direction is achieved.
How to Locate and Acquire Spare Components for Your Trolling Motor Using Schematic Guides
Examine the exploded view illustration in your product manual or official service materials. Each component is assigned a unique number or alphanumeric code–cross-reference this identifier with the legend or bill of materials to determine the exact designation. For example, if the shaft seal bears the code “PT-47B,” note this immediately; suppliers categorize items strictly by such references.
Isolate worn or damaged elements by comparing physical condition with the visual representation in the schematics. Pay attention to small fasteners, O-rings, and electrical connectors–these fail more frequently under stress. Record any irregularities such as corrosion, cracking, or abnormal wear patterns alongside the part code to ensure precise ordering.
| Component Group | Typical Failure Indicators | Replacement Lead Time |
|---|---|---|
| Propeller assembly | Bent blades, missing pins, cavitation damage | 3-5 business days |
| Control housing seals | Water ingress, mildew scent, sticky controls | 7-10 business days |
| Lower unit transmission | Gear grinding, excessive vibration, oil leaks | 10-14 business days |
| Electrical wiring harness | Frayed insulation, intermittent power loss | 5-7 business days |
Consult authorized dealers directly instead of third-party marketplaces when sourcing components. Provide the exact code from the schematics–generic descriptions such as “shaft seal” or “motor bracket” often yield incorrect matches. If the dealer requests additional details, confirm whether the component belongs to the powerhead, steering mechanism, or foot pedal subassembly.
Verify compatibility by comparing serial numbers etched on the motor casing or control module with the range listed in the parts catalog. Certain revisions require updated component configurations; failure to match these may result in improper fitment or operational hazards. Example: pre-2020 models use bearing cups designated “ST-28X,” while post-2021 revisions employ “ST-32Y.”
Inspect packaging upon delivery. Confirm the received item matches the code and visual characteristics outlined in the schematics. Test fitment before final installation–some assemblies like throttle linkages or pinion gears require precise alignment, and reinstalling the original component is safer than forcing an incorrect substitute.
Utilize official repair guides for torque specifications when replacing critical elements. Over-tightening seal housings or bearing carriers may cause premature failure. Example: the propeller nut requires 45 ft-lbs, while shaft collar bolts demand 22 ft-lbs–deviations outside this tolerance risk thread stripping or casing distortion.
For dealers unable to provide immediate availability, request backorder status rather than substituting generic alternatives. Document lead times in the table above–some components require custom fabrication or international logistics coordination, particularly precision-machined gears or proprietary circuit boards.
Troubleshooting Unlisted or Obsolete Components
If your schematics reference a discontinued item, cross-examine service bulletins or dealer forums for successor part codes. Manufacturers occasionally rename or consolidate stock–”BRG-51A” may evolve into “BEAR-51X” with identical specifications. Contact technical support with your unit’s serial number and the obsolete code to secure the updated equivalent.
