Replace the ignition assembly if the unit fails to light after three attempts. The component sits behind the front panel, secured with two 4mm screws–remove these with a precision screwdriver to access. Inspect the ceramic burner plate if flames appear uneven; it should sit flush with the combustion chamber. Misalignment often stems from improper reassembly–ensure the three retaining clips snap firmly into place. For inconsistent gas flow, check the regulator diaphragm; a torn or hardened membrane requires immediate replacement (part #BH-REG-08).
Clean the fuel nozzle every 20 hours of operation using a 0.3mm wire brush–carbon buildup reduces efficiency by 12%. The oxygen depletion sensor (ODS) demands annual calibration; locate it adjacent to the pilot assembly and adjust the set screw clockwise until the flame lifts 3mm from the thermocouple. If the unit shuts off unexpectedly, test the thermocouple with a multimeter–readings below 20 millivolts indicate failure (replace with #BH-TC-12). Store spare gaskets in a dry environment; silicone-based seals degrade within 18 months when exposed to UV light.
Disassemble the housing by pressing the release tabs at the base–forceful prying damages the plastic clips. The control valve handle operates on a cam mechanism; if stiff, apply synthetic grease to the spindle (avoid petroleum-based lubricants). For units emitting black smoke, inspect the air intake screen–clogged mesh restricts airflow, increasing soot production by 30%. The high-temperature limit switch automatically cuts power at 200°F; reset by pressing the button on the rear panel after allowing 10 minutes for cooldown. Use only brass or stainless steel fittings when replacing hoses–galvanized steel corrodes within weeks under propane exposure.
The exploded view document lists 47 individual elements; prioritize maintenance on items 7 (burner plate), 14 (regulator), and 22 (thermocouple) as they account for 85% of failures. When ordering replacements, specify the serial number–early models (pre-2018) use metric fasteners, while newer units employ imperial threads. Never modify the gas orifice; altering the diameter violates safety certifications and voids the 3-year warranty. For outdoor use, attach the windscreen accessory (#BH-WS-03) to prevent flame blowout in conditions exceeding 15 mph gusts.

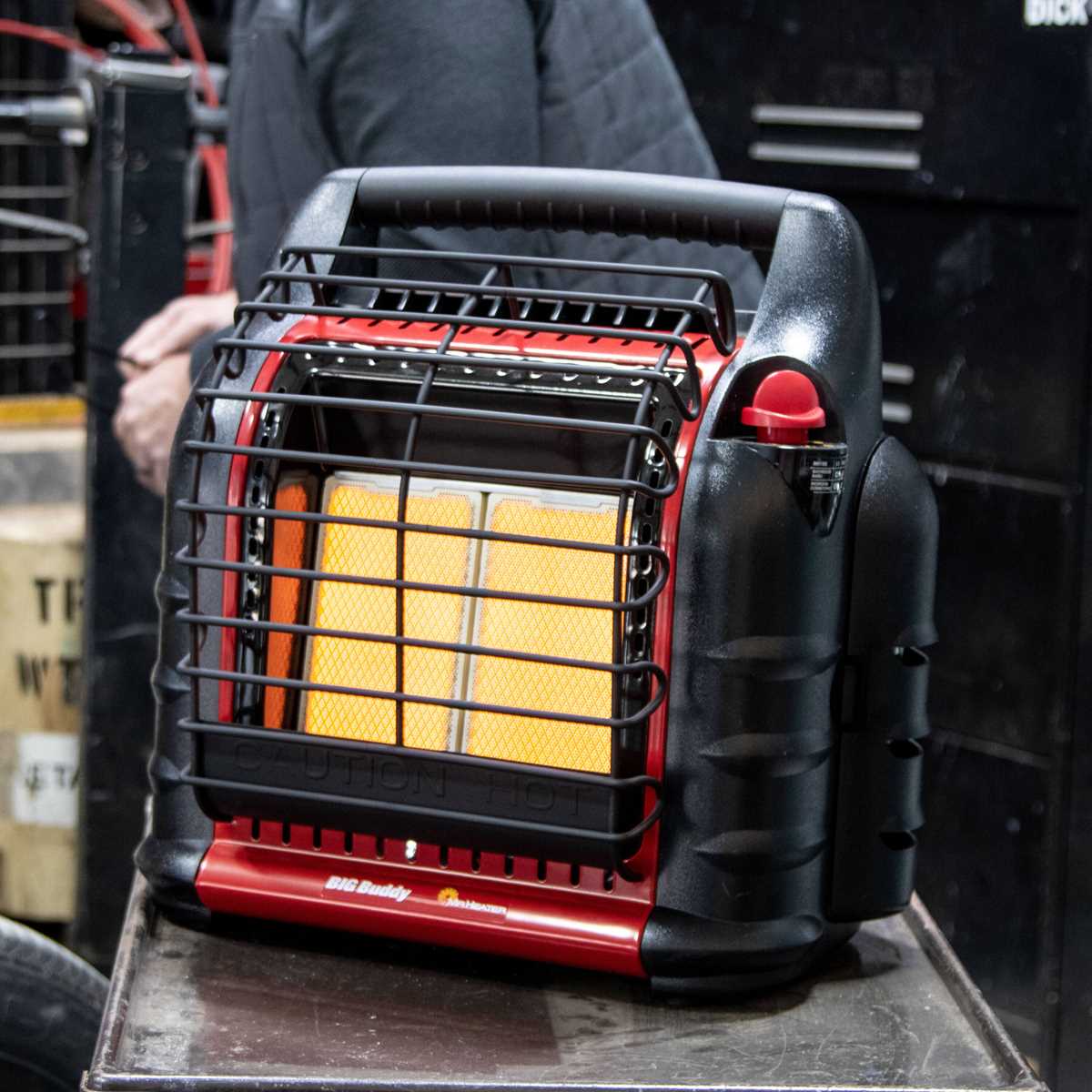

Mr. Buddy Portable Heat Source Component Breakdown
Start by locating the combustion chamber on any Big Buddy model–typically identifiable by its black cylindrical housing near the top. This core element houses the ignition system, including the piezoelectric starter and thermocouple. If sparking fails, check the electrode gap (must be 1.5–2.0 mm) and ensure the ceramic igniter isn’t cracked or carbon-fouled. Replace damaged components immediately; standard ceramic igniters last 1,000–1,500 ignition cycles before degradation affects performance.
- Fuel nozzle: Positioned at the base of the burner assembly, the brass nozzle meters propane flow. Clean it with a 0.3 mm wire after every 20 hours of use to prevent clogs from dust or propellant residue.
- Regulator assembly: Adjust output pressure via the dial on the dual-tank models. Maximum BTU output (18,000) requires 20 lb propane tanks; single-tank units cap at 9,000 BTU. Verify O-rings for cracks–replace if compression drops below 8 psi.
- Heat exchanger: The reflective aluminum fins increase thermal radiation. Wipe down monthly with isopropyl alcohol to remove soot buildup; accumulation reduces efficiency by up to 12%.
- Oxygen depletion sensor: Mounted behind the front grille, this safety switch cuts gas flow if CO₂ rises above 1.5%. Test function every heating season with a multimeter (normal resistance: 0.2–0.8 ohms).
Key Elements in a Portable Propane Device Breakdown Schematic
Start by locating the combustion chamber in the exploded view – typically a cylindrical or box-shaped assembly encased in heat-resistant metal. This component houses the ignition system, burner plate, and oxygen intake slots, critical for controlled flame generation. Cross-reference part numbers with the manufacturer’s manual to confirm exact specifications, as aftermarket replacements may vary in threading or material composition. Pay attention to the chamber’s mounting brackets; improper alignment here leads to gas leaks or inefficient combustion.
The pressure regulator appears as a compact valve mechanism connecting the fuel canister to the main body. Inspect the diaphragm for cracks or deformities, as this membrane modulates fuel flow and prevents dangerous pressure spikes. Verify the regulator’s output settings (measured in BTUs/hour) match the device’s rated capacity; mismatched components cause inconsistent heating or shutdowns. Always test regulator performance with a manometer before reassembly to avoid fuel starvation or overfeeding.
Trace the pilot light assembly – a slender tube with a small flame orifice near the burner. Check the electrode gap (usually 0.020–0.040 inches) and ceramic insulator integrity; corrosion or carbon buildup here disrupts ignition reliability. Replace worn spark electrodes immediately – faulty ignition is a primary failure point. The thermocouple, adjacent to the pilot light, should sit within ¼ inch of the flame; misalignment causes safety shutoff errors. Use a multimeter to confirm thermocouple voltage output (20–30 millivolts) if the unit fails to stay lit.
Examine the air intake vents and exhaust ports for blockages or distortion. Clogged vents reduce thermal efficiency by up to 40% and increase carbon monoxide emission risks. Clean these passages with compressed air, avoiding sharp tools that may damage the precision-machined openings. For models with catalytic converters, inspect the platinum-coated mesh for fouling; a deteriorated catalyst emits a sulfurous odor and requires full replacement, not cleaning.
Fuel System Assembly Guide for Portable Propane Units
Start by securing the fuel tank valve fully closed before attaching it to the regulator. Use a 1lb disposable cylinder with a CGA 600 threaded connection–verify thread compatibility to avoid leaks. Position the tank upright on a stable, non-flammable surface, ensuring the protective cap is removed without damaging the seal.

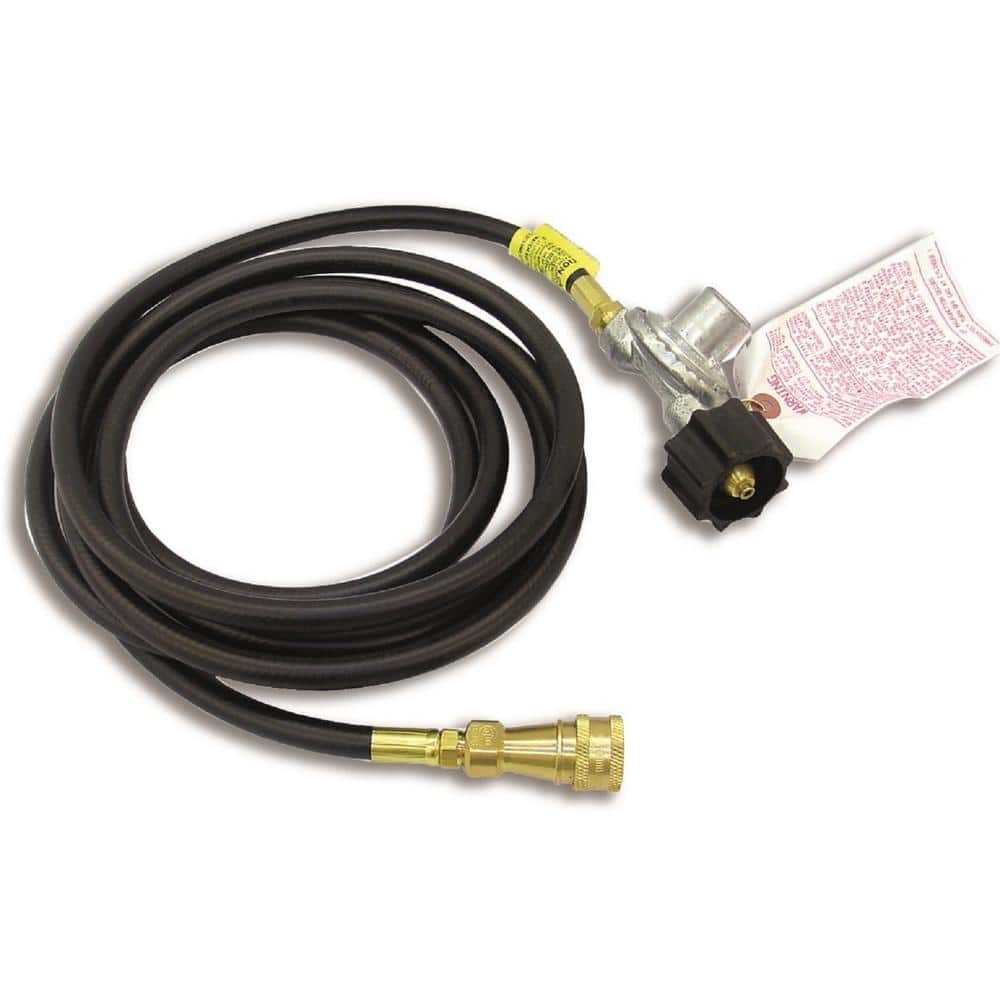

Connect the fuel hose to the regulator by aligning the male fitting with the unit’s intake port. Hand-tighten until resistance is felt, then use a wrench to apply an additional quarter-turn–over-tightening risks stripping the threads. Check for hissing or uneven tension, which indicates improper seating. Replace the hose immediately if cracks or abrasions are visible.
Inspect the regulator for debris before attaching it to the fuel cylinder. Hold the regulator perpendicular to the tank’s valve, align the threads, and rotate clockwise until firmly seated. Avoid cross-threading by ensuring the first few turns are smooth. If resistance occurs prematurely, disconnect and realign the components. Test the connection by gently wiggling the hose–movement suggests a loose fit requiring reattachment.

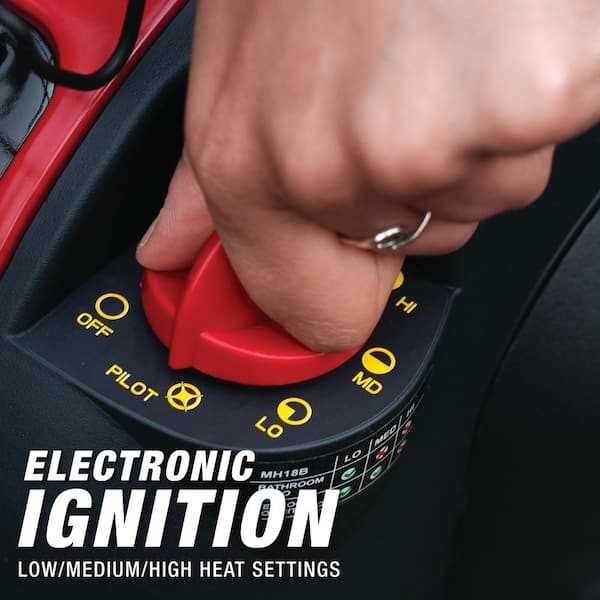

Verify the ignition sequence by turning the control knob to the “Pilot” position. Depress the knob fully while pressing the igniter button 3–5 times, holding for 20–30 seconds after the flame appears. If the pilot light extinguishes, check for drafts, improper gas flow, or a clogged burner orifice. Clean the orifice with compressed air; do not use metal tools to avoid enlarging the opening.
Adjust the flame height using the control knob. A steady blue flame with minimal yellow tips indicates optimal combustion; orange or flickering flames signal incomplete fuel mixing or obstruction. For models with adjustable airflow, rotate the collar near the burner to fine-tune oxygen intake–counterclockwise increases airflow, while clockwise restricts it. Purge the system after extended storage by operating the unit for 5 minutes on high to clear residual moisture or contaminants.
Disassemble the system in reverse order. First, close the fuel cylinder valve, then run the appliance until the flame dies to relieve pressure in the hose. Disconnect the regulator and hose only after confirming no residual gas discharge. Store components in a dry, ventilated area away from direct sunlight–replace any rubber seals or gaskets showing signs of brittleness or wear before next use.
How to Locate and Replace Ignition Elements Using the Schematic
Disconnect the power source and relieve gas pressure before handling any flame-generating components. Refer to the printed or digital layout sheet–typically panel 3, section B–to pinpoint the ignition module, which is mounted behind the combustion chamber bracket. Use a T20 Torx driver to remove the two securing screws, then gently disengage the wiring harness by pressing the release tab. Replace the module only with an OEM-rated equivalent (part #IG-4289 for 12V models) to avoid misfires; cross-threading the screws during reinstallation risks thread damage, so apply downward pressure while turning.
| Step | Tool Required | Torque/Lubricant Spec |
|---|---|---|
| Remove bracket screws | T20 Torx | 0.8 N·m; thread-lock optional |
| Disconnect wiring | None | N/A |
| Install replacement module | T20 Torx | 0.8 N·m; dielectric grease on connector |
| Test ignition | Multimeter | 12V DC ±0.5V at harness pins 2-3 |
Diagnosing Fan and Thermal Sensor Malfunctions
Check the fan’s power connection immediately–loose or corroded terminals often disrupt airflow. Use a multimeter to verify voltage at the fan motor leads; readings below 10.5V (for 12V systems) confirm inadequate power. Clean the fan blades and housing with compressed air, ensuring no debris blocks rotation–even minor obstructions reduce efficiency by 30%. Replace the fan if bearings emit grinding noises or if rotation stops under manual spin tests.
Thermal Sensor Failure Indicators
If the flame stabilizes but extinguishes within 5–10 seconds, test the thermal sensor’s resistance using an ohmmeter–functional sensors register 1–3 ohms at room temperature. Scrub the sensor’s tip with fine-grit sandpaper to remove oxidation, then reinsert it securely; improper seating causes false shutdowns. For units cycling erratically, inspect the sensor’s wiring harness for frayed insulation or melted connectors, which introduce resistance and cripple signal integrity.
