Locate the condenser coil schematic on page 12 of the official service manual–S/N prefix MC18SC identifies compatible models. Verify the fin spacing (14 FPI for residential units) before cleaning; deviation signals distortion from improper handling. The expansion valve (part #EVX-24K) sits behind the blower assembly and requires a 5mm hex key for adjustment. Mark its default position at 1.2 turns from fully closed for R-410A systems.
Check the outdoor fan motor’s capacitor rating–45μF/440VAC is standard for 2-ton units. If replacing, confirm the wire color coding: red to L1, black to L2, brown to common. The reversing valve solenoid (green wire, 24V) must click within 3 seconds of power-up–delay indicates coil failure. Drain tubes should slope at 1/4″ per foot to prevent condensate backup.
Use a multimeter to test the transformer secondary output: 24VAC between C and R, 120V on the primary side. Control board faults often trace to corroded Y1 terminals–scrub with dielectric grease before reconnecting. For defrost cycles, measure the defrost sensor resistance: 10kΩ at 32°F, halving every 20°F increase. Replace if readings exceed ±5%.
Tighten blower wheel set screws to 12 in-lbs–overtorquing warps the hub. Evaporator coils require a low-pressure nitrogen flush (max 150 PSI) to clear debris after compressor burnout. Document all modifications in the service log with date, technician initials, and pressure readings (suction: 65-75 PSI, discharge: 250-300 PSI).
Understanding Your Climate System Schematic: Key Insights
Locate the refrigerant line connections first–these are typically marked with color-coded sleeves or labels on the outdoor unit (red for liquid, blue for suction). Measure the diameter of each line before disassembly to ensure proper reassembly; common sizes for residential split systems are 1/4″ and 3/8″. Use a flaring tool set to 45° for copper tubing repairs–never rely on compression fittings for long-term fixes.
The indoor coil assembly often includes a thermal expansion valve (TXV) or piston metering device. If replacing the valve, note its orifice size (usually between 0.056″–0.072″)–incorrect sizing will reduce efficiency by 15–20%. Check the defrost board’s sensor resistance with a multimeter: 10 kΩ at 77°F indicates proper function. For evaporator fan motors, verify the capacitor rating matches the label (e.g., 4 µF for PSC motors).
| Component | Test Method | Acceptable Range |
|---|---|---|
| Compressor windings | Resistance check (R to C, S to R, S to C) | 2–5 Ω imbalance (replace if outside) |
| Condenser fan | RPM measurement (anemometer) | 800–1100 RPM (adjust via capacitor) |
| Filter drier | Pressure drop (psi) | <3 psi (clogged if higher) |
During troubleshooting, isolate the low-voltage control circuit by disconnecting the thermostat’s R, Y, G, and C wires individually. A 24VAC continuity test between Y and C should show <0.1Ω on the contactor coil; higher readings indicate coil failure. For variable-speed units, the inverter board’s DC voltage output must remain stable within ±2V during operation–fluctuations suggest capacitor degradation. Always discharge electrolytic capacitors (located near the compressor) with a 20 kΩ resistor before handling.
Replace the control board’s backup battery every 3 years–CR2032 failures cause timing errors in defrost cycles. When reinstalling the blower wheel, align the set screw with the flat side of the motor shaft to prevent imbalance; a misaligned wheel increases noise by 3–5 dB. For heat pump reversals, verify the reversing valve’s solenoid coil resistance (normally 700–900Ω) before condemning the valve. Always evacuate the system to 500 microns before recharging–moisture in the lines accelerates corrosion in aluminum coils.
Where to Locate Authentic Technical Schematics and Guides for MrCool Systems
Visit the manufacturer’s support portal at support.mrcool.com for direct access to downloadable PDFs. The site organizes resources by product model–search using the serial number printed on the unit’s data plate. Installation instructions, wiring blueprints, and troubleshooting flowcharts are hosted here, updated quarterly to reflect revisions. Bookmark the URL to bypass third-party aggregators, which often lag behind official updates or redistribute outdated files.
For consumers with DIY Central accounts, registered purchases unlock exclusive content, including exploded-view illustrations and replacement kit cross-references–valuable for sourcing compatible components. Log in at diycomfort.com, navigate to “My Equipment,” then select “Documentation.” Offline access is possible by downloading files; use a filename convention like MODEL_SERIAL_TYPE_REV.pdf to avoid confusion later. Note that HVAC specialists providing warranty service rely on these exact schematics, so discrepancies between versions can invalidate claims.
Alternative Sources When Primary Portals Fail
Check UL Product iQ (productiq.ulprospector.com) by entering the model code–a six-digit prefix followed by a revision letter. Results show certification drawings, which frequently include simplified layouts matching internal assemblies. Distributors like Specialty Air Products (specialtyairproducts.com) mirror approved engineering packets for common configurations, though they lack proprietary firmware details found only in official channels. Avoid forums; anecdotal “reverse-engineered” sketches often misrepresent safety-critical connections.

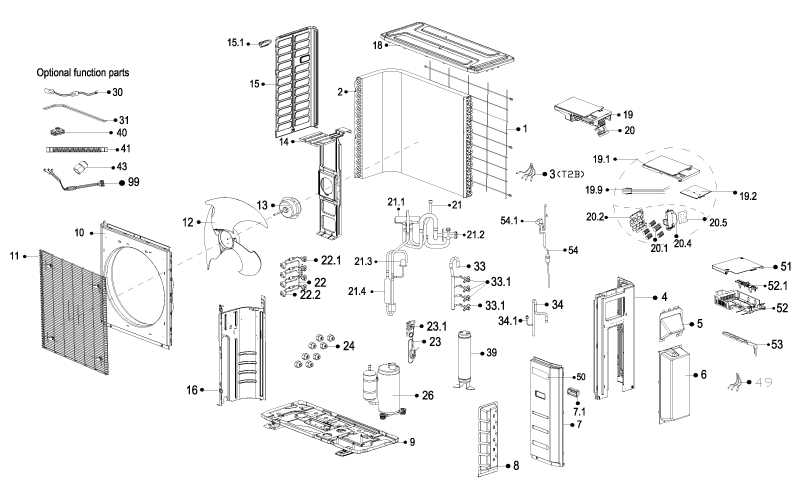

Locating Key HVAC Component Models Using Schematic References
Begin by isolating the serial number plate on the outdoor condenser unit. Document the full alphanumeric sequence–this decodes the exact system variant and production batch. Cross-reference this data with the manufacturer’s technical archive to retrieve the precise exploded view for your model line. Pay attention to revision codes; systems upgraded post-2022 often include subtle but non-interchangeable design tweaks.
The blower motor assembly is typically marked in schematics with a hexagonal symbol near the evaporator coil section. Compare the labeled horsepower rating–common replacements span ½ to 1 HP ranges. Wire lead colors (red, black, blue) furnish secondary clues; mismatched harnesses frequently signal an incorrect substitute.
Filter drier positioning varies by tonnage. Units rated below 24,000 BTU commonly integrate the drier within the liquid line manifold, while larger assemblies relocate it adjacent to the condenser coil inlet. Measure the diameter of existing tubing–aftermarket reproductions occasionally deviate by ±1mm, risking refrigerant flow restrictions.
Decoding Thermostat Interface Labels
- Terminal “Rc” feeds 24V cooling power–trace continuity to contactor relay.
- Label “O/B” toggles between heat pump modes; verify capacitor microfarads match factory specs.
- “C” wire absence indicates incompatible aftermarket controls.
- Defrost sensor placement (typically on the reversing valve) appears shaded in schematics.
Reversing valves occupy the central schematic quadrant marked “four-way solenoid.” Confirm the valve body is stamped with the original equipment manufacturer (OEM) logo–counterfeits lack precision machining tolerances. Pressure port threads must match; NPT vs. flare distinctions dictate gasket selection.
Verifying Expansion Device Specifications
- Locate the thermostatic expansion valve (TXV) head: aluminum (parent model) or brass (premium tier).
- Check for superheat adjustments–non-adjustable orifice tubes prevail in base series.
- Cross-check bulb placement; loose capillary clamps alter refrigerant metering.
- Schematic arrows indicate refrigerant flow direction–misaligned TXV seating causes erratic cycling.
How to Interpret and Apply Your HVAC Schematic for Repairs
Locate the electrical wiring layout first–it’s usually printed on the indoor or outdoor unit’s access panel. Verify the diagram matches your model by cross-referencing the serial number on the equipment label with the version on the schematic. If discrepancies exist, download the correct revision from the manufacturer’s support site using the exact model identifier.
Trace the power supply path starting at the circuit breaker. Identify the contactor coil (marked “C” or “Coil”) and confirm its voltage rating–typically 24V for residential split systems. Test with a multimeter: probe the coil terminals; a reading between 20-28V AC indicates proper control voltage. If voltage is absent, check the thermostat wiring or transformer output.
Components to Inspect Before Proceeding
- Run capacitor: Tagged “R” or “RuCap” on the schematic. Discharge with a 20kΩ resistor, then measure capacitance. A deviation greater than ±6% from the labeled microfarad rating requires replacement.
- Start capacitor: Often omitted in newer models but present in single-stage compressors. Look for “S” or “StCap” markings. Replace if the winding resistance test shows an open circuit.
- Defrost board: Found in heat pumps, labeled “DF” or “Defrost.” Reset by cycling power if frost buildup exceeds 3mm on the outdoor coil.
Disconnect the refrigerant lines at the service valves only if the schematic’s refrigerant flow arrows indicate a need to recover charge. Use a recovery machine with a 3/8″ hose and a DOT-400 certified tank. Weigh the recovered amount; if it differs by more than 5% from the label’s charge weight, check for leaks with electronic detectors at brazed joints and Schrader cores.
- Reassemble components in reverse order of disassembly, following the schematic’s torque specifications (e.g., 15-18 ft-lbs for compressor bolts).
- Evacuate the system to 500 microns using a two-stage vacuum pump and micron gauge. Hold for 30 minutes; a rise above 1,000 microns indicates a leak.
- Recharge with the labeled refrigerant type and quantity, adding 10% more if ambient temperature exceeds 32°C (90°F) during installation.
- Test operational sequences: cooling mode (verify 16-22°F temperature drop across indoor coil), heating mode (confirm defrost cycle engages at 35°F outdoor ambient), and fan speeds (CFM should match the airflow chart on the schematic).
