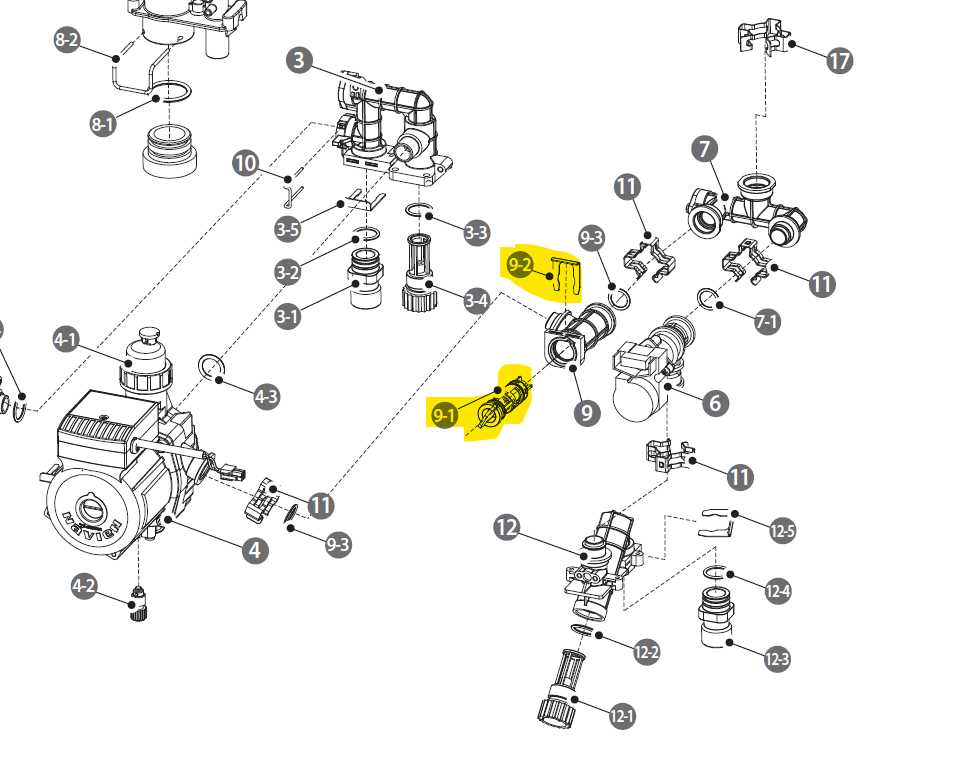

For immediate troubleshooting, begin by identifying the internal layout schematic specific to your model. Most condensing combination boilers follow a standardized design, but precise measurements and connector placements vary. Download the official technical manual directly from the manufacturer’s support portal–search by serial number, not model name, to ensure accuracy. The document typically includes exploded views on pages 18–23, detailing combustion chambers, heat exchangers, and pump assemblies.
Critical components like the diverter valve or pressure sensor often fail first. Check part numbers etched on the unit itself; cross-reference these with the supply catalogue from authorized distributors. Avoid third-party retailers–counterfeit seals and mislabeled wiring harnesses can void warranty coverage. For urgent replacements, use overnight shipping codes listed in the dealer portal for verified resellers.
When disassembling, label each electrical connector and note the orientation of gaskets. Photograph the assembly before removal; high-resolution images serve as accurate assembly guides if no diagram is available. Store removed hardware in static-free containers–prolonged exposure to dust or moisture degrades O-rings and micro-switch contacts. Consult torque specifications in the manual before reassembly; over-tightening bolts risks cracking plastic housings.
For software-controlled models, update the embedded firmware via the dedicated diagnostic port before replacing parts. Compatibility issues between older sensors and newer control boards may trigger false error codes. Access the update utility through the service mode–refer to the hidden menu instructions in section 4.7 of the manual. Reset the system after repairs using the master reset sequence, not just a power cycle.
Exploring the Component Layout of Advanced Condensing Boilers
Locate the heat exchanger assembly by identifying the two large cylindrical sections near the unit’s core. These are typically insulated with high-density foam to retain thermal efficiency. Remove the outer casing carefully–most models secure it with torque-resistant screws and hidden clips along the lower edge. Failure to release these clips may damage the panel.

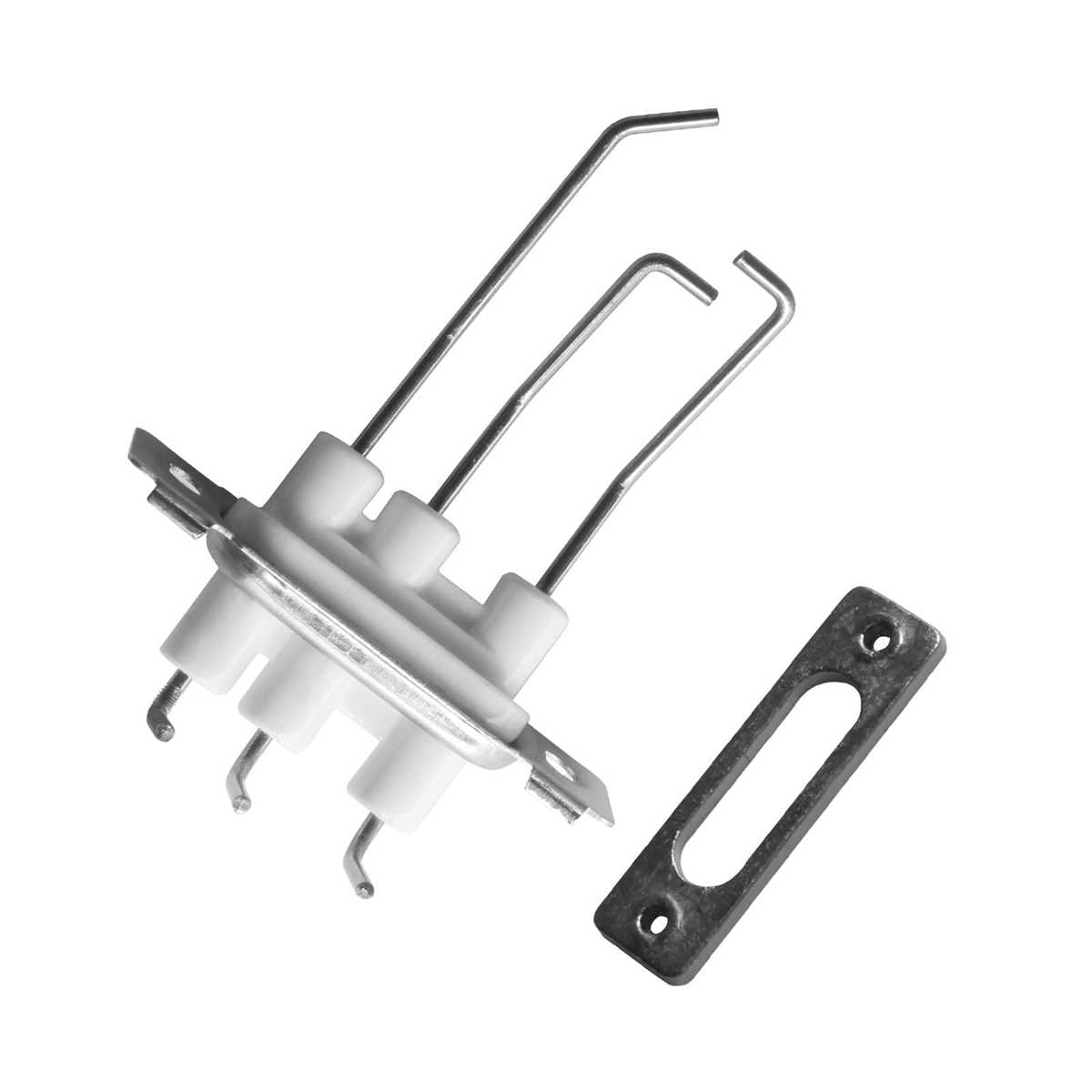

Inside, the combustion chamber sits directly beneath the exhaust manifold. Check the ceramic burner assembly for signs of corrosion or carbon buildup, especially if error codes related to ignition appear. Clean it with a non-abrasive brush and 99% isopropyl alcohol, avoiding water to prevent residue formation. Replace the igniter if resistance exceeds 100 ohms when tested with a multimeter.
The circulation pump is mounted horizontally on the left side, connected via a quick-release coupling. Disconnect the electrical connector before servicing–hold the base while twisting the coupling counterclockwise to avoid twisting the pipes. Inspect the impeller for wear; a grinding noise during operation indicates bearing failure. Lubricate the bearing with high-temperature silicone grease only–alternatives may degrade under operational heat.
Fuel and water pressure sensors are positioned near the inlet valves. The fuel sensor (typically blue) monitors gas flow, while the red or black sensor tracks water pressure. Calibrate them annually using the manufacturer’s diagnostic tool–settings drift due to sediment or gas composition changes. Replace both if pressure readings fluctuate beyond ±0.2 bar from the baseline.
Key electrical components include:
- Control board: Located behind the main interface panel, secured with grounding screws. Dust accumulation here causes overheating–vacuum vents monthly.
- Relay switches: Three primary relays manage ignition, circulation, and safety interlocks. Test continuity with the system powered off; a failed relay clicks but shows infinite resistance.
- Temperature probes: Two NTC thermistors (return and supply) monitor water temps. Clean the probe tips with emery cloth–oxidation skews readings by up to 5°C.
The condensate trap requires quarterly maintenance. Remove the transparent drain tube and flush it with vinegar to dissolve mineral deposits. Check the internal float mechanism–sticking triggers a “no flame” error. Replace the entire trap if corrosion is visible; partial cleaning often reintroduces clogs within weeks.
When reassembling, apply anti-seize compound to metal threads and torque all fittings to 15 Nm–overtightening cracks the brass connectors. Verify gasket alignment on the heat exchanger access panel; a misaligned seal causes combustion leaks detectable by a soapy water test. Power on the unit and monitor the startup sequence–prolonged pre-purge cycles indicate obstructions in the air intake.
For rapid troubleshooting, reference these critical voltages:
- Igniter circuit: 220–240V AC during initial spark.
- Circulation pump: 110–120V AC during operation.
- Fan motor: 24V DC (modulated by PWM).
- Temperature probes: 0.5–3.3V DC (varies with water temp).
Measure each point with the system under load–open-circuit readings suggest a wiring fault or failed component. Scan for error codes post-test; “E023” (pressure switch fault) often masks underlying exhaust blockages in the venting path.
How to Locate the Heat Exchanger in Your Condensing Boiler’s Internal Layout
Begin by removing the front panel of the unit–secure with screws typically found at the bottom corners. Once exposed, identify the combustion chamber housing, which sits centrally behind the control board. The heat exchanger occupies the upper portion of this cavity, stacked above the burner assembly. Two distinct copper coils will be visible: the primary coil (upper) handles domestic hot water, while the secondary (lower) manages heating circulation.
Trace the flue gas outlet pipe (vertical, rear-mounted) to confirm positioning. The exchanger’s fins connect directly to this pipe, guiding exhaust gases downward. Misalignment during reassembly often causes efficiency loss, so note the orientation of gaskets and sealing surfaces. If corrosion is present, check the condensate drain path (left side) for blockages–clogged drains accelerate wear on the exchanger’s base.
Key Markers for Precise Identification
Look for the serial number plate attached to the exchanger’s frame–it’s riveted or stamped directly onto the metal. This plate confirms compatibility with replacement components. Below it, you’ll find temperature sensors (thin probes) inserted into designated ports; these must be removed gently to avoid damaging threads. The exchanger’s weight (~12 kg) requires two-person handling for safe extraction.
Inspect the manifold linkages next. The inlet/outlet pipes (braided hoses, usually blue/red) connect via brass fittings secured with union nuts. Loosen these counterclockwise using a 22mm wrench, but avoid overtightening during reinstallation–torque specifications max at 25 Nm. A telltale sign of failure is white mineral deposits or pitting on the coil surfaces; acid flush every 2 years is critical in hard water regions.
On the rear wall, locate the pressure relief valve (spring-loaded, chrome-plated). It’s tied to the exchanger’s secondary circuit. If tripping occurs frequently, test the expansion vessel’s air charge (1 bar baseline) before assuming exchanger damage. Also, verify the auto-air vent (small brass cylinder) atop the exchanger–it must remain unobstructed to prevent airlocks.
Reassemble in reverse order, ensuring fiberglass insulation pads fit snugly between the exchanger and chamber walls. Skip this step and heat loss increases by ~18%, per manufacturer thermal testing. Finally, reconnect the condensate trap (U-shaped pipe) to the exchanger’s drain port–improper sealing here voids warranty and risks system leaks.
Step-by-Step Guide to Identifying the Circulation Pump Assembly
Locate the lower right section of the combustion chamber housing. The pump is mounted horizontally beneath the heat exchanger, secured with two M6 bolts and a gasket. Disconnect the electrical connector first–press the release tab downward while pulling the plug outward to avoid damaging the wires.
Inspect the pump’s impeller casing. It features a distinctive brass-colored discharge port angled at 45 degrees and a grey plastic inlet sealed with an O-ring (typically 22mm ID). If corrosion or mineral deposits are visible, note that replacement is mandatory–cleaning rarely restores full functionality in sealed units of this design.
Removal Procedure
Use a 10mm socket to remove the mounting bolts. Rotate the pump counterclockwise while lifting gently–residual water will drain from the built-in drain port. Compare the removed assembly against manufacturer specifications: 120W power rating, 1/20 HP, and 3-speed selector markings on the motor housing.
Verification Checks
Check the pump shaft for lateral play–excessive movement (>0.5mm) indicates bearing failure. Test continuity across the three motor terminals with a multimeter (resistance should range between 25-35 ohms). Any reading outside this range confirms internal shorting or open windings.
Key Components of the Condensing Boiler Control Unit and Their Roles
Inspect the main processor (CPU) first–it orchestrates all operations by interpreting sensor inputs and executing predefined algorithms. A faulty CPU may cause erratic behavior like ignition failures or incorrect temperature readings. Replace it only if diagnostics confirm no other faults exist, as soldering rework requires precision.
The ignition control module (ICM) manages the spark sequence and gas valve timing. If the system fails to ignite, test the ICM’s output voltage (typically 24V DC) at the spark electrode terminals before assuming gas supply issues. Keep the electrode clean–carbon buildup reduces efficiency and may trigger false error codes.
| Component | Typical Voltage | Fault Symptoms | Testing Method |
|---|---|---|---|
| Flow sensor | 0–5V DC | No heat, erratic operation | Measure resistance (200–500Ω) |
| Flame rod | N/A (mV signal) | Ignition failure | Check continuity (open circuit = defective) |
| Pressure switch | 24V DC (closed) | No startup | Apply vacuum gauge to test |
The primary heat exchanger sensor (NTC thermistor) dictates modulation by reporting water temperature. If readings diverge by ≥5°F from a calibrated thermometer, recalibrate or replace the sensor–incorrect data forces excessive cycling. Secure the sensor firmly; loose contact causes intermittent faults.
Check the PCB’s power relay if the unit powers off unexpectedly. Use a multimeter to verify coil activation (audible click) when commanded. Burn marks or swollen capacitors indicate thermal stress–replace the relay cluster if resistance exceeds 1Ω, as higher values increase voltage drop and overheating risk.
Monitor the exhaust blower motor via its PWM feedback signal. A steady 10–12V DC confirms healthy operation; fluctuating voltage suggests bearing wear or control board feedback errors. Lubricate bearings annually–seized components strain the motor, leading to premature failure and error code F10.
Isolate the expansion tank’s Schrader valve when diagnosing pressure inconsistencies. Over-pressurized tanks (above 12 psi cold) mask internal leaks or membrane failures. Discharge air gradually to restore baseline pressure; sustained drops require tank replacement, not mere refilling.
