Before disassembling a tumble dehydrator, label every wire and connector with masking tape to avoid confusion during reassembly. The heating element–often a coiled resistance wire–requires careful handling; even slight deformation can reduce efficiency or create fire hazards. Document the exact positioning of thermal fuses and sensors, as incorrect placement can lead to overheating or premature shutdowns.
Inspect the drum belt for cracks or fraying: a worn belt increases noise and reduces drying performance. The idler pulley maintains tension–replace it if movement feels stiff or uneven. Lubricate motor bearings with high-temperature silicone grease; neglect here accelerates wear and shortens the appliance’s lifespan. Always test the door switch before full reassembly, as a faulty switch prevents operation regardless of other repairs.
Examine the lint trap and exhaust duct for blockages; remove accumulated debris every three cycles to prevent airflow restriction. The blower fan should spin freely–obstructions here force the motor to work harder, increasing energy consumption. Use a multimeter to verify continuity in thermostats and safety cutoffs; a reading outside 0–2 ohms indicates a faulty component. Keep replacement parts on hand, especially belts, rollers, and heating elements, to minimize downtime during repairs.

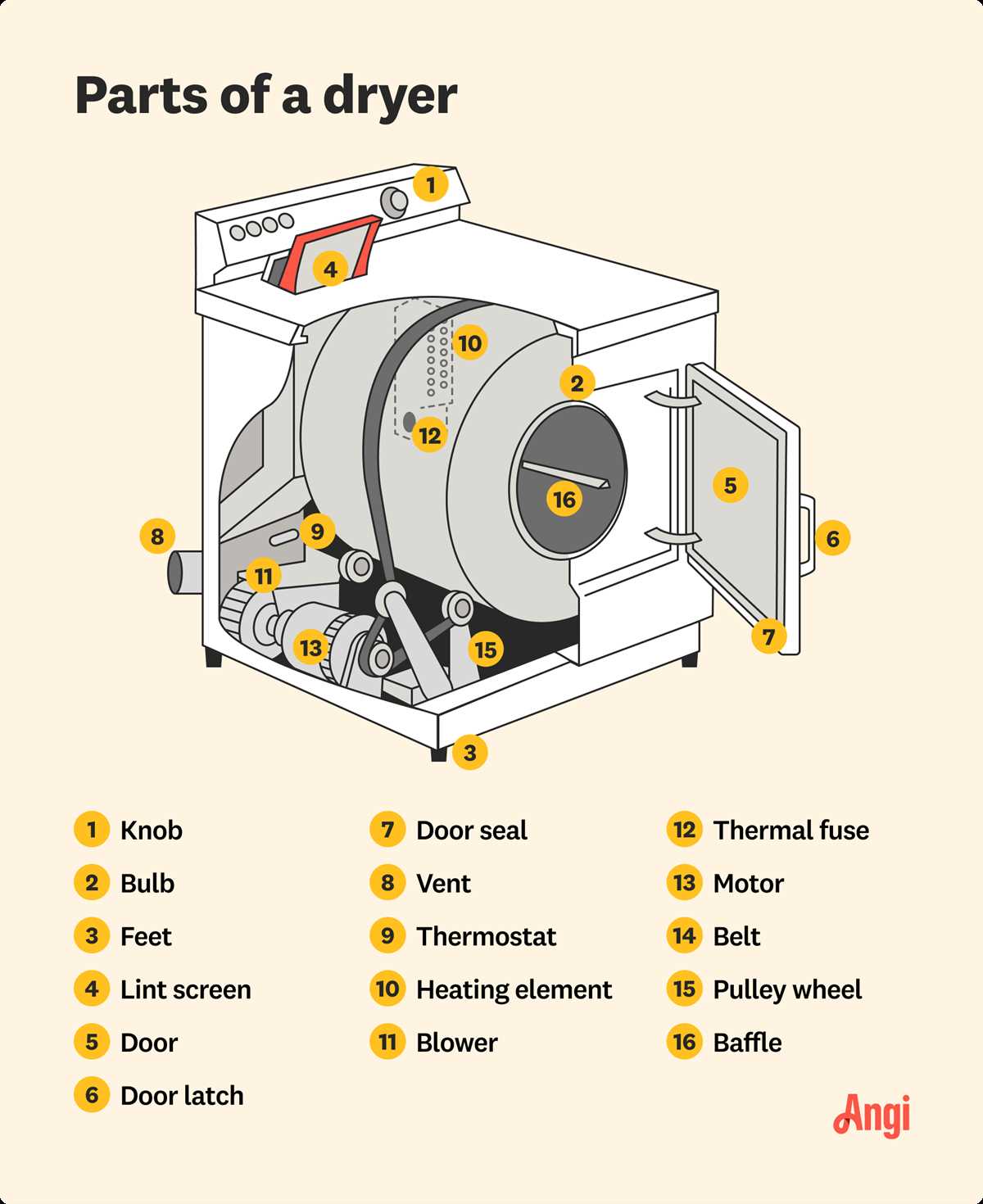

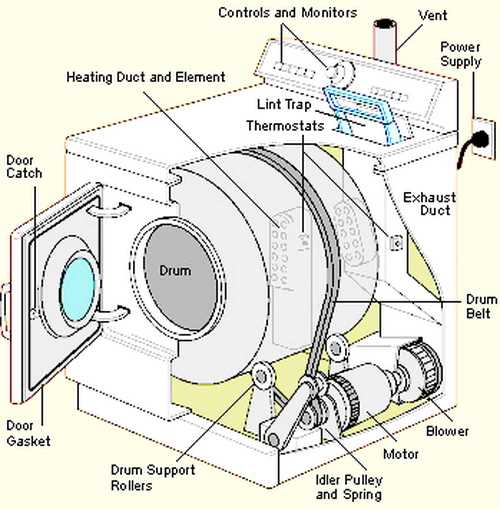

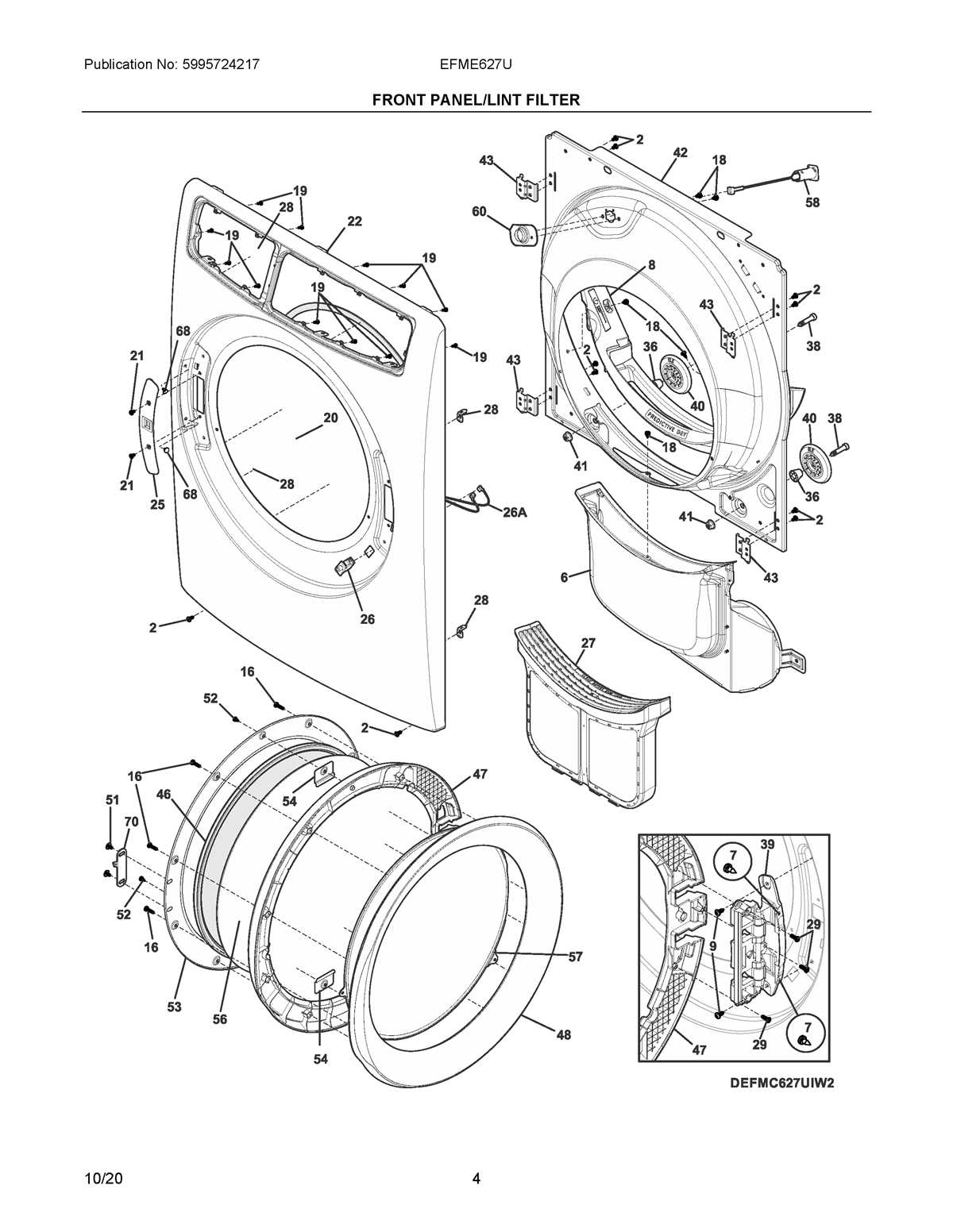

Key Components of a Clothes Drying Machine Schematic
Locate the heating element assembly near the base or rear panel–this critical section converts electrical energy into heat, often tucked behind a protective grille or metal plate. Verify wattage ratings on the appliance’s data plate; most residential models range between 1800 to 5600 watts, dictating airflow and temperature control efficiency. Replace faulty heating coils only with manufacturer-approved replacements to prevent fire hazards.
Inspect the thermal fuse annually; it mounts along the exhaust duct or blower housing, cutting power if temperatures exceed 190°F (88°C). A tripped fuse demands immediate attention–test continuity with a multimeter before assuming failure, as lint buildup or restricted vents are common culprits. Clean the vent path every six months using a vent brush or vacuum attachment to prevent overheating.
The drum support rollers, typically positioned at the rear, should spin freely with minimal noise. Apply a silicone-based lubricant to roller shafts every 24 months or when squeaking occurs–avoid petroleum-based products, which attract lint. For belt-driven tumblers, check the drive belt tension; frayed or slack belts require replacement to avoid uneven drying or motor strain.
Identify the moisture sensor bars inside the drum–usually two thin metal strips near the lint trap entrance. Clean these with a soft cloth and rubbing alcohol monthly, as fabric softener residue reduces accuracy, leading to prolonged drying cycles. If sensors malfunction, recalibrate by running a “timed dry” cycle without clothes to reset internal thresholds.
Examine the blower wheel housing behind the lint trap–this fan propels air through the drum and vents. Ensure blades are free of lint and obstructions; a blocked wheel reduces airflow, extending dry times and risking motor burnout. Use a screwdriver to detach the wheel if cleaning requires access to the motor shaft, but first disconnect power to prevent accidental startup.
Check the start switch–usually a push-button or rotary dial–by testing for continuity while depressed. Faulty switches may fail to engage the motor or heating element; if repairs are necessary, match the original amperage rating (typically 15-20A) when sourcing replacements. For digital control panels, reset error codes by unplugging the machine for five minutes before troubleshooting further.
Tighten all panel screws and mounting brackets during routine maintenance; vibrations from extended cycles loosen components over time, especially around the front access door. Secure the door latch mechanism–replace if misaligned, as a poor seal causes heat loss or unsafe operation. For gas-powered models, inspect the igniter and gas valve yearly, ensuring proper ignition and flame regulation to maintain consistent heat output.
Locating Critical Elements in a Clothes Drying Machine Blueprint
Begin by scanning the heating element–typically positioned near the airflow duct or venting system–marked with high-resistance wiring and temperature controls like thermal fuses or thermostats. Verify its placement against the blower assembly; misalignment here disrupts heat distribution and prolongs drying cycles. Check the motor’s voltage rating (usually 110-120V for residential units) and ensure the centrifugal switch engages properly during startup–failure here causes humming without drum rotation. The lint trap’s housing should connect directly to the exhaust path; blockages here elevate internal temperatures and fire risks.
Component Cross-Reference for Troubleshooting
| Schematic Symbol | Function | Failure Indicators | Multimeter Test Values |
|---|---|---|---|
| Heating coil | Generates warm air | Cold air, no heat | 20-50Ω (open circuit = fault) |
| Thermal cutoff | Shuts off at 180°C+ | Unit won’t power on | 0Ω (blown = OL) |
| Drive belt | Rotates tumbler | Drum not spinning | N/A (visual inspection) |
| Door switch | Safety interlock | No operation when closed | 0Ω when depressed |
Examine the control board’s relay points for corrosion–especially in humid climates–using a magnifying lens. Replace capacitors near the power module if bulged or leaking electrolyte; capacitance drift beyond ±10% of rated value (e.g., 47µF → 42µF) causes erratic cycling. Label wire harness connectors with their corresponding terminal IDs (e.g., “MOT-1,” “TH-2”) before disconnecting to avoid reassembly errors.
How to Identify the Rotating Cylinder and Drive Mechanism in Laundry Equipment Schematics
Examine the center section of the technical drawing–this is where the rotating cylinder typically appears. Look for a large, circular or cylindrical outline, often labeled as the “tumbler” or “barrel” in blueprints. If markings are absent, trace the outer frame inward until you locate the largest enclosed shape, which is usually the cylinder.
Follow the support rollers or glide rails, as they directly connect to the cylindrical component. These elements are depicted as small circles or arcs positioned at the base of the barrel’s outline. Their alignment indicates the cylinder’s mounting points and confirms its location.
Locating the Drive Mechanism
Search for a compact, rectangular or irregular-shaped block near the rear of the tumbler. This represents the motor housing. Modern schematics label it as “drive unit” or “blower motor,” while older diagrams may use “power assembly” or “rotor.” If unlabeled, it sits opposite the door and is connected to the cylinder via a belt loop.
Trace the belt path shown in the schematic–it forms a continuous oval around the cylinder and connects to a pulley on the motor. The belt is rendered as a thin, dashed, or solid line. Some diagrams include minute details like tensioner springs or idler wheels along this path to help isolate the drive unit’s position.
Verifying Component Alignment
Cross-reference the barrel’s central axis with the motor’s output shaft. They should align horizontally if the machine is front-loading or vertically if it’s top-loading. Misalignment suggests errors in the drawing or an unconventional design–verify by checking neighboring components like air ducts or heating elements which are invariably adjacent to these assemblies.
Look for shading or thicker lines around the barrel and motor outlines–these denote structural reinforcement or housing. Blueprints often exaggerate these features to distinguish primary assemblies from peripheral ones like control panels or lint traps.
Confirm the motor’s orientation by identifying the wire harness or terminal block attached to its casing. This cluster of lines converges at a single point and extends toward the equipment’s outer edge, aligning with the power inlet. The presence of this wiring cluster pinpoints the drive unit’s exact position.
If the schematic includes exploded views or sectional cuts, focus on the rightmost or leftmost segment–these usually expose the tumbler’s inner side and the motor’s drive gear. The motor’s shaft and coupling mechanism will be clearly depicted here, eliminating ambiguity.
How the Heating Coil and Safety Cutoff Ensure Clothes Dryer Performance
Replace or test the heating coil if drying cycles take over 50% longer than usual–this signals reduced efficiency due to scaling or filament wear. A multimeter should read between 10-50 ohms across its terminals when cold; values outside this range indicate a failed component. Always disconnect power before inspection to prevent accidental shorts.
Clean the coil’s housing every six months using compressed air or a soft brush–lint accumulation insulates the element, forcing it to work harder. For gas-powered models, check the igniter alignment weekly if cycles are inconsistent; misalignment causes delayed ignition and uneven heat distribution.
The thermal cutoff–often a thin, ceramic-encased wire–acts as the last line of defense against overheating. If it trips, the appliance won’t start until the fuse is replaced; bypassing it risks fire. Test for continuity with a multimeter–an open circuit confirms failure. Always match the replacement’s temperature rating (typically 212°F to 250°F) to the original specification.
Vent blockages near the exhaust duct mimic fuse failure symptoms. Use a vent brush to clear obstructions annually; kinks in the duct reduce airflow by up to 30%, increasing cycle times. Avoid flexible foil ducts–they accumulate lint faster than rigid metal ones, raising fire risks.
Inspect the coil’s mounting bracket for corrosion–rust weakens structural integrity, causing misalignment and uneven heat exposure. Tighten loose screws with a torque screwdriver (8-12 in-lbs) to prevent vibration-induced damage during operation.
For electric units, verify voltage at the coil’s terminal block–fluctuations outside ±5% of the rated voltage (usually 220-240V) degrade performance. Gas-fired heaters require stable pressure (3.5″ WC for natural gas); low pressure starves the burner, leading to poor combustion and weak heat output.
After replacing the thermal cutoff, run a test cycle with no laundry to confirm the new fuse holds under heat stress. Monitor the exhaust temperature with an infrared thermometer–it should stabilize between 125°F and 160°F within 10 minutes. Persistent overheating suggests a faulty thermostat or blocked airflow, not just the cutoff.
Store spare coils and fuses in a dry, static-free environment–moisture causes premature failure in ceramic components. Label replacements with purchase dates; most manufacturers recommend retirement after 1,000 cycles, regardless of apparent function.
