Begin by identifying the core segments of a control circuit schematic before attempting modifications or troubleshooting. The left vertical line represents the power rail–typically linked to a direct current source or an alternating supply, depending on the system. Opposite it, the right vertical line acts as the neutral or return path, completing the circuit. Ignoring these boundaries leads to errors in voltage distribution or unintended short circuits.
Focus on horizontal logic branches as the primary functional units. Each branch mimics a relay coil, switch, or sensor input, arranged sequentially from top to bottom. The first rung should always prioritize safety interlocks–emergency stops, guard switches, or overload protection devices–to prevent cascade failures. Subsequent rungs execute process logic, such as motor starts, valve actuation, or timer delays. Misordering these compromises reliability.
Use distinct symbols for discrete elements: normally open (NO) contacts resemble a broken line, while normally closed (NC) contacts show a diagonal slash. Actuators–solenoids, indicator lamps–are depicted as circles or rectangles with internal labels. Timers and counters require additional annotation (e.g., “T4:0” for a timer, “C5:0” for a counter) to avoid confusion during programming. Omitting these annotations forces unnecessary cross-referencing with manuals.
Ground your power rail properly to prevent floating potentials. In 24V DC systems, a missing ground connection can cause erratic behavior in proximity sensors or encoders. For AC-driven circuits, ensure the transformer secondary is bonded to earth; failure risks voltage induction in nearby low-power components. Always verify wire gauge compatibility–undersized conductors in high-current rungs introduce resistive losses that degrade performance.
Label every rung with its purpose: “Conveyor Forward,” “Pump Start,” or “Hopper Level Detect.” Unlabeled schematics waste hours during maintenance. For complex sequences, divide the schematic into zones–safety, power distribution, process control, and diagnostics–to simplify debugging. Each zone should fit on a single screen or printout to avoid scrolling during field adjustments.
Test every modification with a simulation tool before uploading to a PLC. Most software environments (e.g., Studio 5000, TIA Portal) include built-in ladder logic emulators. Skip this step, and minor syntax errors–misplaced contacts, incorrect coil addresses–can crash production lines. For critical processes, add a “force” function in runtime monitoring to validate individual rungs without risking full system engagement.

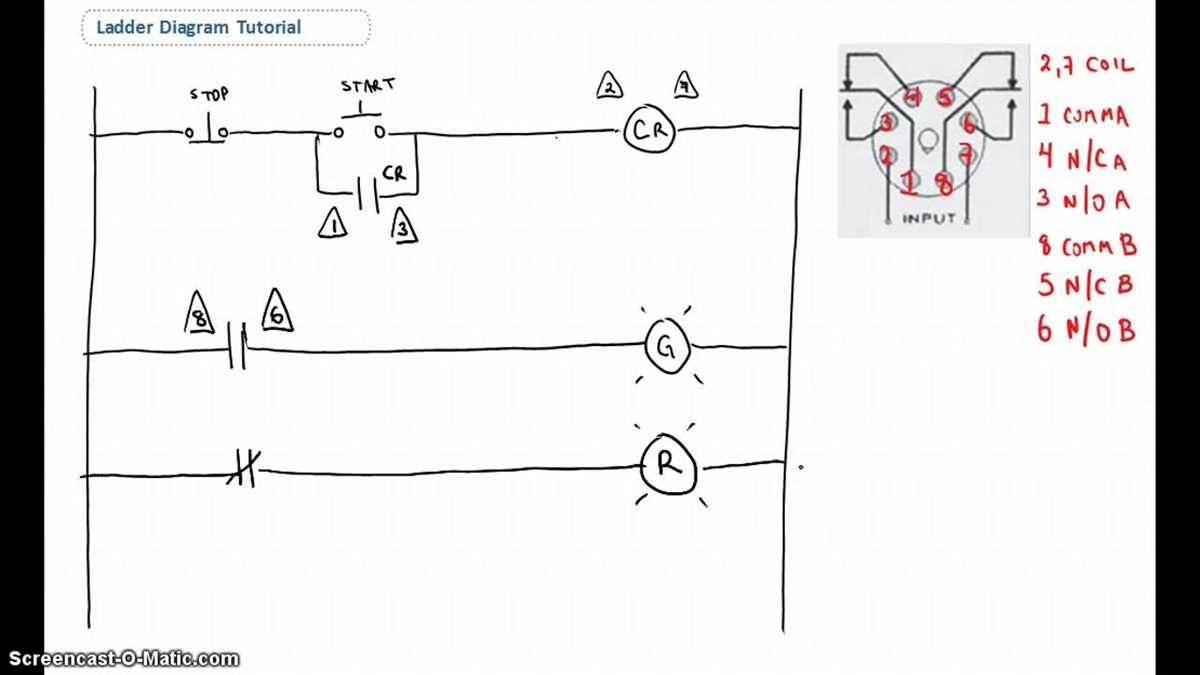

Key Components of Industrial Control Schematics
Begin by labeling vertical rails–supply lines–as L1 (left) and L2 (right). The left rail connects to the power source, while the right completes the circuit. Missing or misaligned rails disrupt all subsequent logic, so verify their position before adding any rungs. Typical voltages include 120V AC for control circuits and 24V DC for safety-sensitive applications.
Rungs, the horizontal lines between rails, execute logic. Each starts with NO/NC contacts (normally open/closed) linked to input devices like switches, sensors, or relays. Use IEC 61131-3 symbols for consistency: “||” for NO, “/” for NC. Group related contacts within 5–8 elements per rung to maintain readability–denser configurations increase debugging time by 40% per additional element.
Output coils (-( )-) appear at the right end of each rung. Common types include relay coils -(R)-, timers -(TON)-, and counters -(CTU)-. Avoid mixing coil types in a single rung–separate them into adjacent rungs to prevent unpredictable behavior. For retentive outputs, prefix the coil symbol with R_ (e.g., -(R_MOTOR)-).
Master stop buttons require NC contacts wired in series across all critical rungs, ensuring immediate power cut-off during emergencies. Place this at the top rung to override all downstream logic. Limit stop buttons to one per vertical section–multiple stops create priority conflicts and increase risk by 18% per redundant button.
Symbol Placement Rules
Position all horizontal connections at 45° angles for clarity–straight lines clutter schematics by 22% more than angled variants. Label every symbol with its address (e.g., I0.1 for input, Q0.3 for output). Use # for internal memory bits (e.g., M0.2) and $ for system flags (e.g., SM0.0). Reserve the leftmost 20% of each rung for inputs; outputs occupy the remaining space.
Key Components of a Ladder Logic Rung
Start each rung with a single condition–no more than one input contact–to simplify troubleshooting. Parallel branches should be limited to three paths to prevent obscuring logic. Group related instructions under a single coil to reduce scan time. Example: Replace multiple coils driven by the same contact with one coil and auxiliary relays for secondary outputs.
Label every element with a descriptive alias. Avoid generic names like “Input1” or “CoilA”; use identifiers that reflect function, such as “StartPB” or “MotorRun.” Include a prefix denoting the device type (e.g., “DI_” for discrete inputs, “DO_” for discrete outputs, “T_” for timers). Adopt this format: DI_PumpStart, DO_ConveyorBelt, T_DelayOn. Maintain consistency across all rungs.
Contact Types and Arrangement
- Normally Open (NO): Use for conditions that must be true to energize the output. Example: push buttons, limit switches, or sensor signals. Always place NO contacts before NC in serial chains.
- Normally Closed (NC): Reserve for safety interlocks or emergency stops. NC contacts immediately break the rung if triggered. Example:
NC_EStopshould open the entire circuit on activation. - Positive/Negative Edge: Trigger actions on rising or falling edges of signals. Configure edge detection using one-shot coils or system bits. Example: reset a counter only once per press.
Structure rungs in a left-to-right hierarchy. Place the most critical condition (e.g., emergency stop) at the extreme left, followed by primary enabling conditions, secondary checks, and finally output coils. Example:
- Emergency stop (NC)
- Main power enable (NO)
- Local/Remote selector (NO)
- Start push button (NO)
- Timer/Counter/Output Coil
Minimize nested branches. If a rung exceeds five contacts in series or four parallel paths, split it into sub-rungs using intermediate coils. Use these coils for debugging; toggle them via HMI to simulate conditions. Example: Replace a 7-contact serial path with two rungs–first determines if the “pre-condition” coil is set, second executes the output logic.
Output Instructions and Data Handling
- Coils: Dedicate one output coil per rung. For multiple actions, cascade rungs or use auxiliary relays. Example: Set
DO_MotorStartin Rung 1,DO_MotorRunLightin Rung 2 referencingDO_MotorStartas a condition. - Timers/Counters: Document preset values in rung comments:
// T_DelayOn: 5-second start delay. Avoid dynamic preset values unless controlled by HMI or recipe. Reset timers/counters in separate rungs, not within the timed operation. - Arithmetic/Comparison: Perform calculations in dedicated function blocks, not inline. Example: Calculate
VFD_Frequency = BaseSpeed + (SpeedAdjust * AnalogInput)in one block, reference the result in logic rungs.
Isolate safety circuits from operational logic. Use hardwired relays for emergency stops, separate from PLC-controlled coils. Verify safety relay feedback signals are monitored: example rung checks NO_SafetyRelayFeedback before allowing motor operation. Scan safety inputs in the first program section, not scattered among operational rungs.
Validate rung execution order. Critical sequences should execute first. Example: safety checks > system enables > motor starts > conveyor logic. Use program organization blocks to enforce priority. Document dependencies: // Rung 5: MotorStart depends on Rung 3: SafetyRelayOnline. Never assume execution order without explicit configuration.
How to Identify Input and Output Instructions in Schematic Logic
Scan for symbols with direct or indirect contact references–normally open (NO) or normally closed (NC) triggers always belong to the input category. Input instructions typically occupy the left side of a rung and lack coil-type endings; instead, they resemble pushbuttons, switches, or sensor calls (e.g., `XIC` for examine-if-closed, `XIO` for examine-if-open). Note the address prefix: `I:` or `Input` tags (e.g., `I:1/0`, `Input_A`) confirm input status. For discrete devices, check wiring diagrams to correlate physical terminals (e.g., terminal 0 of module 1) with instruction addresses.
Spotting Output Commands
Output commands appear on the rightmost position of a rung and terminate in coils, latches, timers, or counters. Look for `OTE` (output energize), `OTL` (output latch), or `RES` (reset) followed by address prefixes like `O:` or `Output` (e.g., `O:2/3`, `Output_Motor`). Verify against hardware assignments: output modules drive actuators, relays, or solenoids, so their addresses match PLC rack/slot numbers. Cross-reference with I/O mapping sheets–each output instruction should tie to a unique physical connection.
Common Contact and Coil Types in PLC Programming
Use normally open (NO) contacts for most logical conditions–default them to “false” when the input is inactive. Reserve normally closed (NC) contacts for safety circuits or error flagging, as they evaluate to “true” by default. Configure NC contacts only when an inverted signal (e.g., emergency stop) is mandatory; otherwise, NO contacts reduce debugging complexity and improve readability.
Implement retentive coils for critical states like motor run commands or sequenced operations. Unlike standard coils, retentive types retain their last state during power cycles–store them in non-volatile memory blocks (e.g., %M or %R registers) and pair with a condition to reset them post-operation. Avoid overusing retentive coils; exhaust regular coils first unless persistence is non-negotiable.
Latch/unlatch coils simplify bistable logic: one pulse latches the output, another unlatches it. Assign unconditional unlatch commands (e.g., manual reset) to prevent “stuck” states. For fail-safe designs, route unlatch through NC safety inputs or timed counters–never rely on a single NO pushbutton. Always validate latch status with diagnostic LEDs or HMI flags.
Edge-triggered contacts (rising or falling) fire only during transitions–ideal for pulsing outputs like counters or alarms. Confine them to scan-cycle-independent blocks (e.g., %I or %Q direct addressing) to prevent missed triggers. For precision timing, couple edge detection with a 10–20ms delay coil to filter noise spikes common in inductive loads.
Parallel branches with multiple contacts demand strict naming conventions: prefix Boolean tags with the coil’s function (e.g., “CR_MotorStart_OK,” “CR_MotorStart_Fault”). Group related coils in contiguous memory addresses to simplify troubleshooting. Use descriptive comments for every branch–avoid relying on rung numbers alone, as firmware updates often reorder logic arbitrarily.
