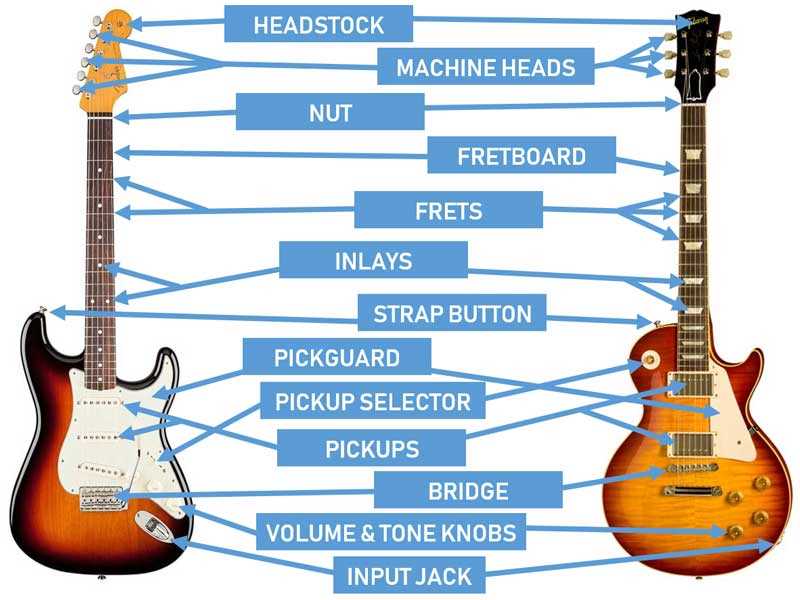

Begin by locating the headstock at the instrument’s uppermost section–this houses the tuning pegs, critical for pitch precision. Each peg adjusts string tension, directly influencing intonation. Identify the nut, a slender ridge between headstock and fretboard, which elevates strings to prevent buzzing against the frets. Faulty nuts introduce unwanted noise; sanding or replacement restores clarity.
Examine the neck, spanning from nut to body joint. Count the frets: typically 21 to 24 metal strips embedded perpendicular to strings. The 12th fret marks an octave shift–press here to confirm tuning stability. Note the fretboard material–rosewood, maple, or ebony–each affects tone and playability. Light coatings of fretboard oil preserve wood integrity while maintaining smooth transitions.
Trace the instrument’s contours to the body, where resonance dictates volume and sustain. Hollow or semi-hollow designs amplify acoustically, while solid variants prioritize durability. The soundhole (if present) channels vibrations outward–its size alters tonal balance. Locate the bridge, anchoring strings to the body; adjustable saddles here fine-tune string height for comfortable action. Incorrect bridge placement warps intonation–measure twice before adjusting.
Attachments like the pickguard shield the finish from strumming damage, while pickups convert string vibrations into electrical signals in amplified models. Single-coil pickups deliver crisp articulation; humbuckers reduce interference for heavier styles. Toggle switches and knobs modify tone–experiment with midrange cuts for definition or bass boosts for depth.
For visual learners, sketch each segment: headstock, neck, body, and hardware. Label components in sequence–this reinforces muscle memory during maintenance. Replace worn strings in staggered intervals to avoid sudden breakage; clean frets with fine steel wool to remove grime without damaging wood. Regularly check neck relief via a straightedge tool–excessive bowing requires truss rod adjustment.
Visual Anatomy of Stringed Instruments
Label each component on your schematic with precise terminology–misnaming the upper bout as “shoulder” or truss rod as “neck reinforcement” introduces confusion during repairs. Mark dimensions in millimeters for critical areas: scale length (648mm for standard dreadnoughts), nut width (43mm–48mm typical), and fret spacing (decreasing exponentially from 1st to 22nd fret). Use dashed lines to denote hidden structures like internal bracing patterns–X-brace for steel-string acoustics, ladder-brace for classical variants–visible only in cross-section views.
Critical Functional Elements for Identification
- Headstock: Slotted (classical) vs. solid (electric/acoustic) orientation dictates string angle; 14°–17° angle on solid variants prevents slippage.
- Soundboard: Spruce (strong attack) or cedar (warmer tone) material must be annotated with grain direction–parallel to centerline for optimal resonance.
- Bridge: Pinless (classical) vs. pinned (steel-string) systems require different intonation compensation: 0.01mm string length adjustments at saddle.
- Fretboard radius: Flat (classical: 25″) vs. curved (electric: 7.25″–12″)–indicate radius arc on diagram for setup accuracy.
- Electronics: Under-saddle piezo placement (acoustic), pickups (single-coil vs. humbucker) with polarity markers (±) for phasing alignment.
- Trace signal path from strings to output jack: magnetic field distribution (for electrics) or pressure wave transmission (for acoustics).
- Highlight grounding points–tailpiece (electric) or bridge plate (acoustic)–to prevent interference.
- Include capacitor values on schematics for tone circuits: 0.022μF–0.047μF for standard voice shaping.
Mapping Out Instrument Anatomy: A Hands-On Guide
Locate the headstock first–it anchors strings at their uppermost point, typically featuring tuning pegs arranged in a straight line or staggered pattern. Mark each peg with its corresponding string name (E-A-D-G-B-E) starting from the thickest to avoid confusion later.
Trace the slender curve where the headstock meets the neck; this joint, called the nut, holds grooves that space strings evenly. Count six slits to confirm proper alignment before labeling.
Decoding Neck and Fretboard Details
Identify frets by their raised metal strips running perpendicular to strings–number them sequentially from 1 near the nut upward. Note that dot inlays often appear at frets 3, 5, 7, 9, and two dots at 12 for quick navigation.
Label the fingerboard’s wooden surface beneath strings, emphasizing its flatness or radius. Indicate whether it’s constructed from maple (lighter) or rosewood (darker) for clarity in visual references.
Body Markings and Hardware Essentials
Outline the soundhole (acoustic) or pickup cavities (electric) first–these define tone production zones. For electric models, specify single-coil or humbucker pickups by shape and pole count (6 for single-coil, 12 for dual-coil).
Pinpoint the bridge next–its saddles elevate strings above the body. Note if it’s fixed, tremolo-style, or through-body for string anchoring. Below it, mark volume and tone knobs (usually 2 or 3), plus output jack placement near the lower bout.

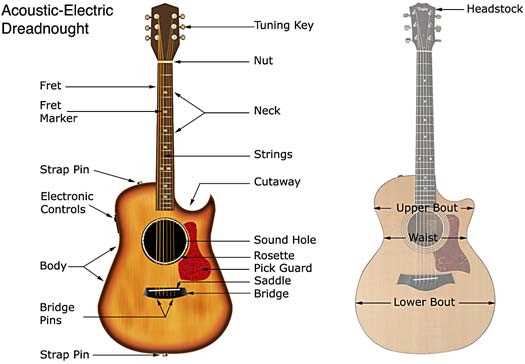

Step-by-Step Guide to Acoustic Instrument Components and Purposes
Begin by locating the soundboard–the large, flat surface on the instrument’s front. This wooden panel, typically made from spruce or cedar, vibrates when strings resonate, projecting tone outward. Thickness and grain density directly impact clarity; quarter-sawn spruce offers bright articulation, while cedar delivers warmer, softer tones. Check for uniformity–any cracks or irregularities will deaden sustain and reduce volume.
Trace the bridge, positioned near the lower bout. Its primary role is transferring string energy into the soundboard via the bridge pins, which anchor the strings. Rosewood or ebony bridges endure tension best, but composite materials resist humidity shifts better. Ensure the saddle, a thin strip of bone or synthetic ivory, sits perpendicular to the strings–an angled saddle alters string length, throwing off intonation. File the saddle grooves to match string gauge for consistent action.
Critical Structural Elements
- Neck joint: A dovetail or bolt-on connection secures the fretboard to the body. Dovetail joints allow vintage instruments to mature with richer harmonics, while bolt-on designs enable easier repairs. Apply graphite powder to the joint’s mating surfaces when restringing to prevent binding.
- Heel: The carved transition between body and neck affects playability. A slim heel improves upper-fret access; excessive wood here chokes resonance. Sand the heel gradually in 320-grit increments to avoid flat spots.
- End block: The block inside the lower bout reinforces the side panels. Mahogany end blocks stabilize tuning stability but add weight. Lighter instruments use laminated wood cores wrapped in hardwood veneers–less durable but ideal for travel-sized models.
Examine the soundhole rosette, the decorative ring encircling the opening. Beyond aesthetics, it reinforces the vulnerable soundboard edge. Abalone inlays resist wear, but thick-walled wood purflings resist cracking better in dry climates. Avoid lacquer over-spray on the rosette–it dampens high-frequency response.
Inspect the side panels–their curvature defines the instrument’s waist and bouts. Slender waists improve midrange projection, while deeper bouts enhance bass frequency resonance. Mahogany sides lean toward mellow tones, rosewood delivers punchier lows, and walnut offers balanced output. Tap the sides: hollow thuds indicate internal delamination requiring immediate repair.
Often Overlooked Components
- Back braces: These parallel strips under the rear panel control vibrational modes. Fan-bracing suits fingerstyle playing by emphasizing harmonics, while ladder bracing favors strumming with stronger fundamentals. Replace braces if they detach–use hide glue, never epoxy.
- Headstock overlay: Protects the wood but also influences sustain. Ebony overlays add mass, increasing resonance persistence. Synthetic overlays resist climate damage but may deaden attack.
- Truss rod cover: Aesthetic and functional–plastic covers risk cracking under neck tension, while metal versions reinforce stability. Apply preventive silicone grease to the rod’s adjusting nut annually.
Measure the nut slot depth–each groove should cradle ⅓ of the string’s diameter. Too deep causes fret buzz; too shallow raises action unnaturally. Lubricate nut slots with powdered graphite or a dedicated nut lubricant to eliminate tuning instability. Now tie the strings securely onto the bridge pins using the modified wrap knot: loop the string beneath itself twice, then thread through the windings for even pressure distribution.
Optimal Hardware Placement in Instrument Schematics
Anchor tuning pegs along the headstock’s upper edge, spaced 20mm apart center-to-center, with machine heads angled 8° downward for string tension balance. Bridge saddles should align directly beneath the 12th fret midline, ensuring intonation accuracy at ±0.5mm. Position the output jack near the instrument’s lower bout, 30mm from the edge, oriented at 45° to prevent cable strain. Volume and tone potentiometers require a 15mm radius clearance, mounted 50mm below the edge of the body, with knobs staggered to reduce accidental adjustment.
Critical Spacing for Electronic Components
Keep control cavities shallow–12mm depth–with shielding foil grounded to the tailpiece. Pickup coils demand precise height adjustments: 2.5mm clearance between strings and pole pieces at the bridge, 3.2mm at the neck. Route wiring channels 6mm wide, avoiding intersections with screw holes or ergonomic contours. Humbucker cavities should measure 73x36mm, placed 7mm from the string path’s centerline, while single-coils fit 68x19mm cutouts. Label each solder point in schematics using 3mm text height for clarity.
