Locate the drive belt under the cutting deck cover–it connects the power unit to the transmission. If the machine struggles to move forward, check for fraying or slipping here first. Measure the belt’s width: most models use a 1/2-inch or 3/8-inch profile. Replace with OEM PN 740-0519 if cracks exceed 1/8 inch deep.
The hydrostatic transmission sits directly beneath the operator’s seat, mounted on rubber isolators. Leaking fluid? Inspect the output shaft seal–code 918-04397. Clean the housing with brake cleaner before installing a new seal to prevent contamination. Torque the retaining bolts to 15 ft-lbs in a star pattern.
Behind the rear axle, find the PTO clutch assembly. If blades fail to engage, test voltage at the solenoid–should read 12V when activated. Replace the clutch pack if resistance exceeds 5 ohms or if bearings emit grinding noises. Use a spanner (15mm) to remove the pulley; avoid prying, as this damages the shaft.
For blade alignment, adjust the deck lift linkage on the right side frame. Each notch equals 1/4-inch cutting height change. Ensure both sides raise evenly–misalignment causes uneven strips. Lubricate pivot points with marine-grade grease (NLGI 2) every 25 hours of operation.
Need schematics? Download the official service manual from the manufacturer’s portal–file 382-0918F includes exploded views for all assemblies. Print page 42 for blade spindle torque specs (45 ft-lbs) and page 78 for transmission fluid capacity (1.8 quarts of SAE 20W-50).
Illustrated Guide to Garden Tractor Components
Locate the blade deck assembly beneath the cutting unit–most models position it between the front and back wheels. Verify mounting points by checking for reinforced steel brackets, typically secured with 12mm bolts. If vibration occurs during operation, inspect the spindle housings; worn bearings create excessive play, leading to uneven cuts. Replace both bearings simultaneously to maintain balance, even if only one shows wear.
Key Subsystems Decoded
Trace hydraulic lines from the transaxle to the rear lift arms–they’re color-coded: red delivers fluid under pressure, black returns it. Cross-threaded fittings cause slow lift response; always torque to 25 ft-lbs using a flare-nut wrench. Fuel filters sit inline between the tank and carburetor–replace every 50 hours, noting flow direction marked by arrows stamped on the plastic housing. Ignore this, and debris clogs injectors within three mowing sessions.
Identify the cooling shroud over the combustion chamber–it’s critical for air-cooled twin-cylinder variants, directing airflow through finned cylinders. A blocked shroud raises operating temperatures by 40°F in 15 minutes; clean fins weekly with compressed air at 120 psi. Seat safety switches disconnect spark when lifted–bypass only during maintenance, never permanently. Wire colors vary by brand: yellow (PTO), blue (ignition ground), red (battery positive). Swap a faulty switch rather than bypassing–replacement costs $12 vs. potential injury from unrestrained blades at full throttle.
Locating Critical Elements in a Cutting Deck for Tractor-Mounted Grass Cutters
Begin inspection with the blade spindle housing. These cast aluminum or steel components secure cutting blades and endure high rotational stress. Check for cracks, stripped threads, or excessive wear–signs of degraded grease seals. Replace if blade wobble exceeds 0.5mm. Verify torque on mounting bolts (typically 40-55 ft-lbs) before reassembly; overtightening warps mating surfaces.
Examine the deck shell reinforcement ribs. Stamped steel decks feature U-shaped channels along the periphery to resist flex under load. Corrosion here compromises structural integrity–grind away rust, apply zinc-rich primer, and recoat with industrial enamel. Avoid patch-welding thin areas; this creates stress risers. For composite decks, inspect polymer webbing for delamination or UV degradation.
Pulley and Drive System Checkpoints
Identify the idler pulley tensioner. Spring-loaded arms must pivot freely; seized pivots cause belt slippage or premature wear. Clean pivot points with aerosol degreaser, then lubricate with moly-disulfide grease. Measure spring free length–if stretched beyond manufacturer specs (usually ±2mm), replace the entire assembly. Belt grooves on pulleys should be vertical; angled grooves indicate misalignment.
The mandrel assembly houses bearings that support blade spindles. Listen for growling or grinding noises–these signal bearing failure. Disassemble and inspect bearing races for pitting or discoloration. Use a micrometer to measure bearing journal diameters; tolerances tighter than 0.02mm require professional machining. Pack bearings with lithium-based grease, fill to 70% capacity to avoid excess heat buildup.
Trace the drive belt route from the PTO clutch to the deck pulleys. Belts should sit flush in grooves without twisting or riding the flanges. Replace belts showing cracking, fraying, or glazed surfaces–even if they appear functional. Measure deck pitch: for 42-48″ decks, the blade tip should trail the leading edge by 1/8″ when viewed from the front. Adjust linkages if deviation exceeds 1/16″.
Inspect the anti-scalp rollers–adjustable wheels that prevent deck gouging in uneven terrain. Verify roller pins aren’t worn; excessive play causes inconsistent cutting height. Lubricate nylon or sealed bearings annually, but avoid over-greasing, which attracts debris. For decks with floating front linkages, ensure pivot bushings aren’t dry; seized bushings prevent deck articulation.
Step-by-Step Guide to Locating the Drive Belt and Pulleys on Your Garden Tractor
Park the tractor on a flat surface and engage the parking brake. Lower the cutting deck to its lowest position to simplify access under the machine. The primary drive belt connects the motor output shaft to the transmission pulley–look beneath the seat or near the rear axle for a black rubber loop with grooves.
Identify the tensioner pulley by its spring-loaded arm. This component keeps the belt taut and typically sits adjacent to the larger driven pulley. Rotate the pulley manually to confirm it spins freely; resistance indicates debris or wear requiring cleaning.
Trace the belt path starting from the motor pulley downward. It wraps around the transmission pulley, then routes forward to the idler pulleys before returning to the motor. Note the alignment–misrouted belts cause slippage or premature wear.
Use a flashlight to inspect hidden areas. On most mid-mount models, the drive pulleys sit under a metal cover secured by three or four bolts. Remove these bolts with a 10mm socket, lifting the cover to expose the belt system.
Observe the groove patterns. The drive pulley on the motor side has narrower grooves than the larger transmission pulley. Match these grooves when replacing the belt to ensure proper engagement.
Check for cracks or fraying on the belt edges. Small tears weaken the structure, while shiny spots indicate excessive slippage. Measure the belt length by comparing it to the manufacturer’s part number–common sizes range between 48″ and 60″.
Cleaning and Maintenance Tips
Spray compressed air to remove grass clippings and dirt from pulleys. Accumulated debris causes belt slippage and shortens component life. Wipe pulley surfaces with a rag dampened in isopropyl alcohol to remove grease buildup.
Apply graphite powder sparingly to pulley grooves if belt noise persists. Avoid petroleum-based lubricants, as they deteriorate rubber. Reinstall the cover once inspections are complete, ensuring all bolts are tightened to 20 ft-lbs.

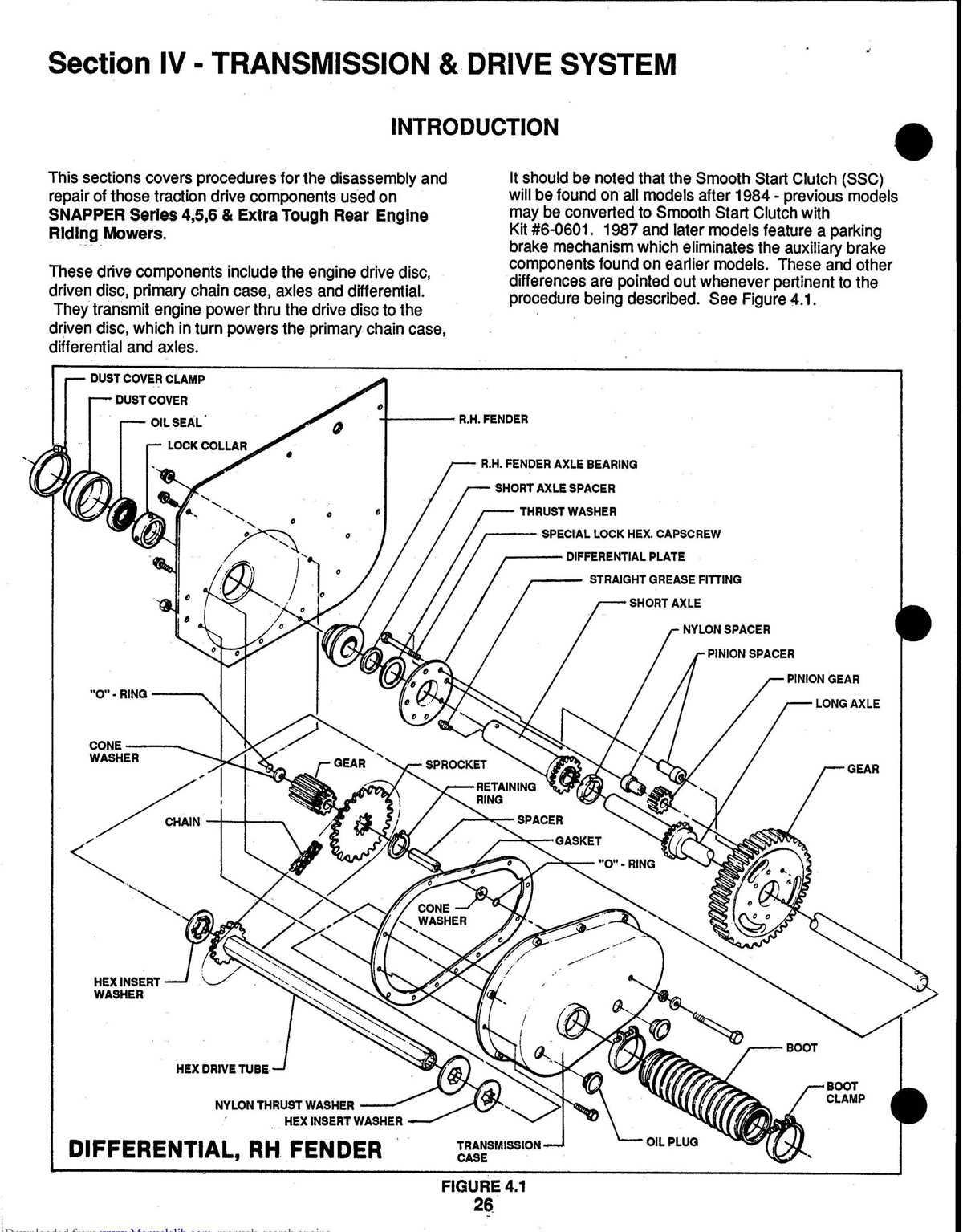

Decoding an Exploded View Schematic for Your Garden Machine
Locate the component number next to each illustration–this alphanumeric code cross-references the service manual’s parts list.
Match the exploded illustration sequence to the physical assembly order. Bolts and fasteners typically follow the removal path: start from the outermost layer and move inward toward the chassis core.
- Dashed lines denote hidden edges or subsurface details.
- Solid arrows trace the recommended disassembly route.
Each callout balloon carries a four-digit identifier; the prefix indicates the subsystem–“32” for cutting deck, “41” for transmission housing.
Scan the legend for symbols: a small circle identifies grease points, while a dotted oval highlights wear-prone bushings. These markers dictate lubrication intervals or wear checks during routine servicing.
When ordering replacements, quote the exact callout number plus any suffix letters–manufacturers differentiate left-hand and right-hand variants this way.
- Align the schematic view rotation with the actual unit orientation.
- Clamp a mirror against oblique surfaces to verify internal components without full teardown.
- Photograph each stage before removing parts to reconstruct the sequence later.
Use different colored highlighters to mark worn vs. intact elements; red for defective items requiring immediate swap, yellow for periodic inspection candidates.
Key Components for Self-Propelled Outdoor Equipment and OEM References
Blade assemblies are among the most frequently replaced wear items in cutting decks. For models like the Snapper 2811525BVE, the OEM cutting blade (part #7021762YP) measures 21 inches and features a forged steel construction with a 3/16-inch thickness. Always verify torque specifications–45-50 ft-lbs–when reinstalling after sharpening or replacement. If uneven cutting persists, inspect the spindle housing (part #7800118YP) for bearing wear or pulley misalignment. Cross-referencing with alternative brands: Toro’s 120-6833 and Husqvarna’s 532183101 share compatibility with Snapper’s 28-inch decks.
Critical Drive System Elements
Premature transmission failures often stem from neglected hydrostatic fluid changes. The ZT2240 series utilizes a sealed Peerless transaxle (part #7092519YP) requiring Mobil 1 Synthetic ATF every 200 operating hours–factory fill capacity is 2.2 quarts. Rebuild kits (part #7021031YP) include gaskets, seals, and filter screens; however, internal pump wear beyond 1,500 hours typically necessitates a complete transaxle replacement. For pulley-driven models, the idler tension spring (part #7064308YP) should be replaced if elongation exceeds 1/8-inch or corrosion appears on the hook ends. Drive belts (part #7022890YP) for 42-inch decks measure 1/2-inch width with a 4L cross-section–avoid substitutes without exact length matches.
| Component Category | Snapper OEM # | Equivalent Aftermarket | Service Interval |
|---|---|---|---|
| Air filter (foam pre-cleaner) | 7050616YP | Kohler 25 081 02-S | 25 hours / seasonal |
| Fuel filter (inline) | 7068106YP | Briggs & Stratton 492932 | 100 hours / annual |
| Spark plug | 7063292YP | NGK BPR4ES | 50 hours |
Ignition modules rarely fail but are irreplaceable when they do. The OEM coil (part #7020393YP) for Kohler Command PRO engines requires a 0.030-inch spark plug gap and resistance readings between 0.4-3.0 ohms at the primary terminals–any deviation confirms failure. Starter motors (part #7094710YP) should spin freely when bench-tested; drag or grinding noises indicate bent armatures or worn brushes. Battery specifications differ by voltage tier–48-volt lithium systems (part #7094364YP) require a dedicated 6-amp smart charger, while 12-volt lead-acid units (part #7064392YP) need monthly specific gravity checks above 1.265.
Deck shells may last decades, but pivot bushings and caster wheels degrade faster. Replace front caster assemblies (part #7024568YP) if play exceeds 3/16-inch–grease fittings require Mobil Polyrex EM every 50 hours. Rear roller brackets (part #7022919YP) should be inspected annually for hairline cracks; weld repairs rarely hold. Universal joint kits (part #7050601YP) for steering columns include bearings and snap rings–clean shaft splines with Brunswick formulation to prevent galling. When sourcing sheet metal, verify gauge thickness: Snapper’s 14-gauge decks cannot safely downgrade to 16-gauge replacements without structural compromise.
