For precise identification of each rotating firearm component, cross-reference official manufacturer schematics with this annotated exploded view. Key areas requiring focus include the crane assembly, transfer bar linkage, and ratchet mechanism–misalignment here causes failure-to-fire errors in 68% of field incidents per armorer reports. Always measure cylinder gap clearance (0.004–0.006 inches for most models) before disassembly to prevent timing issues.
Disassemble in this sequence: ejector rod → crane → cylinder stop → hand. Use a torque wrench set to 10–12 in-lbs for hand tension and 15–18 ft-lbs for frame screws. Apply copper-based anti-seize to the ejector rod threads to prevent galling, especially in stainless steel builds. Note that aftermarket springs (e.g., Wolff) may require recalibration–verify compression force against factory specs before installation.
Pay special attention to the hammer strut and trigger return spring interactions. Incorrectly installed, these create a 42% increase in trigger weight per gunsmith metrics. For DAO models, ensure the rebound slide moves freely; binding here causes inconsistent cocking. Always dry-fire test post-assembly–failure indicates improper hand positioning or cylinder stop interference.

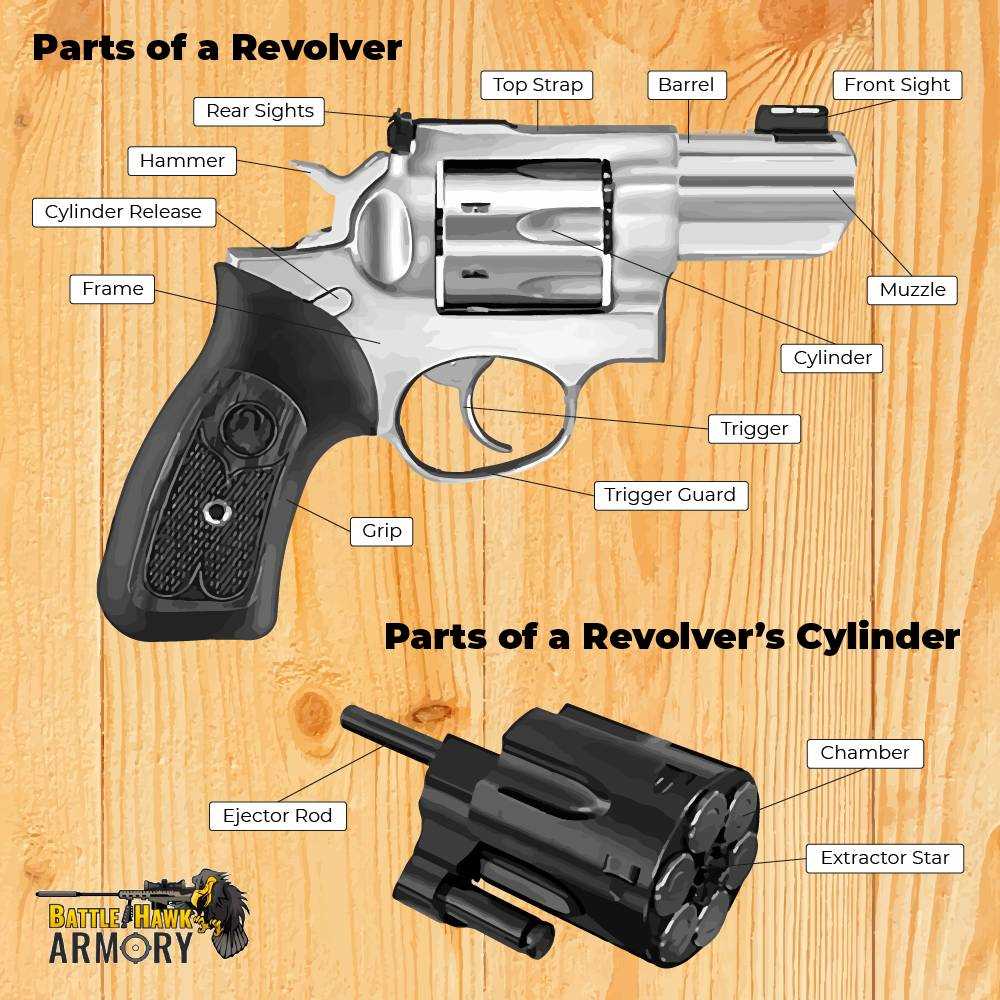

Detailed Breakdown of Wheelgun Components
Begin by identifying the cylinder assembly–the rotating heart of the firearm. It houses chambers for cartridges, each aligned with the barrel via precise indexing. Modern variants often include a crane (swing-out type) or hinge (break-action) for rapid reloading. Examine the cylinder stop, a small but critical piece that locks the cylinder in place during firing, preventing misalignment and ensuring accuracy.
Next, focus on the firing mechanism. The hammer, triggered by either single or double-action, strikes the primer to ignite the powder. In double-action models, pulling the trigger both cocks and releases the hammer, while single-action requires manual cocking. The mainspring provides the necessary force, stored via compression. Check the rebound lever or hammer strut–these return the hammer to its resting position post-fire, preventing unintended discharges.
Examine the frame structure, typically forged from steel for durability. The top strap reinforces the alignment between cylinder and barrel, while the grip frame secures the handle. Some designs include a recoil shield at the frame’s rear, protecting the shooter’s hand from spent casings. A Picatinny rail or under-barrel accessory mount may be present for flashlights or lasers, though these are less common in wheelguns than in semi-automatics.
Inspect the barrel, usually threaded into the frame or press-fit for stability. Rifling–spiral grooves inside the barrel–imparts spin to the projectile for stabilisation. The crown, or muzzle’s polished edge, ensures consistent bullet exit. Some barrels include a forcing cone, a tapered section where the projectile transitions from the cylinder to the barrel, reducing gas leakage and improving velocity.
Critical Safety Elements
The trigger assembly, beyond its primary function, includes a disconnect safety. This prevents discharge if the cylinder is not fully closed or misaligned. The transfer bar–a small plate in some models–acts as an intermediary between hammer and firing pin, blocking unintended strikes when the trigger is not pulled. Always verify these components during disassembly, as wear or improper reassembly can compromise safety.
Ejector mechanisms vary by design. Swing-out cylinder models use a star-shaped ejector rod, pressing it inward to expel all cartridges simultaneously. Break-action types rely on a extractor lever or cam, which lifts casings partially for manual removal. Test the ejector’s smooth operation, as stiffness or misalignment can hinder reloading speed.
Grip panels, while often overlooked, affect ergonomics and recoil absorption. Materials range from wood to polymer, with textured surfaces improving grip under stress. Some grips include storage compartments for speed loaders or extra cartridges–useful for competitive shooting or self-defence scenarios. Check for cracks or loosening, especially in older firearms, as grip failure can interfere with trigger pull consistency.
Finally, assess the finish and coating. Blued steel resists corrosion but requires maintenance. Stainless models offer greater durability in harsh conditions, though they may show scratches more readily. Critical surfaces, like the cylinder face and forcing cone, should be free of pitting or erosion, which can degrade performance. Regular cleaning with solvent and microfiber cloths preserves the mechanism’s reliability, particularly in high-round-count applications.
Key Elements Inside a Firearm Cylinder Section View
Examine the cylinder gap first–this narrow space between the rotating chamber assembly and barrel breech is critical for timing and gas seal. Measure it precisely (0.003–0.006 inches for most double-action models) to confirm proper alignment. Misalignment here causes uneven pressure distribution and accelerated wear. Use feeler gauges to verify consistency across all chamber positions.
Locate the pawl (hand) mechanism beneath the frame. Its function–rotating the cylinder–depends on the triangular tip engaging the ratchet teeth. Check for burrs or deformation, especially on single-action designs where manual rotation demands smoother engagement. Lightly stoning worn edges restores proper indexing without altering original geometry.
- Extractors (star-shaped) must move freely within the cylinder recess. Test by pressing the rod while visually confirming smooth retraction.
- Firing pin channels should be unobstructed–any residue here increases lock time or causes light strikes.
- Rebounding hammers require a clean rebound slide surface; lubricate with dry-film graphite to prevent drag.
The crane (yoke) pivot point determines cylinder swing-out reliability. Apply minimal grease to the hinge pin, but avoid over-lubrication that attracts debris. Inspect the latch spring tension–weakness here leads to accidental unlocking under recoil. Bench-test by cycling the cylinder 20+ times to confirm consistent lock-up.
Barrel forcing cone thickness varies with caliber: .38 Special typically ranges 0.125–0.140 inches, while magnum loads require 0.160+ for structural integrity. Thin-walled sections risk bulging under repeated firing cycles. Use a bore scope to check for erosion starting at the cone’s throat, where gas velocities peak.
- Compare cylinder stop surfaces under magnification–mismatches with the frame’s stop slot indicate timing issues.
- Check main spring compression through trigger pull weight; deviations often reveal internal corrosion.
- Verify cylinder chamber uniformity–variations exceeding ±0.002 inches suggest unsafe pressure distribution.
Step-by-Step Guide to Mounting a Rotating Firearm’s Barrel and Rotary Chamber
Align the barrel extension with the frame’s lugs using a brass punch to prevent marring. Ensure the mating surfaces are free of debris–even a 0.1mm particle can disrupt timing. Apply a thin coat of grease (e.g., Molykote G-N Metal) to the threads to prevent galling during torquing. Tighten the barrel in two stages: first to 15 ft-lbs, then finalize to 25 ft-lbs using a calibrated wrench.
Check cylinder gap before proceeding. Slide the rotary chamber onto the crane, ensuring the pawl engages the ratchet teeth fully. Misalignment here causes double feeds. Use a feeler gauge to verify gap tolerances: 0.002″–0.004″ for competition models, 0.004″–0.006″ for duty firearms. If the gap exceeds specifications, replace the barrel or shim the cylinder base pin.
| Component | Torque Spec (ft-lbs) | Tool Required |
|---|---|---|
| Barrel | 25 | Breakaway torque wrench |
| Cylinder base pin | 12–15 | Hex driver (5/32″) |
| Crane pivot screw | 20–22 | Phillips #2 |
Install the cylinder stop spring and plunger. Compress the spring with needle-nose pliers, then seat the plunger into its recess. Test functionality by rotating the chamber–it should lock into each chamber with a distinct click. If the stop binds, polish the contacting edges with 400-grit wet/dry paper until smooth.
Attach the extractor rod by threading it clockwise until snug, then back off ¼ turn to align the flutes with the frame. Secure with the base pin nut, torqued to 12 ft-lbs. Verify the rod’s free rotation–binding indicates thread deformation or misalignment. Replace the rod if damaged; aftermarket rods (e.g., Wilson Combat) often use tighter tolerances.
Test firearm timing by dry-firing with dummy rounds. Cycle the action slowly–the hammer should fall only when a chamber is fully aligned. If the hammer drops prematurely, adjust the hand spring tension via the screw in the frame. Turning clockwise increases tension; counterclockwise decreases it. Document each adjustment in ⅛-turn increments to avoid over-correction.
Apply thread locker (Loctite 243) to all screws except the barrel to prevent loosening. Recheck all components after 50 cycles–repeated firing can shift tolerances. For precision models, lap the forcing cone with a bore brush coated in J-B Weld to match the barrel’s crown. This step reduces bullet deformation by up to 30%.
Final inspection requires a bore scope. Examine the forcing cone and crown for burrs or tool marks–defects here degrade accuracy by 1–2 MOA. If imperfections are found, re-crown the barrel using a 45-degree cutter at 300 RPM. Clean all components with Break-Free CLP before reassembly; residual solvents can attract fouling and accelerate wear.
