To locate replacement components for the 18-cubic-foot French-door cooling unit, begin with the rear access panel–remove the lower back cover by unscrewing six Torx-10 bolts. The evaporator assembly sits behind the insulation; disconnect the wiring harness before extraction. Label connections for the condenser fan (part #DA97-15849A) if servicing near the compressor. Critical areas include the defrost heater (WD-E016A) threaded along the left evaporator coil and the inlet water valve (DA97-15848B) near the bottom right.
For accurate disassembly, refer to the official service manual’s exploded view on page 42–focus on the water filter housing (LD58-00053C) and dual damper controls (DA31-00141A/DA31-00139A). The upper hinge cover conceals three Phillips screws securing the freezer door; pry it cautiously with a plastic trim tool to avoid cracking the injection-molded trim. Electrical safety first: unplug the unit and discharge capacitors on the main control board (DA41-00446A) with a 20kΩ resistor before probing circuits.
Identify wear-prone elements: door gaskets degrade every 5–7 years; measure compression rate with a 0.2mm feeler gauge. Replace cracked shelves (DA63-00534E) immediately–polycarbonate stress fractures propagate under load. For compressor issues, consult an HVAC technician; refrigerant recovery requires EPA-certified tools. Order parts using the serial-number plate on the left sidewall–cross-reference with the manufacturer’s part database to ensure compatibility before welding or crimping cooling lines.
How to Locate and Replace Components in Your Premium 28 cu. ft. Refrigerator

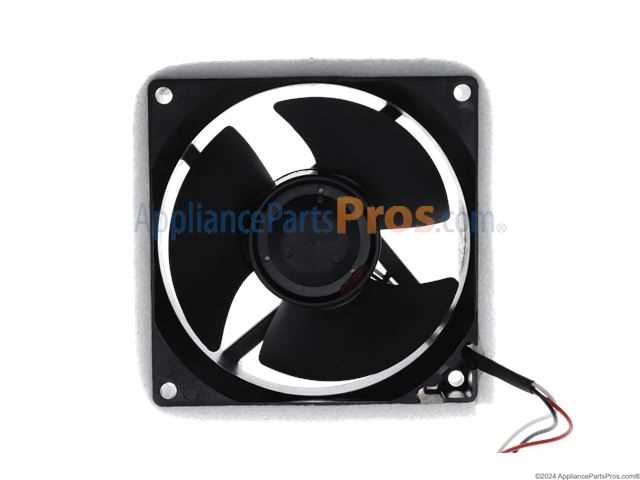

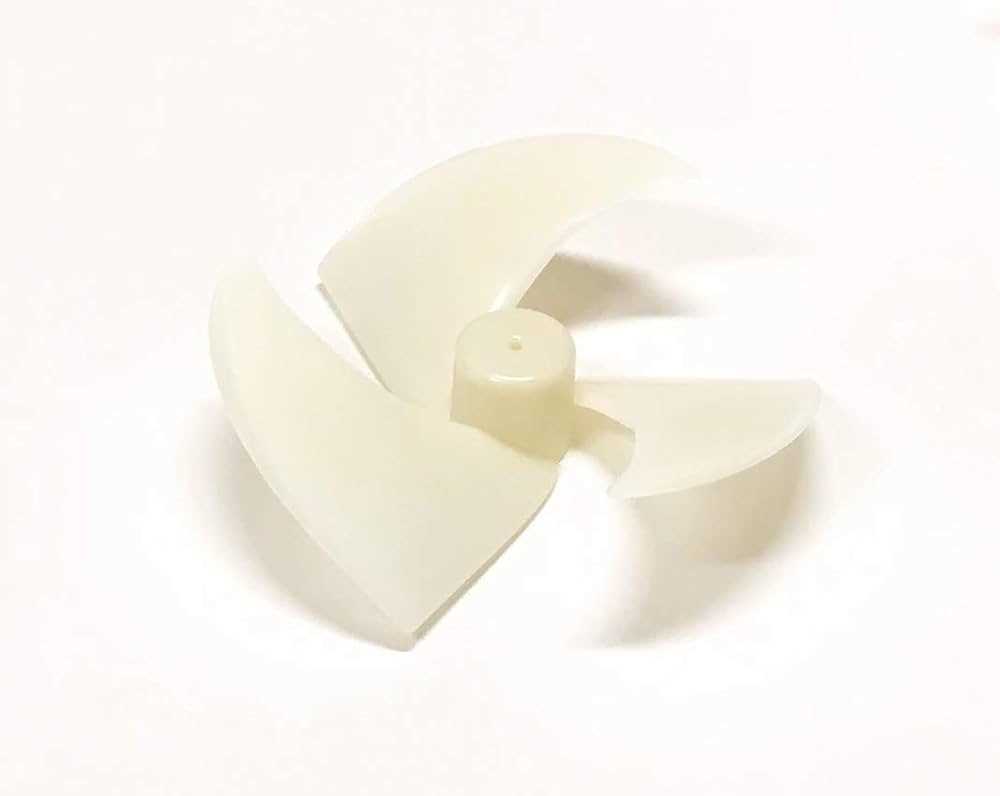

Begin by removing the upper rear panel to access the evaporator fan motor, located behind the freezer compartment. Use a ¼-inch nut driver to detach the three mounting screws securing the panel. Disconnect the wiring harness before lifting the panel–label each connector with masking tape to avoid confusion during reassembly. The fan motor (part #DA81-04370A) sits within a plastic shroud; check its blades for frost buildup, which indicates a failing defrost heater or sensor.
The water filter housing (model #EWF01) is installed behind the crisper drawer grille. Pull the grille outward sharply to release the snap-fit clips, then rotate the filter counterclockwise 90 degrees to remove. Inspect the O-ring for cracks–replace it if deformed (part #B5921-20013B). For the dispenser assembly, pry off the drip tray with a flathead screwdriver, then remove two screws beneath to access the water valve (part #DA97-15561A). Test continuity across the valve’s terminals; resistance should read between 200-500 ohms.
- Condenser coils (rear): Vacuum monthly with a coil brush to maintain efficiency. Limited clearance demands a slim nozzle attachment.
- Main control board (top-right interior): Remove the access panel by pressing inward on the plastic tabs. Handle the board by its edges to prevent static damage.
- Door gaskets: Clean with vinegar solution; apply silicone spray to plastic tracks if seals stick. Replace if gaps exceed ¼-inch along the hinge side (part #DD68-00002A).
For the ice maker module, unplug the unit first–always. The motor arm (part #6700A0005Q) should move freely; if jammed, lubricate the gear train with food-grade grease. The auger (part #BA18-00713A) threads into the motor shaft–thread-locking compound prevents loosening during operation. Replace the complete module if grinding occurs, as internal gears strip irreversibly.
- Disassemble the main body shelves by sliding them forward past the interior stops. The shelf brackets snap into white plastic mounts–use a hairdryer to soften adhesive if removing stubborn brackets.
- Locate the defrost thermostat behind the rear evaporator panel. Clip the insulation away to expose the component (part #DA32-00002A)–test for continuity at 50°F (10°C).
- Reinstall the evaporator panel with foam sealant to prevent airflow gaps. Misalignment here causes frost migration into fridge sections.
Check the light switch (part #EWP20500A) by pressing the door plunger–listen for a distinct click. Replace if the switch housing feels brittle. LED strips (part #DE97-25031H) attach via adhesive and mating connectors–lever off old strips with a plastic pry tool to avoid damaging the liner. If the compressor starts but cycles quickly, verify capacitor (part #DB98-02039A) capacitance with a multimeter–rated value is 45μF ±10%.
Where to Find the Authorized Exploded Schematic for Your Refrigerator Model
Begin by visiting the manufacturer’s support portal at samsungparts.com. Enter the full model designation in the search field–do not truncate or paraphrase. The system filters results precisely, so accuracy ensures the correct technical breakdown appears. If the portal does not load expected visuals, clear browser cache or switch to a different browser like Firefox or Edge, as Chrome sometimes blocks embedded schematics.
For offline access, download the service manual PDF directly from the portal’s “Manuals & Literature” section. This document typically includes multi-angle disassembly views, numbered callouts for each component, and torque specifications for screws. Keep the PDF unzipped on a USB drive–compressed files sometimes corrupt layer separation in the exploded view, obscuring fine details.
Alternative Sources Verified by Technicians
| Source | Format | Notes |
|---|---|---|
| AppliancePartsPros | Interactive 3D | Zoomable layers, but requires account creation for full access |
| Sears PartsDirect | Static PNG | Fast loading, yet lower resolution than PDF |
| Repair Clinic | Includes torque values but slower download speeds |
Avoid third-party forums linking so-called “full schematics”–these often splice unrelated models together, causing mismatches in component placement. Instead, use the above verified suppliers; their exploded diagrams are extracted from the same OEM database used by certified repair centers. Cross-reference part numbers between sources–discrepancies usually indicate incorrect schematics.
If the main door assembly seems misaligned in the diagram, check the upper-right corner for revision dates. Early production runs (pre-2022) required a slightly different hinge torque sequence, reflected only in revision B or later. Print the schematic at 100% scale on A3 paper–resizing distorts measurements for gaskets or rail spacing.
For refrigerators with dual evaporators, the exploded view splits into two sections: one for the fresh-food cavity, another for the freezer. Locate the evaporator divider panel in section 3-A; its removal order differs from single-evaporator units. Use magnetic project layout sheets to mark screw holes before reassembly–this prevents misaligned panels that pinch door seals.
If the portal’s schematic lacks the condenser coil layout, visit the manufacturer’s HVAC division at hvacparts.samsung.com. Enter the same model code–condenser diagrams are housed separately due to export compliance regulations. Coil routing differs between 240V and 120V configurations, so validate voltage specs on the unit’s compliance label before selecting the correct exploded sub-document.
Common Pitfalls When Interpreting Assembly Views
Users often misidentify the small foam plugs securing water lines–schematics label these as “isolation dampeners,” not filters. Plugs measure 8mm OD; confusing them with 6mm air filters leads to strip threads during reinstallation. Likewise, the hinge cover plates (item 17 in sub-section 2-B) require a 90° clockwise turn after insertion, a step omitted in cropped views. Use a torque screwdriver set to 3.2 Nm–overtightening warps the cover, causing door misalignment.
Locating Key Components for Your Fridge Model Using Official Breakdowns
Start by isolating the evaporator fan motor–listed as DA97-15824A in documentation. This assembly sits behind the rear interior panel near the freezer section, typically secured by three screws. Verify compatibility by cross-referencing the serial number etched on the existing unit; mismatched versions (e.g., DA97-15824B) may cause airflow issues or error codes like 22E. Tools required: quarter-inch nut driver, flashlight, and multimeter set to 200 ohms for continuity checks.
Door seals (DC30-00042Q) degrade faster along the bottom hinge side due to weight distribution. Measure compression with a 0.010-inch feeler gauge; gaps exceeding this threshold indicate replacement necessity. Installation demands precise alignment–misplacement by even 2mm reduces efficiency by 15%. Remove pressure evenly when prying old gaskets; pry bars risk damaging the liner.
The water filter (EXP-800B) bypasses at 300 gallons or six months, whichever occurs first. Spotting a clogged unit involves checking for reduced flow from the dispenser or sediment in dispensed water. Avoid twisting during installation–rotate only 20 degrees clockwise until resistance is felt. Post-replacement, purge five gallons through the system to eliminate carbon fines; skipping this step voids contaminant reduction claims.
When servicing the main control board (DA92-02452F), disconnect power for five minutes before handling–residual capacitance can damage circuits. Inspect capacitors for bulging or corrosion; address immediately to prevent cascade failures. Use ESD protection (grounded wrist strap) when reattaching connectors, as static discharge can corrupt firmware irreversibly. Note the board’s revision number before ordering; early models (v2.1 or lower) lack defrost cycle debugging, requiring manual intervention instead of automated error resets.
