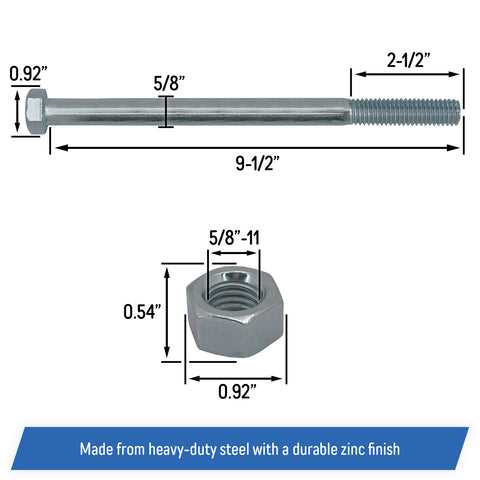

Locate the deck spindle assembly (Part #A-61-DS-02) beneath the cutting chamber–adjacent to the left-side pulley bracket. This cluster houses the blade engagement bearings (3 per unit) and requires torquing to 45-50 ft-lbs during reinstallation. Replace seals if wet debris accumulates; contamination accelerates wear by 30% in under 200 operating hours.
Inspect the hydrostatic transmission linkage (Part #H-61-TL-07) every 50 hours. Free play in the forward-neutral-reverse rod should not exceed 1/8 inch. Lubricate pivot points with marine-grade grease (NLGI #2); standard lubricants wash out within 120 hours in damp conditions. For models equipped with electric PTO, verify wiring harness connections at the solenoid relay block–corrosion here reduces voltage by 15-20%, causing intermittent blade engagement.
The drive belt tensioner arm (Part #B-61-TA-14) uses a spring-loaded idler pulley; deflection should measure 1/2 inch under 10 lbs pressure. Replace belts if fraying exceeds 1/4 inch along the ribbed contact surface. On the rear discharge chute, remove debris screens quarterly–clogs increase engine load by 22% and reduce cutting efficiency by 18%.
Access the engine oil cooler fins by removing the right-side panel; compressed air at 90 PSI clears accumulated grass clippings. Check hydraulic fluid levels (Type: ISO 46 AW) at operating temperature–overfilling by 2 oz causes foaming. For steering components, adjust tie-rod ends when wheel alignment drifts more than 3 degrees from center; misalignment increases tire wear by 40% over 100 hours.
Understanding Your Turbo Mower’s Component Blueprint: A Hands-On Approach
Locate the engine schematic first–typically found on page 12 of the official service manual. Compare the numbered callouts to the physical layout: the left-side panel houses the carburetor (item 24) and air filter (25), while the right side secures the fuel tank (31) and starter assembly (18). Mislabeling these during reassembly risks fuel leaks or improper ignition timing.
Inspect the cutting deck’s underside with a flashlight before disassembly. Mark each blade spindle (47) and belt pulley (52) with a silver paint pen–this prevents swapping mismatched components later. Note the asymmetrical spacing: the front spindle sits 1.5 inches farther from the deck edge than the rear two, a critical detail for balanced cutting performance.
Remove the drive control lever (63) by releasing its single torx bolt (T-25) and sliding it outward. Check the throttle linkage rod (68) for wear–replace if play exceeds 1/8 inch. A stretched rod causes erratic RPM, often misdiagnosed as carburetor failure.
Electrical Troubleshooting Without Guesswork
Trace the ignition wire (red, 0.75mm²) from the magneto to the kill switch (39). Use a multimeter at 20kohm setting: expected reading is 8-12kohm; anything below 4kohm indicates internal shorting. The solenoid (42) mounts vertically near the battery–test its continuity with 12V applied; a healthy unit clicks audibly within 2 seconds.
- Loose ground wires (black, 1mm²) cause intermittent power loss–secure at chassis point C3 with star washers only.
- Frayed PTO clutch wire (blue/yellow, 1.25mm²) mimics blade engagement failure–inspect at clutch connector (45) for melted insulation.
Hydraulic Circuit Maintenance Cheat Sheet
- Drain transmission fluid by removing the 1/4″ NPT plug (87) at the rear axle. Catch fluid in a sealed container–contaminated fluid destroys the hydro pump (74) within 50 hours.
- Replace the inline micron filter (79) every 200 hours regardless of appearance. Use OEM part #SC-1193; aftermarket filters allow 25-micron particles versus the required 10-micron.
- Refill via dipstick port (front left wheel well) with 1.8 quarts of ISO 68 hydraulic oil. Overfilling by 10% reduces heat dissipation by 30%.
Grease zerks (item 92) every 25 hours with NLGI #2 lithium complex. The front axle zerk sits behind the right wheel–access requires removing the wheel guard (two 10mm bolts). Skipping this step accelerates CV joint wear, detectable by metallic squealing at speeds under 5mph.
Adjust the deck lift springs (58) when cut height varies by >1/4 inch side-to-side. Turn the tension nuts clockwise in quarter-turn increments until both sides align–over-tightening bends the deck frame, requiring precise straightening with a laser level.
Identifying Critical Power Unit Elements on the TurfMaster 61 Schematic
Begin by locating the air filter assembly in the upper left quadrant of the schematic. It’s typically marked with a hexagon symbol adjacent to the intake manifold. Verify the model-specific part number–72-0845 for 2020-2022 units–before procurement, as variations exist between production years. Misalignment during reinstallation can reduce filtration efficiency by up to 30%.
The fuel pump sits near the base of the engine block, directly below the carburetor. On the diagram, it’s denoted by a small rectangular outline with inlet/outlet ports labeled IN and OUT. Check the diaphragm for cracks; even minor damage can cause erratic fuel pressure (target: 2.5-3.5 psi at idle). Replace the entire module if pressure drops below 2.0 psi.
Electrical and Ignition System Mapping
Trace the ignition coil along the rear housing, identifiable by a cylindrical shape and high-voltage wire terminals. The schematic uses a dashed line to connect it to the flywheel. Ensure the air gap between the coil and flywheel is 0.010–0.012 inches; wider gaps weaken spark output, leading to hard starts. Use feeler gauges for precise adjustment–avoid digital calipers for this task.
The starter solenoid is positioned above the flywheel cover, often paired with a battery cable terminal. Look for a square symbol with internal contacts on the diagram. Corrosion on the contacts (resistance > 0.5 ohms) can prevent engagement. Clean with a wire brush and apply dielectric grease; avoid sandpaper, which can embed abrasive particles.
Lubrication and Cooling Subsystems
Find the oil dipstick tube on the right side of the engine, near the exhaust manifold. The schematic marks it with a dipstick icon and crosshatch fill. Use SAE 30 oil exclusively; multi-grade oils reduce heat dissipation by 15%. Check levels with the unit on a level surface after a 2-minute cooldown–never while warm, as residual oil in the galleries can skew readings.
The cooling fins wrap around the cylinder head, appearing as clustered arcs on the schematic. Debris accumulation between fins reduces thermal efficiency by 40% in high-load conditions. Use compressed air at 90 psi directed at a 45° angle; avoid metal tools, which can damage the fin alignment. Replace the entire housing if fins show signs of bending or pitting.

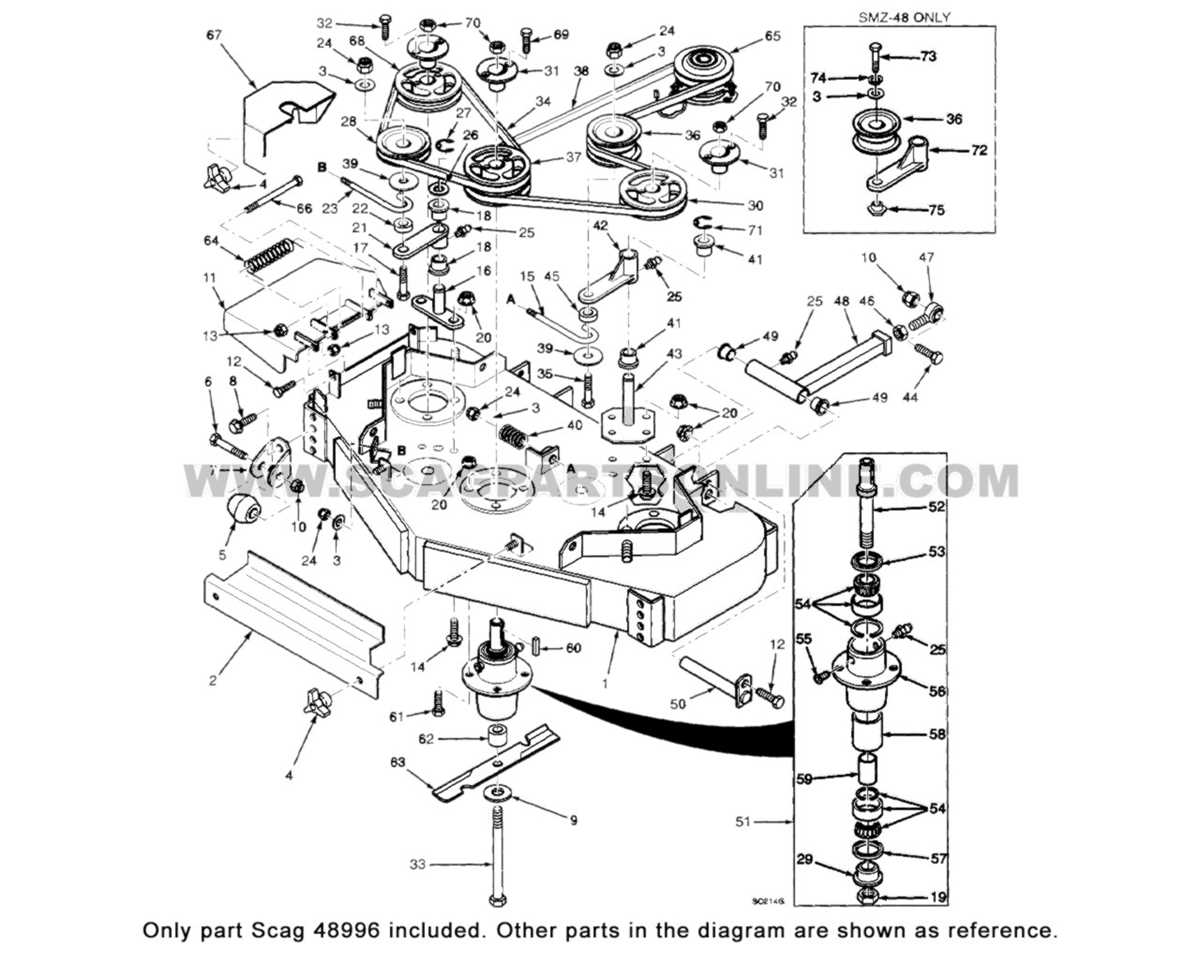

Step-by-Step Assembly of the Cutting Deck Using the Illustrated Guide
Begin by placing the deck frame upside down on a flat, stable surface to prevent wobbling. Align the mounting brackets with the pre-drilled holes on the underside–these correspond to positions marked *A*, *B*, and *C* in the schematic. Secure each bracket with ½-inch bolts (kit #R-12), tightening them evenly to avoid misalignment. Use a torque wrench set to 25 ft-lbs to ensure consistent tension.

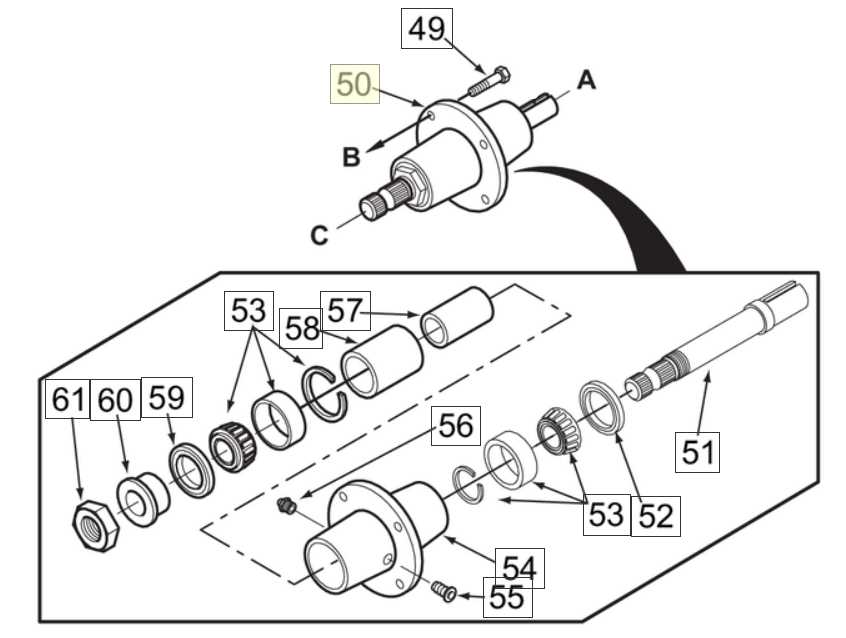

Attach the blade spindle housing next, following the numerical sequence indicated in the exploded view. Slide the spindle into the designated slot (position *3*), ensuring the splines engage fully. Secure it with the four flange nuts (kit #S-08) provided–do not overtighten, as this may warp the housing. Check for smooth rotation by hand before proceeding.
- Locate the pulley assembly (section *5* in the reference sheet) and mount it onto the spindle shaft. The keyway must align with the spindle’s groove; failure to do so will cause slippage under load.
- Thread the drive belt over the pulley, routing it as shown in the top-left inset of the guide. Avoid twisting the belt–this reduces efficiency and accelerates wear.
- Install the tensioner arm (kit #T-15) by sliding it onto the pivot pin. The spring should compress slightly when the belt is in place–verify this by pulling the belt gently.
Position the side discharge chute (or mulching plug, depending on configuration) into the rear deck opening. Secure it with two latch clips (kit #U-04), ensuring they snap into the retaining grooves. If equipping a bagging system, attach the collector hose to the chute’s outlet port before finalizing the clips.
Flip the deck upright and attach the anti-scalp wheels. Refer to the elevation markers in the diagram to set the correct height–typically ¼-inch above the blade’s lowest point. Use a feeler gauge for precision, adjusting the lock nuts on each wheel’s threaded rod. Incorrect height settings will result in uneven cuts or turf damage.
Recheck all fasteners with a torque wrench, starting from the blade spindle and working outward. Pay special attention to the deck’s mounting points–loose bolts here can lead to vibration at high speeds. Once verified, test the deck’s operation in a safe, open area, listening for unusual noises and confirming the blade spins freely without obstruction.
Locating and Swapping Damaged Drive Belts Using the TurfMaster 61 Reference

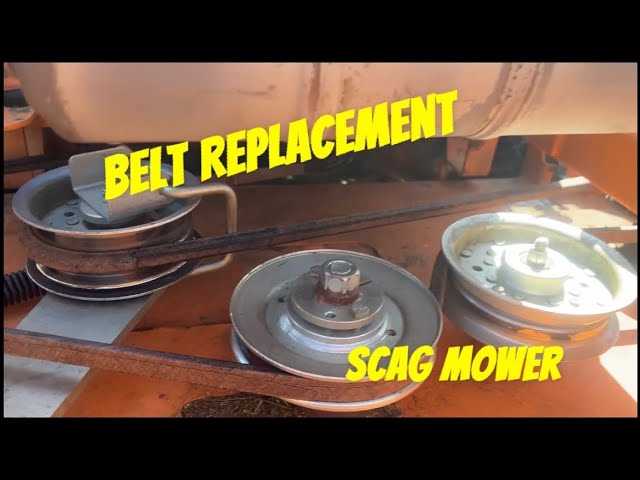

Begin by locating the deck housing access panel on the right side of the mower–this is typically secured with three 10mm bolts. Remove the panel to expose the belt routing and pulley system. The primary drive belt on this model measures 1/2″ x 93.5″ and follows a serpentine path around six pulleys, including the engine crankshaft, deck idlers, and spindle assemblies. Check the belt for fraying, cracking, or glazing; even minor imperfections can reduce traction by up to 30%.
To remove a worn belt, disengage the mower blades and release tension by rotating the idler pulley arm clockwise. Slip the belt off the spindle pulleys first, then free it from the engine pulley. Avoid forcing the belt–if resistance is met, inspect for debris in the pulley grooves or misalignment. Replace the belt only with an OEM-equivalent part (PN 521779) to ensure proper tension and durability. Aftermarket belts may stretch prematurely, leading to slippage.

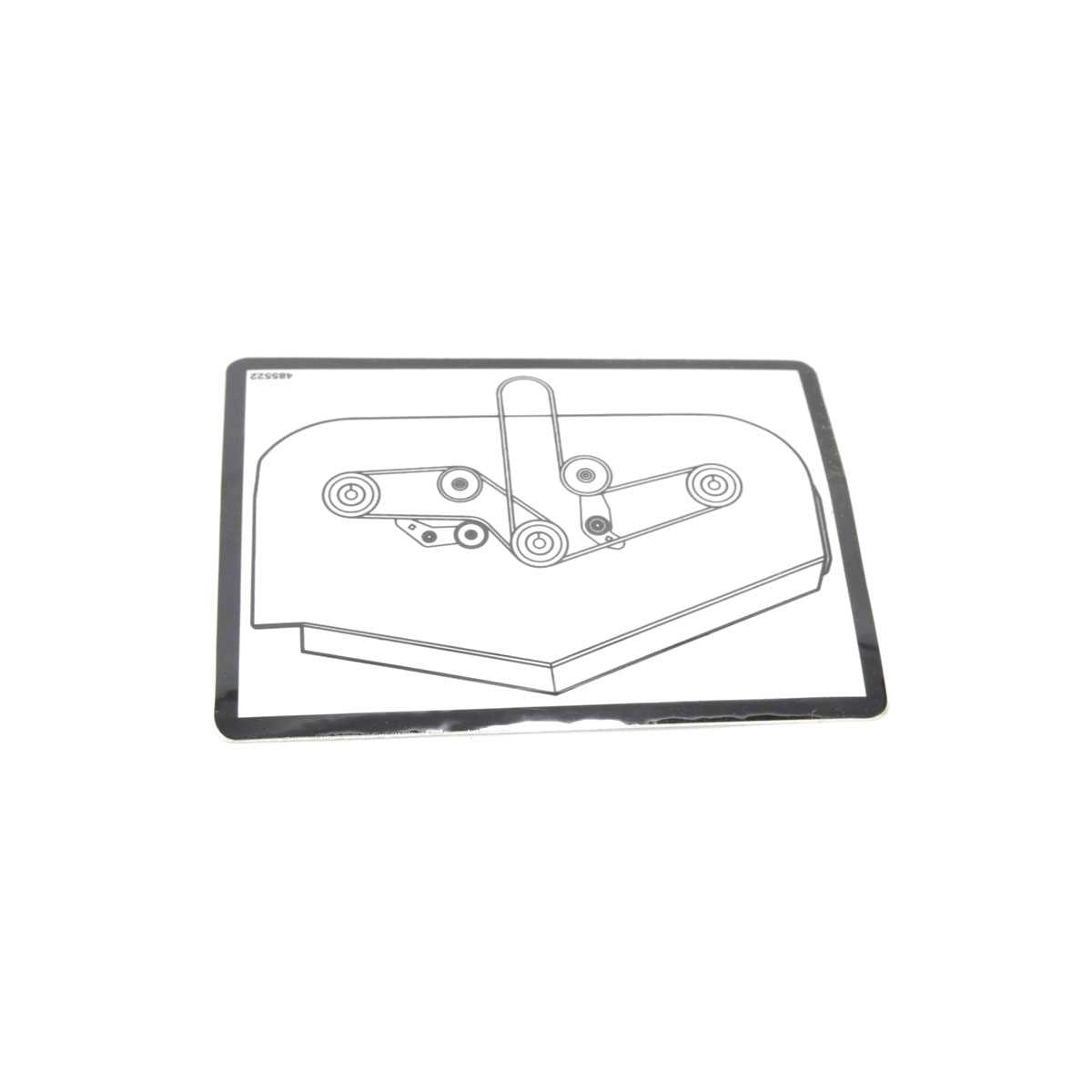

Before installing a new belt, clean all pulley grooves with a wire brush to remove dirt and rubber residue. Align the belt according to the schematic: start with the engine pulley, loop it around the idler pulleys, then finish at the spindles. The printed diagram on the deck housing shows exact routing, but confirm placement by matching the belt’s ribs to the pulley grooves. Misalignment can cause uneven wear and premature failure.
Reapply tension by rotating the idler arm counterclockwise until the belt deflects no more than 1/2″ when pressed mid-span. Over-tensioning increases bearing load, reducing pulley lifespan by 20-25%. Secure the access panel after verification, ensuring all bolts are torqued to 25 ft-lbs to prevent vibration-induced loosening. Neglecting this step can lead to panel damage or belt derailment.
| Belt Type | Part Number | Replacement Interval (Hours) | Tension Deflection |
|---|---|---|---|
| Primary Drive | 521779 | 200-250 | 1/2″ |
| Deck Idler | 521780 | 150-200 | 3/8″ |
| Spindle | 521781 | 300+ | 1/4″ |
Inspect the new belt after the first 5 hours of operation. Idler pulleys should spin freely without noise–grinding or squealing indicates bearing failure. Replace pulleys showing radial play, as worn bearings create misalignment that accelerates belt wear. For models with electric clutches, verify the clutch engages smoothly; a dragging clutch can shorten belt life by 40%.
Store spare belts in a cool, dry environment away from direct sunlight. Ultraviolet exposure degrades rubber compounds, reducing tensile strength by up to 15% annually. When swapping belts, compare the old and new components side-by-side; a stretched belt will appear longer even if markings match. For fleet operators, keep a maintenance log noting installation dates and usage hours–this prevents unexpected failures during peak seasons.
