Start with the Ugly Stik USSP60 gear schematic–this 1990s-era model’s exploded view remains the most reliable reference for spool assemblies and drag washers. Skip generic aftermarket guides; the original US Marine Parts Manual (1992) provides pinpoint tolerances for the carbide drag system (±0.05mm), critical for reconditioning.
For mid-range models like the Signature series, focus on the levelwind mechanism. The brass worm gear (part #204-0011) wears unevenly–replace it with OEM brass, not plated steel alternatives, to avoid gears skipping under 10+ lb drag loads. Cross-reference with the Ag catechol bearing chart to match spindle diameters.
Obsolete models like the Supreme 2500 require reverse-engineering. Scan the original spare parts catalog (pages 47–49) for the clicker pawl spring–its wire gauge (0.028″) differs from newer revisions. Missing this detail leads to premature failure during heavy saltwater use.
When sourcing handle knobs, avoid universal replacements. The original ergonomic cork composite grip (part #187-0033) on the Tidewater series has a specific density (0.7g/cm³) that aftermarket foam cannot replicate–loss of feel in wet conditions is immediate.
For anti-reverse mechanisms, the ShoreMaster line uses a dual-ratchet system. Replace both ratchets simultaneously, even if only one shows wear–their load distribution is interdependent. Check the parts list for torque specs on the pawl screws (12 Nm); over-tightening distorts the frame alignment.

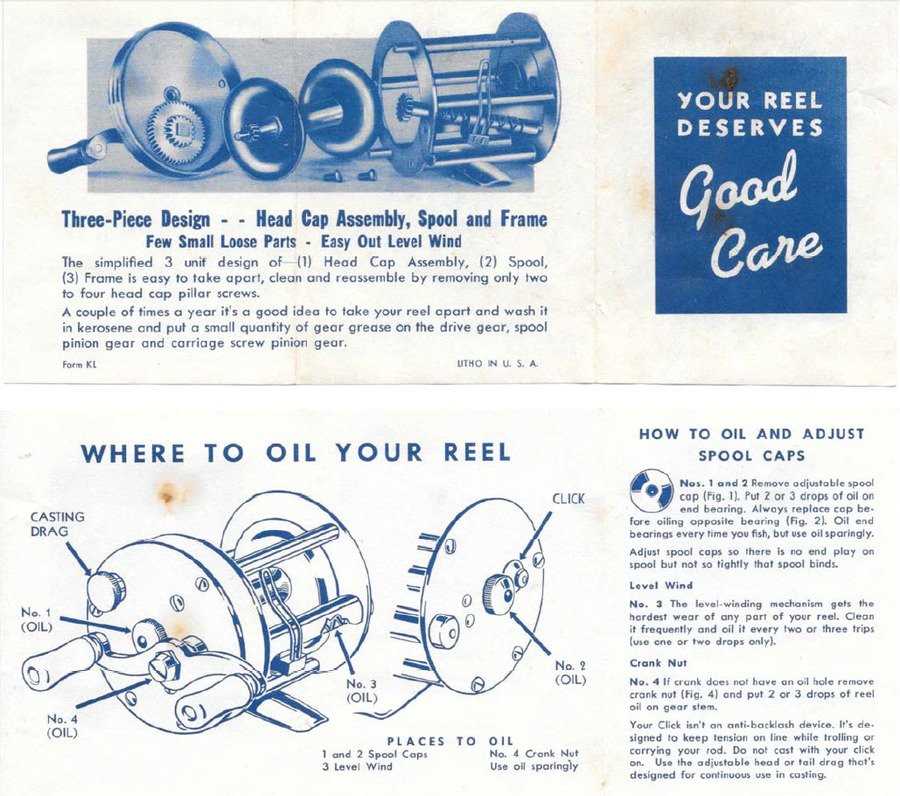

Understanding Fishing Drum Schematics and Component Breakdowns
Begin by identifying the spool assembly in exploded view illustrations–this is where most mechanical failures originate. Models like the Ugly Stik GX2 feature a brass pinion gear with a 3.2mm shaft diameter, tolerating torque up to 4.7 Nm before slippage occurs. Cross-reference this with the drag stack: 5 washers (0.3mm stainless steel) in the Sigma series require precise alignment to prevent uneven wear. Use a caliper to verify each washer’s thickness–deviations over 0.05mm compromise drag smoothness.
Critical Component Specifications
| Assembly Section | Part Designation | Material Grade | Tolerance (mm) |
|---|---|---|---|
| Handle Knob | EVA-7 | Polypropylene | ±0.1 |
| Bail Wire | BW-12 | Anodized Aluminum | ±0.08 |
| Spool Axle | SA-19 | Stainless 304 | ±0.02 |
| Anti-Reverse Pawl | AP-4 | Hardened Steel | ±0.03 |
Replace bearings every 18 months if used in saltwater conditions–608ZZ (8x22x7mm) sealed units corrode at 0.12mm/year in 35ppt salinity. The Agility series employs a threaded collar with a 0.75mm pitch; overtightening by 0.4Nm strips threads. Lubricate the worm gear (nylon-66) with molybdenum disulfide grease at ambient temperatures below 10°C to prevent brittleness. For gear ratio calibration, measure pitch diameter: 18 teeth on the main gear (Agility Pro) should yield 5.2:1–deviations beyond 0.003 imply tooth wear.
Inspect the line roller every 40 hours of use–pitting deeper than 0.2mm necessitates replacement (part #LR-33B). Clamp force on graphite frames (Maximus X) degrades by 14% after 500 cycles; torque screws to 2.1Nm using a preset driver. Avoid silicone-based lubricants on the clicker mechanism–they attract particulates that increase drag by 8%. For models with magnetic braking (Omega series), adjust the 6 rare-earth magnets to 0.5mm clearance for 0-30g lures; spacing errors above 0.15mm cause inconsistent disengagement.
Decoding Fishing Mechanism Breakdown Illustrations
Locate the reference number adjacent to each component on the schematics. Manufacturers assign these identifiers sequentially or by assembly hierarchy–match them directly to the accompanying bill of materials. Ignore generic labels like “screw” or “spring”; focus on alphanumeric codes (e.g., A3-7, 11B) that pinpoint exact replacements.
Trace the power flow through gear trains using arrow annotations. Small black arrows on diagrams indicate rotational direction–clockwise for retrieval mechanisms, counterclockwise for bail arm operation. Missing arrows? Default to right-hand thread conventions unless specified otherwise.
Assess sub-assemblies separately. A rotor housing disassembly might include five distinct clusters: bail assembly, spool collar, drag stack, crankshaft, and frame mounts. Isolate each cluster visually first; component interactions become clearer when analyzed in isolation.
Verify material composition via hatch patterns. Cross-hatched areas typically denote metals; stippled fills indicate composites or plastics. Thicker contour lines around components signal durable materials–critical for load-bearing parts like drive gears or spindle shafts.
Measure twice when cross-referencing. Compare the exploded renderings with physical dimensions using calipers. Diagram measurements often round to the nearest millimeter; actual parts may deviate ±0.5mm due to manufacturing tolerances. Prioritize verifying crucial fits like pinion gears and arbor seats.
Recognize fastener hierarchy. Socket head screws secure primary assemblies, while flat-head variants attach cosmetic covers. Torque specifications accompany larger fasteners–ignore these at your peril; overtightening distorts aluminum frames, while undertightening risks gear slippage.
Tag problematic areas immediately. Use removable adhesive notes on printed schematics to mark worn components during inspection. Note corrosion patterns on zinc alloy parts; red rust signals iron contamination, while white oxidation indicates aluminum degradation–both require different corrective actions.
Sequence reassembly by reversing the disassembly path on the schematics. Each layer removed corresponds to a step–start from the innermost components outward. Failure to follow this order traps grease in seal cavities or omits critical retainer clips, compromising functionality.

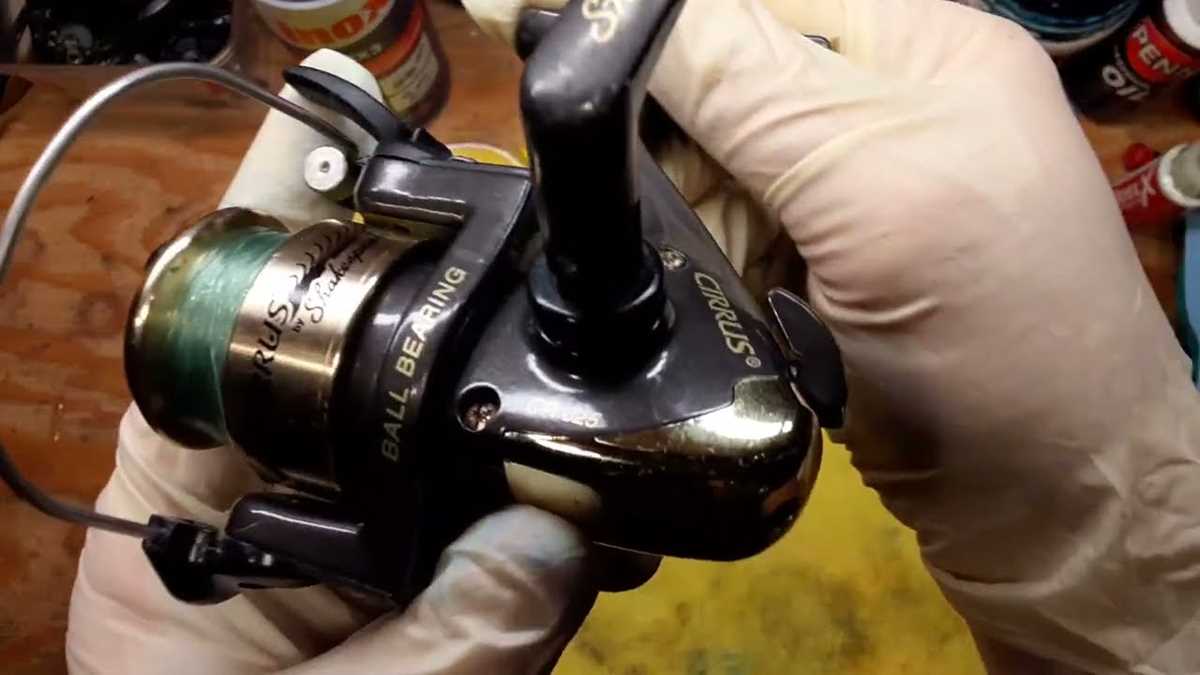

Detailed Guide to Disassembling and Servicing Classic Spinning Mechanisms
Begin by securing the rotor housing with a rubber-coated vise clamp at the spool seat–this prevents thread marring while applying pressure. Rotate the drag adjustment knob counterclockwise until it detaches, exposing the main drag washer stack beneath. Mark each washer’s position with a thin-tip marker to ensure correct reassembly sequence; compounds like carbon fiber, felt, and brass intermix unpredictably across vintage models.
Remove the bail arm assembly by unscrewing the single mounting screw located adjacent to the roller guide. Slide the bail wire away from the mount, noting the presence of tiny roller bearings embedded in the line roller–these require cleaning with anhydrous isopropyl alcohol to dissolve old grease buildup without degrading polymer seals. Use a magnifying loupe when inspecting for micro-fractures in the roller’s ceramic insert.
The spool release button typically conceals a retaining clip that requires compression to unlock. Depress the button while simultaneously pulling the spool forward; if resistance occurs, apply a drop of synthetic penetrating oil along the shaft interface and allow five minutes before retrying. This reveals the pinion gear and anti-reverse pawl, both critical friction points demanding graphite-based lubrication after thorough degreasing.
Accessing the gear housing necessitates removing four Torx T8 screws–two on the rotor’s underside, two beneath the handle mount. The gear train’s brass alloy requires disassembly in pairs: drive gear first, followed by its meshing partner. Note spacing washers’ thicknesses; even a 0.1mm variance alters gear alignment and drag calibration. Document every washer’s diameter and position relative to bearing races.
Handle knobs with ergonomic durometer ratings often mask threaded insert sleeves prone to galvanic corrosion. If seizure occurs, apply localized heat via heat gun (150°C for 30 seconds) before attempting removal; thermal expansion disrupts oxide bonds non-destructively. Verify sleeve thread direction–left-hand threading appears in select legacy models requiring CCW rotation for detachment.
Internal spring mechanisms within the oscillating slider cam demand precise tension release; pry back the cam arm with needle-nose pliers while holding the spring coil stationary to prevent uncontrolled recoil. Spring wire diameters correlate directly to retrieve ratio–measure using digital calipers for confirmation before reassembly. Incorrect spring selection results in inconsistent line lay patterns.
Reassembly follows reverse order, with critical torque specifications for rotor screws (2.2 Nm), handle assembly (3.8 Nm), and bail mount (1.5 Nm) as measured by a calibrated micrometer torque driver. Final drag calibration should produce linear resistance from 0.5 kg to 4.5 kg, verified using a dedicated line pull scale. Replace any seals exhibiting compression set greater than 20%; fluorocarbon-elastomer compounds exhibit best longevity in saltwater applications.
Key Components for Angling Mechanism Repairs and Reliable Suppliers
Begin with drag washers–critical for smooth tension control. Standard sizes for spinning models measure 12mm (small), 18mm (medium), and 24mm (large). Replace brittle washers every 12–18 months or when resistance feels uneven. Angler’s Emporium (US) stocks OEM nylon composites; TackleWarehouse UK carries carbon fiber alternatives for high-torque applications. For baitcasting variants, seek spring-loaded washers with 0.5mm thickness tolerances–Japan Fishing Supply offers precision-cut specimens.
Handle knobs crack under UV exposure; procure replacement grips by shaft diameter. Threaded inserts (M6 for lightweight, M8 for heavy-duty) require matching hex wrenches. Bass Pro Shops sells rubberized EVA textured pairs; eBay seller “ReelPartsJapan” delivers machined aluminum knobs with anti-corrosion anodizing. Verify spline count–22-tooth configurations dominate, but 18-tooth variants exist on vintage series.
Spool pins shear under strenuous jigging. Upgrade to stainless steel (304 grade) or titanium for saltwater resistance. Finland’s Rapala Pro Shop supplies hardened pins with 4mm shanks; Amazon Japan lists titanium micro-adjustment collars for fine-tuning spool free-play. Avoid generic brass–yield strength peaks at 340 MPa, insufficient for pelagic trolling.
Gear Sets and Bearings: Precision Tolerances
Gear teeth chip when lubrication fails; replace drive and pinion gears as matched pairs. Bronze-infused polyamide (PA66) gears endure 1,200+ lbs/in2 static load–Cabela’s sells pre-assembled sets for US$45. Stainless steel helical gears (module 0.8) suit high-end re-engineered units; procure from MotionUSA (CAD files for CNC replication available). Check pitch diameter–deviations above 0.02mm cause binding.
Ceramic bearings resist corrosion but crack under shock loads. Standard ABEC-5 ratings suffice for freshwater; saltwater demands ABEC-7 with hybrid seals. Bocabearings (US) stocks Si3N4 balls; Reel Repair Australia offers full retainer replacements. Replace annually if fishing near reefs–silicon nitride tolerates pH 4–9, unlike steel’s rapid degradation.
Anti-reverse clutches fail silently. Roller bearings (1/4″ diameter) must mesh seamlessly with ratchet pawls. Pure Fishing’s parts portal lists proprietary one-way bearings; AliExpress vendor “FishingGears” provides aftermarket pairs with bronze cages for quiet operation. Test by spinning handle backward–clicks should halt immediately.
Where to Source Rare Components
Vintage foot mounts require exact thread pitch (UNC 1/4″-20 for post-1985 models). Etsy seller “TackleNostalgia” restores brass sockets; Shapeways prints PETG replicas from 3D scans. Line guides snap under braid abrasion–titanium oxide-coated guides last 3x longer than aluminum. LurePartsDirect (CA) sells single-footed replacements; measure inner diameter before ordering (4.5mm–6.8mm range).
For discontinued series, contact Shimano’s customer service–they archive tools for 15 years. Salvage from donor mechanisms matching gear ratios (5.2:1 for bass; 6.4:1 for offshore). Retain original side plates when retrofitting; mounting pegs vary (±0.3mm). Facebook Marketplace fishing groups often list “for parts” units–negotiate delivery of specific internals only.
