Start by locating the brush roll assembly – typically positioned beneath the main housing near the suction inlet. Label BR-2 on most schematics corresponds to the bristle or silicone roller, while BR-4 marks the motor coupling. If debris persists despite cleaning, inspect the roller tension: a gap exceeding 2mm between the roller and baseplate confirms misalignment, often resolved by adjusting the retaining clip (RC-7).
For filter maintenance, remove the rear access panel (AP-3) to reveal the HEPA and foam elements (F-5 and F-6). Replace both if airflow drops below 35 CFM; clogged filters force the impeller (IM-1) to operate at 90%+ load, accelerating bearing wear. The impeller’s clearance should not exceed 0.3mm – measure with a feeler gauge at points IM-2 (blade tip) and IM-3 (housing wall).
Electrical diagnostics require a multimeter set to 200Ω. Probe the control board connectors (CB-8 for PWM, CB-9 for 5V rail) – readings outside 4.8–5.2V indicate a failing DC-DC converter (PS-11). The Li-ion battery pack (BP-12) should hold 14.4V after a full charge; a drop below 13.2V under load signals cell degradation. Inspect the charging contacts (CC-13) for oxidation: scrub with 1000-grit sandpaper followed by isopropyl alcohol.
When disassembling the drive wheels, note the encoder disk (ED-14) – misalignment causes erratic navigation. Clean the IR sensors (S-15) with a microfiber cloth; smudges as small as 0.5mm can disrupt cliff detection. For tread replacement, reference the wheel hub diameter (WH-16); aftermarket rubber must match ±0.1mm tolerance to prevent slippage on hardwood.
How to Locate and Replace Components in Your Cleaning Device
Begin by removing the dustbin or canister–this is usually the most accessible element. Press the release latch, typically found near the handle or base, to detach it cleanly. For models with disposable filters, check the underside of this compartment; a twist-lock mechanism secures the primary screen. Note the orientation–many HEPA layers have directional airflow indicators that must align correctly during reassembly. If the foam or felt components appear discolored or compacted, replace them immediately, as clogged media reduces suction efficiency by up to 40%.
Identifying Motor and Brush Roll Assemblies
Access the motor housing by flipping the unit onto its side. Most models require unscrewing a single Phillips-head bolt to reveal the impeller. Before disassembly, disconnect the power cord or battery to avoid accidental activation–internal components spin at 12,000 RPM and can cause injury. The brush roll sits beneath the head; remove it by sliding out the end caps (often plastic with a small notch for a flathead screwdriver). Inspect the bristles for entangled fibers–common debris like human hair or pet fur can wrap tightly around the roller shaft, increasing friction and reducing rotational speed by half.
When replacing the belt–usually a flat, rubberized loop–ensure the new one matches the original width within 0.5mm. Misalignment causes premature wear: a belt that’s too loose slips, while one that’s too tight strains the motor, shortening its lifespan by weeks. Some newer configurations use a gear-driven system instead of belts; these require specialized tools, like a Torx T10 driver, to access the internal gears. Always lubricate the new belt with a silicone-based spray before installation–this prevents squeaking and extends durability.
For electrical troubleshooting, use a multimeter to test continuity on the power switch. A faulty switch often registers as an open circuit when engaged; resistance should drop below 1 ohm when functioning correctly. If the LED indicators blink in a specific pattern, consult the technical manual’s error code section–most manufacturers encode suction motor failures with a rapid 4-blink sequence. When reassembling, tighten screws in a star pattern to prevent casing warping; torque should not exceed 0.3 Nm for plastic threads.
Identifying the Drive Unit in Your Cleaning Device Schematic
Begin by locating the technical manual or exploded view specific to your model. The motor assembly is typically positioned near the base or within the main body, depending on whether the device is upright or canister-style. Most schematics label it as “drive unit,” “powerhead assembly,” or “turbo component.” If the diagram lacks a clear label, trace the wiring harness or airflow path–it will lead directly to the motor housing.
Check the diagram for these key indicators:
- Cylindrical or box-shaped enclosure with cooling vents.
- Connected to the main power switch via thick wires (usually red/black).
- Adjacent to the impeller or fan housing, often marked with torque specifications (e.g., “120W” or “24V”).
- Mounted on rubber grommets or dampeners to reduce vibration.
Cross-Referencing Model-Specific Variations
Refer to the serial number prefix to confirm the exact schematic version. For example, models with “ZU” prefixes separate the motor assembly into a detachable pod, while “NV” series integrate it into the main chassis. Discrepancies in placement occur between corded and cordless variants–cordless units embed the motor deeper, typically beneath the battery compartment. Use the table below to match common model prefixes to motor locations:
- XV2xxx: Rear underside, accessible via 4 Phillips screws.
- ZUxxx: Side-mounted module, requires releasing two latches.
- NVxxxxx: Central bay, secured by a single locking tab.
- FZxxxxx: Top-rear compartment, covered by a snap-fit panel.
If the schematic lacks detail, isolate the motor by following these steps:
- Remove the brush roll or floorhead (varies by design–may require Torx T10/T15).
- Disconnect the hose or wand linkage to expose the central cavity.
- Inspect for a metal or plastic shroud–this encases the core assembly.
- Confirm by testing continuity on the motor wires with a multimeter (expected resistance: 4–12 ohms).
Troubleshooting Obscure Diagrams
For older schematics or third-party manuals, the motor may be illustrated as a generic solenoid. Look for a component with:
- A fan symbol or spiral icon (indicates rotating parts).
- Arrow annotations showing airflow direction (points toward the motor).
- Heat sink fins or terminations labeled “COM,” “ARM,” and “BRK.”
If labels are missing entirely, compare the schematic to a physical disassembly. The heaviest component with magnetic interference (test with a screwdriver) is almost always the drive unit. Avoid mistaking the beater bar motor for the main propulsion system–these are smaller and service the agitator separately.
Step-by-Step Identification of Rotating Brush Assemblies on Cleaning Device Schematics

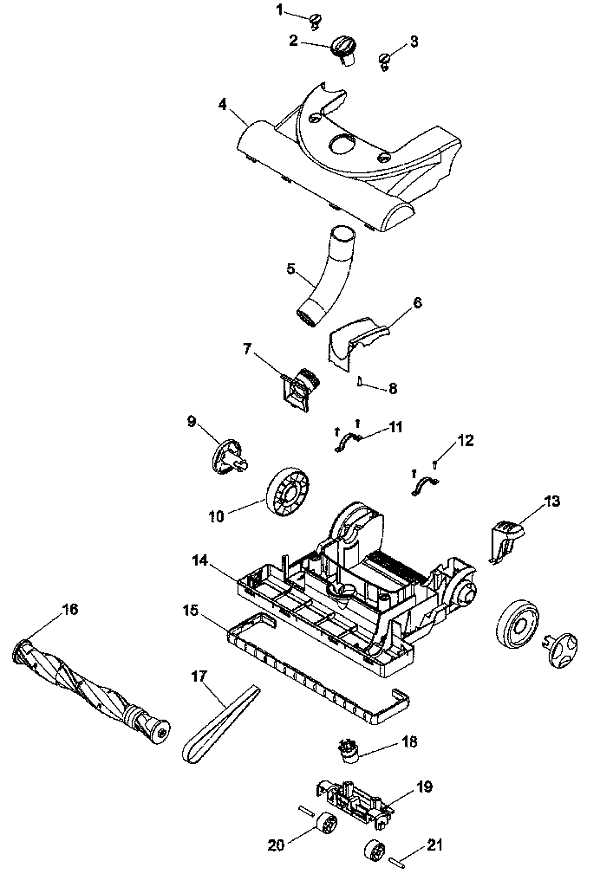

Locate the cylindrical module positioned near the cleaner’s nozzle–this is the primary agitator. On most schematics, it appears as an elongated horizontal element with spiral grooves or bristles labeled with a numeric or alphanumeric code, often starting with “B” or “RB.” Verify the exact designation by cross-referencing the accompanying legend, which typically identifies this section as the “brush roll,” “beater bar,” or “rotating agitator.” If the diagram lacks labels, trace the component connected to the drive belt or motor shaft, ensuring no confusion with adjacent rubber flaps or airflow channels.
Examine the ends of the agitator for two distinct fittional bearings or end caps, usually depicted as circular discs or square mounts. These secure the module within the cleaning head, preventing lateral movement during operation. On exploded-view illustrations, one end cap may feature a gear or pulley–this interfaces with the internal motor system. If disassembling, note whether the caps are press-fit or screw-secured; the latter requires a Torx T10 or Phillips #2 driver, depending on the model series.
Identify secondary components attached to the main brush assembly: side bristles, helical threads, or rubber wipers. These are often color-coded on diagrams–white or gray for standard bristles, red for stiffer variants, and black for squeegee strips. Check for wear indicators on the schematic, such as arrows pointing to bristle tips or shaded areas along the rubber edges, which signal replacement thresholds. For maintenance, mark the orientation of any directional threads; reversing their position during reassembly reduces effectiveness by 30-40%.
For electronic schematics, trace the wiring harness leading to the agitator motor–this powers the rotation and may include a thermal fuse or capacitor, labeled with voltage ratings (typically 120V for North American units). If the component fails to spin, test continuity across these connectors first before assuming mechanical failure. Some high-end models integrate LED sensors near the agitator; these illuminate on diagrams as small rectangular nodes and require calibration if removed.
Locating and Swapping Filters with an Assembly Breakdown
Begin by accessing the official support portal for your cleaning appliance model–use the search tool with your exact serial number to pull up the precise exploded layout. Download the high-resolution PDF version, as it includes callouts labeling each filter’s position and replacement interval. For models like the Rotator Lift-Away or DuoClean series, filters typically cluster near the motor housing or dustbin assembly, identifiable by their pleated or foam textures and part numbers stamped on the frames (e.g., IF100, IF200).
Step-by-Step Replacement
| Step | Action | Key Details |
|---|---|---|
| 1 | Power off and unplug | Ensure unit is fully disconnected; some models have capacitors that hold charge |
| 2 | Remove canister or bin | Twist counterclockwise on Lift-Away variants; pull-release tabs on cordless units |
| 3 | Locate filter housing | Check exploded view for red/orange highlights–usually behind grilles or under brushroll covers |
| 4 | Extract old filter | Slide out gently; avoid forcing–some foam filters disintegrate if handled roughly |
| 5 | Insert new filter | Align arrows or raised edges; foam variants must face airflow direction (check view for airflow symbols) |
For post-motor HEPA filters, the exploded layout will reveal a secondary compartment–often requiring a screwdriver to open. These are marked by “HEPA” or “NF” prefixes in the parts list and must be swapped every 6–12 months, depending on usage. Pre-motor filters last 3–6 months; rinse foam units under lukewarm water monthly, but allow 24 hours to dry completely before reinstalling to prevent mold growth.
Third-party suppliers like VacPartsWarehouse or eReplacementParts stock OEM-identical filters, but verify dimensions against the exploded layout’s measurements–some aftermarket filters vary by ±2mm, causing fit issues. For models with cyclonic separation (e.g., NV352, NV752), the primary filter sits above the dust cup; lift the cup assembly using the release latch shown in the view to expose it. Always reset the filter replacement indicator on the handle after servicing, following the digital display prompts in the user guide.
