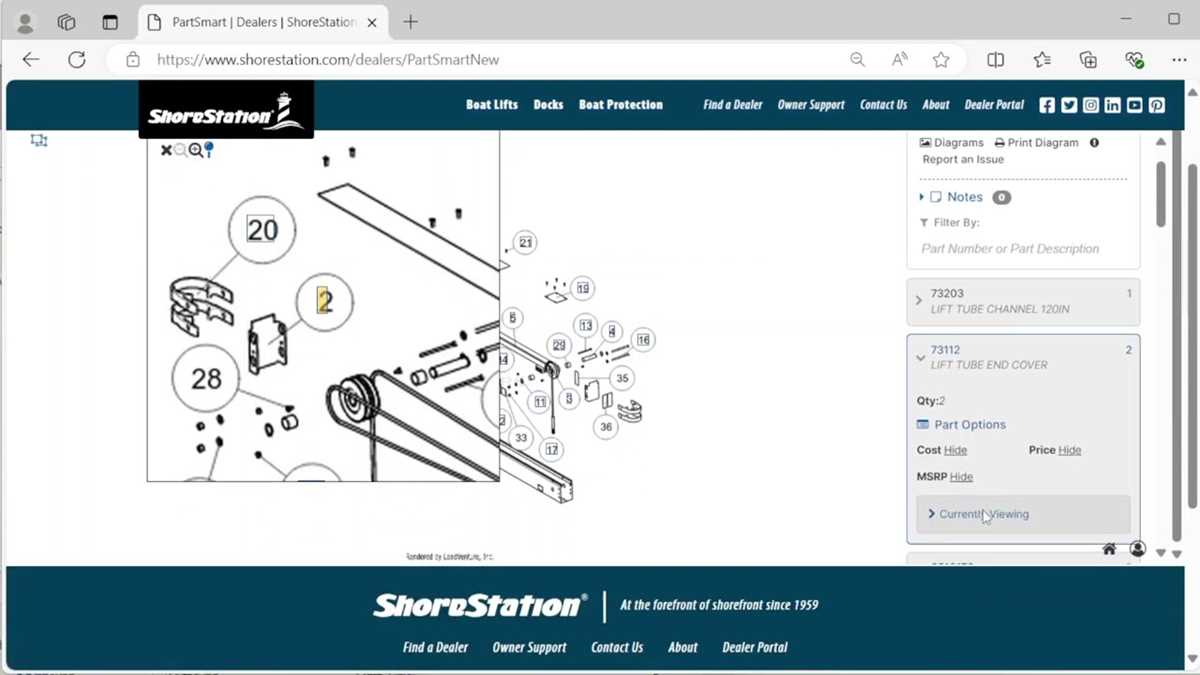

ShoreStation Boat Lift Parts Exploded View Guide

shorestation boat lift parts diagram

Inspect the winch assembly first–it’s the core of vertical transport systems. Verify the gear ratio (typically 4:1 or 6:1 for heavy loads) and cable tension. Replace worn pulleys immediately; even minor grooves reduce lift capacity by 15–20%. For models with hydraulic arms, check fluid levels every 90 days–contaminated fluid accelerates seal failure.

Examine the frame rails for corrosion, especially in saltwater environments. Galvanized steel lasts 3–5 years, while stainless steel extends to 8–12 years with proper rinse cycles. Reinforce connection points with marine-grade epoxy–standard adhesives degrade within 18 months. Measure rail alignment annually; misalignment by 3mm increases wear on bunks by 40%.

Track the electrical panel for moisture intrusion. Replace standard circuit breakers with GFCI-protected units to prevent voltage spikes (common in coastal power grids). For winch motors, use NEMA 4X-rated enclosures–open motors fail in 50% of cases within two years. Test limit switches monthly; a faulty switch can overload the system by 200kg before shutdown.

Assess the carriage rollers for precise wear patterns. Polyurethane rollers last 3x longer than rubber but require grease lubrication (silicone-based for submerged use). Replace rollers if flat spots exceed 1.5mm–ignoring this reduces lift speed by 25%. For pivot points, use FDA-approved PTFE grease to prevent salt buildup; regular lubricants dissolve within 3 months.

Check the synchronization cables (if equipped) for fraying near guide bushings. Replace cables if outer strands show 30% wear–internal corrosion is undetectable until failure. For manual systems, the optimal crank handle length is 30cm; longer handles increase torque but risk operator strain. Verify cable anchors every 6 months; loose bolts vibrate loose within 8 weeks under cyclic loads.

Understanding Marine Elevation System Components

Begin by locating the winch assembly near the base of the vertical guides–this is the core mechanism converting rotational force into vertical movement. Most models include a 1/2 HP motor paired with a 120V gearbox, delivering 1,500 lbs of lifting capacity. Check the manual for torque specifications; exceeding rated limits risks cable misalignment or premature wear.

The carriage frame must slide smoothly along the vertical tracks. Apply marine-grade silicone lubricant to rollers every six months to prevent corrosion from saltwater exposure. Tracks wider than 4 inches require additional reinforcing brackets to distribute weight evenly–failure to secure these may cause bending under load.

Inspect the pulley system monthly for frayed cables or uneven wear. A typical setup uses 3/16″ stainless steel wire rope, but high-capacity units may employ 5/16″ for added durability. Replace cables if more than three strands are broken within a 2-inch span. Always store replacement cables in a dry, UV-protected environment to prevent degradation.

Component	Material	Maintenance Interval	Failure Signs
Winch gears	Brass (standard) / Stainless (premium)	Annual inspection + greasing	Grinding noises, sluggish operation
Bunks/Slings	HDPE or treated hardwood	Bi-annual cleaning, replace if splits >1″	Visible cracks, water absorption
Guide posts	Galvanized steel or aluminum	Quarterly checks for rust/stripping	Loose bolts, surface pitting

Verify electrical connections comply with local marine codes–use waterproof junction boxes rated for submersible environments. A 20-amp circuit breaker is mandatory; anything less risks overheating. Test the emergency stop switch monthly by simulating a cable snap; response time should not exceed 0.3 seconds.

Adjust bunk alignment so the craft sits flush when raised–misalignment strains the frame and increases drag during retrieval. Hardwood bunks require annual re-treatment with marine varnish; HDPE bunks need only soap-and-water cleaning. For heavier crafts, add center supports to prevent sagging.

Calibrate the automatic stop sensor after each seasonal adjustment. A misaligned sensor may allow the carriage to descend too far, risking hull damage. Use a laser level to confirm perfect vertical alignment before each use–even a 0.5-degree tilt compounds stress over time.

Critical Elements and Their Positions in Marine Elevation Systems

Begin by inspecting the winch assembly, typically mounted on the upper frame near the water’s edge. This mechanism–comprising a drum, cable, and motor–must align precisely with the vertical guide rails to prevent misfeeding or jamming. Verify that the cable tension remains consistent; loose strands accelerate wear and risk disengagement during operation. For optimal performance, lubricate the drum bearings every 50 cycles with marine-grade grease to reduce corrosion from saltwater exposure.

Structural Integrity Points

Examine the cradle’s crossbeams and upright supports as primary load-bearing elements. These components–often fabricated from aluminum or galvanized steel–demand biannual inspections for hairline fractures or bent angles, especially at weld points. The pulley system, nested within the guide tracks, should rotate freely; replace any wheel showing flat spots or excessive play (over 2mm lateral movement) immediately. Corrosion-proof fasteners (stainless steel or zinc-coated) are non-negotiable in high-humidity environments.

Position the control panel within 1.5 meters of the operator’s station for ergonomic access but shield it from direct splash zones using a weatherproof enclosure rated IP67. Wiring harnesses connecting the panel to the motor require conduit protection–flexible PVC tubing suffices, but rigid Schedule 80 PVC is mandatory for submerged sections. Label all electrical connections with heat-shrink sleeves to prevent miswiring during maintenance; color-code wires per ABYC standards (red for power, black for ground).

How to Interpret an Elevator Electrical Schematic: A Detailed Walkthrough

Begin by locating the power source terminals on the schematic–usually marked as L1, L2, and ground. These connections supply voltage to the system, and verifying their labels against the actual wiring prevents misalignment. Trace each line from the source to its first component, noting any fuses or circuit breakers in between. These safety devices interrupt current in case of overloads, so their ratings (e.g., 10A, 20A) must match the equipment’s requirements.

Identify relays and contactors next. Each will have numbered pins (e.g., 85, 86 for coil inputs; 30, 87 for switch contacts). Cross-reference these with the component’s physical pinout–swapped connections here will either prevent operation or cause erratic behavior. Label each wire with its function (e.g., “motor start,” “upper limit switch”) directly on the schematic using tiny sticky notes or digital annotations. This avoids confusion during troubleshooting.

Check color codes listed next to wires. Typical standards include:
- Red – positive/hot
- Black – secondary hot or ground
- White – neutral
- Blue/Green/Yellow – signal or sensor leads
Measure voltage at key points with a multimeter. Expected readings:
- 12V DC at control circuits
- 120V or 240V AC at motor terminals
If readings deviate, isolate the circuit section between the last known good point and the first abnormal reading.

Handling Control Modules

Locate the central control unit on the schematic–often depicted as a rectangle with multiple pins protruding. Each pin’s label (e.g., “RUN,” “UP,” “DOWN”) corresponds to a specific function. Wire these strictly according to the schematic; reversing “UP” and “DOWN” inputs, for example, will invert the hoist’s movement. For systems with wireless remotes, find the receiver module and verify its antenna connection and signal lines.

Examine sensor inputs–typically shown as switches or potentiometers. Adjustable sensors require calibration:

Attach a voltmeter to the sensor’s output terminal.
Activate the hoist manually to its full range.
Adjust the sensor until the meter reads the target voltage (e.g., 5V at top position; 0V at bottom).
Secure the adjustment screw to prevent drift.

Finally, validate the emergency stop circuit. This usually bypasses all other controls and disconnects power directly. Test by pressing the E-stop button and confirming all movement ceases immediately. Reset it and verify normal operation resumes only after a deliberate restart command, ensuring no unintended bypasses exist.

Key Components for Watercraft Hoist Maintenance and Reliable Suppliers

Replace worn pulley wheels immediately–they’re critical for smooth cable operation and preventing misalignment. Genuine replacements from the original equipment manufacturer (OEM) guarantee exact fit and load ratings. If OEM options are delayed, secondary suppliers like MarineTech Engineering or DockCraft Solutions carry equivalents with precise specifications. Verify diameter tolerances (±0.02 inches) and bearing seals to avoid premature failure.

Cables degrade faster than other elements; inspect monthly for fraying, kinks, or corrosion. Stainless-steel 316-grade cables resist saltwater damage and last 3–5 years with proper tension. BoatLiftTech offers custom-length spools with swage fittings, while MarineGradeWire sells bulk reels for DIY replacements. Tension should be maintained at 10–15% of the hoist’s maximum capacity to prevent slack-induced wear.

Lesser-Known but High-Impact Replacements

Gearbox assembly: Typically overlooked until seizure occurs. OEM gearboxes use helical-cut gears with synthetic lubricants; aftermarket units from LiftMaster Marine provide drop-in replacements with enhanced corrosion coatings. Check torque specs–most models require 40–60 lb-ft for secure mounting.
Keel rollers: Worn rollers misalign hulls, causing scratches. UHMW polyethylene rollers from RollerTech reduce friction by 30% compared to nylon alternatives. Ensure roller width matches the hull’s V-angle (±2 degrees).
Control relays: Voltage spikes degrade relays over time. Replace with solid-state relays from Seaway Electronics–they handle 20A surges (vs. 15A mechanical relays) and extend service intervals. Test resistance (

Electrical components fail unexpectedly; keep spares of limit switches and motor brushes on hand. MarineElectro distributes IP67-rated switches with gold-plated contacts to prevent oxidation. Motor brushes should be inspected every 200 operating hours–replace if length falls below 0.25 inches. Use brushes with graphite-copper composites for consistent conductivity.

For structural wear, prioritize galvanized frame brackets and pivot pins. OEM brackets use 10-gauge steel with triple-zinc plating; aftermarket suppliers like DockWorks offer laser-cut duplicates with matching hole patterns. Pins should be grade-8 alloy steel–standard hardware-store pins shear under dynamic loads. Apply marine-grade grease to pins every 6 months to prevent seizing.
