Start by locating the valve stem assembly–this controls water flow and is the most common failure point. If leaks persist at the handle base, inspect the packing nut first; tightening it clockwise by 1/8 turn often resolves minor seepage without disassembly. For persistent drips, replace the washer (typically rubber or neoprene) inside the stem–measure its diameter precisely before purchasing a replacement; most standard units use a 3/8″ or 1/2″ size.
The vacuum breaker, found on frost-proof models, prevents backflow by sealing under pressure. If water spurts from this component during operation, dismantle it and check for debris obstructing the diaphragm or check valve. Clean both surfaces with vinegar to dissolve mineral deposits, but avoid abrasives–these can damage the membrane.
Freeze-resistant units have an extended internal pipe running into the wall, ending in a shutoff valve. If the faucet won’t hold pressure, the issue likely lies here. Remove the handle and stem housing to access the clamp mechanism; corrosion here often causes failure. Apply silicone grease to the threads during reassembly to prevent future seizures.
For wall-mounted connectors, ensure the supply line gasket isn’t cracked–replace it if compromised. When reinstalling, torque the coupling nut to 15–20 ft-lbs to prevent leaks while avoiding overtightening, which can strip threads. Use Teflon tape on threaded connections, wrapping it clockwise three times to match thread direction.
If the handle spins freely without control, the stem’s spline may be stripped. Examine the handle insert–if grooves are worn, replace both the stem and handle for a proper fit. For anti-siphon models, verify the air gap isn’t clogged; a blocked vent renders the feature useless.
Understanding the Breakdown of Outdoor Faucet Components
Begin by removing the handle–typically secured with a screw hidden beneath a decorative cap–to access the internal assembly. The stem, a threaded rod extending from the valve mechanism, often conceals a rubber or silicone washer at its base; inspect this first for wear or deformation, as it’s the primary cause of leaks when under pressure.
Examine the packing nut surrounding the stem; if tightened excessively, it can restrict movement, while a loose fit may cause drips. Replacement packing material, such as graphite or Teflon tape, should be wrapped clockwise around the stem before reassembling to ensure a watertight seal without over-torqueing.
Hidden Elements Behind the Wall Plate
The mounting flange, often overlooked, secures the faucet to the exterior wall and may require a specialized wrench to detach if corrosion is present. Behind it, a vacuum breaker–usually a spring-loaded check valve–prevents backflow; verify its operation by pressing the brass plunger to confirm it rebounds freely, as debris accumulation here is common in older units.
Inspect the supply tube connection where it meets the shutoff valve indoors; mineral deposits can obstruct flow even if external components appear intact. Use a pipe cleaner or vinegar soak to dissolve buildup, but avoid abrasive tools that could damage copper or brass surfaces.
Troubleshooting Less Obvious Wear Points
Check the anti-siphon vent hole–located near the outlet–for blockages, which can create inconsistent water pressure. A straightened paperclip works for clearing small obstructions, but never force objects into narrower passages. If the spout threads show signs of corrosion, apply food-grade silicone grease before attaching an adapter or hose to prevent seizing.
For frost-proof models, pull the entire assembly outward to access the elongated tube extending into the insulated wall cavity. Ensure the inner seals remain intact, as cracks here lead to hidden leaks that may only surface during freezing temperatures, causing burst pipes behind drywall.

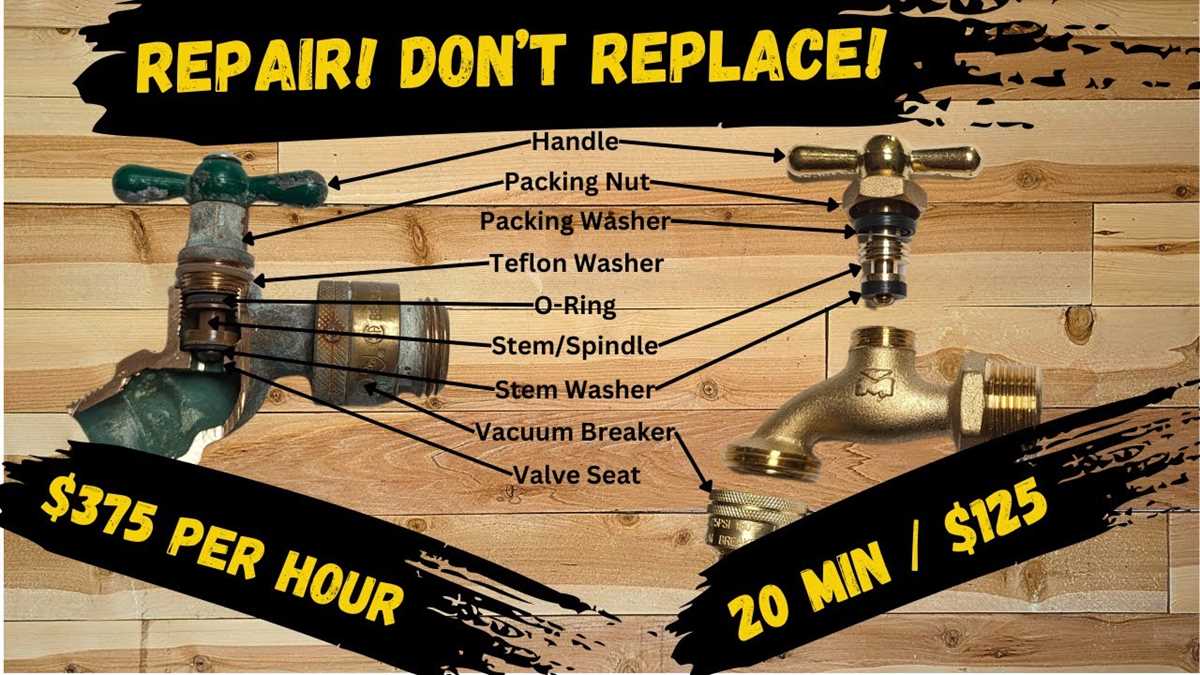

Core Elements of a Standard Outdoor Faucet Construction
Begin troubleshooting by verifying the vacuum breaker–this brass or plastic valve, typically threaded near the spout outlet, prevents backflow contamination. Ensure its internal spring and seal retain tension; a loose or corroded unit fails under pressure, allowing water to siphon into potable lines. Replace immediately if frost damage distorts the mechanism, as even minor leaks introduce air gaps that compromise functionality.
Inspect the stem assembly for wear: the packing nut, often hexagonal and chrome-plated, compresses a graphite-impregnated washer against the stem to halt leaks. Loosen this nut by a quarter-turn to refresh the seal, but avoid overtightening–a common error that strips threads or collapses the washer. If water drips persist, extract the stem entirely; check the rubber seat washer (located at the base of the brass stem) for flattening or cracking. Standard sizes range from 3/8″ to 1/2″–match replacements precisely to avoid misalignment.
| Component | Material | Failure Signs | Tool for Service |
|---|---|---|---|
| Vacuum breaker | Brass/Polycarbonate | Water discharge at outlet when shut off | Adjustable wrench (25–30 mm) |
| Stem packing washer | Graphite-based composite | Persistent seepage around handle | Packing nut wrench (11/16″–3/4″) |
| Seat washer | EPDM/Nitrile rubber | Dripping after full closure | Seat washer removal tool (hollow socket) |
Examine the spout’s internal components if flow rates decrease: sediment buildup in the aerator reduces output by up to 40%. Unscrew the aerator housing (standard 27-thread per inch) and soak in vinegar for one hour to dissolve mineral deposits–avoid wire brushes, which scratch protective coatings. If flow remains restricted, disassemble the shutoff valve behind the handle: a cone-shaped, brass gate must move freely along lubricated O-rings; stiff operation indicates calcium buildup requiring a silicone-based lubricant, never petroleum products that degrade rubber.
How to Interpret a Frost-Free Valve Assembly Schematic
Locate the legend first–it decodes symbols used for washers, stems, packing nuts, and vacuum breakers. Match each symbol to labeled components on the illustration; mismatches cause confusion later. If the legend is missing, search for manufacturer identifiers (model numbers, brand logos) printed near the title. These often link to online versions with clearer annotations.
Key Elements to Verify
- Stem assembly: Check thread direction (left-hand threads are rare but critical). Measure stem length if replacing–off-by fractions cause leaks.
- Seal materials: Identify EPDM, silicone, or rubber by texture and color. EPDM resists chlorine but degrades under hot water; silicone tolerates heat but cracks under UV.
- Anti-siphon device: Confirm its position at the outlet end. Missing or inverted parts void backflow protection codes.
Trace fluid paths with a highlighter. Start at the inlet, follow through shutoff mechanisms, then to the discharge point. Note direction arrows–ignoring them flips valve orientation, risking air locks. For multi-port versions, label each outlet on the diagram before disassembly to avoid cross-connections.
Compare exploded views to physical hardware. Lay components on a grid in the same order as the drawing. Discrepancies (extra spacers, omitted gaskets) usually signal outdated schematics–cross-reference with the latest revision from the supplier’s tech sheet.
Key Components for Hose Bib Repairs and Their Assembly Positions
Replace the packing washer (Item 3B) immediately if leaks persist around the handle stem–it sits directly beneath the bonnet nut (Item 2), compressed by the stem threads. Opt for graphite-impregnated washers over rubber to prevent premature wear under temperature fluctuations. For outdoor valves, ensure the stem O-ring (Item 4) is seated in its groove without twists; a misaligned O-ring guarantees slow drips even when the handle is fully closed.
- Vacuum breaker assembly (Item 7): Locate atop the outlet side–remove the retaining clip (Item 7A) before unscrewing; clean the inlet screen (Item 7C) monthly to prevent backflow clogs. Replace if cracks appear in the housing.
- Handle screw (Item 1): Counterclockwise rotation loosens; inspect for thread stripping–use a stainless-steel replacement to avoid corrosion seizing.
- Outlet coupling (Item 6): Check for galvanic corrosion between brass and hose attachments; apply PTFE tape to new installations to seal against minute leaks.
- Valve seat (Item 5): Accessed by removing the stem–grind with 120-grit wet/dry paper in circular motions if pitting is visible; replace if groove depth exceeds 0.5mm.
For anti-siphon models, verify the check ball (Item 8) moves freely–lubricate with silicone grease every 6 months. If the valve refuses to shut off, the seat (Item 5) or washer (Item 3) is likely degraded; conductance tests with a megger confirm insulation integrity for frost-proof variants.
Identifying Corresponding Components on Outdoor Valve Illustrations
Locate the handle on the schematic first–it’s typically at the top of the assembly and labeled with a clear numerical or letter reference. Compare this to the physical unit by turning the valve clockwise and counterclockwise; the handle’s stem connection and threading should match the drawing’s depiction exactly. If the illustration shows a packing nut beneath the handle, verify its hexagonal shape and position directly below the turning mechanism. Misalignment here often indicates an incorrect schematic or worn replacement needs.
Verifying Intermediate Connections
Check the washer and seat assembly next–these sit inside the spout base and control water flow. The schematic will show a circular gasket pressed against a tapered metal ring; the physical counterpart must have the same profile. Remove the spout if necessary to confirm the washer’s thickness and the seat’s diameter. If the schematic specifies rubber for the washer but the unit feels rigid, the material mismatch requires correction before reassembly.
Examine the vacuum breaker if present–this appears as a small cylindrical protrusion near the outlet in the illustration. The real component should have a spring-loaded pin or slotted cap matching the labeled dimensions. A missing or damaged breaker voids anti-siphon protection, risking contamination. Cross-reference thread counts if the schematic and unit differ; even minor pitch variations prevent proper sealing.
Trace the supply tube connection last–it’s usually at the base of the unit, marked with pipe thread specifications. Use calipers to measure the outer diameter of the threaded section and compare it to the schematic’s stated size (e.g., ½-inch NPT). If the physical threads feel stripped or the diameter deviates by more than 0.5mm, the connection won’t hold pressure, necessitating a full replacement of that segment.
