Begin with the track assembly–this is the backbone of any operable fenestration unit. Standard residential setups use aluminum or vinyl extrusions, typically 2.5 to 3 inches wide, with a U-shaped groove to guide the sash. Check the bottom rail first: if debris accumulates, clear it with a rigid brush or compressed air; ignore this, and rollers will wear out in under 18 months. The upper guide is often overlooked–ensure it’s free of corrosion, especially in coastal climates where salt spray accelerates oxidation.
Next, inspect the roller mechanism. Most manufacturers use nylon wheels with stainless steel ball bearings, rated for 200–300 pounds per pair. If the panel binds, adjust the eccentric cam on the underside of the sash: clockwise increases tension, counterclockwise eases movement. Avoid silicone-based lubricants–they attract dust; instead, apply a dry Teflon spray every six months to maintain smooth operation. Hardened rollers indicate a failed bearing; replace the entire unit rather than attempting a repair.
Examine the weather seals along the perimeter. Brush-type seals last 3–5 years, while compression vinyl lasts 7–10 years if undisturbed. Replace frayed bristles immediately–once gaps exceed 1/8 inch, wind-driven rain infiltrates, leading to substrate rot. The meeting rail should have a tongue-and-groove interlock; if misaligned, adjust the strike plate screws to restore the seal. For double-pane units, monitor the desiccant status: fog between layers signals a failed seal, requiring full light replacement.
Finally, check the latching hardware. A single-point lock is common, but high-security models use multi-point deadbolts. The latch should engage smoothly with less than 1/4 inch of play. If the striker plate is misaligned, loosen the screws, adjust, and re-tighten–do not force the handle. For child safety, install a secondary lock at least 48 inches above the floor; compliance with ASTM F2090 requires keyed or pin-tumbler mechanisms.
Maintain a parts log: record model numbers, purchase dates, and vendor contacts. Most manufacturers void warranties if generic components are substituted, so keep original receipts. For diagrams, request exploded-view schematics directly from the supplier–retail manuals often omit critical torque specifications and material grades.
Understanding Movable Transparent Panel Components
Begin by locating the track system–a foundational element that ensures smooth horizontal movement. Most residential models feature dual rails: the upper channel guides alignment, while the lower one bears the panel’s weight. Verify rail symmetry before troubleshooting misalignment; uneven spacing often causes binding.
Inspect rollers next–typically nylon or steel–attached to the panel’s base. Quality rollers include ball bearings for reduced friction. Replace worn rollers if:
- Panels resist smooth motion even after track cleaning
- Visible uneven wear appears on roller surfaces
- Noise persists beyond normal operating levels
Weatherstripping demands regular examination. Compression seals along vertical edges prevent drafts, while brush-style variants at the bottom block debris. Replace compromised seals when gaps exceed 3mm or material shows cracking under flex tests.
Latching mechanisms vary, but common designs include hook-style or cam-action locks. Test lock engagement by closing the panel firmly–misalignment often indicates bent strike plates. Adjust strike plates in 1mm increments until latch engages without force.
Handle assemblies fall into two categories: flush-mount and pull-type. Flush handles integrate seamlessly but may require exact panel thickness accommodations (typically 6mm–12mm). Pull-type handles offer easier grip but collect dust in recessed areas–clean weekly to prevent buildup.
Use this checklist for quarterly maintenance:
- Lubricate tracks with silicone spray every 90 days
- Tighten mounting screws seasonally (check torque specs: 8–12 Nm)
- Test limit switches on automated systems monthly
- Inspect tempered panels for micro-fractures with polarized film
For threshold components, prioritize retractable designs in high-traffic areas. Fixed thresholds create tripping hazards; choose models with less than 8mm protrusion. Ensure proper drainage by angling outdoor thresholds 2° downward from interior edges.
When sourcing replacements, match original manufacturer specifications exactly. Generic rollers may fit but accelerate track wear due to material inconsistencies. For hardware, prefer Grade 304 stainless steel in coastal environments to resist corrosion–substitutes fail within 18–24 months.
Core Elements of a Track-Guided Transparent Panel Assembly
Prioritize the roller carriage when assessing performance–its design dictates smooth motion and load distribution. Opt for stainless steel or reinforced nylon rollers with sealed bearings to prevent debris accumulation. Replace worn rollers immediately if lateral wobble exceeds 1.5mm; even minor misalignment accelerates track wear. High-quality carriages integrate dual-wheel systems to distribute weight evenly across the lower guide, reducing stress on individual components.
Examine the interlock mechanism–the vertical edge where panels converge requires precise machining to prevent air infiltration. Look for compression seals with multi-fin designs (minimum 3 fins) for superior insulation. Low-quality seals degrade within 3-5 years; inspect annually for cracking or compression set. The strike jamb must align within ±0.5mm of the active panel’s edge to ensure proper engagement without binding.
Structural and Weatherproofing Essentials
- Head and sill tracks: Aluminum extrusions with powder-coated finishes resist corrosion; avoid anodized surfaces in coastal climates.
- Threshold: Sloped designs prevent water pooling–minimum 10° pitch required for drainage. Reinforced saddles (14-gauge steel) prevent warping under heavy loads.
- Side jambs: Solid-core vinyl or fiberglass composites reduce thermal bridging better than hollow aluminum (R-value improvement: 20-30%).
Latch assemblies demand special attention–deadbolts with 1″ throws provide security, but mortise locks require precise alignment (±0.3mm) to function without binding. For multi-panel systems, the astragal must compress evenly; test with a 0.01″ feeler gauge to verify consistent closure. Replace weatherstripping when compression reduces by 30% or gaps exceed 1/16″ upon closing.
How to Locate and Match Moving Panel Components
Begin by examining the track at the base. Use a flashlight to spot small metal clips–these secure the bottom wheel assembly. Compare their shape to stock images of standard designs: L-shaped clips fit most residential models, while U-shaped variants appear in heavier commercial units. If corrosion is present, note its pattern as it often points to specific manufacturers.
Next, inspect the upper rail. Look for tension springs or nylon guides–these prevent lateral play. Measure their width: 3/8″ springs suit light aluminum frames, while 1/2″ indicate reinforced steel. If color-coding exists (such as blue or red markings), cross-reference it with supplier catalogs to determine material grade. Absence of coding suggests generic hardware, which narrows replacement options to universal kits.
Check the latch mechanism for hidden identifiers. Engraved logos or part numbers (e.g., “MP-2021”) are reliable indicators. If none exist, disassemble the lock cylinder and compare the cam profile–serrated edges belong to European locks, smooth profiles align with North American standards. Secure these findings in a table for clarity:
| Component | Key Feature | Matching Clues |
|---|---|---|
| Bottom Wheel Clip | L-shape vs U-shape | Corrosion pattern, frame material |
| Upper Guide | Spring width (3/8″ or 1/2″) | Color coding, manufacturer |
| Lock Cam | Edge profile (serrated/smooth) | Engravings, regional standards |
Finally, test the handle rotation. Full 180-degree movement confirms dual ball-bearing pivots, while restricted travel points to single-bearing or worn bushings. Photograph the internal gear teeth–symmetrical spacing fits precision-machined parts, asymmetric grooves require custom replacements. Store these observations with the photos to skip repetition during ordering.
Essential Components for Upgrading Patio Entrances
Replace worn rollers immediately to restore smooth operation–choose nylon-coated or stainless steel variants for durability. Look for models with adjustable height settings to compensate for uneven flooring, ensuring consistent alignment.
Track cleaners with built-in brushes remove debris efficiently, preventing jams. Opt for silicone-based lubricants instead of petroleum products; they repel dirt longer and won’t attract grime that accelerates wear on moving mechanisms.
Locking latches with dual-point engagement provide superior security. Verify compatibility with your existing frame thickness–most standard replacements fit 3/4″ to 1-1/4″ profiles. Reinforced zinc alloy versions resist corrosion in coastal environments.
Threshold inserts with thermal breaks reduce energy transfer. Measure slot width precisely–common sizes range from 5/8″ to 1″. Replace cracked inserts promptly to prevent water infiltration that warps subflooring over time.

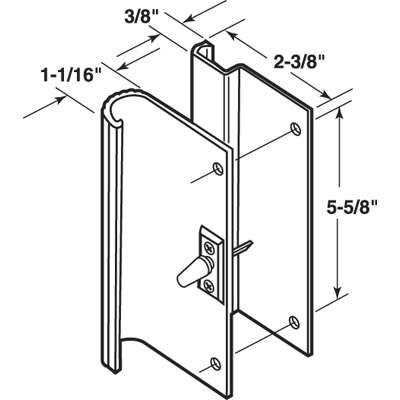

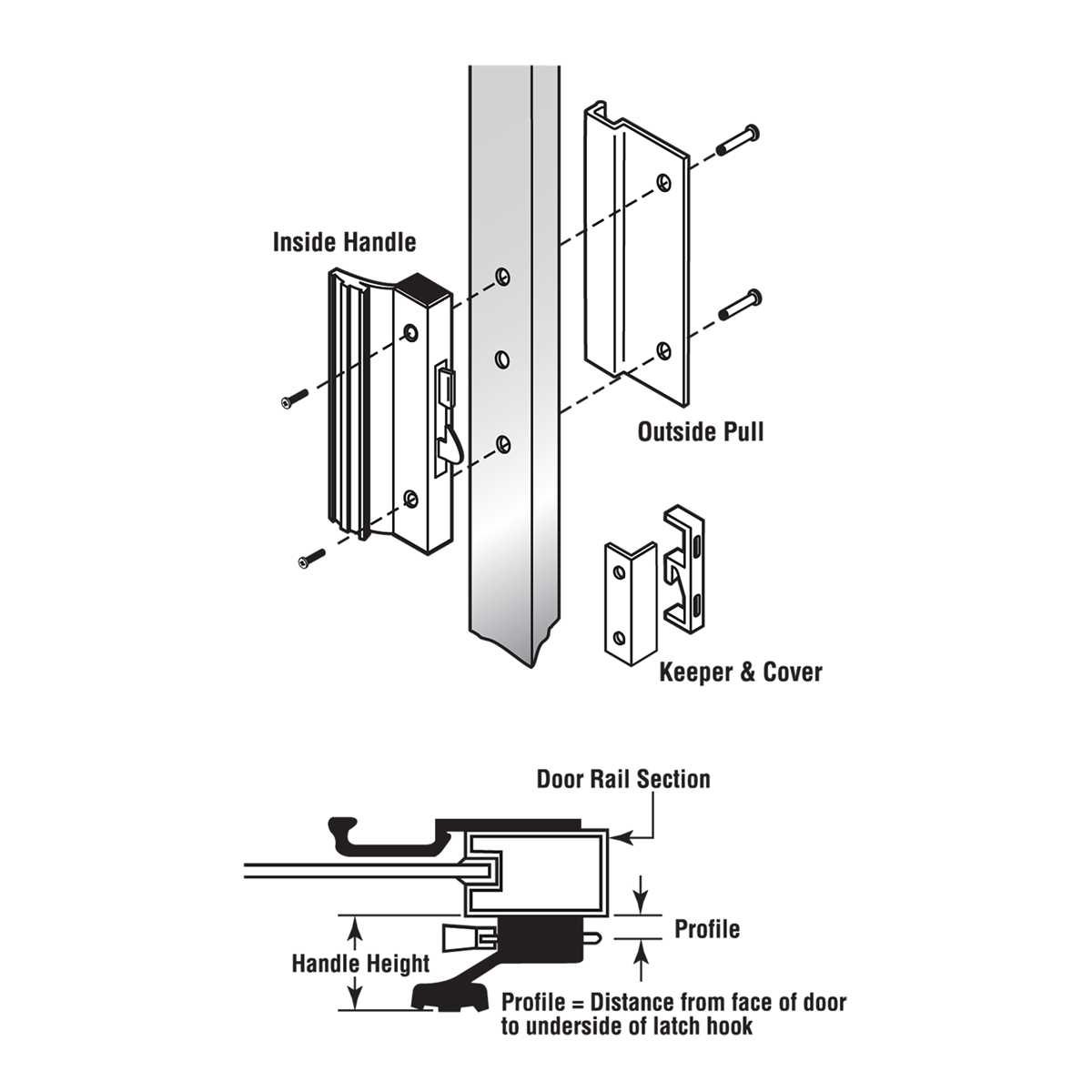

Handle sets should match your existing bore pattern (typically 2-1/8″ or 2-3/8″). Choose ergonomic designs with textured grips for elderly users or high-traffic areas. Some models include integrated pull handles for easier screen panel operation.
Screen panels with fiberglass mesh resist tearing better than aluminum options. Frame profiles in powder-coated finishes hide scratches better than anodized ones. For heavyset units, reinforce corner joints with metal brackets during installation.
