Replace the pressure gauge if readings fluctuate beyond 8–12 PSI or fail to return to baseline after cleaning. A faulty gauge misleads diagnostics–verify against a manual test kit before proceeding. Sand-type units demand backwashing at 20 PSI above normal; cartridge systems require disassembly if differential exceeds 5 PSI. Document baseline pressure weekly to track degradation.
Inspect the multiport valve gasket every 6 months or when leaks appear at the handle. Silicone-based lubricants extend seal life–avoid petroleum products that cause swelling. If the valve sticks, dismantle the rotor, clear debris, and check for worn cam tracks. Replace the entire valve assembly if the handle spins freely without resistance, indicating internal wear.
For sand vessels, replace silica media every 3–5 years, or when channeling occurs despite backwashing. Measure bed depth: 16–18 inches for residential systems; deeper beds risk compaction. Air bleeds must remain unobstructed–clogged vents cause microbubbles and reduced flow. Use #20 silica sand graded between 0.45–0.55mm; finer grains migrate, coarser grains reduce efficiency.
Cartridge elements degrade after 20–30 cleaning cycles or when pleats flatten under pressure. Soak in muriatic acid solution (1:10 ratio) for 12 hours, then rinse until pH neutralizes. Replace if pleats separate or the core becomes brittle–TDS levels above 2000 ppm accelerate deterioration. Polyester-bound cartridges last longer than paper-based; check for 20–30 micron filtration capacity.
O-ring failures cause 70% of leaks. Apply pool-safe lubricant (e.g., Dow 111) before installation; avoid over-tightening threads. Replace if the O-ring flattens beyond 25% of original thickness. For pump housings, the lid O-ring seals at 10–15 ft-lbs torque–use a torque wrench to prevent distortion. Always keep a spare set (pump, filter, heater) on hand to avoid downtime.
Key Components of Your Swimming System Schematic
Identify the multiport valve assembly first–this controls water flow direction between filtration, backwashing, rinsing, and winterizing modes. Locate the handle position indicator sticker on the valve body to confirm correct alignment before operation. Misalignment damages internal seals and reduces efficiency by up to 40%. Replace worn gaskets annually to prevent leaks at pressure points.
The pressure tank houses the sand or cartridge media, requiring inspection every 6 months for cracks or corrosion. A damaged tank loses 2-3 PSI per week, increasing pump workload. Check the air relief valve at the tank’s top–clogged vents cause improper drainage during backwash cycles, leading to media channeling. Clean the valve with a wire brush if debris accumulates.
Inspect the lateral assembly at the tank’s base for broken or misaligned fingers. Even one cracked lateral allows unfiltered water to bypass the media, reducing clarity by 15-25%. Replace all laterals simultaneously if damage is found, as uneven wear creates dead zones. Use manufacturer-specific laterals; generic models vary in slot size, affecting flow distribution.
The pump impeller and diffuser determine water circulation efficiency. Remove the pump basket monthly to clear debris–clogged impellers reduce flow by 30% and increase energy consumption. Check the impeller’s vane sharpness; eroded edges signal cavitation and require immediate replacement. Pair new impellers with compatible diffusers to maintain optimal pressure.
Examine return jets and skimmer assemblies for blockages quarterly. Partially clogged jets disrupt surface tension, causing dead spots where algae forms. Use a 1/4″ threaded nozzle brush to clean jets without removing fittings. Verify O-ring seals on all connections–dry or cracked seals introduce air, reducing suction by 10-18% and straining the motor.
How to Recognize Critical Elements in a Residential Water Purification Assembly
Begin by locating the multiport valve–typically mounted atop the cylindrical housing–with labeled positions like “Filter,” “Backwash,” “Rinse,” “Waste,” “Recirculate,” and “Closed.” Each setting dictates water flow direction; misalignment during operation can lead to inefficiency or damage. Verify the handle’s smooth rotation and ensure the valve gasket is intact to prevent leaks.
The pressure gauge, often a 0-60 PSI model, sits adjacent to the valve. Monitor readings weekly–normal operating range is 10-25 PSI. A spike above 30 PSI indicates clogging, requiring immediate backwashing. Replace faulty gauges promptly; inaccurate readings compromise system integrity. Avoid overtightening during installation to prevent thread stripping.
Core Internal Mechanics
Inside the tank, filter media (either sand, cartridge, or diatomaceous earth) traps debris. For sand-based units, use #20 silica sand (0.45-0.55 mm grains); finer particles reduce efficiency. Cartridge models require annual replacement–check for cracks or fouling. D.E. grids demand seasonal inspection; tears reduce filtration capacity by up to 40%. Always rinse new media thoroughly to remove dust before installation.
The lateral assembly at the tank’s base distributes water evenly during filtration and collects debris during backwashing. Inspect laterals for cracks or clogged slots–damaged components cause channeling, allowing unfiltered water to bypass the system. Replace broken laterals immediately; rebedding sand around new laterals ensures proper alignment. For above-ground models, verify the standpipe’s vertical alignment to prevent stress on connections.
Supporting Infrastructure
The pump strainer basket, housing a removable mesh, precedes the motor. Clean this weekly to prevent debris from reaching impeller blades, which can reduce flow by 30%. Ensure the lid O-ring is greased (use silicone-based lubricant) to maintain a watertight seal. For variable-speed pumps, set the priming cycle to run 2-3 minutes daily to prevent airlocks.
Discharge pipes must comply with local codes–typically 1.5” PVC for backwash lines. Install a check valve to prevent backflow into the unit. Verify all unions are solvent-welded or threaded securely; leaks here waste thousands of gallons annually. For heated water applications, insulate exposed piping to minimize heat loss, especially in colder climates where condensation can corrode fittings.
Emergency shutoff protocols should include labeling the breaker and isolating valves. Test monthly–close intake valves first to avoid airlocks. Store spare components (gaskets, O-rings, laterals) in a dry, cool environment; rubber seals degrade within 2 years if exposed to ozone or UV. Keep a repair log noting pressure trends, maintenance dates, and component replacements to predict failures before they occur.
Step-by-Step Guide to Identifying Components in Your Equipment Schematic

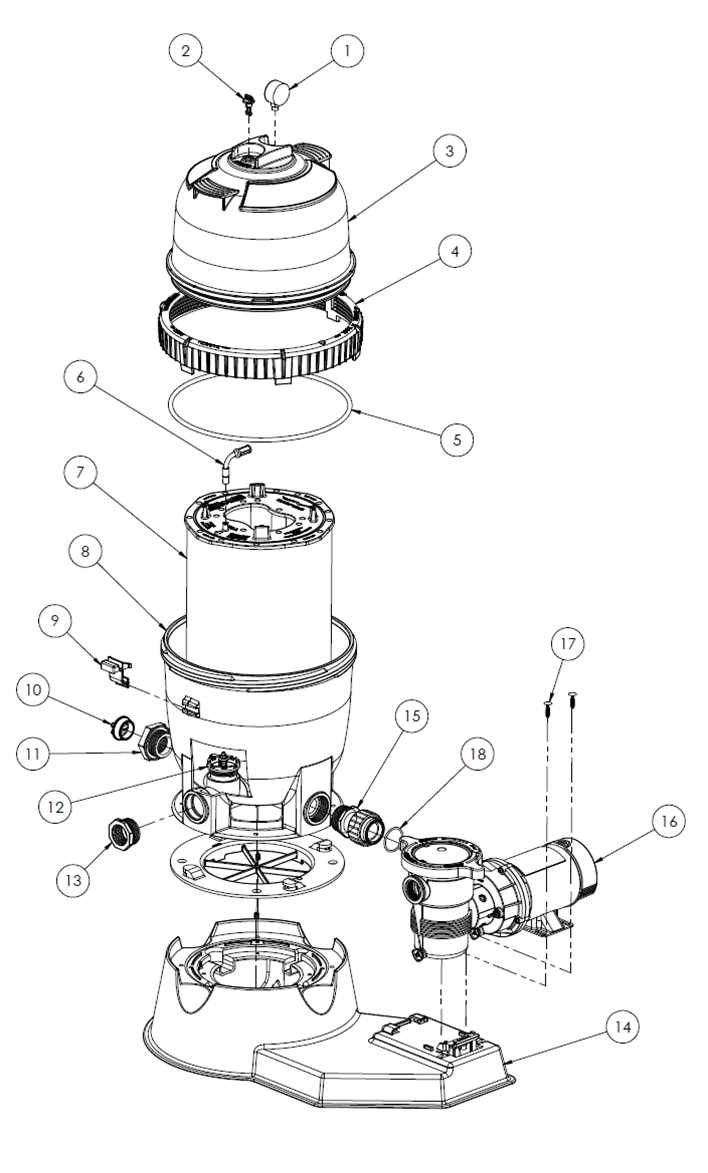

Begin by obtaining the official exploded view for your system model. Manufacturers assign unique identifiers like “PL4XXX” or “DE4XXX” to each configuration–cross-reference your unit’s label with the corresponding document. Print or open the schematic on a device with zoom functionality to examine small annotations without missing critical details.
| Common Symbols | Typical Location | Replacement Frequency |
|---|---|---|
| O-rings (round seals) | Housing junctions, manifold connections | Annually or post-leaks |
| Laterals (finger-like tubes) | Bottom assembly inside vessel | Every 3–5 years |
| Pressure gauge | Top-mounted port | As-needed (damage visible) |
Trace each line from the schematic’s numbered items to physical counterparts. Rotate multiport valves slowly while observing the diagram–internal passages often align with specific settings like “Backwash” or “Rinse.” Label a zip-top bag for each disassembled section to prevent misplacement of screws, gaskets, or clips during inspection.
Compare hardware condition against visual cues: cracked plastic, worn threads, or white mineral buildup signal immediate attention. Use a flashlight to inspect internals without full disassembly–shadows reveal fractures or blockages. For models with push-lock fittings, confirm compatibility with aftermarket replacements; thread pitch varies between 1.5-inch and 2-inch variants.
Key Components to Maintain Your Swimming System
Start with the multiport valve assembly–the central hub controlling water flow. A worn gasket or cracked diverter inside can cause leaks or improper filtration. Replace the valve’s O-ring every 12–18 months to prevent bypass issues. Models like the System 3 and 5000 series use slightly different mechanisms; verify the correct part number before ordering.
Critical Wear Items and Their Lifespans
- Cartridge elements: Replace every 6–12 months depending on usage. Clogged filters reduce efficiency and strain the pump. Polyester media (e.g., PN S8M22) traps finer debris than older fiber models; check for tears or collapsed pleats.
- Pressure gauges: Calibrate or swap out if readings exceed ±2 psi from baseline. A faulty gauge misleads backwash timing, wasting water and energy.
- Pump impeller: Inspect annually for corrosion or broken vanes. Even minor damage drops output 15–20%. Look for PN AY6212-01 (for 1.5 HP units) or compatible substitutes.
- Lateral assemblies: Sand-based systems need these every 3–5 years. Cracked laterals allow media to escape into the return lines. Fiberglass variants outlast plastic; install with Teflon tape at threads to prevent leaks.
For seal kits, prioritize pump shaft seals (PN 7010) and housing gaskets (PN 7454). Leaks here introduce air, causing cavitation and motor burnout. Apply silicone grease sparingly–excess attracts debris. Keep a spare union fitting (½” or ¾”) on hand; stripped threads require full replacement, not patches. When sourcing, match thread pitch (NPT or MPT) and material (brass vs. PVC).
