Start with the thermostat assembly. Locate the upper and lower heating controls–typically mounted on the tank’s exterior. The upper unit regulates the primary heating element, while the lower maintains consistent output during standby. Verify the voltage rating (240V models dominate residential setups) before adjusting or replacing these components. Incorrect settings risk tripping breakers or damaging internal wiring.
The anode rod–a sacrificial magnesium or aluminum core–extends into the storage vessel from the top. This component attracts corrosive minerals, preserving the tank’s lifespan. Check its condition annually: if depleted to less than ½ inch diameter, replace it immediately to prevent rapid deterioration of the vessel walls. Galvanized steel tanks rely on this defense more than glass-lined models.
Examine the dip tube–a CPVC or PEX conduit directing incoming cold liquid to the bottom of the reservoir. Sediment accumulation can obstruct flow, reducing efficiency. Flush the system biyearly by attaching a garden hose to the drain valve: open the valve, let 5-10 gallons discharge, then repeat until the water runs clear. Hard-water areas may require quarterly flushing.
Inspect the pressure relief valve–a brass or stainless fitting threaded into the side or top. Test it monthly by lifting the lever: water should discharge forcefully, then stop completely when released. If it dribbles, replace it–this safety mechanism prevents ruptures from overpressure (operating limits: 150 PSI, 210°F). Never seal or cap this component; doing so invites catastrophic failure.
Trace the heating elements–flange-mounted through the tank’s side, accessible via removable panels. Resistance readings should match manufacturer specs (typical range: 10-25 ohms). Isolate the circuit at the breaker, then detach wires before testing with a multimeter. Corroded terminals or burnt connections signal imminent failure, requiring replacement of both the element and gasket.
The temperature-pressure gauge–if present–provides real-time diagnostic data. Verify its accuracy by comparing the reading to a secondary thermometer submerged in a vessel of hot liquid. Discrepancies greater than 5°F indicate sensor drift or calibration errors. Replace malfunctioning gauges rather than attempting adjustments; these are precision instruments not designed for field repair.
Understanding Your Gas-Powered Tank Components

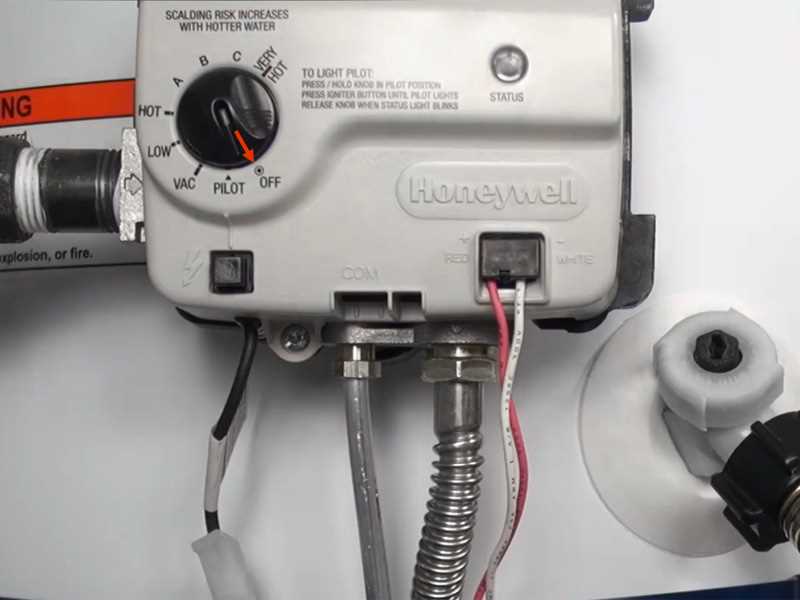

Locate the thermocouple near the pilot assembly–its position is critical for safe operation. If flame detection fails, the unit will shut off gas flow within 60 seconds. Ignition issues often stem from corrosion or misalignment here, so inspect for a bluish flame (not yellow) and verify the sensing tip sits within ¼ inch of the pilot burner. Replace if oxidation exceeds 1/3 of its length.
The anode rod–typically magnesium or aluminum–hangs vertically inside the reservoir, sacrificing itself to prevent rust. Check it every 12–18 months; a rod reduced to ½ inch diameter or coated in calcium needs immediate replacement. Hard water regions may require zinc alloy rods instead, as they last 20–30% longer under high mineral buildup. Never omit this component; tank failure follows within 2–3 years without it.
Examine the dip tube–the cold intake channel extending from the top inlet down to the tank’s base. Cracks or breakage here cause premature hot delivery at taps, as incoming cold bypasses heating cycles. Look for fragmented plastic around the drain valve outlet; this confirms internal disintegration. PVC versions degrade rapidly above 140°F; switch to CPVC or cross-linked polyethylene for extended lifespan (10+ years).
Pressure relief valves activate at 150 psi or 210°F; test annually by lifting the lever until water flows, then releasing–it should snap closed without drips. Leaks here often indicate scale buildup inside the tank, a 10-minute flush via the drain port resolves minor blockages. For valves stuck open, tap lightly with a wrench to dislodge debris, but replace if corrosion pits exceed 0.5 mm deep–failure risks catastrophic pressure spikes.
Venting systems require double-wall B-vent for enclosed spaces; single-wall pipes corrode within 5 years if exposed to condensation. Ensure all joints slope upward at ¼ inch per foot toward the flue terminal, with no horizontal runs longer than 75% of the vertical rise. Corrugated flexible liners create deadly carbon monoxide risks–hard piped stainless steel (AL29-4C grade) lasts 2–3x longer and resists acidic condensate in modern condensing models.
Recognizing Critical Elements in a Gas-Fired Storage Tank Assembly Schematic
Locate the combustion chamber first–it appears as a cylindrical section at the base, typically surrounded by insulation. Verify the presence of the burner assembly directly beneath: look for a series of gas ports arranged in a circular or linear pattern, often paired with an ignition electrode or pilot light sensor. Cross-reference the model’s serial plate to confirm BTU rating and voltage specifications, as mismatched replacement components can lead to inefficient operation or safety hazards. For instance, an incorrectly sized thermocouple or flame sensor may fail to detect ignition, causing the control valve to shut off gas flow prematurely.
| Component | Visual Marker | Critical Check |
|---|---|---|
| Anode rod | Hexagonal head protruding from top | Measure diameter; standard ¾” may vary in magnesium or aluminum alloys |
| Pressure relief valve | Lever or threaded port on side/upper section | Test lever operation; discharge should release steady stream, not drips |
| Control module | Rectangular housing with wiring harness | Inspect for corrosion on terminals; use dielectric grease for replacements |
| Dip tube | Plastic or metal tube inside tank from top to lower third | Confirm length; must extend at least 6″ above burner to prevent thermal layer disruption |
How to Pinpoint and Swap Thermal Regulators and Heating Coils with Visual Guides
Disconnect power at the circuit breaker before touching any internal components–even a residual charge can cause severe shock. Use a non-contact voltage tester to confirm the unit is dead. For most electric storage tanks, the access panel is secured with screws; remove it carefully to reveal the insulation foam. Peel back the foam to expose the upper and lower thermostats, typically encased in plastic housings, and the paired heating elements, one near the top and one at the base. If the schematic labels terminals “L1,” “L2,” “T1,” “T2,” or similar, match these exact markings when testing or replacing.
Testing Components Before Replacement
Set a multimeter to the lowest resistance scale (ohms) to check continuity. Touch probes to the thermostat’s terminals–readings below 20 ohms indicate a functional unit, while OL (open line) signals failure. For coils, disconnect wires first, then test between terminals and to the metal tank shell; any reading below 50 megaohms means insulation breakdown. If replacing, note wire positions with a quick sketch or photo–mixing connections risks cycling errors. Choose parts with matching voltage (usually 240V) and wattage (commonly 3500W or 4500W). Threaded elements must seat flush to prevent leaks; apply pipe sealant to the threads if specified in the manual.
Reassemble in reverse order, ensuring foam seals tightly to prevent heat loss. Tighten access screws evenly to avoid warping the cover. Restore power and monitor the tank’s recovery time–if it trips the breaker immediately, recheck wiring or test the new parts again. Wait 30–60 minutes for temperature stabilization, then adjust the thermostat dial in 5-degree increments if needed, using an IR thermometer to verify output at the faucet.
How to Interpret Your Electric Storage Tank Wiring Blueprint
Locate the power supply lines first–typically labeled L1 and L2 on residential units, often marked in red and black for 240V circuits. Verify the voltage rating on the control panel; most models operate at 220-250V for optimal performance. Identify the thermal cutoffs (TCO) and high-limit switches, which act as safety mechanisms–these reset manually after tripping. Trace the thermostat wires: upper and lower stats usually have separate circuits, with the upper controlling primary heating. Check for a white neutral wire if your unit includes a 120V component (e.g., control boards or circulating pumps).
Examine the grounding–should connect directly to the tank’s metal casing via a green or bare copper wire to prevent shock hazards. Confirm the heating elements’ resistance with a multimeter: 12-25 ohms indicates proper function; infinite resistance signals a break. Cross-reference wire colors with the manufacturer’s legend; while standard, variations exist for certain models (e.g., blue for auxiliary components). If relays or contactors are present, note their coil voltage (usually 24V) and contact ratings to avoid overload. Use a non-contact voltage tester before handling any wires to rule out residual current.
Locating Authentic Manufacturer Schematics for Your Appliance
Begin with the brand’s official website. Most leading producers maintain dedicated support portals that host downloadable documentation. For instance, A.O. Smith’s customer service section includes detailed exploded views for all product lines, searchable by serial number or model identifier. Rheem’s resource hub likewise offers PDF manuals that incorporate wiring layouts, component lists, and step-by-step repair illustrations–filter by product category to swiftly isolate the precise schematic you need.
Explore third-party authorized retailers if the brand’s site lacks direct downloads. Sites like RepairClinic, PartSelect, and Sears PartsDirect archive full technical drawings for thousands of models. Enter the appliance’s model number into their search tools to instantly retrieve cross-referenced diagrams alongside compatible replacement components, often accompanied by brief installation notes or video walkthroughs.
- AppliancePartsPros: Uploads OEM schematics alongside user-submitted photos for verification.
- ManualsLib: Aggregates factory-released documents, allowing batch downloads in multiple resolutions.
- FixYa: Crowdsourced troubleshooting forums where verified technicians post direct links to manufacturer PDFs.
Leverage online communities for rare or discontinued units. Reddit’s r/appliancerepair hosts weekly threads where members share obscure paperwork for models no longer supported by official channels. HVAC-Talk and Terry Love Water Heater Forums also maintain pinned posts with curated collections of wiring charts, piping configurations, and control system breakdowns–many scanned from vintage service manuals not available elsewhere.
