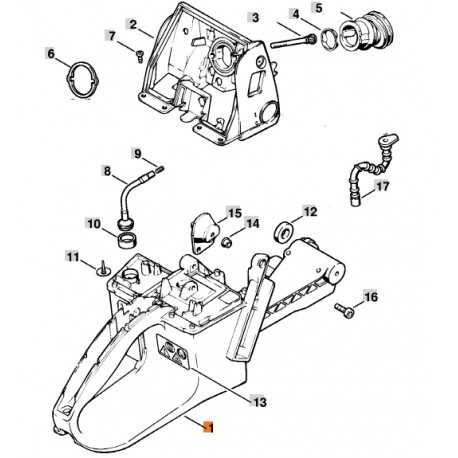

Start by securing the correct exploded view schematics for your professional-grade cutting tool. Obtain the official documentation directly from an authorized service center–third-party replicas often omit critical tolerances or assembly sequences. Identify the serial number engraved on the crankcase (typically under the handle) to cross-reference the precise configuration; variations exist between early and late production batches.
Disassembly requires these tools: torque wrench (10–25 Nm range), circlip pliers (internal/external), magnetic tray for small fasteners, and a precision screwdriver set with Torx T25 and T30 bits. Keep a parts tray organized by component group–air filter assembly, carburetor linkages, clutch mechanism–each must return to its exact position. Verify gasket placement (especially the intake manifold) before reassembly; improper seating leads to air leaks and erratic performance.
Focus on the drive sprocket first–wear here causes chain skipping. Replace it if teeth show uneven wear or a reduction of more than 0.5 mm from the original profile. The piston and cylinder demand inspection under a 10x magnifier: scratches wider than 0.1 mm or carbon deposits exceeding 0.3 mm thickness indicate scoring and require full replacement. Use only OEM-spec rings (gap: 0.15–0.30 mm); aftermarket variants often fail to meet thermal expansion coefficients.
For the recoil starter, lubricate the pawl spring with molybdenum disulfide grease (not lithium-based). If the rope fails to retract fully, check the pulley engagement–misalignment causes premature failure. The fuel pump diaphragm deteriorates every 50–70 hours under ethanol-blended fuels; replace it preemptively during annual maintenance to avoid lean running conditions. Always test compression (minimum 9.0 bar) after reassembly; deviations signal improper torque on the cylinder base nuts or damaged sealing surfaces.
Document each step with timestamped photos (12-megapixel minimum) to avoid reassembly errors. Store fasteners in labeled bags–use the original packaging if available. Calibrate the chain tension gauge to 0.04–0.06 mm slack at the drive link midpoint; overtightening accelerates bar wear by up to 40%. Run the tool at idle for 3 minutes post-rebuild, then recheck all critical components for vibration-induced loosening.
Essential Schematics for Your Heavy-Duty Chainsaw: A Hands-On Reference
Locate the crankcase assembly using exploded view sheet 3–it’s marked near the flywheel housing. If replacing seals, note the torque specs: 12 Nm for the lower gasket (part #1128-120-0608) and 8 Nm for the upper (part #1128-120-0607). Misalignment here causes vacuum leaks, leading to erratic idling or fuel starvation. Always soak new seals in 2T oil for 10 minutes before installation to prevent premature drying.
Carburetor Adjustment: Exact Steps
Start with the low-speed needle (L) turned 1.25 turns clockwise from lightly seated, then back off 1 full turn. For the high-speed needle (H), begin at 1.5 turns out. Warm the engine for 3 minutes, then fine-tune L until it holds 2,800 RPM without hesitation. If the engine bogs under load, enrich H in 1/8-turn increments–maximum adjustment is 1.75 turns from seated. Over-tightening damages the orifice (part #1130-120-0200).
Inspect the sprocket nose every 5 hours of operation. Remove the bar and check for 0.5mm play at the tip; anything beyond this requires replacement of the drive hub (part #1123-120-1400). Grease the sprocket bearing (part #1123-120-1402) with synthetic lithium grease–avoid petroleum-based lubricants, as they cause swelling in the polyamide hub. If the chain jumps at startup, the rivet head (part #1134-120-0300) may need re-tensioning to 0.2mm clearance using a feeler gauge.
Locating the Authorized Exploded View for Your Professional Chainsaw

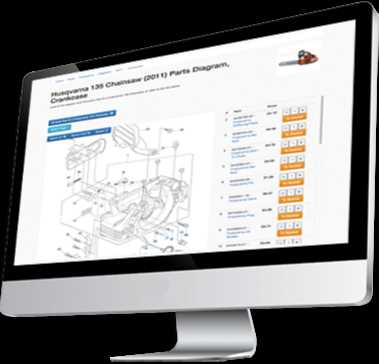

The manufacturer’s official portal provides direct access to detailed schematics. Visit stihlusa.com, navigate to the support section, and use the search function by entering the model number engraved on the housing near the exhaust outlet. The exploded view will load as a high-resolution PDF listing every component with numerical identifiers matching the service manual.
Certified dealers maintain offline archives of these documents. Locate an authorized service center through the manufacturer’s dealer locator tool–filter by “service” to ensure access to physical copies. Dealers receive quarterly updates on microfiche or USB drives containing every revision, including discontinued models. Bring the serial plate information to expedite retrieval; staff can print or email the exact schematic within minutes.
Comparison of Schematic Sources
| Source | Access Speed | Cost | Update Frequency | Offline Availability |
|---|---|---|---|---|
| Manufacturer Website | Free | Instant | No | |
| Dealer Service Desk | 5-15 min | Free | Quarterly | Yes |
| Third-Party Repair Manuals | Variable | $15–$40 | Infrequent | Yes |
| Online Marketplaces | 1–3 days | $0–$10 | Rare | No |
Aftermarket suppliers sometimes offer compatible schematics, though accuracy varies. Check technical forums where enthusiasts upload scans–search using the engine displacement (63.3 cc) and carburetor type (Walbro WT-991). Verify by cross-referencing the clutch bearing part number (1123 640 0300) against the exploded view; deviations indicate potential errors.
Critical Sections in the Schematic
Focus on three primary assemblies: crankcase (pages 3–5), powerhead (pages 6–8), and guide bar mount (page 12). Each page includes torque specifications for bolts in Newton-meters–crankshaft housing bolts require 18 Nm, while flywheel nut demands 60 Nm. The schematic also annotates O-rings with color-coded bands corresponding to material composition (red: NBR; blue: FKM).
Step-by-Step Breakdown of the Professional Chainsaw Fuel System Components
Disassemble the carburetor by first removing the fuel filter housing. Locate the retaining clip beneath the intake cover–pry it upward with a flathead screwdriver while holding the housing to prevent damage to the threads. Extract the filter element and inspect for debris; replace if particles exceed 0.5mm in diameter. Next, detach the fuel line from the impulse port using needle-nose pliers–ensure the hose interior remains clear of obstructions by blowing compressed air through it at 30 PSI. The metering diaphragm sits directly below the carburetor base; handle it with tweezers to avoid fingerprint oils compromising the material.
Calibration and Reassembly Protocol
Reinstall the high-speed adjustment screw by turning it clockwise until resistance is felt, then back it out precisely 1.5 turns–no more, no less. Verify the gasket thickness between the carburetor and crankcase; deviations above 0.2mm require replacement. Align the throttle shaft with the control lever, ensuring the linkage moves freely without binding; lubricate the pivot points with 2 drops of SAE 30 oil. Pressurize the fuel system to 4-6 PSI before startup to confirm no leaks at connection points–spray soapy water on joints to detect bubbles. If engine hesitation occurs, check the impulse channel for blockages; a 0.016-inch wire should pass through without force.
Locating and Procuring Components for the MS 660 Powerhead Repair
Begin disassembly by removing the muffler to inspect the combustion chamber–common failure points include scored cylinder walls or excessive carbon buildup on the piston crown. Use a micrometer to measure piston skirt diameter and cylinder bore wear precisely; OEM specifications allow 0.0015–0.0025 inch clearance. If measurements exceed this range, replace both elements simultaneously–mismatched sets accelerate wear due to differing thermal expansion rates. Cross-reference part numbers 1123-020-2310 (cylinder) and 1121-020-1001 (piston) with authorized dealers; third-party suppliers often substitute inferior alloy compositions prone to premature failure under sustained high RPM loads.
Verification Methods Before Purchase
Verify the originating manufacturer by examining casting marks–genuine components feature crisp ST laser etching on the cylinder flange, while counterfeit versions exhibit blurred or missing identifiers. Check piston rings for chamfered edges; aftermarket variants lack proper heat treatment, causing inconsistent sealing under compression. Consult service manual page 47 for torque values: cylinder base nuts require 18 Nm; improper tightening distorts the sleeve, leading to seizure. Online marketplaces frequently mislabel kits–opt for dealers providing certification documents with dot-matrix serial numbers matching engine blocks.
Prioritize suppliers specializing in two-stroke competition engines, as they stock enhanced port configurations for the MS 660’s 94.0mm bore. Aftermarket options like Wiseco or Vertex use hypereutectic alloys reducing friction by 12%, though they demand precise break-in procedures–run at 50% throttle for 15 minutes with rich fuel mixture. Avoid generic rings lacking nitrided surfaces; these wear grooves into cylinder walls within 20 operating hours. Document serial numbers from the old assembly for warranty claims–ST enforces strict lineage tracing for powerhead replacements.
Surface preparation demands wet-sanding cylinder walls with 1000-grit abrasive, removing only enough material to eliminate scratches without compromising Nikasil coating thickness. Apply ST’s anti-seize compound sparingly to stud threads; excess creates hydraulic lock under thermal expansion. Reassemble with new base gaskets–composite versions (part 1127-007-1003) resist compression set better than cork alternatives. Test compression after installation: target 160–180 psi; readings below 140 psi indicate improper ring seating or sleeve distortion requiring rework.
Storing spares requires climate-controlled environments–humidity above 60% triggers oxidation on piston ring faces. Pack components in vapor-phase inhibitor paper, not plastic; condensation accelerates corrosion. For urgent repairs, expedited dispatch from European warehouses takes 3–5 days, while domestic US suppliers achieve same-day pickup for stocked items. Avoid reprocessed cores; these exhibit inconsistent metallurgy from prior thermal cycling, compromising durability under sustained full-throttle operation.
