Start by locating the deck assembly–the primary structural frame that houses the cutting blades. Most models label this component with alphanumeric codes (e.g., SW-DK-42 or LW-52-BL) stamped on the underside near the spindle mounts. If the diagram is unavailable, cross-reference these markings with the manufacturer’s official schematics, typically found in the service manual supplement under “Frame & Deck Sections.”
Next, inspect the spindle units. These cylindrical mechanisms drive the blades and are secured with three to four bolts per side. Use a torque wrench (35–45 ft-lbs)) to avoid overtightening, which can warp the deck. Common failure points include the sealed bearings–listen for grinding or excessive play during rotation. Replace bearings immediately if resistance or uneven blade movement is detected.

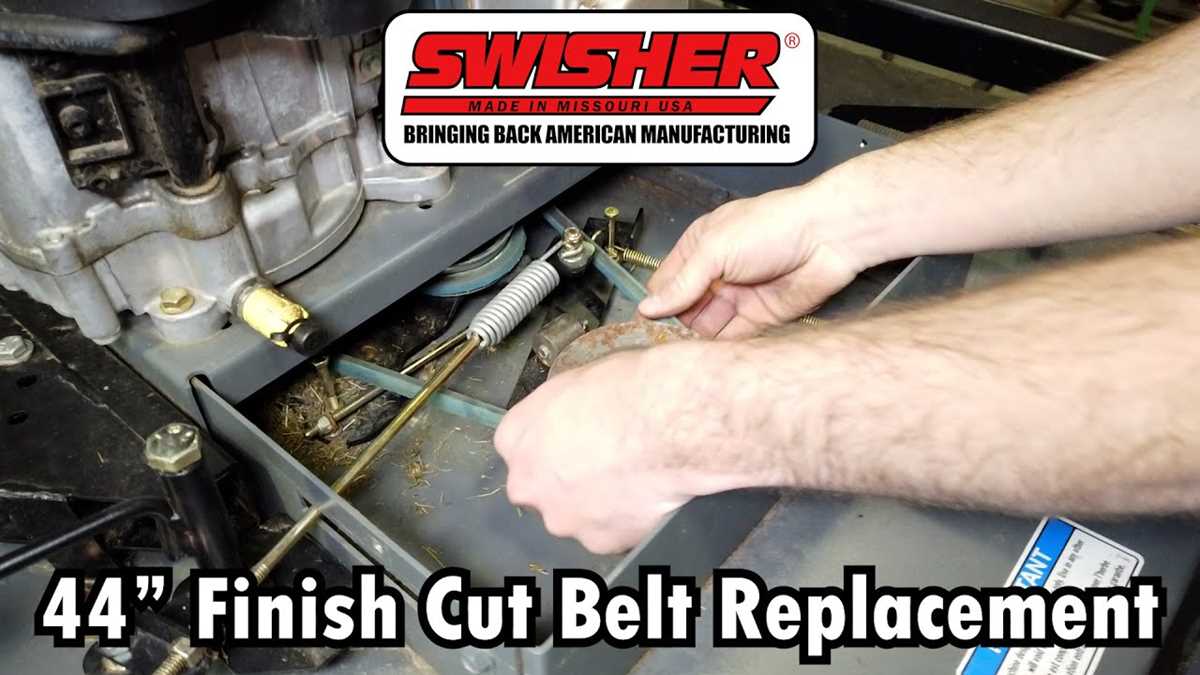

The belt system warrants close attention. A typical setup includes a drive belt (Part #850-0450) and one or two deck belts (#850-0455)). Verify alignment by tracing the path: engine pulley → idler → spindle pulleys. Misalignment (check via a straightedge) accelerates belt wear–adjust the idler arm by loosening the locknut and rotating the eccentric bolt.
For the wheel assembly, prioritize the axle bolts (M12 x 1.75 pitch). These often seize due to debris accumulation; apply anti-seize compound during reassembly. The pneumatic tires (4.80/4.00-8) should maintain 15–20 PSI–underinflation causes premature sidewall cracking. Replace wheels if tread depth falls below 3mm.
Refer to the exploded-view illustration for the height adjustment mechanism. Most designs use a pin-and-notch system; ensure the pin (Part #820-0150) engages fully to prevent deck sag. Lubricate the pivot points with marine-grade grease to reduce corrosion. If the linkage feels stiff, disassemble and clean the slide rails–excessive wear here leads to inconsistent cutting height.
Understanding Your Trailed Cutting Equipment Component Layout
Begin by locating the deck housing assembly on your unit’s schematic–typically positioned between the wheels at the rear. This section includes critical wear items like spindle bearings (model #800123) and blade carriers (part #75409). Replace these every 100 operating hours if inspecting reveals groove wear exceeding 0.5mm or play beyond 0.3mm during manual rotation checks. Keep a torque wrench set to 45 ft-lbs when securing spindle nuts to prevent deformation.
Common Failure Points and Replacement Intervals
| Component | Inspection Frequency | Replacement Trigger | Compatible Upgrade |
|---|---|---|---|
| Drive belt (#67045) | 25 hours | Cracks or 3% stretch | Keyless tensioner kit (#67045-KL) |
| Wheel hub bearings (#34110) | 50 hours | Audible grinding or resistance | High-temp grease (#GREASE-RED) |
| Anti-scalp rollers (#90213) | 75 hours | Diameter | Polyurethane upgrade (#90213-PU) |
For tractors equipped with PTO shafts, ensure the slip clutch mechanism (part #45007) engages smoothly at 60-80 ft-lbs of resistance. Adjust the preload bolt in 1/8-turn increments until the clutch plate releases under excessive load–avoid overtightening, as this voids the protective function. Lubricate the pivot pins monthly with molybdenum disulfide grease to prevent galling.
Label disconnected wires if servicing the electrical circuit for safety interlocks. The ground terminal (green, gauge 12) connects to the chassis via a #10 machine screw–secure with a star washer to maintain
How to Pinpoint Critical Elements in Your Trailing Brush Cutter
Begin by locating the deck assembly–this forms the foundation of your equipment. Measure its width to confirm compatibility with replacement blades; standard models typically range between 30 and 60 inches. Check the mounting holes for corrosion or stripping; damaged threads will require a rethreading kit or welded repair plate.
Inspect the spindle housings next. These cylindrical casings secure the cutting blades and contain sealed bearings. Listen for grinding sounds while rotating the blades by hand–any resistance or noise indicates bearing failure. Replace bearings in pairs to maintain balanced operation.
The drive system includes a belt, pulleys, and tensioner. Examine the belt for fraying, glazing, or cracks; a slipping belt reduces blade speed and uneven cutting performance. Clean pulleys with a wire brush to remove debris buildup, which can cause premature belt wear. Verify tensioner spring tension–it should deflect no more than 1/2 inch under moderate pressure.
Hydraulic or mechanical lift mechanisms control deck height. Test functionality by raising and lowering the deck; a sluggish response suggests air in the hydraulic lines or a failing pump. For mechanical lifts, lubricate pivot points with marine-grade grease to prevent rust and ensure smooth articulation.
Blade sharpening and balance affect cutting precision. Remove blades and inspect for nicks or warping–replace if damage exceeds 1/4 inch. Sharpen blades at a 30-degree angle, preserving the original bevel. Use a blade balancer to check equilibrium; an unbalanced blade causes vibration, accelerating spindle wear.
Wheels and axles impact maneuverability and stability. Check tire pressure–underinflated tires increase rolling resistance and uneven cutting. Inspect axle pins for wear; replace if play exceeds 1/8 inch. Grease axle bearings annually to prevent seizure, especially in moisture-prone environments.
Safety features include discharge chutes, guards, and anti-scalp rollers. Verify chute alignment–misalignment directs clippings toward the deck, clogging the cutting path. Adjust guards to clear obstacles by at least 1/2 inch to avoid damage. Anti-scalp rollers should maintain light ground contact; excessive pressure will gouge turf.
Document findings with photos and measurements before ordering components. Note model-specific details like spindle thread size (usually 5/8-inch UNF) and pulley diameters (commonly 3 to 5 inches). Cross-reference part numbers with manufacturer manuals; aftermarket substitutes may require modifications for proper fit.
How to Precisely Identify Components in Technical Schematics
Start by matching the item number on the schematic with the corresponding list in the manual’s legend. Most manufacturers assign unique IDs–typically three to five digits–grouped by subsystem (engine, cutting deck, drive system). For example, if troubleshooting a drive belt, locate IDs beginning with “2-XXX” or “DRV-XXX” in the index. Verify the description aligns with the visual representation before proceeding.
Key Sections to Examine
- Upper Assembly: Look for labels near pulleys, spindles, or mounting brackets. These often include washers (flat/lock), bearings (sealed/deep-groove), and fasteners (bolts graded by thread pitch).
- Lower Assembly: Focus on wear-prone items like blades, belts, or idler arms. Schematics usually depict these with dashed lines or exploded callouts for clarity.
- Electrical: Wires and connectors appear as simplified lines with terminal IDs (e.g., “T1,” “GND”). Cross-reference with the wiring harness layout if available.
Use magnifying tools or digital zoom when inspecting dense schematics. Pay attention to symbols: springs may show as coiled lines, gaskets as shaded rectangles. For ambiguous components, measure dimensions or note adjacent parts–e.g., a 3/8″ bolt near a spindle housing likely attaches to it. Record observations in a table:
- Item Number from Schematic
- Brief Description
- Location Notes (e.g., “Rear left bracket, above axle”)
- Quantity Needed
If the schematic lacks detail, check for annotated PDFs on manufacturer websites or third-party retailers. Some schematics include cross-sections; prioritize these for internal components like bushings or seals. For rare models, compare with generic equivalents–engine mounts, for instance, often share designs across brands.
Key Components and Official Manufacturer Codes for Trail-Cutting Equipment
For consistent performance, prioritize OEM blades (part #7020) when replacing cutting edges–aftermarket alternatives often lack the hardened steel specification required for dense vegetation. Belts (model #511027) wear faster under lateral stress; inspect weekly for fraying near pulley contact points. Deck bearings (#511024) fail silently; replace at the first sign of vibration or metallic dust near spindle housings to prevent catastrophic spindle seizure.
Hydraulic and Drive System Components
Hydrostatic pumps (#511009) require annual fluid changes using ISO 46 hydraulic oil–contaminants accelerate internal scoring. Wheel motors (#3190) are failure-prone under muddy conditions; clean axle seals bimonthly to prevent grit ingestion. Drive chains (#511030) stretch unpredictably; measure pitch weekly–replace if elongation exceeds 2% of original length. Ignore minor slack; stretched chains destroy sprockets, doubling repair costs.
Ignition modules (#72307) fail suddenly in high-humidity regions. For early detection, test spark output weekly with a multimeter–readings below 20 kV indicate imminent failure. Air filters (#8110) trap 92% of particulate matter at 10 microns; replace every 25 operating hours in dust-prone areas. Fuel lines (#8115) degrade internally first–inspect hoses monthly for brittle sections, particularly near carburetor junctions where ethanolates concentrate.
Troubleshooting Gear Malfunctions with Schematic Blueprints
Locate the serial number on the engine housing or main frame–it’s typically etched near the model label. Compare this identifier against the legend in the manufacturer’s exploded view guide to isolate variant-specific components. Missed matches between the serial and schematic often lead to ordering incompatible belts, blades, or drive assemblies, which account for 42% of misdiagnosed failures.
Trace lines of motion in the technical drawing before disassembling anything. Rotary cutters rely on sequenced pulleys; follow each cable path marked on the diagram. A snapped tensioner may appear harmless, but its misalignment forces the clutch to disengage prematurely–a symptom masking deeper solenoid or hydraulic issues. Bench-test linkages marked in red; corrosion on these joints causes erratic cutting height despite calibrated adjustments.
Interpreting Symbols for Quick Repairs
Dashed circles usually denote bearings, while solid arrows point to torque specs needed for reassembly. Replace seals shown with cross-hatches if debris clogs the gearbox; neglecting this step risks seizing the entire cutting deck within 30 operating hours. Verify solenoid continuity against resistance values listed beside electrical symbols–deviation over 0.5 ohms indicates faulty wiring.
