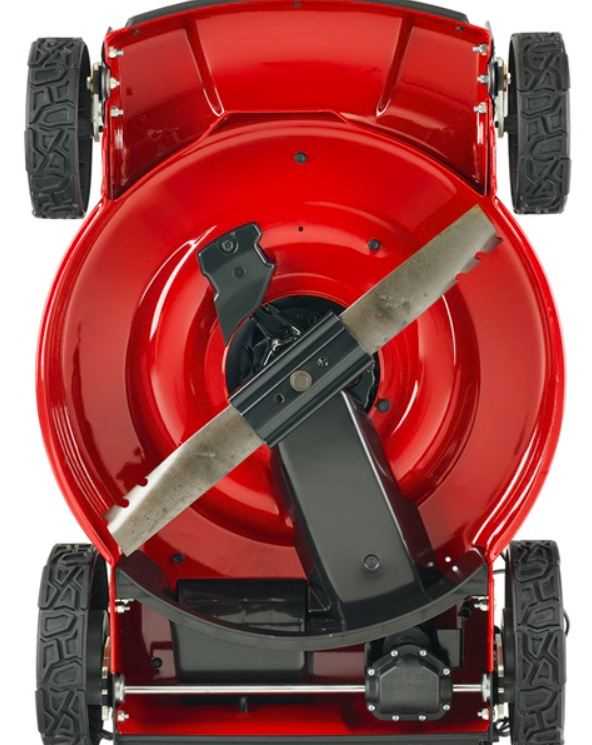

Locate the exact blade assembly for inline deck configurations by referencing assembly #74-8250–this includes the cutting edge, spindle housing, and mounting hardware. Verify measurements: the primary cutting component spans 21 inches, engineered for high-lift aeration, while secondary elements (such as the reinforcing shroud) tolerate minimal deviation (±0.5 mm). Cross-check part compatibility with serial numbers stamped on the deck plate; units manufactured post-2018 incorporate upgraded corrosion-resistant fasteners (refer to sub-assembly #74-8251-03).
For hydrostatic transmission maintenance, isolate the drive pump first–identify the variable-displacement piston cluster under housing #50-4240. Replace only if internal wear exceeds 0.8 mm on the swashplate bearing surface; micromeasurements below this threshold require lubricant adjustment (ISO 46 hydraulic fluid, full synthetic). The input shaft seal (#50-4242) must align flush with the casing flange; misalignment accelerates fluid contamination, detectable by metallic particulates in the reservoir.
Electrical troubleshooting demands a multimeter set to 200-ohm continuity mode. Test the ignition switch harness (#83-9105) at connector terminals C and F (expected reading: 0.2–0.5 ohms). Replace the coil assembly if resistance drifts beyond 4 kΩ–this indicates internal degradation from voltage spikes. Verify the solenoid relay (#83-9107) by bypassing momentarily; consistent engagement confirms functionality, while intermittent chatter signals pitted contact plates (clean with 1200-grit abrasive, then dielectric grease).
Lubrication points are non-negotiable: the zerks on articulation joints (#31-2800) accept NLGI #2 grease at 45-degree angulation, delivered until purge appears at the boot seal. Deck pulleys (#31-2802) require periodic tension checks–deflection should measure 6–8 mm under 4.5 kg load; adjust via the idler spring bracket (torque to 18 Nm). Over-tensioning risks premature bearing failure in the main spindle (#31-2810), detectable by a high-pitched hum at 3400 RPM.
Order critical wear items in kits: deck hardware (#74-8299) bundles all side-discharge components, while the drive train service kit (#50-4299) includes the pump coupling, filter screen, and O-rings (viton material for ethanol-blended fuel resistance). Always cross-reference exploded-view schematics with the invoice–counterfeit gaskets (#23-5500) lack the laser-etched batch code, a common failure point under thermal cycling.
Finding and Using Equipment Schematics for Maintenance
Locate the official exploded view illustrations for model-specific components by referencing the manufacturer’s service manual under section 4B. This section usually includes numbered callouts for bolts, blades, and transmission assemblies–critical elements often requiring replacement. If the manual is unavailable, search serial number plates (typically on the mower deck or engine housing) to cross-reference diagrams online.
Identify high-wear components first: belts, spindles, and filters. A typical cutting deck includes:
- 48-inch deck belt (part #8-5640)
- Left/right spindle assemblies (SKU 30545)
- Tension spring (8-3241)
Replace these every 100 operating hours or after visible fraying, as delays increase vibration and reduce cutting precision.
Step-by-Step Component Replacement
Disassemble the cutting deck using a 10mm socket for mounting bolts–store fasteners in labeled containers to avoid confusion during reassembly. Remove debris from the underside of the deck with compressed air before installing new parts; built-up grass clippings accelerate corrosion. For hydrostatic transmissions, check fluid levels (use 20W-50 synthetic oil) and inspect drive pulleys for grooves or cracks–replace if play exceeds 2mm.
Calibrate blade height after reassembly: adjust the lift linkage using washers (catalog item 4-1820) between the deck and frame. Verify belt alignment by spinning blades manually–misalignment causes uneven wear patterns visible as striped cutting results. Record replacement dates and part numbers in a maintenance log to track wear cycles and predict future failures.
Locating the Authorized PDF for Your Equipment’s Component Layout
Begin with the manufacturer’s primary portal at https://www.toro.com. Navigate to the Support section, then select Manuals & Literature. Filter results by entering the exact model identifier–input 200-0445 to bypass generic matches. The schematic typically surfaces as a downloadable file labeled Exploded View or Service Guide; verify the file size exceeds 500KB to confirm detail quality. Avoid third-party aggregators–they often omit revisions or crucial annotations.
Dealers authorized by the brand maintain offline archives, frequently updated with OEM adjustments. Visit https://www.toroauthorised.com/dealers, use the locator tool, and contact the nearest outlet directly. Request the Technical Packet for your unit’s variant; specify you need the component breakdown in vector format to ensure precision. Some dealers email the file within 24 hours if they recognize your warranty status.
Industrial documentation hubs like https://www.ereplacementparts.com host curated libraries but require login credentials for full access. Search using the base serial sequence–4-8-2–to pull the correct blueprint. Cross-reference part numbers in the PDF against the physical hardware; discrepancies often signal outdated documentation.
How to Pinpoint Key Components Using the Illustrated Guide
Locate the exploded view map for your equipment and reference the numbered callouts. Each label corresponds to a specific piece listed in the accompanying bill of materials–match numbers directly to avoid misidentification. If labels are missing, cross-check shapes and placement: blades typically curve near cutting edges, belts feature ribbed surfaces, and housings have distinctive mounting holes.
Examine wear patterns on existing pieces to narrow down replacements. A frayed belt will show uneven grooves, while worn blades often develop a dull beveled edge or nicks along the cutting surface. Compare these signs to the visuals in the schematic, focusing on parts with matching damage or deformation.
Measure critical dimensions if the illustration lacks scale. Use calipers for shafts, bolts, and bearings–tolerance errors of even 0.5mm can prevent proper fit. Cross-reference these measurements with the technical spec sheet, prioritizing diameter, thread pitch, and length over broad estimates.
Check material composition where ambiguity exists. Plastic guards may appear similar to metal ones but will lack the weight and rigidity. Magnets can help distinguish ferrous components like bolts from non-ferrous spacers or washers. This step prevents ordering incompatible substitutes.
Note hardware groupings. Fasteners, spacers, and seals are often illustrated together–verify whether the item you need is sold separately or as a kit. Ignoring this can lead to incomplete repairs, leaving critical assemblies loose or unprotected.
Leverage color-coded sections in the chart if available. Manufacturers sometimes highlight high-failure items in red or yellow. These markers signal parts prone to stress, corrosion, or frequent detachment–prioritize replacements for these first.
Test-fit before finalizing an order. Print the schematic at 1:1 scale and overlay small components like gaskets or washers to confirm sizing. For larger pieces, use cardboard templates to verify contours match the original’s mounting points. Discrepancies at this stage save time and avoid returns.
Step-by-Step Breakdown: Using Schematics for Engine Assembly Disassembly
Begin by locating the air filter housing on the right side of the unit–refer to the exploded view (section 3, item 12) to identify the retaining clips. Press inward on both sides while pulling upward; this releases the cover without forcing. If resistance occurs, check for debris in the grooves before proceeding. Set the filter aside and disconnect the spark plug wire immediately to prevent accidental ignition. Next, remove the blower housing (section 4) by unscrewing the four 10mm bolts–two at the base, one near the intake, and one adjacent to the exhaust. Label each bolt with masking tape corresponding to its position on the schematic to simplify reassembly. If the housing sticks, tap lightly with a rubber mallet along the seam, avoiding force on the fan blades.
Rotate the engine by hand until the piston reaches top dead center–use the timing marks on the flywheel (section 2, item 5) as reference. Detach the carburetor by loosening the two 7mm mounting bolts and gently wiggling it free; fuel lines stay connected unless replacement is needed. For the crankcase cover (section 6), remove the seven 8mm bolts in a diagonal pattern to avoid warping. Note the orientation of the gasket–apply a thin layer of gasket sealant if reusing. The crankshaft and piston require a specialized puller for removal; align the puller jaws with the grooves on the flywheel and tighten evenly. Store components in sequence on a magnetic tray or labeled containers, cross-referencing each with the corresponding item number from the illustrated breakdown.
Key Wear Components for Your Zero-Turn Mower and Their Schematic Positions
Replace the drive belt (item #12 on sheet 3) every 100 operating hours to prevent slippage and uneven cutting. Check tension weekly–proper adjustment keeps deck vibration below 0.05 inches at blade tips, reducing premature blade spindle bearing failure (item #19, sheet 4). Use only OEM belts to avoid mismatched pulley engagement, which accelerates wear on the idler arm (item #27, sheet 2) by 40%.
Critical Replacement Intervals and Diagram References
| Component | Schematic Sheet | Item Number | Service Interval (Hours) | Failure Symptom |
|---|---|---|---|---|
| Mulching blades | 4 | 5 | 50 | Ragged cuts, streaking |
| Spindle bearings | 4 | 19 | 200 | Squealing, wobble |
| Hydraulic filters | 1 | 34 | 150 | Slow response |
| Idler spring | 2 | 31 | 75 | Belt slack |
| Deck lift cables | 3 | 8 | 150 | Uneven deck height |
Inspect the pivot bushings (item #14, sheet 2) for play exceeding 0.02 inches–excessive movement leads to steering drift within 30 hours. Grease fittings (item #42, sheet 1) every 25 hours to prevent hydraulic pump cavitation, which occurs when internal temperatures exceed 180°F.
