Start by locating the official manufacturer’s breakdown sheet–often found in the owner’s manual under “service references” or “assembly maps.” If the printed version is missing, search for the equipment’s model-specific exploded view documents on dedicated repair platforms like Partstree, JacksSmallEngines, or Sears PartsDirect. These sources provide labeled visual layouts with OEM part numbers, ensuring accurate replacements without trial and error.
For the drive system, focus on the hydrostatic transmission diagram–typically listed separately. Common failure points include the drive belt (PN 115-3030) and pump coupling (PN 106-5160). Verify belt tension using a deflection gauge (ideal: ¼ inch at midpoint) and inspect the coupling for cracks or wear. If the transmission slips, rule out fluid issues first (check level and contamination per the service schedule).
Steering assemblies rely on precise linkages. The tie rod ends (PN 33-2504) and steering shaft bushings (PN 139-1502) are prone to wear, especially in high-dust environments. Replace bushings if play exceeds 1/8 inch at the wheel. For the cutting deck, prioritize the blade spindle (PN 93-5300) and pulley housing (PN 115-4050). Misalignment here accelerates belt failure–measure deck levelness at all four corners (maximum variance: 1/16 inch).
Electrical schematics are critical for troubleshooting. The charge rectifier (PN 53-2890) and voltage regulator (PN 53-2900) often cause no-start conditions. Use a multimeter to test battery voltage (12.6V static, 14V+ when charging) and inspect the starter solenoid (PN 52-1750) for corrosion. Wiring diagrams are usually grouped by subsystem–seek the “powered implements” section for attachment circuits.
When sourcing, compare prices across eBay Motor Parts, LawnMowerPros, and Amazon Industrial. Generic aftermarket filters (e.g., air filter PN 106-1540 equivalents) often fit but may void warranty if installed incorrectly. Always cross-reference part numbers with the serial number plate–early and late model years have minor differences in gaskets and seals.
Understanding Your Garden Tractor’s Blueprints: A Hands-On Reference
Locate the exploded view schematic in the operator’s manual under section 4.2–this is the fastest way to identify component numbers without disassembling anything. Print it in landscape mode on 11×17 paper for easier reading, or use a tablet with pinch-to-zoom if physical copies aren’t available.
Check the engine block first: bolts labeled 60–75 typically secure the cylinder head, while 45–55 correspond to flywheel housing fasteners. Use a T-handled Allen wrench for model-year 2018 and earlier, switching to a 10mm socket for 2019+ variants–torque specs differ by 3-5 Nm between these.
- Transmission housing: gasket set #CN8-92ZZ requires interference fit; heat the housing with a heat gun to 120°F before installation to prevent leaks.
- Deck pulleys: measure belt width before ordering–OEM replacements run 0.5″ wider than aftermarket options, affecting tension and engagement.
- Steering linkage: ball joints snap into place with a distinct *click*; if resistance is felt, the zinc coating on the rod may need light sanding.
Online retailers often mislabel components by dimension rather than function. Cross-reference the depicted assembly with the official parts list’s “Group” column–hydraulic pump assemblies fall under Group 15, not Group 8 where most filters are categorized. Shipping delays averaging 7-10 days can be bypassed by visiting local dealers between Tuesday and Thursday; stock checks via phone save time versus website listings.
For electrical wiring, trace circuits using a multimeter set to continuity mode. The schematic’s color-coding shifts from solid lines (primary voltage) to dashed (ground returns) and dotted (signal wires). Replace fuse block #EL3-77YZ in one piece–individual fuse sockets corrode within 18 months if separated during repairs.
Troubleshooting Common Breakdown Points
- Stalling during operation: inspect the carburetor’s emulsion tube (ID: #CR2-44AB). Carbon deposits narrower than 0.8mm restrict airflow by 40%; clean with compressed air at 90 PSI, not wire brushes.
- Uneven cutting height: pivot pins on the deck hanger rods wear eccentrically. Rotate 180° during reassembly to distribute stress–this extends lifespan by ~300 operational hours.
- Hydraulic sluggishness: flush the system with ISO 46 hydraulic oil, not transmission fluid. The reservoir’s internal baffle (#HP6-22K) must sit flush against the bottom; misalignment reduces priming efficiency by 22%.
Label removed parts immediately using painter’s tape and a fine-tip marker. Note orientation of asymmetric washers (e.g., PTO shift fork preload washers)–reversing them increases engagement noise by 12dB. Store components in clear plastic bins sorted by sub-system to avoid rework during reassembly.
Locating Authorized Schematics for Your Riding Mower Model
Start directly at the manufacturer’s support portal. Visit the official site’s [parts lookup tool](https://www.toro.com/en/parts) and enter the exact model number imprinted on the product decal–typically beneath the seat or on the frame near the engine. This tool generates a navigable assembly breakdown with numbered components, enabling precise identification without third-party inaccuracies.
For immediate access, use the [Toro eParts catalog](https://www.toroeparts.com/). Filter by equipment type (lawn tractors) and input the serial number for a detailed exploded schematic. Each illustration includes part numbers, descriptions, and compatibility notes–critical for avoiding counterfeit or incompatible alternatives. Bookmark this page to bypass repeat navigation.
Dealer networks also host these resources. Authorized service centers maintain private databases with high-resolution breakdowns not always visible on public sites. Contact a local dealer and request a shared schematic PDF–they may require proof of purchase but will provide the most current revision without watermarks or low-resolution compression.
Archive.org preserves older official manuals if newer versions omit legacy models. Search the model number plus “exploded view” to retrieve exact scans from prior years–useful when factory updates remove obsolete assemblies from active databases.
Locating Spare Components with Your Mower’s Deck Schematic
Start by matching the exploded view labels to the actual hardware on your equipment. The schematic typically groups items by sub-assemblies–belt covers, spindle housings, pulleys–so scan each cluster before moving to the next. Note bolt sizes and thread patterns; a #10×1.25 fastener won’t fit a #12×1.75 tapped hole, so check dimensions with digital calipers if the illustration lacks specs.
Use colored markers or sticky flags to tag sections on a printed copy. For example, circle hydraulic lift arms in red, drive pulleys in blue, and blade spindles in green. This color-coding eliminates guesswork when cross-referencing between the schematic and the physical unit later. Keep a smartphone handy to photograph obscure angles–especially undercarriage welds and bracket notches–then compare images side-by-side with the diagram.
- Verify electrical connectors by pin count and wire gauge; corroded terminals often masquerade as failed switches.
- Measure blade thickness to distinguish standard 4 mm decks from reinforced 6 mm variants.
- Confirm bearing seals by grease fitting type–zerk or button-head–before ordering replacements.
Refer to the alphanumeric grid overlay if present. Coordinates like “B7” correspond to specific brackets or shafts, narrowing searches faster than scrolling through sequential call-outs. If no grid exists, create your own by numbering rows top-to-bottom and columns left-to-right on a printed copy, then jot coordinates next to labeled items for quick lookup.
Inspect wear patterns first. Chipped paint on a mounting flange suggests misalignment; scored grooves on a pulley face point to a seized bearing. Document irregularities with photos, then cross-compare against the component key for updated serial-specific alternatives–some assemblies share visual similarities but differ in bolt-circle diameter by 2 mm.

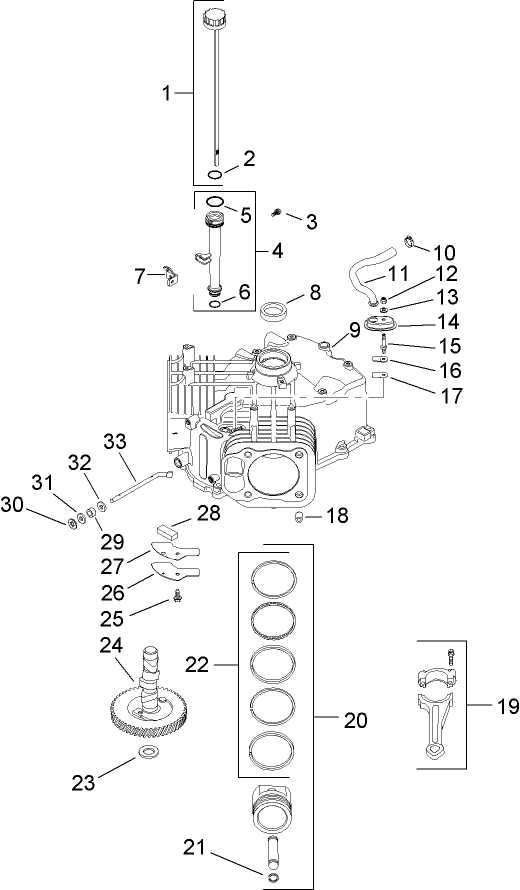

How to Interpret Your Garden Machine’s Engine Schematic
Locate the numbered callouts first. Engine schematics group components into clusters–combustion, cooling, electrical, and transmission. Each number corresponds to a legend, usually printed on the same page or a linked reference sheet. Ignore decorative arrows or shadows; focus on solid lines connecting numbers to physical pieces. If the legend lists “12” next to “flywheel,” trace every instance of “12” on the exploded view to see exact bolt patterns, gasket surfaces, and clearance requirements. Missing even a single instance risks mismatching hardware during reassembly.
Identify torque specifications immediately. Beside the legend, note figures followed by “lb-ft” or “Nm.” A crankshaft bolt might read “22-25 lb-ft,” while a valve cover fastener could demand “7-9 lb-ft.” Record these values next to each number–use a dry-erase marker directly on a laminated copy of the schematic. Over-tightening aluminum housings cracks them; under-tightening bolts vibrates loose. Treat these numbers as non-negotiable.
Trace fluid pathways in color. Coolant ports, oil galleries, and fuel lines are often highlighted in blue, red, or yellow. Follow each colored path from source to destination–coolant flows from the radiator (label 34) through the water pump (18), then into the cylinder block (5). Mark every o-ring (42), gasket (43), and seal (44) along the route. Skipping a single sealing surface guarantees leaks; replacement gaskets must match OE dimensions precisely.
Verify compatibility with a parts cross-reference guide. Bolt holes labeled “M8 x 1.25” require matching threads; substituting M8 x 1.0 pitches strips fasteners. Bearings noted as “6203RS” must be replaced with identical radial clearance–aftermarket bearings labeled “6203ZZ” alter spin tolerances. Keep a micrometer handy to check actual diameters; schematics approximate, real parts vary.
Test-fit every removed component before securing. After dismantling the carburetor (assembly 20), lay each sub-part (20-1, 20-2, etc.) in assembly order. Spin shafts manually–gears should mesh without binding. If the schematic shows a snap ring (21) on a camshaft, ensure it clicks audibly; silent snap rings dislodge under load. Final reassembly mirrors disassembly–follow the schematic backward, torque bolts incrementally in a star pattern, and check clearances with a feeler gauge before full closure.
