Start by downloading the official engineering schematics from the manufacturer’s support portal. Search for model code 694-04070–this document contains labeled cross-sections of the air filter assembly, drive belt system, and ignition coil. Pay particular attention to page 3, where the blade adapter and spindle housing are detailed with torque specifications (25-30 ft-lbs for blade bolts).
If the schematics are unavailable, cross-reference the OEM part numbers stamped on the components themselves. For example, the recoil starter is typically marked with 517-042611, while the carburetor gasket uses 731-12394. These numbers allow direct ordering from authorized distributors without relying on generic diagrams.
For rapid identification, use a flashlight and smartphone to photograph the underside of the deck, focusing on the idler pulleys and tension spring. Compare these images with the exploded view in the service manual (section 5, figure 2). The drive wheel axle should align precisely with the 1/2-inch keyway–misalignment here causes premature belt wear.
When reassembling, adhere to the step-by-step torque sequence outlined in the manual. The flywheel nut requires 45-50 ft-lbs, while the crankshaft cover bolts demand 8-10 ft-lbs in a cross-pattern. Skipping this step risks engine vibration or oil leaks.
Mastering Your Garden Equipment Schematic: Actionable Steps
Locate the engine model number etched on the valve cover–often formatted as *BRIGGSXXXXX*–and cross-reference it with the manufacturer’s exploded-view charts. These schematics categorize components by assembly: ignition (spark plug, coil), fuel system (carburetor, filter), and cutting deck (blade, mandrel). Download the PDF from the official service portal using the model number; third-party sites may omit micro-gear like shear pins or spacer washers critical for reassembly.
Trace the wiring harness first when troubleshooting electrical faults. The color-coded leads in the diagram (red for battery, yellow for solenoid) match the sheathing on the machine. Use a multimeter to test continuity at the ignition switch terminals–0.5 ohms or lower confirms intact circuits. Replace any wire showing frayed insulation; even a 1mm nick can cause intermittent failures after moisture exposure.
For the cutting mechanism, mark the blade orientation before removal. The diagram’s directional arrows indicate correct mounting–reversing it disrupts balance, causing vibration at 3,200 RPM. Apply thread-locking compound to fasteners securing the mandrel pulley; use a torque wrench set to 45 ft-lbs to prevent loosening under centrifugal force. Replace the drive belt if cracks exceed 0.5mm or the width narrows by 5% from original specs.
Store replacement components in labeled resealable bags. The schematic’s part numbers–typically 10-digit alphanumeric codes–correspond to OEM packages with included hardware (e.g., gasket sets or thrust washers). Order from dealers reporting a 98% fill rate; aftermarket suppliers often substitute inferior metals for spindle bushings, prematurely wearing grooves under load.
Calibrate the cutting height annually. The diagram shows adjusters as threaded rods with lock nuts–turn clockwise to lower the deck, counterclockwise to raise it. Measure clearance at all four corners with a straightedge: tolerance is ±1/8″ from blade tip to ground. Misalignment accelerates uneven turf wear and stresses the transmission, which operates optimally at 5W-30 oil viscosity between 14°F and 100°F.
Finding the Manufacturer’s Exploded View Schematic for Your Outdoor Power Equipment
Begin by visiting the brand’s primary website, navigating directly to the support or customer service section. Look for a link labeled “manuals” or “technical drawings”–most manufacturers host these under a subcategory like “product resources” or “service literature.” Enter your model number precisely, including hyphens or spaces, as even minor discrepancies may return incorrect results.
If the official portal fails to yield results, search the model identifier using quotation marks on a major search engine–this narrows results to exact matches. Append terms like “schematic,” “assembly breakdown,” or “factory drawing” to refine outcomes. Avoid third-party marketplaces or forums unless verifying authenticity; counterfeit schematics often omit critical details or contain errors.
Alternative Sources for Verified Technical Illustrations
Check the original product packaging or owner’s manual for a URL or QR code linking to digital documentation. Some brands embed direct access to technical diagrams in printed material. If the manual is missing, contact customer support via live chat or phone–provide the serial number and request a PDF be emailed. Response times vary, but legitimate support teams typically fulfill such requests within 24 hours.
For older models no longer listed in current databases, visit a local authorized dealer. Dealers maintain archives of discontinued equipment schematics and can photocopy or email a copy. Bring the equipment’s model and serial number to ensure accuracy. Avoid generic “universal” diagrams–they rarely match exact component layouts or fastener specifications.
Verifying Diagram Accuracy Before Use
Compare the downloaded schematic against physical components. Match bolts, springs, and gears to the illustration’s callouts–mismatches indicate an incorrect or outdated version. Pay attention to revision dates: some manufacturers issue multiple iterations for the same model due to design updates. If discrepancies exist, notify customer support to confirm the latest valid drawing.
Print the schematic in color when possible–color coding often distinguishes similar parts like fuel lines, electrical wiring, or adjustment levers. If printing isn’t an option, use a tablet or laptop to zoom in on high-resolution detail. Avoid relying on low-quality scans; pixelation obscures small components and labeling, leading to assembly errors or improper maintenance.
Bookmark the official schematic link for future reference. Some brands restrict access to logged-in users or require sessions to expire; saving a local copy ensures uninterrupted access. If the website uses session-based downloads, disable browser extensions that block PDF rendering–these may prevent file retrieval without clear error messages.
Finalizing repairs or maintenance? Cross-reference the diagram with a parts list. Missing or extra pieces signal an incomplete transaction or assembly step. Keep the schematic attached to work orders or service logs–this documents adherence to factory specifications and aids future troubleshooting if issues persist.
Locating Critical Powerplant Elements in the Equipment Schematic
Start by isolating the carburetor–typically situated beneath the air filter housing on the right side of the power unit. Verify its model number (e.g., Walbro WT-220 or Zama C1U-W27) against the exploded view to confirm gasket compatibility. The fuel shutoff solenoid, a 12V cylindrical unit adjacent to the carburetor, often fails silently; test continuity with a multimeter before assuming fuel delivery issues. Nearby, the primer bulb–mounted on the fuel line–should compress smoothly; stiffness indicates degradation or trapped debris requiring replacement.
- Ignition coil sits atop the flywheel, secured by two bolts; resistance should measure 2,500–5,000 ohms at the spark plug terminal. Deviations signal coil failure.
- Flywheel keyway (shear key) aligns the crankshaft and flywheel. Inspect for shearing–visible separation causes timing misfire.
- Governor linkages connect to the throttle plate; misadjusted linkages create erratic RPM. Lubricate pivot points (e.g., Briggs & Stratton #691260) annually.
- Exhaust manifold bolts (M6 x 1.0) often seize due to heat cycling. Apply anti-seize compound during reassembly.
Oil dipstick tube threads into the crankcase; stripping occurs with overtightening. Use a torque wrench set to 8 ft-lbs. The camshaft lobes and lifters–visible after removing the valve cover–should display uniform wear patterns. Pitting or scoring indicates insufficient lubrication; flush the system with detergent-based oil (e.g., SAE 30) before refilling.
Step-by-Step Replacement of Common Worn Components Using the Schematic
First, disconnect the spark plug wire to prevent accidental engine starts. This is non-negotiable–skipping this step risks serious injury. For models with a fuel shutoff valve, turn it to the “off” position and run the engine until it stalls to relieve pressure in the fuel lines. Place the equipment on a stable, flat surface and remove any debris from the work area.
Locate the air filter housing beneath the engine cover. On most variants, two screws secure the cover–remove them with a 5/16″ socket or screwdriver. Slide out the foam or paper element and inspect it for clogs or deterioration. If replacing, ensure the new one matches the original’s dimensions; discrepancies reduce airflow efficiency. Coat foam filters lightly with clean engine oil, squeezing out excess to prevent restrictions.
Belt and Blade Swaps
To access the drive belt, tilt the machine forward (pivot point at the front wheels) or lay it on its side if the design allows. Consult the schematic to trace the belt’s path around pulleys–photograph the route before removal. Release tension by depressing the idler pulley or loosening the adjustment bolt. Slide the old belt off, noting wear patterns: cracking or fraying indicates replacement is overdue.

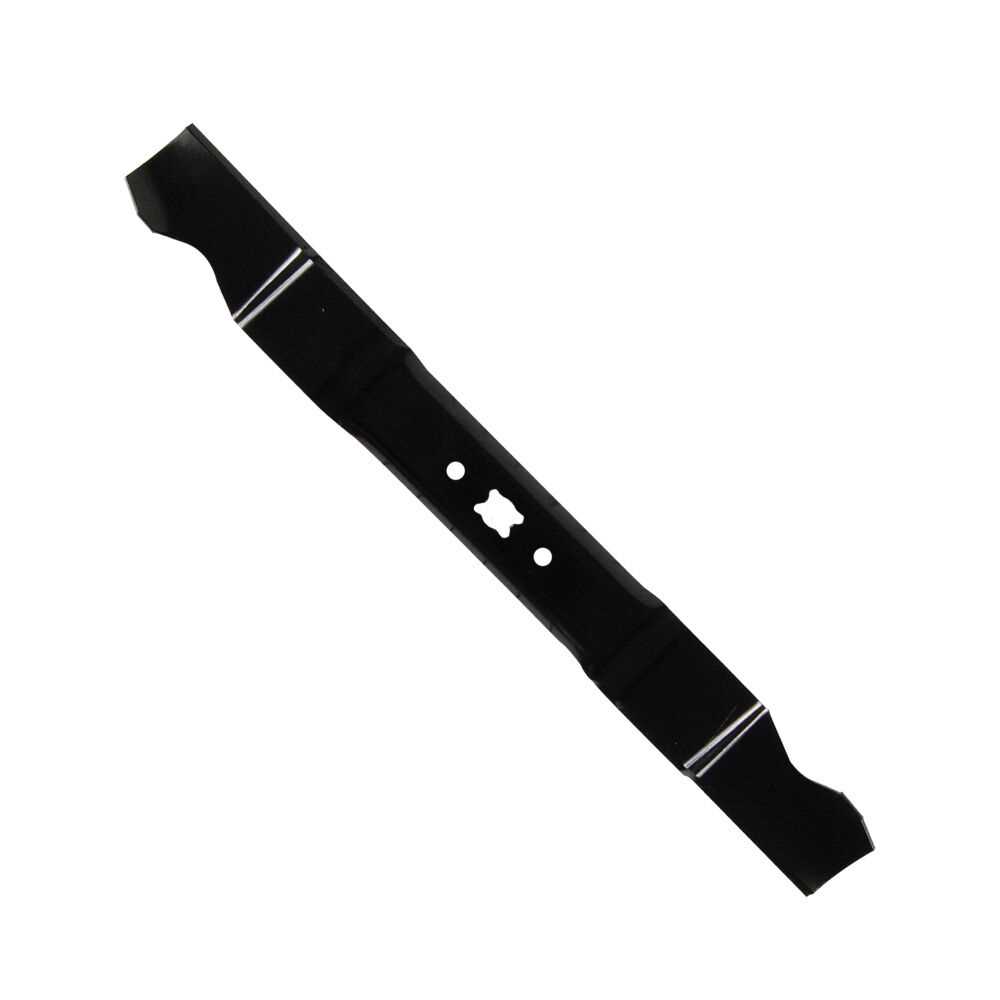

Blade removal requires a torque wrench set to 45–55 ft-lbs (check the manufacturer’s specs). Secure the blade with a block of wood to prevent rotation, then loosen the center bolt counterclockwise. Clean the spindle shaft of rust or debris before installing the new blade–even minor misalignment causes vibration. Reattach the blade with the cutting edge facing forward and tighten to spec.
Replace the fuel filter if the engine sputters or loses power. Pinch the fuel line with pliers upstream of the filter, then unclamp the old unit. Install the new filter with the arrow pointing toward the carburetor. Prime the system by cycling the ignition 3–4 times without starting–this clears air from the lines. Always use OEM or equivalent filters; aftermarket units may lack required micron ratings.
Routine Maintenance Checks
Inspect the wheels and axles for play or wear. Excessive side-to-side movement suggests worn bushings–replace them in pairs to maintain alignment. Lubricate axle pivot points with lithium grease after reassembly. For hydrostatic models, check the transaxle fluid level via the dipstick. Top off with 20W-50 oil if low, but avoid overfilling–it causes foaming and overheating.
Before reassembly, cross-reference every step with the schematic. Ensure all fasteners are torqued to spec, belts sit flush in pulley grooves, and safety guards are reinstalled. Reconnect the spark plug last. Test-run in a well-ventilated area, monitoring for unusual noises or leaks. Store the old components for reference or disposal–never reuse visibly damaged parts.
- Always wear gloves and eye protection.
- Dispose of old fluids at a certified recycling center.
- Never force parts during reassembly; misalignment damages components.
- Consult local regulations for blade disposal–some require special handling.
