Start by checking the official manufacturer’s service portal. For models like the E-Series cutaway platform, schematics often include labeled wiring color codes, torque specifications for suspension components, and exploded views of the drive shaft assembly. Locate the exact year–pre-2008 variants use vacuum-controlled 4R100 transmissions, while 2009 onwards switched to the 6R140 with electronic shift controls. The portal typically requires a VIN lookup, but it delivers exact OEM part numbers and compatibility notes.
Third-party repair databases host alternative schematics that highlight lesser-known details. Mitchell1 and ChiltonDIY provide layered diagrams with real-world wear points–focus on the rear axle assembly (Dana 80 vs. Sterling 10.5) and emission equipment layout (EGR cooler locations differ between gas and diesel engines). These platforms often overlay part names with aftermarket equivalents, saving time cross-referencing catalogs.
Salvage yards and specialized forums offer unique insights. A 2004 chassis, for example, might use a different steering box mount than a 2010 version–yard-based schematics drawn from actual disassembled units reveal these discrepancies. Forums like ExpeditionPortal archive scans of paper manuals, including torque specs for leaf spring U-bolts (specifically 90 ft-lbs for the rear shackles) and brake booster vacuum line routing.
Prioritize diagrams that mark safety-critical fasteners. The transmission cross-member bolts, for instance, must be torqued to 65 ft-lbs in descending order to prevent warping. Schematics that include these details will also call out critical sensors–MAP, IAT, ECT–and their connector pinouts, reducing diagnostic guesswork when addressing P0106 or P0340 fault codes.
Locating Critical Components for Your Heavy-Duty Passenger Carrier
Begin by accessing the manufacturer’s official service manual for your model year. The 2020 and later versions include interactive schematics with color-coded wiring paths and torque specifications–ignore generic aftermarket posters, as they often omit OEM updates. Search for the VIN-specific documentation on the automaker’s dealer portal; this ensures compatibility with mid-cycle engineering changes, particularly for suspension bushings and transmission cooler lines.

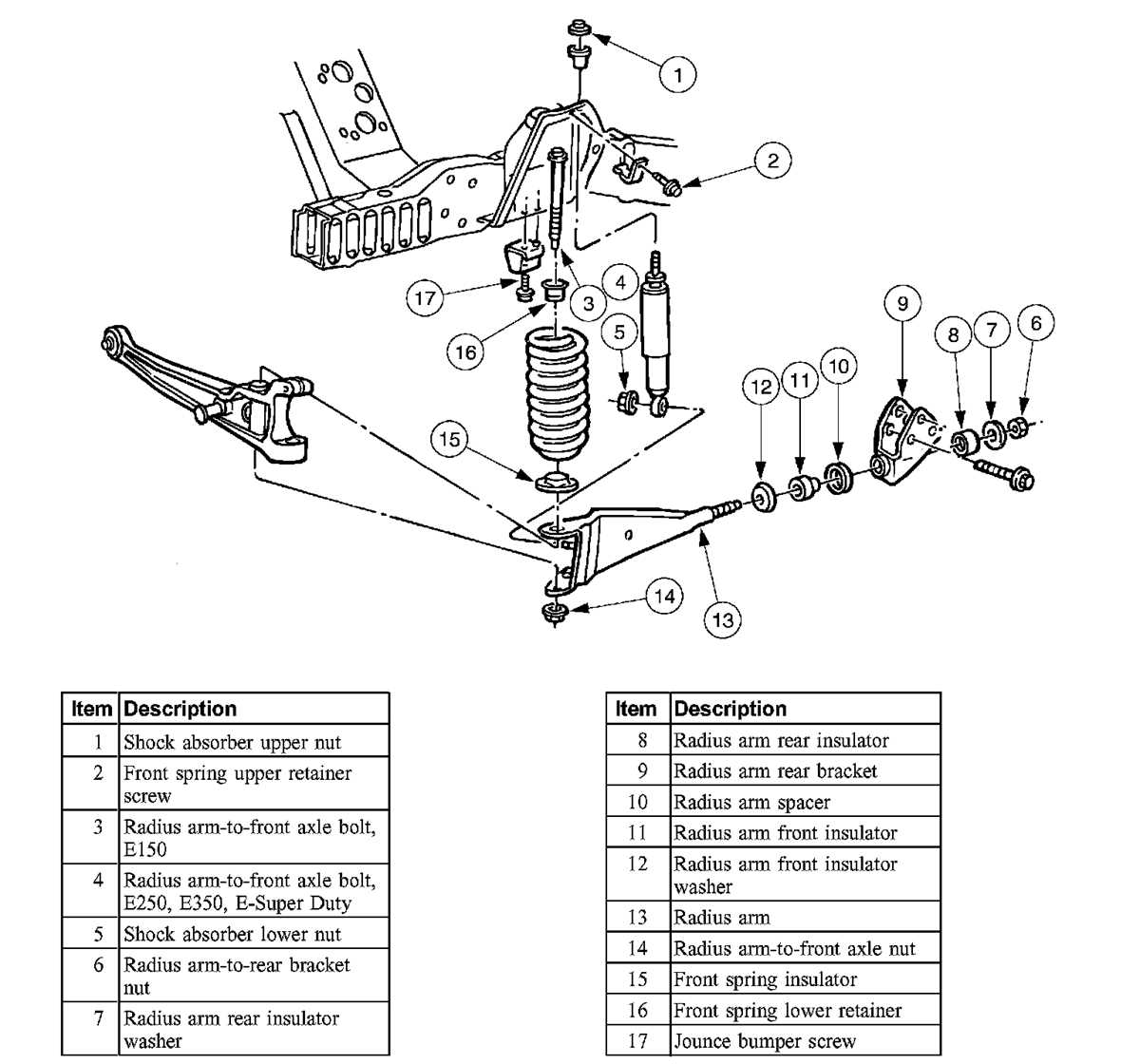

- Front axle assembly (Twin-I-Beam): Look for the exploded view under “Steering & Suspension” in section 30. Replace only with premium-grade polyurethane bushings if operating in cold climates–they resist cracking better than OEM rubber.
- Rear leaf springs: Verify part numbers for your payload rating. A 12,500 lb GVWR requires thicker leaf packs than the standard 10,000 lb version–mixing them will cause premature sagging.
- Brake system: The ABS module plugs into a harness behind the glove box. If swapping to aftermarket drums, ensure the new hubs match the original 8-lug pattern–mismatched bolts will strip threads.
For the 6.8L V10 engine, the exhaust manifold gaskets fail frequently. Purchase Fel-Pro 14472 sets–they include embossed steel layers that seal better than single-layer alternatives. When replacing spark plugs, use Motorcraft SP-515 plugs pre-gapped to 0.052-0.056 inches; incorrect gaps cause misfires at high RPMs. The serpentine belt diagram is printed on a decal under the hood–follow it precisely to avoid alternator bearing failure.
- Coolant system: Flush the heater core hoses every 60,000 miles using a 50/50 mix of distilled water and Motorcraft VC-13DL-B. The original housing thermostat is prone to sticking–replace it with a Stant 45359 unit that opens at 195°F for consistent cabin heat.
- Fuel system: Replace the fuel filter every 30,000 miles (part #F81Z-9N184-AA). The in-tank pump has a tendency to collect debris–clean the sending unit mesh during filter changes to prevent stalling.
- Transmission: The 4R100 automatic requires Mercon V fluid. For towing, install a deep pan (B&M 20354) and an external cooler with at least 25,000 BTU capacity–stock coolers overheat above 8,000 lb trailers.
Electrical diagnostics start with the fuse box under the dashboard. Label each fuse with its amperage rating (e.g., “CIG LTR – 20A”) before removing any panel. The power distribution box near the battery contains relays–swap them systematically if the starter clicks but doesn’t engage. For interior lighting, the door jamb switches (part #DB5Z-14B060-A) fail after 150,000 miles; solder new connections instead of relying on crimp connectors.
When sourcing replacement panels, request “assembly” diagrams rather than individual components. For example, the rear quarter panel (part #6C2Z-6113322-A) includes welded reinforcements–aftermarket sections often lack these, leading to body flex. Rustproofing requires fluid-film or POR-15 on chassis seams; avoid silicone sprays near wheel wells, as they trap moisture. For suspension upgrades, Bilstein 24-186386 shocks fit the factory mounts without modification–they improve ride quality by 30% under load.
Locating Authentic Schematics for Your Commercial Chassis Online
The first stop for genuine repair blueprints should be the manufacturer’s dedicated portal: Ford Fleet Owner Resources. Here, registered dealerships and certified technicians access OEM schematics by entering the vehicle’s build code or VIN. Public access is restricted, yet independent shops with valid credentials can request temporary logins via their local distributor.
Key Alternative Sources
| Website | Access Method | Notes |
|---|---|---|
| Motorcraft Service | Subscription ($35/month) | Full wiring, mechanical, and trim illustrations indexed by model year |
| Helm Inc. | Pay-per-view ($18/download) | Direct reprints of original manuals with exploded views |
| eBay Seller Stores | Instant PDF purchase | Verify seller ratings for accuracy; focus on those offering “factory-matched” scans |
For owners preferring physical documentation, authorized service manuals under ISBN 978-0768068445 cover 1992–2023 chassis configurations–search using the exact year and body style (e.g., “cutaway” or “passenger wagon”) to avoid mismatches. Salvage yard inventories like Car-Part.com list part-specific drawings alongside dismantled components, useful when cross-referencing OEM numbers directly.
Technical forums such as Ford-Trucks.com and DieselStop.com archive member-uploaded schematics for powertrain and suspension systems–check thread dates as older attachments may link to expired directories. For electrical troubleshooting, ALLDATA DIY provides interactive diagrams with zoom functionality, though annual fees apply.
Mastering Electrical Schematics for Heavy-Duty Passenger Carriers

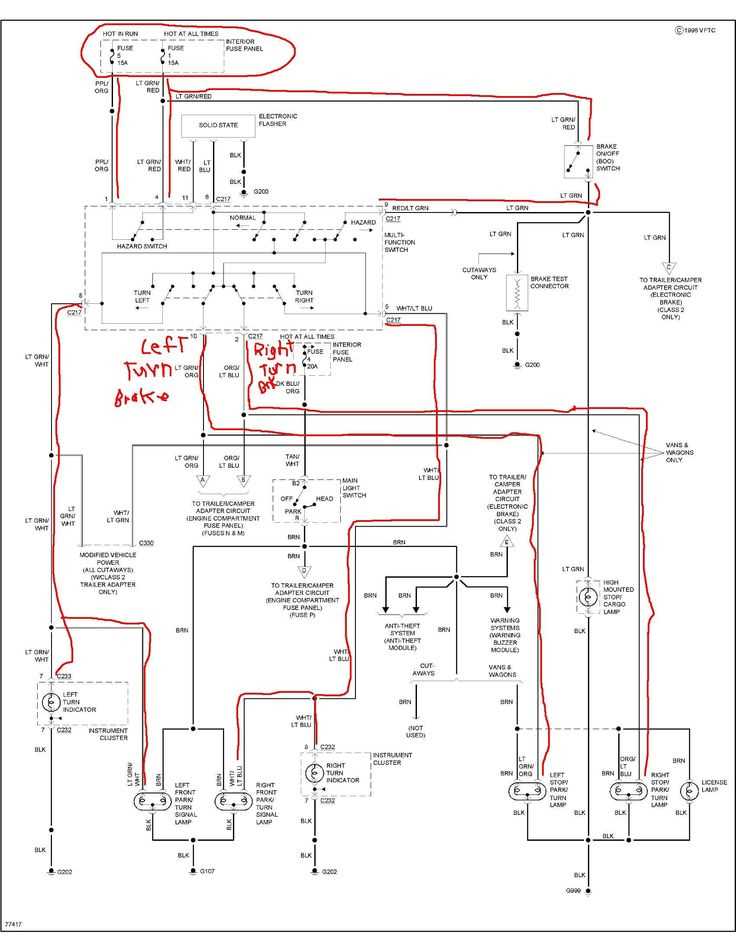

Locate the power distribution box in the engine compartment–your first critical step. Each fuse and relay slot corresponds to a numbered connector on the schematic, typically listed on the lid or in the service manual. Trace circuits from the battery: red wires denote constant 12V feeds, yellow often serves as switched ignition sources, while brown or black indicate grounding points. Verify voltage drop across connectors using a multimeter; acceptable readings should not exceed 0.2V between components at full load. Ignore color codes marked “striped” unless paired with a legend–these require cross-referencing to avoid misdiagnosis.
- Identify symbol conventions: circles represent splices, squares depict modules, arrows indicate direction of current flow.
- Isolate parasitic drains by pulling fuses sequentially–watch for amp draw exceeding 50mA.
- Use a wiring repair kit rated at 16-20 AWG for splices, avoiding ordinary electrical tape.
- Check harness routing against diagrams–look for pinch points near suspension mounts or exhaust manifolds.
- Note deviations in aftermarket installations: auxiliary lighting, winches, or inverters often lack OEM protection.
Step-by-Step Engine Bay Components Breakdown with Schematic Labels
Begin by locating the upper radiator support at the front of the engine compartment–this is your reference point for aligning all other components. Use a workshop manual schematic to cross-reference bolt patterns and hose connections, as deviations in torque specs or routing can cause leaks or misalignment.
The coolant reservoir sits adjacent to the power steering reservoir on the driver’s side. Verify the cap’s pressure rating (typically 14–16 psi) before removal; a faulty seal can lead to overheating. Label both hoses with tape to avoid swapping return and supply lines during reinstallation.
Trace the serpentine belt path using the pulley diagram. The tensioner pulley should deflect no more than 1/2 inch under thumb pressure–replace it if play exceeds this limit. Note the orientation of the idler pulleys; incorrect installation can cause belt squeal or premature wear on the accessory drive system.
Disconnect the air intake assembly by loosening the hose clamps at the mass airflow sensor and throttle body. Store the screws in a magnetic tray to prevent loss–mislocated fasteners can fall into the manifold during reassembly. Inspect the intake gasket for carbon buildup; a compromised seal reduces engine efficiency by 3–5%.
The battery hold-down bracket requires a 10mm socket for removal. Check the terminal connections for corrosion; clean with a wire brush and apply dielectric grease to prevent voltage drop. The positive terminal connects to the starter solenoid via a 4-gauge cable–ensure the fuse link is intact before testing cranking voltage (minimum 10.5V).
Remove the fuel rail protective cover by unfastening the three Torx T-30 bolts. The injectors press-fit into the rail; tug gently to release them. Label each injector’s electrical connector by cylinder number–swapping them can cause misfires. Spray the O-rings with penetrating oil to ease removal and prevent tearing.
Identify the vacuum manifold by following the brake booster hose. The PCV valve attaches to the valve cover with a 90-degree elbow–replace it if oil sludge is visible. The EVAP canister purge valve sits near the firewall; test it by applying 12V to the terminals–it should click audibly. Failed valves trigger OBD-II code P0446.
