Replace the thermocouple immediately if the pilot flame fails to stay lit–this component is the most common failure point in older heating units, often degrading after 5–7 years of use. Models produced before 2015 frequently use a single-coil design, while newer iterations incorporate a dual-coil system for improved flame sensing. Keep a multimeter set to 200 millivolts DC; healthy thermocouples should read 25–30 mV when heated. Anything below 15 mV signals replacement is needed.
The gas control valve requires precise pressure settings–consult the model-specific specifications for inlet and outlet pressures. Most residential units operate with 7–10 inches WC inlet pressure, though high-altitude installations (above 4,500 ft) may need adjustments to 5–8 inches WC. Verify the valve’s solenoid with a continuity test: a reading above 1,000 ohms indicates a faulty coil. Seal connections with pipe joint compound rated for gas (not teflon tape) to prevent slow leaks that disrupt flame stability.
Heat exchangers crack at stress points along weld seams; inspect visually with a boroscope or mirror under strong light. Corrosion typically starts near the burner assembly where condensation accumulates. If rust depth exceeds 1/8 inch, the exchanger’s structural integrity is compromised, risking carbon monoxide leaks. Clean the burner ports with a 0.035-inch wire–never a larger gauge, as this distorts the flame profile. Properly adjusted burners produce a steady blue flame with no yellow tips; orange streaks indicate draft issues or incorrect air mixture.
Ignition systems vary by model: standing pilots use a spark igniter requiring 6,000–8,000 V for ignition, while intermittent pilots rely on a glow coil that draws 3–5 A. Test the igniter by observing a bright white spark across a 1/8-inch gap–faint or intermittent sparks mean replacement is needed. Safety switches, such as rollout and limit controls, must trip at 175°F (±15°F). Bypass these only temporarily for testing; a failed switch indicates combustion chamber overheating or restricted airflow.
Fan motors in forced-air variants fail due to bearing wear–listen for grinding noises or excessive vibration. Lubricate motor bearings annually with SAE 20 non-detergent oil, applying 2–3 drops per oil port. Capacitors lose 6% of their microfarad rating per year; replace if the motor struggles to start. Check voltage at the motor’s terminals–115–125 V AC is standard. Low voltage () causes overheating and premature failure.

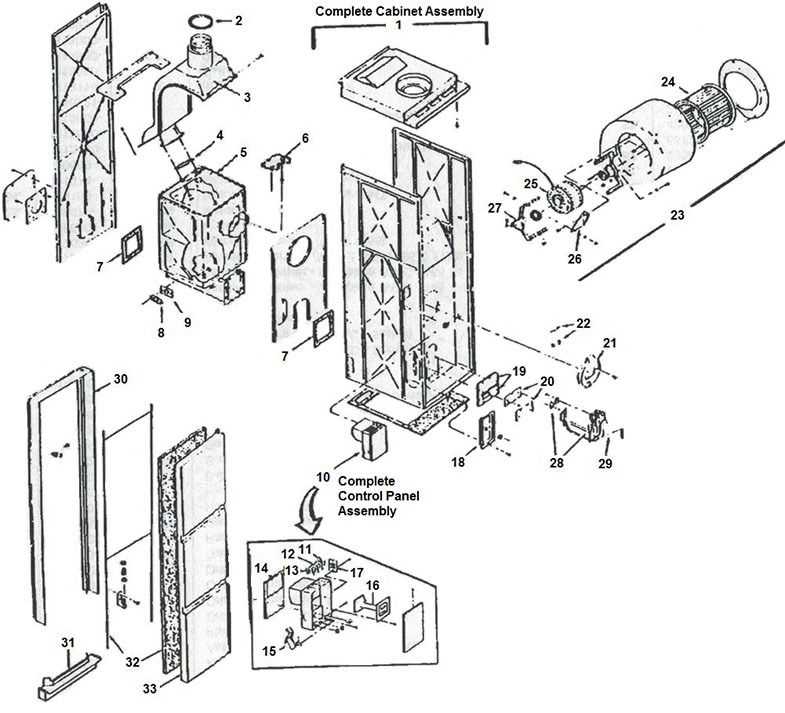

Understanding Your Heating Unit’s Component Layout
Begin by locating the combustion chamber–this is the heart of the system, typically positioned at the base. Check for a metal plate or ceramic panel covering it; removal requires a 1/4-inch hex wrench. If corrosion is present, replace it immediately to prevent gas leaks. The pilot assembly sits adjacent, identifiable by its small, pointed nozzle. Clean the orifice with compressed air if ignition fails; debris buildup is the most common cause of malfunctions.
The blower motor, enclosed in a cylindrical housing, circulates warm air. Listen for unusual noises–grinding indicates worn bearings, while humming without movement suggests capacitor failure. Disconnect power before testing continuity with a multimeter; readings outside 2-5 ohms confirm replacement is needed. The vent pipe, usually galvanized steel, must slope upward at 1/4 inch per foot to prevent condensation buildup, which leads to rust and blockages.
Inspect the thermocouple next–a slender rod near the pilot. Weak flames or inconsistent heating often trace back to this component. Test its voltage: 25-30 millivolts when hot, dropping to zero if faulty. Replacement kits include a new probe and gasket; ensure the new unit aligns perfectly with the pilot flame. The gas valve, typically solenoid-operated, requires a pressure test if the unit cycles erratically. Use a manometer; inlet pressure should read 7-10 inches of water column, adjusting via the regulator screw.
Safety switches–limit and rollout–are critical. The limit switch, often a bimetallic disc, cuts power if internal temps exceed 200°F. Bypass it temporarily for testing, but never operate without both switches functional. Rollout switches trigger during flame impingement or blocked vents; reset them manually after resolving the underlying issue. The control board, if present, coordinates these functions–look for scorched traces or swollen capacitors, replacing the entire module if damaged.
Ductwork or heat exchanger fins require annual maintenance. Vacuum dust accumulation to prevent overheating, and straighten bent fins with a fin comb for optimal airflow. If cracks develop in the exchanger–common in older models–seal minor ones with high-temperature silicone, but prepare for full replacement if structural integrity is compromised. The door gasket, often overlooked, should seal tightly; frayed edges reduce efficiency by 15-20%.
For troubleshooting, cross-reference your model’s service manual with the serial number. Early models lack electronic controls, relying on mechanical regulators, while newer units integrate smart thermostats. Adjustments to the air shutter–located on the burner assembly–must balance gas-to-air ratios: too lean causes soot, too rich leads to incomplete combustion. Always purge gas lines after servicing, and verify zero-leak connections with a soap solution before relighting.
Key Heating Unit Elements: A Visual Guide to Recognition
Locate the thermocouple first–its slender metallic probe extends into the burner assembly, directly influencing ignition safety. If pilot flames fail, this component often requires inspection or replacement; signs include inconsistent heating cycles. Measure the probe’s voltage output (typically 20–30 millivolts) using a multimeter before condemning it.

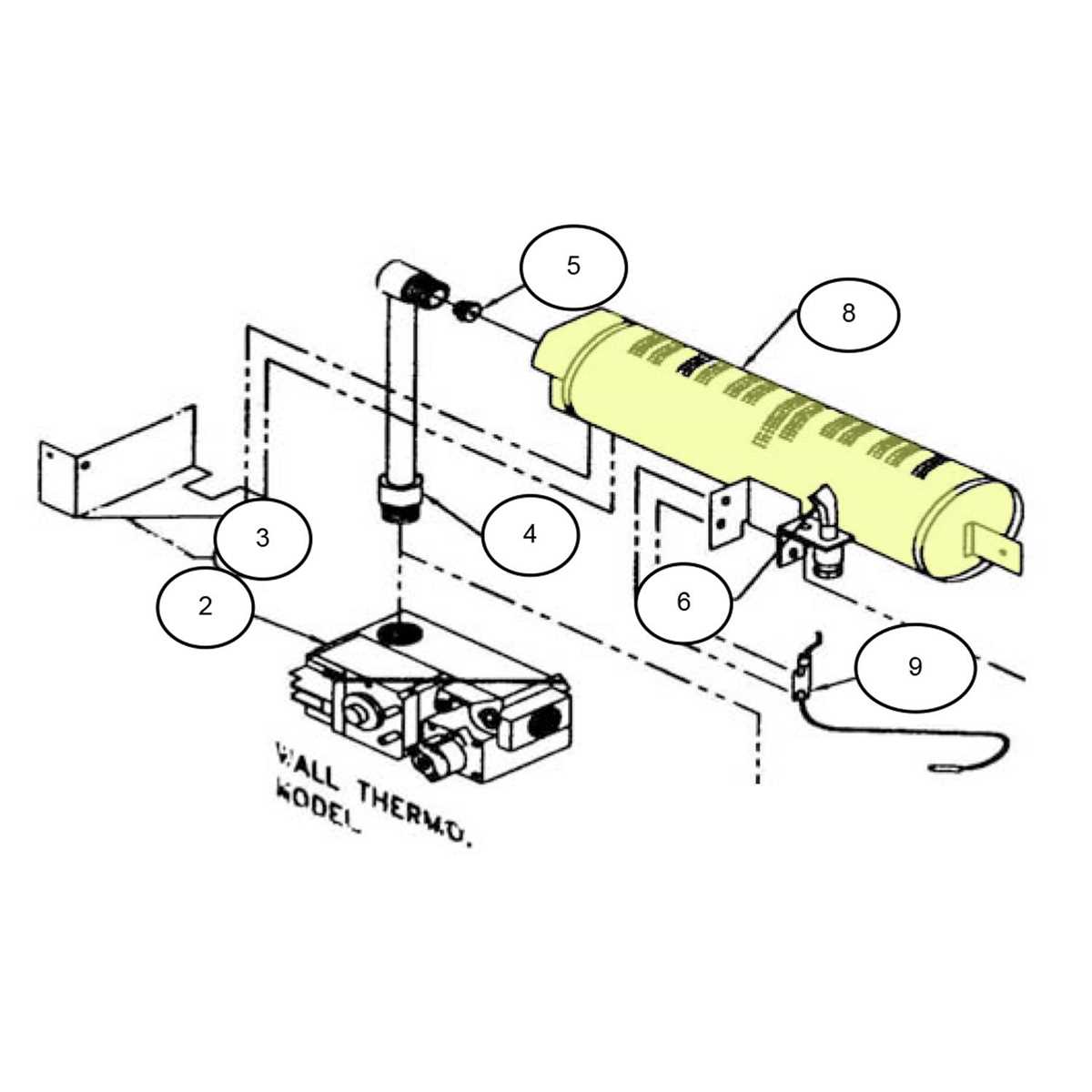

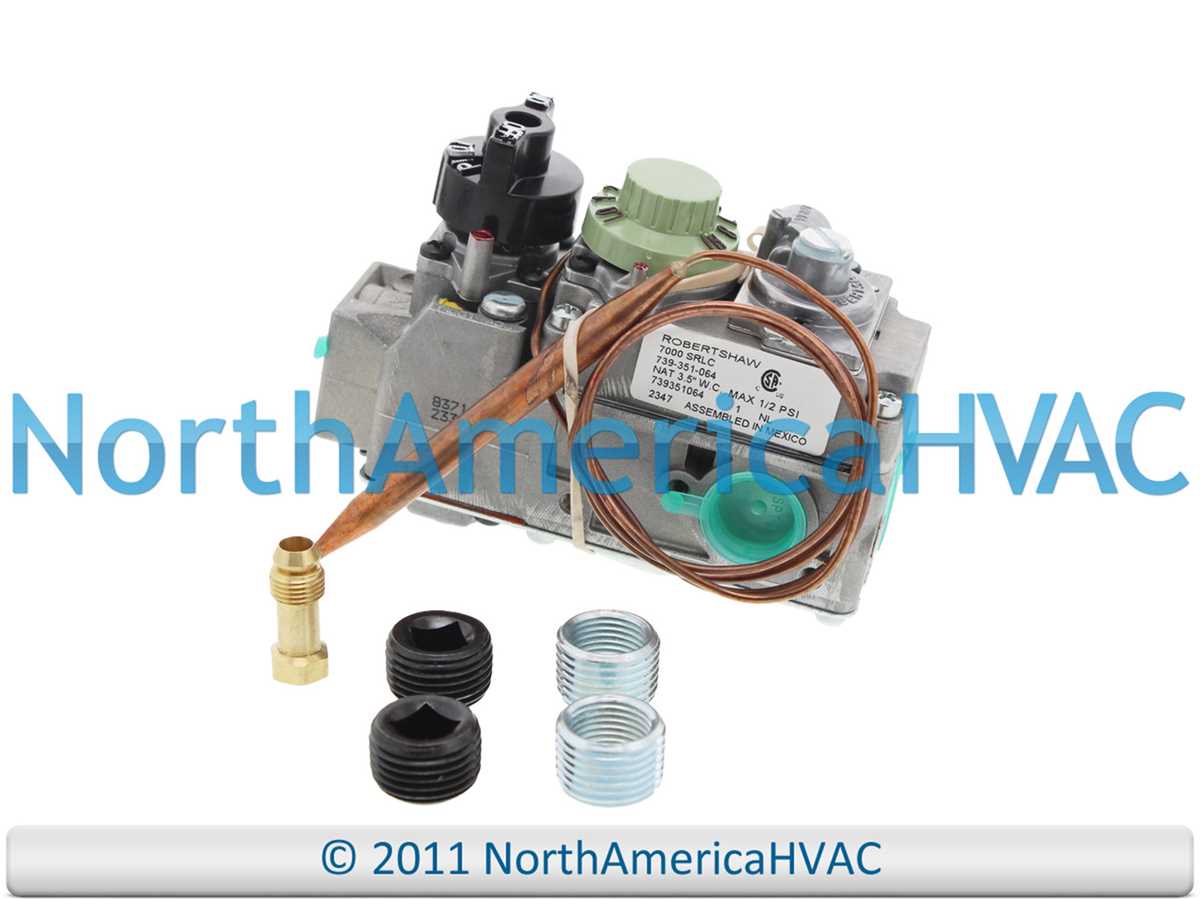

The gas valve regulates fuel flow but doubles as a safety mechanism, shutting off supply if the pilot extinguishes. Identify its brass or aluminum body near the burner’s base–manufacturers stamp pressure ratings (e.g., 3.5″ WC) on its exterior. Test for continuity across valve terminals to confirm solenoid functionality; a failed reading indicates internal coil damage.
- Main burner: perforated metal tubes (often stainless steel) where primary combustion occurs. Inspect for rust or blockages–clean ports with compressed air rather than sharp tools to avoid deforming metal.
- Pilot assembly: small orifice and flame sensor, usually positioned above the burner. Clogged openings require gentle probing with a 0.015″ wire; excessive force damages threads.
The heat exchanger–corrugated or finned metal chambers–transfers energy but corrodes over time. Tap lightly with a screwdriver: a hollow, rattling sound suggests cracks needing immediate attention. Seal minor leaks with high-temperature silicone rated for 1,200°F; major failures demand full replacement.
- Remove the outer cabinet (typically secured with 1/4″ hex screws) to access the blower motor. Lubricate sleeve bearings annually with SAE 20 non-detergent oil; sealed bearings require no maintenance.
- Check blower wheel alignment–misalignment causes excessive noise or reduced airflow. Secure with a 7/16″ nut and ensure blades spin without striking housing.
- Inspect the limit switch (bimetallic disc or capillary tube) mounted on the exchanger. Test continuity at 200°F; if open, replace to prevent overheating.
The thermostat–mechanical models use a coiled bi-metal strip, while electronic ones feature a PCB. For mechanical units, adjust anticipator settings (typically 0.3–0.8 amps) based on wiring diagram specifics. Electronic boards require matching OEM replacements; generic parts risk compatibility issues.
How to Match Components Using Manufacturer Blueprints

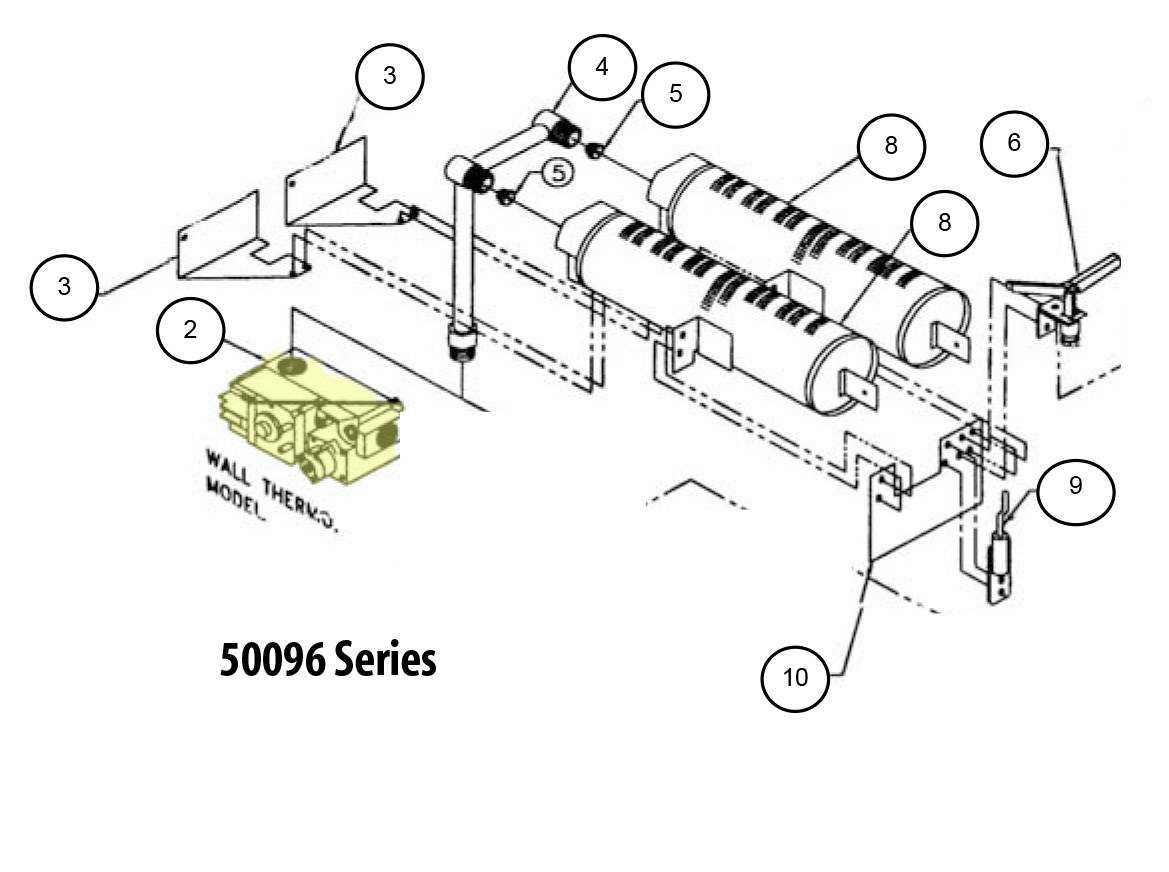

Identify the model number etched on the metal plate near the combustion chamber–typically a 6-8 digit alphanumeric code starting with “WF” or “GH.” Cross-reference this number with the exploded view in the official technical manual, where each item is labeled with a 3-digit sequence (e.g., #112 for the igniter assembly). If the manual lacks detail, filter supplier catalogs by model series: Series 300 parts differ from Series 500 in gasket thickness (1.5mm vs. 2.2mm) and pilot tube diameter (4mm vs. 6mm).
Compare visual markers: thermocouples in older units have threaded ends (1/8″ NPT), while newer models use push-fit connectors with a retaining clip. Request replacements only after verifying voltage (24V vs. 120V), thread pitch (metric vs. imperial), and amperage specs–ignition transformers rated below 1.5A may overheat clogged burners designed for 2.1A. Measure flue pipe diameter (3″ or 4″) before ordering baffles; 0.5″ discrepancies prevent proper sealing and void warranties.
How to Decode Serial Numbers for Precise Equipment Component Identification
Locate the serial number stamped on the metal plate or label attached to the unit–typically on the rear panel, inner cabinet door, or near the rating plate. The format usually begins with a two- or three-letter code denoting the product line, followed by six to eight digits. For example: AB12345678 may indicate model variant “AB” and production sequence “12345678.” The initial letters are critical–they define the base configuration and often correlate directly with compatible replacement components.
The first segment of the numeric sequence frequently encodes the manufacturing date. The first two digits represent the year (e.g., 23 = 2023), while the following pair indicates the week (e.g., 2315 = week 15 of 2023). Some units embed additional identification in the remaining numbers, such as batch runs or regional distribution codes. Use this breakdown to narrow down component compatibility–older units may require adjusters for minor design tweaks not reflected in newer stock.
- Check for prefixes like V-, X-, or Z-, which often signal special editions or limited-run variants.
- If the serial begins with R, expect retrofitted hardware–cross-reference with the original model’s documentation.
- Numerical gaps (e.g., AB90009999 skipping to AB90010001) suggest discontinued production clusters–use nearby serial ranges for part sourcing.
Common Pitfalls in Serial Interpretation
Avoid relying solely on the visual match of components–serial numbers supersede physical resemblance. For instance, ignition modules across visually identical units may differ in voltage specs (24V vs. 120V) or connector types. Always cross-check the last four digits against the manufacturer’s part matrix; variations as small as 0001 vs. 0002 can indicate incompatible thermostat linkages or safety valve pressure ratings.
If the label is damaged, examine interior engravings or search for secondary markings near the main gas inlet or blower assembly. Some units imprint shortened serials on internal casings–compare these to external codes. When ordering, provide the full sequence to suppliers; omitting even one digit risks receiving a part mismatched for amperage requirements or mounting flange dimensions.
