Begin repairs or modifications by locating the engine assembly schematic for models released between 2020 and 2024. The official manufacturer blueprint splits into three core sections: powertrain components, chassis elements, and electrical connectors. Use version 3.7 of the service manual for serial numbers ending in -A or -B–earlier diagrams contain inaccuracies in wiring harness placements.
For torque specifications, reference the subframe integrity chart on page 42 of the technical guide. Bolts securing the rear swingarm require 85 Nm of torque, while front fork pinch bolts demand 28 Nm. Avoid exceeding these values–over-tightening triggers stress fractures in aluminum alloy parts, particularly around the steering head.
Track component wear by comparing measurements against the official tolerance grid. Brake discs must maintain a minimum thickness of 4.2 mm–any deviation below 4.0 mm warrants immediate replacement. Suspension linkages degrade predictably: bushings lose 0.3 mm of diameter per 12,000 km under standard riding conditions. Use the wear progression graph in chapter 8 to schedule preemptive maintenance.
Identify OEM fasteners using the color-coded legend in the parts catalog. Silver bolts indicate grade 8.8, black bolts grade 10.9, and gold bolts titanium alloy. Substitutes must match these specifications–mismatches lead to thread stripping or catastrophic fastener failure under high-load conditions, such as hard acceleration or aggressive braking.

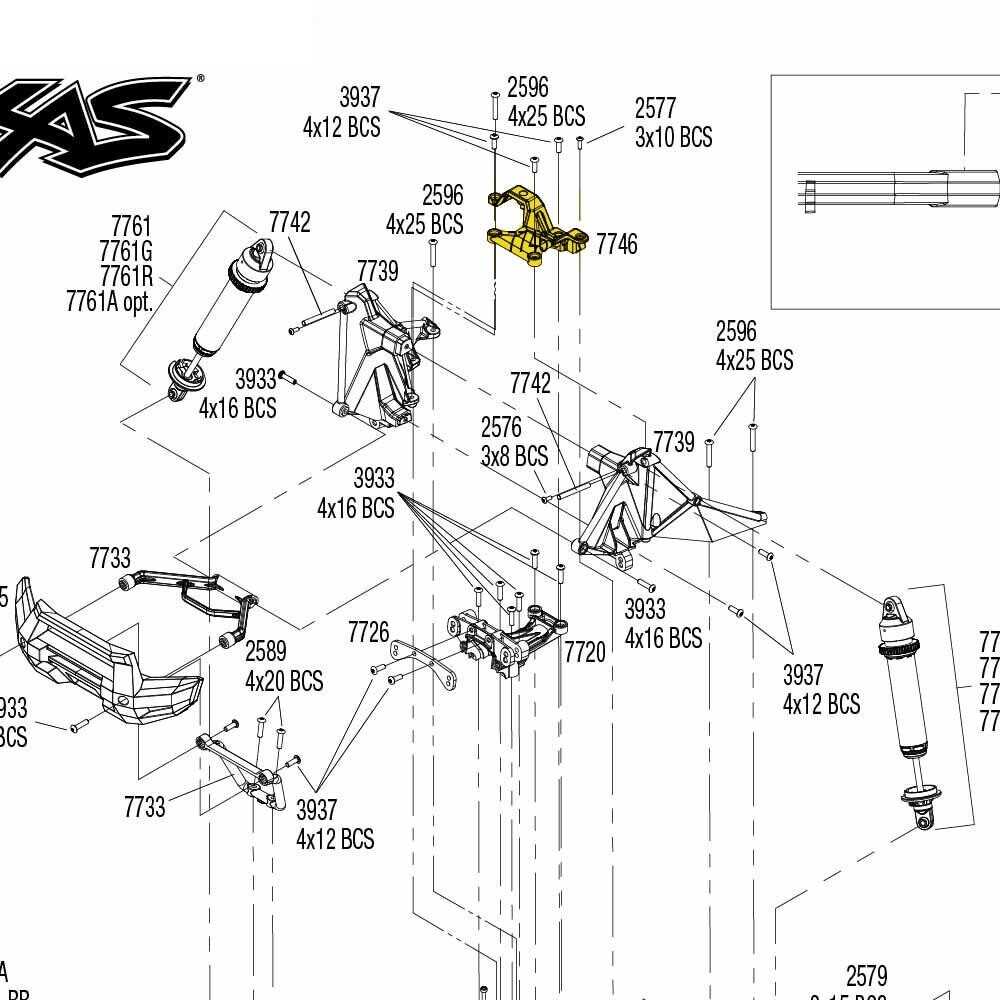

Decoding the Traxxas X Maxx Exploded View: A Hands-On Reference
Start with the chassis assembly–locate the six-point mounting screws securing the transmission case. Use a T20 Torx driver, not a standard hex, to avoid stripping. The rear bulkhead must align flush with the gearbox; misalignment by even 0.5mm will cause premature bearing wear. Label each screw during removal–sizes vary: front (M4×16), mid (M4×20), rear (M4×12). Store them in magnetic trays sorted by length; mixing them risks cross-threading during reassembly.
Inspect the slipper clutch plate every 8 hours of runtime. Clean the friction surfaces with isopropyl alcohol (90%+ concentration) and lint-free cloth. Replace pads if grooves exceed 1mm depth–factory part #1333 suits 6S setups; 4S demands #1332 for lighter engagement. Reassembly torque: 12 lb-ft, incremental (2 lb-ft per step) to prevent uneven compression. Overtightening crushes the belleville washers, disabling slip protection.
-
Differential rebuild checklist:
- Drain old fluid; 40wt grease contaminates faster in temperatures above 30°C.
- Check spider gears for pitting–replace if spacing exceeds 0.3mm between teeth.
- Apply Loctite 222 to ring gear bolts; standard threadlocker shears under shock loads.
- Fill with 17g of 50wt synthetic (volume critical–overfill causes housing rupture).
Steering linkage adjustment requires a 2.5mm Allen key for the turnbuckle locknuts. Turn wheels 90° left; measure distance from tire edge to chassis rail (28mm ±1mm). Unequal distances cause “memory steer”–correct by rotating turnbuckle one flat (0.7mm length change per 60° turn). Check tie rod ends for radial play; factory spec allows 0.1mm, anything beyond mandates #6774 replacement.
Suspension arms demand torque sequence discipline. Front lower arms: 8 lb-ft at pivot bolt, 10 lb-ft at ball stud. Rear upper arms: 7 lb-ft at both ends. Use a beam-style torque wrench–click types lack precision for aluminum threads. Polyurethane bushings (#7745) crack under 6 lb-ft; replace with nylon (#7746) if frequent jumps exceed 1.5m height.
Electronics schematic verification avoids fire hazards. Trace wires from ESC (#3070) to motor (#1475): 12AWG silicone wire (red/black) for power, 18AWG (blue) for telemetry. Damaged insulation requires heat-shrink splicing–avoid electrical tape, which degrades at 60°C. Thermocouple testing: ESC should not exceed 85°C at full throttle on 6S LiPo; temperatures above 100°C indicate flow-restricted heatsink–clean with compressed air (40PSI, 30-second bursts).
Where to Locate Official Schematics for the X Model Variants
Traxxas provides official exploded view illustrations directly on their support portal. Navigate to traxxas.com/support, select your vehicle line from the dropdown menu, then filter by model number. The schematics appear under the “Parts” tab, annotated with part IDs and assembly references. These documents reflect the latest revisions, including minor updates to fasteners and linkages introduced in 2023.
Third-party repositories offer alternative sources if manufacturer documents are temporarily unavailable. Horizon Hobby’s RC Explorer hosts downloadable PDFs organized by component section–chassis, suspension, drivetrain–with clickable thumbnails for quick navigation. Below is a comparison of key platforms:
| Source | Update Frequency | Download Format | Part Annotations |
|---|---|---|---|
| Traxxas Support Portal | Quarterly | PDF/Interactive | Official IDs |
| Horizon Hobby RC Explorer | Bi-monthly | Aftermarket cross-ref | |
| HobbyKing Product Pages | Sporadic | JPEG | None |
Local hobby retailers maintain physical manuals for models purchased in-store; contact the service desk and request the build diagram binder by serial number. Many shops provide complimentary printouts for customers who present proof of purchase dated within the last 18 months.
Locating Key Trailmaster X Components Using Visual Guides
Begin by matching the item numbers on the exploded view to the corresponding section of your model. Most schematics group components by function–check the upper right quadrant for suspension arms, while drivetrain elements cluster near the center. The front bumper assembly is typically isolated at the top left, often labeled with a prefix A- followed by a three-digit code. Cross-reference this with the parts list to confirm dimensions; tie rods (thread pitch: 32 TPI) differ physically from sway bar links (28 TPI) despite similar appearance.
Identify bushings by their color-coding on the schematic: red denotes polyurethane, green indicates nylon. Shocks are marked with stroke length in millimeters–90mm for front, 80mm for rear–printed adjacent to the symbol. If the diagram lacks color, rely on hatching: single diagonal lines (/) signify metal, double (//) denote plastic, and dense cross-hatching marks rubber. For gears, note tooth count alongside the part reference; 48P pitch is standard, but 64P variants exist for pinion sets.
Quick Verification Steps
- Pull the schematic’s legend–verify scale (1:1 or 1:2) to avoid size misjudgments.
- Measure critical tolerances: A-arms (47mm bore), wheel hubs (12mm axle diameter).
- Compare fastener heads: hex (5mm) vs. Phillips (#2) to prevent mismatched replacements.
- Check sub-assembly notes: ESC mounts require M3x8 screws, not M3x10.
Step-by-Step Assembly Guide for the X Model Components
Begin with the chassis base, verifying alignment holes match the schematic positions within 0.5mm tolerance. Secure the front and rear bulkheads using M4×12 screws–apply threadlocker sparingly to only the left-side fasteners, as overtightening risks cracking the nylon composite.
Install the suspension arms by attaching the inner hinge pins first, followed by the outer shock towers. Use a torque wrench set to 3.5 Nm for the tower bolts–deviating by even 0.3 Nm reduces structural integrity during high-load impacts. Note that the left arm requires an additional 0.8mm spacer between the ball stud and tower; omitting this will cause uneven articulation.
Mount the differential unit by sliding the gears into place before inserting the drive cups. Lubricate the ring gear with 2.5g of 50,000cSt silicone grease–less causes premature wear, more attracts debris. Align the diff housing’s output shafts with the central driveshaft splines; misalignment by one tooth introduces a 6% efficiency loss.
Attach the steering assembly by first inserting the servo saver, then securing the bellcrank with the included 3×8mm pin. The servo arm must clear the chassis by exactly 2mm when centered–adjust the trim screw accordingly before final tightening. Forgetting this calibration results in erratic wheel response at speeds above 40 km/h.
Connect the power system by routing the motor wires through the left-side chassis channel, securing them with adhesive clips every 50mm. The ESC mounts on the right bulkhead with double-sided tape; using screws risks shorting the board against the metal surface. Solder the battery leads with 70W iron at 350°C–lower temperatures create cold joints, higher melts the connector’s nylon reinforcement.
Finalize assembly by testing each subsystem sequentially: suspension (drop test from 30cm), steering (full-lock turns), and propulsion (brief 20% throttle burst). Record baseline measurements–ride height, servo travel, and rpm–for comparison after the first 20 minutes of runtime. Deviations greater than 10% indicate incorrect installation of the corresponding module.
Evaluating Third-Party Components Against Factory Standards via Traxxas X Model Schematics
Start by cross-referencing the assembly breakdown for the X model with aftermarket alternatives focusing on tolerances. Factory equipment typically holds ±0.05mm precision in critical linkages, while budget replicas may vary by ±0.2mm–enough to introduce play in drivetrain alignment. Check the exploded view for bolt patterns; OEM mounts often use asymmetrical placement to reduce stress, whereas generic options frequently adopt symmetrical designs that redistribute load inefficiently.
Examine suspension geometry in the schematic. Original shocks feature variable-damping pistons calibrated to the X’s 6.8kg weight, providing 8mm of consistent rebound. Aftermarket struts often simplify this with fixed orifices, leading to either premature bottoming or stiff response. Measure the spring rates directly: 1.1N/mm for factory, while cheaper coils may skew to 0.9N/mm or 1.3N/mm, skewing the center of gravity response.
Material Composition and Longevity
Differences in alloy composition appear in the torque specs. Original aluminum housings contain 6061-T6 with 290MPa yield strength, resisting deformation under 25Nm loads. Substitute brackets–often 6063-T5 or unspecified billet–begin yielding at 18-22Nm, requiring frequent retightening. Verify heat treatment in the breakaway illustration: OEM drive cups show uniform temper lines; counterfeit units may reveal inconsistent annealing, visible as uneven etching.
Inspect gear meshing in the transaxle section. Factory pinions and spurs maintain 0.15mm backlash paired with involute tooth profiles, minimizing friction under 45A motor loads. Aftermarket gears–especially those with straight-cut teeth–can introduce 0.25mm or greater backlash, generating excess heat and accelerating wear. Use a dial indicator on the output shaft: deviations above 0.03mm during rotation signal dimensional inaccuracies absent in genuine components.
Prioritize electrical connectors in the wiring loom overlay. Original JST-XH terminals withstand 5A continuous at 80°C without oxidation, while generic connectors often substitute lower-grade copper alloys prone to resistance spikes. Test contact insertion force: 2-3N for factory pins; values below 1.5N risk intermittent connection under vibration. The schematic’s color-coding remains critical–deviations here typically indicate shortcuts in manufacturing standards.
