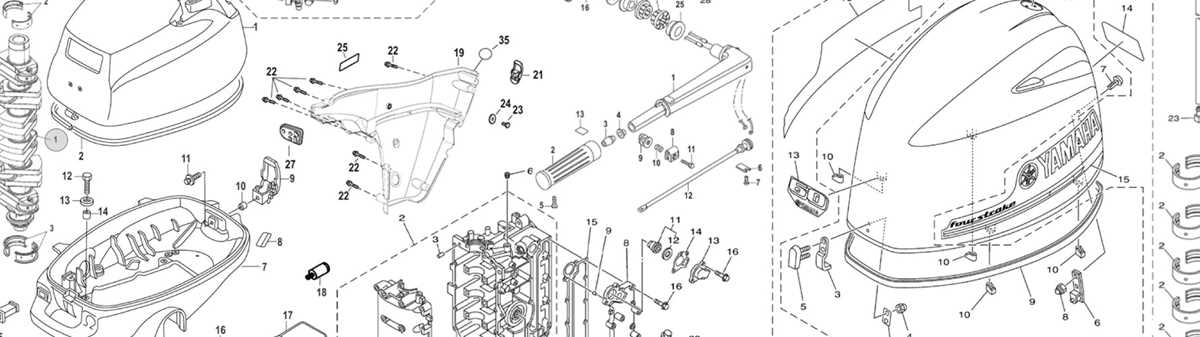

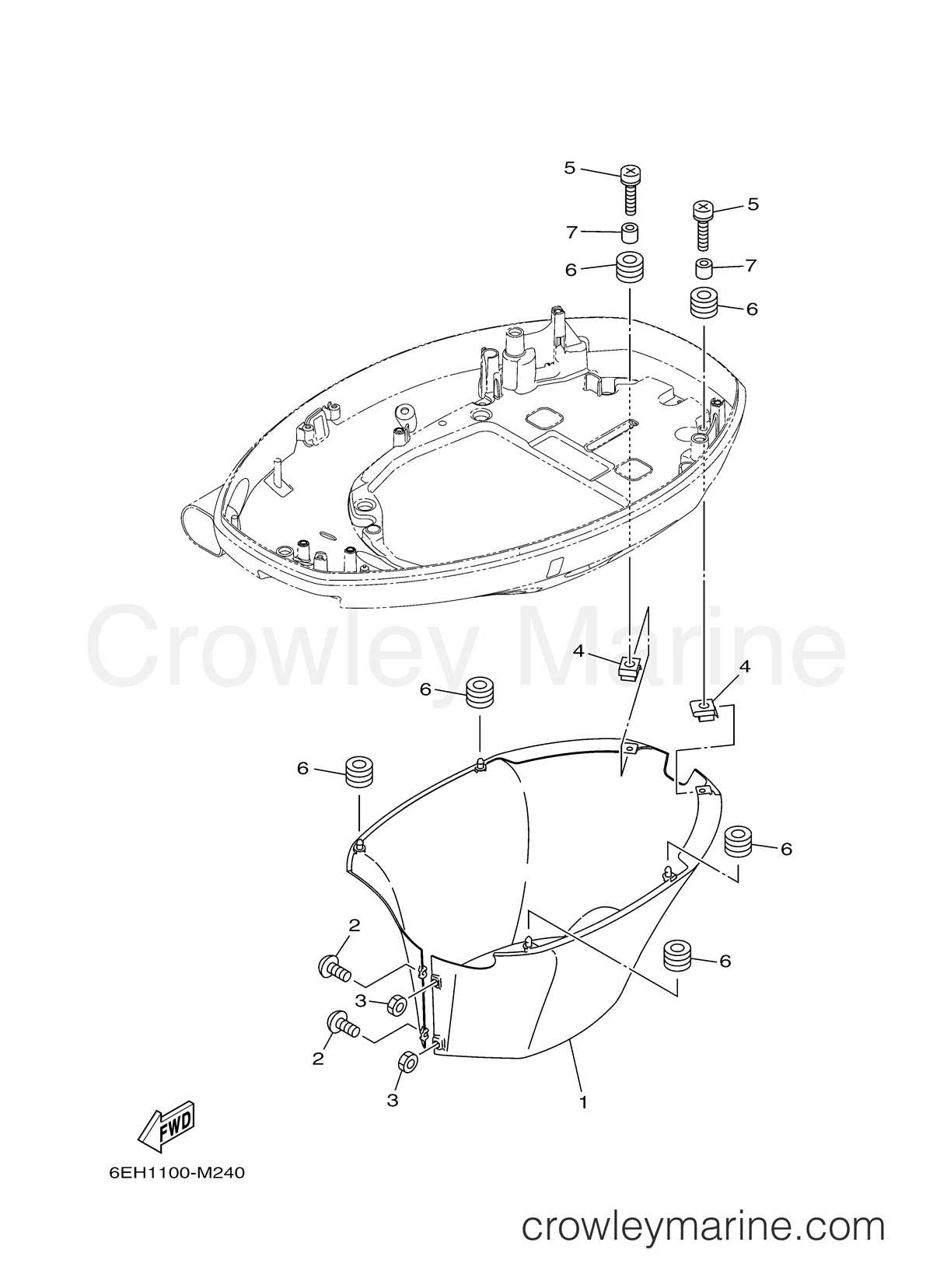

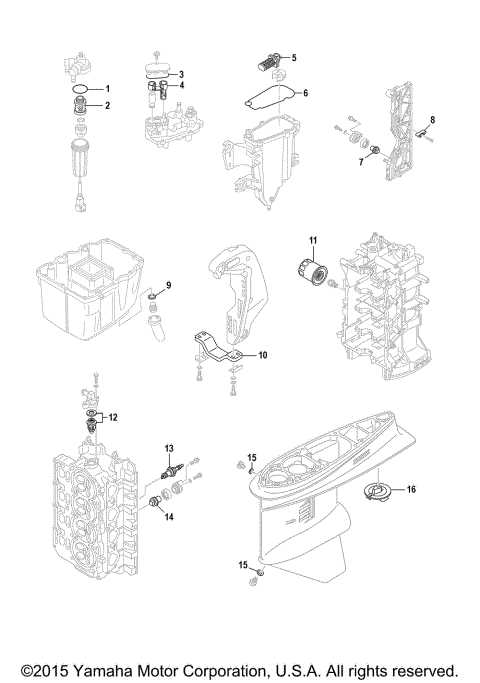

To locate replacement components for a 300hp four-stroke marine powerhead, start with the official exploded view schematic. This document splits the system into seven key sections: midsection assembly, powerhead internals, electrical harness routing, lower unit gear housing, cooling system passages, fuel delivery modules, and steering linkage. Each section includes OEM part numbers matched to labeled illustrations–critical when ordering filters, seals, or gaskets.
The cooling circuit diagram highlights the impeller housing, thermostat flange, and bypass valve positions. Incorrect alignment during reinstallation risks overheating; cross-reference torque specs (typically 18–22 ft-lbs for water pump bolts) against the annotated notation. Fuel system schematics show dual-rail injector positions and pressure regulator placement–note electrical connectors often corrode; apply dielectric grease during reassembly.

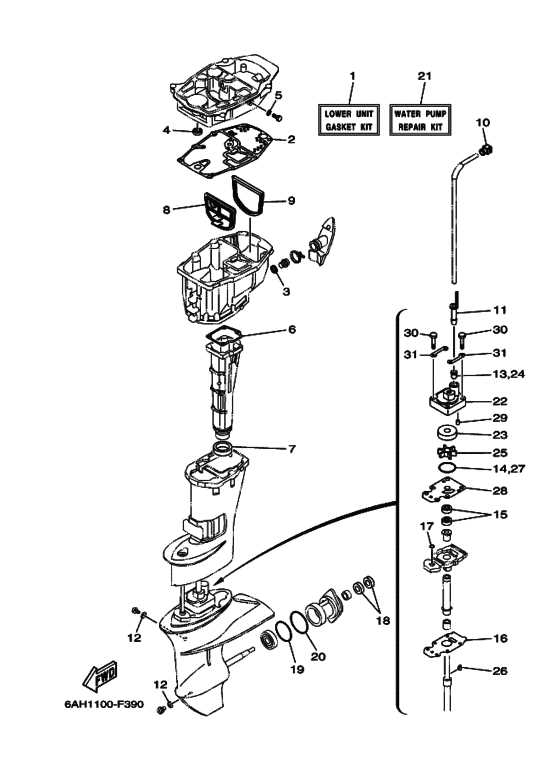

For lower unit rebuilds, the gearcase exploded view specifies shimming requirements for pinion depths (common spec: 0.004–0.008 inches) and propeller shaft endplay (0.010–0.020 inches). Ignoring these tolerances leads to premature wear on drive gears. Wiring harness layouts include color-coding legends–orange wires denote ignition circuits; green/yellow typically ground points. Always disconnect battery terminals before servicing electronic modules to prevent voltage spikes.
Steering linkage schematics include tilt tube lubrication points and hydraulic ram pin placements. Grease fittings appear at pivot joints; use marine-grade lithium grease to prevent corrosion. For trim cylinder rebuilds, note O-ring dimensions (usually 1.78mm cross-section)–store seals in cool, dry conditions to maintain pliability. Fastener gradings accompany each sub-assembly; torque wrench calibration ensures consistent clamping force (e.g., crankcase bolts: 25–30 ft-lbs).
Outboard Motor Schematics: A Hands-On Reference for Owners
Locate the service manual PDF for model year 2020–2024 using the engine’s serial number via the manufacturer’s official portal–avoid third-party downloads, as they often miss mid-cycle revisions like the updated fuel vapor separator introduced in late 2022. Print pages 47–52, which detail the upper casing assembly, and laminate them; grease and saltwater ruin paper faster than plastic.
Before disassembly, label every fastener with painter’s tape and corresponding numbers from the exploded view on plate 3-8. The shift actuator solenoid (component #63A-85510-00) requires a 10mm socket, but the adjacent throttle body bolts use a 12-point 8mm–mixing these strips threads. Store removed hardware in magnetic trays sorted by subsystem (cooling, electrical, powertrain) to prevent cross-contamination during reassembly.
Paywall-free schematics exist on forums like iboats.com and The Hull Truth, but verify diagrams against the VIN-specific manual. The lower unit housing section (page 112) varies between gear ratios–2.15:1 models have a thicker input shaft (0.3mm difference) than 2.33:1 versions, detectable only with digital calipers. Use redSharpie to mark the correct diagram before referencing it during repairs.
Common Failure Points and Maintenance Shortcuts
Replace the water pump impeller (kit #6J7-44511-00) every 100 hours, but inspect the housing wear plate for grooves–if deeper than 0.2mm, swap it simultaneously to avoid premature failure. The thermostat valve (component #6E6-13510-00), often overlooked, sticks in tropical climates; test it by dropping it in boiling water–the plunger should extend fully within 30 seconds. For corrosion-prone areas like the anode bolts, apply CRC Marine Grease to threads before installation to ease future removal.
The stator wiring harness (part #FSF-8277B) frays near the flywheel cover; slit open the protective sleeve with a utility knife and solder damaged wires directly, then re-seal with 3M 2228 rubber splicing tape. When sourcing replacements for the oil pressure switch (component #6A4-82250-00), order two–installation torque (8 Nm) often exceeds thread strength. Keep a digital multimeter set to 200 ohms handy; resistance values for the ignition coils should read 0.2–0.5 ohms between terminals–higher readings indicate internal shorts.
Locating Authentic Outboard Motor Component Illustrations
Begin with the manufacturer’s service portal. The official technical resources hub provides direct access to detailed schematics for the 300-horsepower marine engine. Registration may be required, but all visual breakdowns–including sub-assemblies for the powerhead, midsection, and lower unit–are available in scalable vector formats. The portal categorizes illustrations by section, allowing precise identification of gaskets, seals, and fasteners.

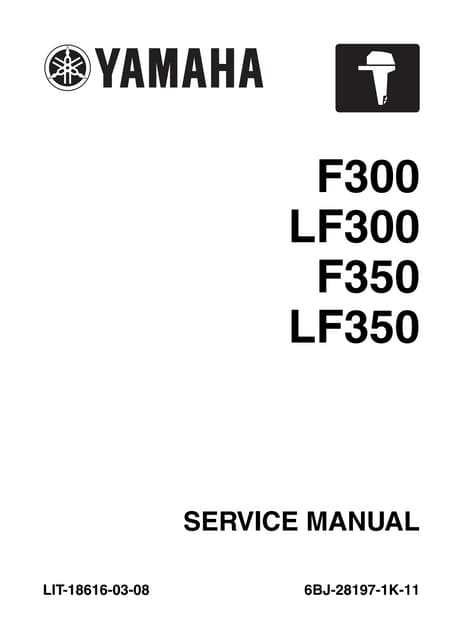

Authorized dealerships maintain hardcopy manuals and digital archives. Request the “Factory Service Manual” or “Parts Catalog” for the specific model year; these documents include exploded views with OEM part numbers and torque specifications. Some dealers offer temporary online access to their internal parts database–inquire about subscription options for technicians needing repeated reference.
Third-party marine aftermarket suppliers host downloadable schematics on their websites. Sites like MarineEngine.com or Crowley Marine aggregate manufacturer-approved diagrams, though cross-reference part numbers with official sources to avoid discrepancies. These platforms often filter views by category, such as electrical systems or cooling components, streamlining troubleshooting.
Owner forums and technical communities share scanned or photographed schematics. While convenient, verify the accuracy of these images against the official manual’s revision date, as aftermarket modifications or updates may alter component layouts. Look for threads where users annotate common wear points or assembly pitfalls.
Specialized marine repair software, such as Marine Parts or BoatWorks, includes interactive diagrams. These tools link visual data to inventory databases, showing real-time availability and pricing. Some applications allow overlaying measurements or exporting custom views for on-site repairs–useful for identifying corrosion-prone areas or hidden fasteners.
Vintage engine schematics can be sourced from print publications or archival CD-ROMs sold by independent publishers. The Seloc Marine Manual series, for instance, reproduces factory diagrams with added notes on common failure points. Check used bookstores or boating classifieds for discontinued editions matching older model variants.
For urgent repairs, contact a mobile marine technician with access to proprietary diagnostic tools. Some professionals carry tablets preloaded with manufacturer schematics, which they use to guide on-water or dockside servicing. While not a substitute for official documentation, this method ensures immediate access to critical visual references when traditional sources are unavailable.
Critical Elements in the Outboard Motor Assembly Guide
Start by locating the powerhead section, which houses the engine block, pistons, and crankshaft–core elements driving propulsion. The breakdown reveals that each piston connects via connecting rods to the crankshaft, converting linear motion into rotational force. Verify torque specs for rod bolts (typically 25–30 Nm) to prevent failure under high RPM. The cylinder heads, bolted atop the block, contain intake and exhaust valves; inspect their seals during disassembly to avoid compression leaks. Always replace gaskets if material degradation is visible, even if no immediate leaks are detected.
The fuel delivery system demands precise calibration. Identify the fuel pump, injectors, and pressure regulator, as these dictate air-fuel mixture quality. The injectors, mounted on the intake manifold, must spray at 2.5–3.5 bar–use a pressure gauge to confirm readings. Replace filters annually or after 100 hours of operation to avoid clogging, which disrupts performance. The ECU, often overlooked, processes sensor data to optimize ignition timing; reset it after replacing any fuel-system component to avoid error codes.
Electrical and Cooling System Dissection
Trace the wiring harness from the stator to the rectifier-regulator, ensuring no corrosion on terminals–a common failure point in older models. The stator generates AC current, converted to DC by the rectifier for battery charging; test output with a multimeter (expect 13.5–14.5V at idle). The ignition coils, paired with spark plugs, require gap checks (set to 0.8–1.0mm); replace plugs every 200 hours or if electrode wear exceeds 0.1mm. For cooling, the impeller inside the lower unit pumps seawater through the engine; inspect it for cracks and replace it if vanes are bent, as even minor damage reduces flow by up to 40%.
The gearcase, containing gears and bearings, transfers torque to the propeller. Lubricate it with marine-grade gear oil (SAE 90) every 100 hours; check for metal particles in drained oil, indicating bearing wear. Propeller selection hinges on pitch and diameter–opt for a 15″ pitch for balanced speed and acceleration, but reduce to 13″ if towing heavy loads. The trim and tilt system, powered by a hydraulic pump, relies on clean fluid; flush the system if movement becomes sluggish, as debris can jam the relief valves. The exhaust housing routes gases through the midsection; inspect internal passages for carbon buildup, which restricts flow and robs power.
Prioritize the shift mechanism during reassembly. The shift rods, connecting the control box to the lower unit, must move freely–apply grease to linkage joints to prevent binding. The water pump, driven by the driveshaft, sits just above the gearcase; replace its impeller every two seasons, as rubber degrades even when unused. Lastly, the cowling not only protects but also channels airflow–ensure the rubber seals are intact to prevent water ingress, which can short-circuit electrical components. Use the exploded view to label removed components, placing screws and small parts in organized containers to streamline reinstallation.
