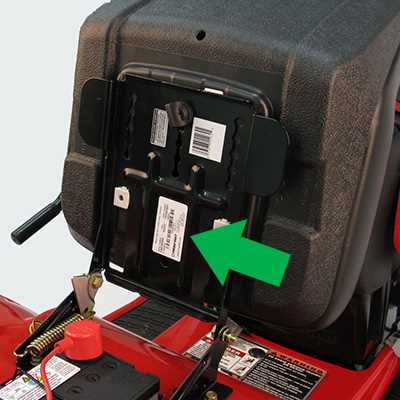

Start by locating the model number plate beneath the seat or on the frame near the engine–this is critical for identifying compatible spares. Brands like MTD, Husqvarna, and Cub Cadet imprint these codes on a metal tag, often in formats like 13AO677F011 or 42A707K765. Cross-reference this with the manufacturer’s exploded-view schematics, which break down assemblies like the cutting deck, drive system, and steering into individual itemized lines.

For the cutting assembly, pay attention to blade spindles (part numbers typically ending in -001 or -101), belts (marked with width and length in inches, e.g., “42 × 2.5”), and pulleys. Drive components–rear axles, transaxle assemblies (look for prefixes like “Tuff Torq” or “Peerless”), and engagement cables–require exact matches; off-size replacements risk slipping or excessive wear. Hydraulic lifts and shocks (often labeled “lift assist” or “stabilizer”) degrade under constant load, so check seals and bushings during disassembly.

Use OEM catalogs (available on manufacturer websites under “Service” or “Parts Lookup”) to isolate sub-assemblies. For example, a Cub Cadet RZT-L 50 will list the mower deck under “Blade Housing Assembly,” while the transmission falls under “Transmission & Differential.” Aftermarket vendors like Jack’s Small Engines or Partstree offer search filters for serial ranges–ensure your query includes both model number and serial range to avoid mismatches.

When ordering belts, note the difference between deck drive belts and transmission drive belts: deck belts tend to be narrower (0.5″ to 0.75″) and loop around multiple pulleys, while transmission belts are wider (up to 1.25″) and handle torque directly. Blade spindles vary by cutting width–38″ decks typically use three spindles, while 54″ decks employ five, spaced at 10-12 inch intervals. Always replace blades and spindles in pairs to maintain balance and prevent deck vibration.

For electrical troubleshooting, reference the wiring loom schematics included in the service manual. Key connectors include the ignition module, solenoid, and safety switches (seat switch, PTO switch). Multimeter readings should show continuity across closed switches (less than 1 ohm) and open circuits in idle mode (OL or infinite resistance). If diagnosing intermittent cuts, inspect the PTO clutch air gap (should measure 0.015″–0.025″ with a feeler gauge) and brush wear–excessive wear indicates overuse or misalignment.

How to Locate Key Components on Your Garden Tractor’s Blueprint

Start by identifying the engine assembly at the front–this section typically includes the air filter housing, carburetor, and spark plug (located under a black rubber cap). Modern schematics often label these with alphanumeric codes (e.g., E-4 for the engine block), but older models may use icons like a wrench or flame symbol. Check your owner’s manual page 12–15 for a color-coded breakdown; if missing, download a PDF from the manufacturer’s site using your model number (usually stamped on a metal plate under the seat).

Critical Subsystems and Their Locations

  • Transmission housing: Mid-frame beneath the operator’s seat, marked with hydrostatic or gear-driven decals. Look for a dipstick (yellow cap) near the rear axle–this indicates the fluid reservoir. Low fluid levels (
  • Cutting deck: Suspended below the frame, secured by 4–6 mounting brackets. The spindle assemblies (where blades attach) are housed in gray metal casings; each should spin freely when rotated by hand. Replace bearings if grinding noises occur–torque specs are 45–50 ft-lbs for most 42-inch decks.
  • Electrical panel: Behind the dash, containing the fuse block (blade fuses: 20A), solenoid, and battery connectors. Corrosion on terminals (white/green buildup) reduces voltage by 10–30%. Clean with a wire brush and dielectric grease; crop terminal protectors for future prevention.

For precision repairs, use a torque wrench when reassembling bolts–the flywheel nut requires 70–80 ft-lbs, while deck height adjustment screws need only 15–20 ft-lbs. Mismatched torque causes vibration at speeds above 5 mph. If the schematic lacks torque specs, cross-reference with an ASME B1.1 standard bolt chart by diameter (e.g., 1/2-inch = 55 ft-lbs). Keep replacement bolts graded at Grade 5 or 8; avoid hardware-store generic bolts (marked 3 or unmarked), which shear under load.

Identifying Core Elements in a Garden Tractor Exploded View

Locate the engine block first–typically positioned at the top center of the schematic. Verify its serial number against the manufacturer’s documentation to confirm compatibility with replacement components like pistons, gaskets, or crankshafts. Engine mounts and cooling fins should align with the frame cutouts; misalignment suggests prior disassembly errors or improper reinstallation.

Transmission and Drivetrain Verification

yard machine riding mower parts diagram

Trace the hydrostatic transmission housing below the seat assembly. Cross-reference the input/output shafts with the parts list to identify pulleys, belts, and gears. Worn splines on the drive axle often indicate excessive load; measure them against new components using calipers. The exploded view will distinguish between front and rear differentials–ensure seals and bearings match the torque specifications outlined in the service manual.

Inspect the cutting deck assembly by following the blade spindle shafts downward. Blade adapters, mandrels, and PTO clutches must align precisely; overheating symptoms often stem from misrouted belts or faulty engagement coils. Check the deck lift mechanism next–broken lift links or bent arms cause uneven cutting and require immediate replacement before further use.

Examine electrical components last, starting with the ignition switch and wiring harness. Fusible links and solenoid terminals corrode over time; test continuity with a multimeter. The battery tray and starter motor should secure tightly to the chassis–loose bolts lead to vibration damage. Labels on relays and switches in the exploded view correspond to specific circuitry; replace damaged connectors with exact OEM equivalents to prevent shorts.

Document discrepancies between the schematic and physical components. Note wear patterns on idler arms, deck wheels, and deck hangers–these indicate usage intensity and help prioritize maintenance. Keep a digital or printed copy of the exploded view nearby during repairs to track reassembly steps without relying on memory.

Locating Genuine Part Numbers for Lawn Tractors

yard machine riding mower parts diagram

Start with the official MTD Products website–manufacturer of Cub Cadet, Troy-Bilt, and Craftsman equipment–which lists OEM identifiers under the “Parts & Support” tab. Enter your tractor’s model number (found on a metal plate near the steering column or under the seat) to pull up a categorized schematic. Each component in the diagram includes a unique seven- or eight-digit alphanumeric code (e.g., 731-0457 for a standard cutting blade). Bookmark the direct URL for future reference: parts.mtdproducts.com.

The engine block itself carries stickers from Briggs & Stratton, Kohler, or Kawasaki–each brand stamps its own ID system. Briggs & Stratton engines display a white decal on the valve cover listing the Type, Code, and Model numbers (e.g., 31M777-0069-F1). Kohler engines use a six-digit Spec Number (e.g., 25 04 21) molded into the blower housing. Kawasaki engines list a Code like FJ180V on a silver tag near the dipstick. Cross-reference these with the OEM parts manuals at briggsandstratton.com, kohler.com, or kawasaki.com.

Local authorized dealers maintain physical binders of exploded-view manuals. Request the “Parts Breakdown” for your specific tractor series–dealer staff scan the barcode on the cover page to retrieve an exact match. Dealers also access MTD’s internal WIP (Wholesale Inventory Portal), which filters results by year, model prefix (e.g., 13A for 2013 production), and serial range. Ask for a printed copy of the parts list; dealers charge $5–$15 for the sheet, which includes both OEM and aftermarket equivalents.

Key Locations for Model and Serial Tags

Component Tag Location Example Format
Chassis Metal plate on right rear fender or under seat Model: 13A777K Serial: 130000331
Transmission Black decal on side of hydrostatic case Part #: 954-0436
Cutting Deck White sticker on underside near pulley guard Deck ID: 42A
Electric Starter Engraved on solenoid housing Code: 10038

Third-party aggregators like Partstree and Jack’s Small Engines overlay OEM codes with aftermarket SKUs. Search using the original MTD identifier to reveal cross-referenced options (e.g., OEM 710-0412 drive belt matches Stens #260-674). These sites allow CSV exports of search results–save the file to track purchases and maintenance history.

E-commerce platforms embed OEM numbers within product titles. On Amazon, filter results by “Sold by MTD Certified Parts” and sort by “Featured” to find listings with exact codes in the description (e.g., “MTD Genuine 718-0404 Twin Blade Assembly”). eBay sellers include scans of the parts manual; message the seller requesting a close-up of the exploded view if the listing lacks detail. Always verify the seller’s feedback score exceeds 98% and check the return policy for restocking fees.

Salvage yards specializing in outdoor power equipment–such as Power Salvage Yard in Ohio–catalog inventory by OEM number. Email them a spreadsheet of required codes; most yards respond within 24 hours with availability, pricing ($8–$40 per item), and condition (new, used, or rebuilt). Request photographs of the actual part before payment–engine pulleys, for example, often show wear not visible in listings.

Common OEM Code Prefixes

Prefix Component Type Example
31 Engine Crankshaft 31M777-0069
71 V-Belts 718-0404
95 Transmission Parts 954-0436
13 Electrical System 131-0452 (Ignition Coil)
17 Deck Spindles 171-0424

Download the free MTD Parts Lookup mobile app–available for iOS and Android–which scans barcodes on packaging or salvaged parts to display the OEM number, compatible models, and installation diagrams. The app also stores manuals offline, eliminating the need for Wi-Fi when servicing equipment in remote areas. Enable push notifications to receive alerts when a back-ordered part becomes available.
