To locate a faulty backlight strip, consult the service schematic for your model’s LED array configuration. Most modern displays cluster LEDs into segments, often organized in rows or grids behind the panel–these correlate directly to numbered connections on the power board. Trace the 24-pin connector labeled CN2001 (or similar variant) on the logic board to its corresponding LED driver interface. Voltage readings between 3.3V and 15V on each pin indicate active segments; higher or erratic values point to a failing driver IC.
Capacitors marked C102 and C103 near the main processor are prone to swelling. Replace these electrolytic types with low-ESR equivalents rated at 25V minimum, even if the originals specify lower voltage. Bulging capacitors disrupt signal stability in the T-CON board, causing horizontal lines or flickering–test with a scope on 50Ω impedance to confirm ripple exceeding 50mVpp.
The Y-SUS and Z-SUS boards (or unified sustain boards in newer revisions) manage panel current. Identify their MOSFETs–usually SC1411MP or STP20NF04–and check gate-to-source voltages while powered on. A healthy reading should stabilize around 4.5V; deviation suggests either a dead MOSFET or corrupted firmware in the EEPROM. Reflow solder joints on the XGA connector if intermittent image ghosting appears, targeting pins 3 through 12.
Inverter transformers, particularly T901, fail silently after sustained high-load use. Test secondary windings for open circuits with a multimeter; continuity should register . If resistance spikes or drops, desolder the entire transformer assembly–replacements must match the original’s 8:1 turn ratio and core material (ferrite). Ignoring this leads to overdriven CCFLs and eventual backlight burnout.
For firmware recovery, download the exact board revision binary from the manufacturer’s B2B portal–not third-party repositories. Mis-matched firmware bricks the flash memory IC (MX25L1605D or equivalent), requiring JTAG reflashing. Locate the JTAG header near the SO-DIMM slots (commonly 14-pin linear), connect with a Xilinx Platform Cable USB, and force-restart into ISP mode. Incorrect binaries corrupt the gamma table, warping color balance.
Visual Breakdown of Television Internal Components
Locate the mainboard near the center of the chassis–it’s the largest circuit board, typically secured with screws and heat sinks. Check for model-specific labels like BN41-02447A or BN94-12560A to confirm compatibility before disassembly. If replacing, ensure ESD precautions: use an anti-static wrist strap and work on a non-conductive surface.
Key Module Identification
- Power supply unit (PSU): Rectangular board with capacitors, transformers, and thick traces; common failure points include bulging
1000µF/16Vcaps or burnt MOSFETs. - LED backlight strips: Thin flex cables along the panel edges; verify continuity with a multimeter (resistance should read
- T-Con board: Small rectangular module with ribbon cables to the panel; handle carefully–damaged connectors corrupt image output.
- IR receiver/LVDS cable: Part of the bezel assembly; faulty IR modules cause unresponsive remotes or erratic inputs.
For schematicreference, download the service manual specific to the TV’s prefix (e.g., UE55MU6100 → search "UE55MU6100 service manual PDF"). Critical pages include:

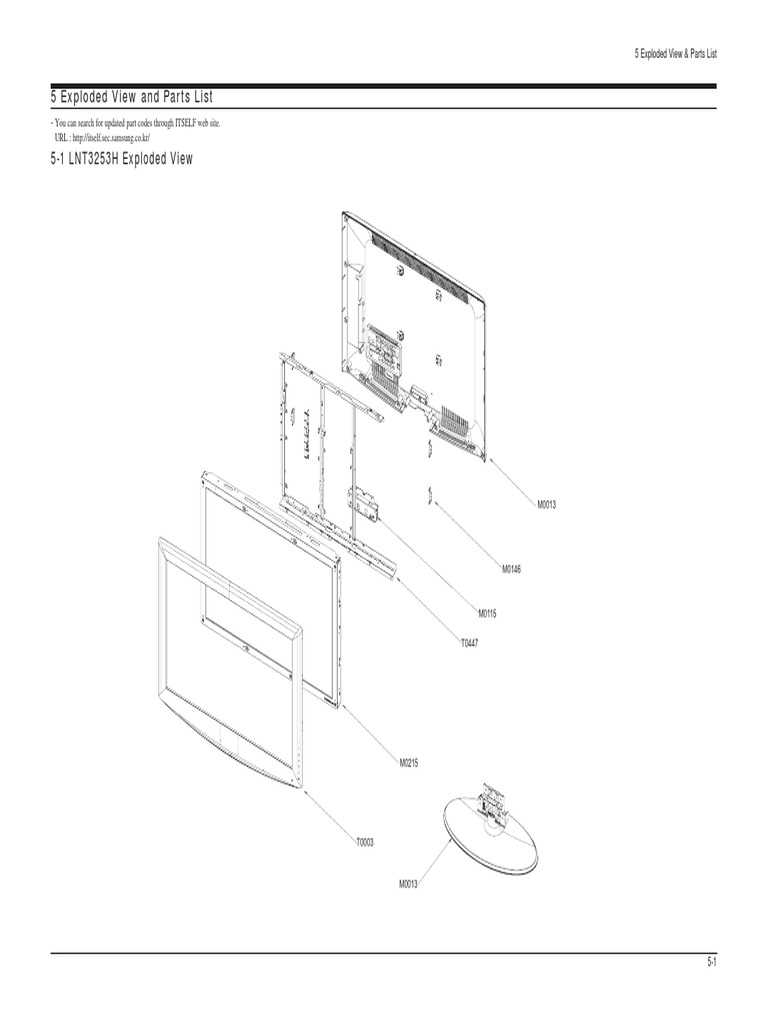

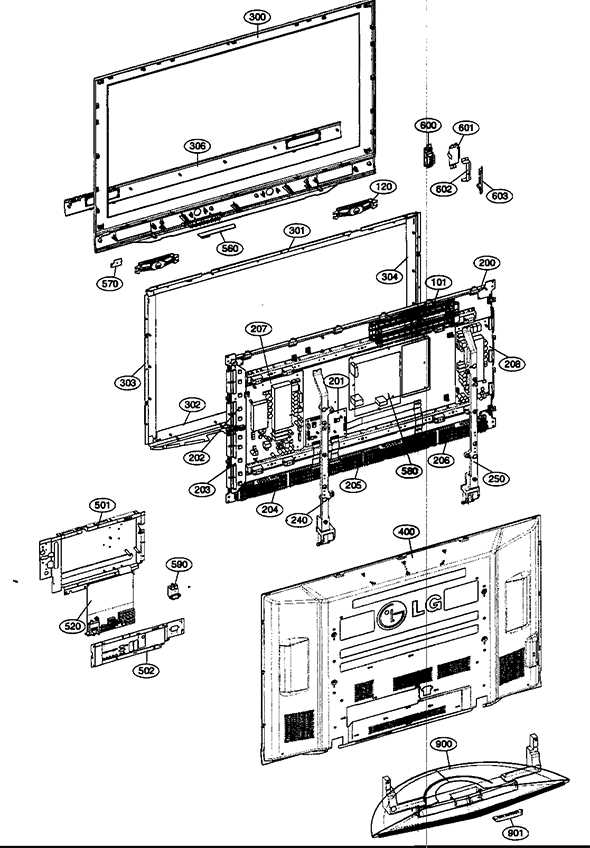

- Exploded view diagrams (show placement of screws/fasteners; variance across models: e.g.,
MUseries uses 12 screws vs.QLED Q60B’s 8). - Block diagrams (pinpoint signal flow between mainboard ↔ T-Con ↔ panel).
- Voltage regulation charts (PSU outputs: 12V, 24V, 3.3V rails; deviations indicate faulty regulators).
When sourcing replacements, cross-reference part numbers against European (BNXXX-XXXXB) vs. US (BNXXX-XXXXA) variants–physical dimensions are identical, but firmware incompatibilities may cause boot loops. For rare models (e.g., plasma panels pre-2014), salvage working modules from donor units rather than OEM parts due to inflated costs.
How to Identify Critical Elements in TV Internal Layout Guides
Begin by marking the power supply unit in the schematic–the largest rectangular block near the rear panel, often outlined in yellow or red. This section typically contains thick lines representing high-voltage capacitors and transformers, distinguishable from smaller signal boards by their density and component size. Verify placement against the label marked “PSU” or similar; deviations may indicate a custom chassis variant.
Trace the mainboard by locating the central cluster of connectors and microchips, usually positioned beneath the screen’s midpoint. Look for groupings of HDMI, USB, and antenna ports–these interfaces anchor the board’s position. The largest IC, often an SoC (system-on-chip), will have a heat sink or thermal pad attached. Note adjacent smaller modules: flash memory sits near the SoC, while tuners flank the edges.
Examine the backlight assembly by following the flex cables extending from the power supply to the LCD panel perimeter. These cables terminate in LED strips or CCFL inverters, identifiable by their slim, elongated shapes. Modern models separate the inverter from the LED driver board, which sits adjacent to cooling fins. Check for fuse labels or current-limiting resistors–these components frequently fail after surges.
Decoding Lesser-Known Sub-Assemblies
Identify the T-Con board (timing controller) by its proximity to the panel’s left or right edge, linked via a ribbon cable. This narrow PCB houses voltage regulators and timing ICs, often labeled with “VS” or “VE” voltages. Faults here manifest as vertical lines or color distortion. Measure test points for 12V or 1.8V readings to confirm functionality.
Scan for the IR receiver and front panel controls near the bezel’s lower corner. These components appear as a tiny PCB with a window for the sensor, connected via thin cables. Misalignment or loose connections result in unreadable remote signals. Adjacent micro switches often serve as menu selectors–label these clearly if performing repairs.
Document EMI shielding components: these appear as metallic covers over sensitive circuits. Note screws labeled “EMC” or “RF”–improper reassembly can cause interference. Shielding over the Wi-Fi/Bluetooth module (a small daughterboard with u.FL connectors) requires careful detachment to avoid antenna cable damage. Verify continuity on coaxial lines before reattaching.
Verification and Cross-Referencing
Cross-check your findings against the model’s service manual, focusing on revision codes printed on ICs or boards. Chassis variants (e.g., BN41-02441B vs. BN41-02849A) may relocate components like the stand mount or USB hub. Use a multimeter in continuity mode to confirm ground connections–errant solder points often mimic component failure. Record connector pinouts, especially for LVDS cables between the T-Con and panel, where reversed insertion risks permanent damage.
Key TV Mainboard Connector Pinouts and Voltage Standards for Repair
Begin diagnostics by locating the 24-pin LVDS connector–typically marked J9001 or CN800 on most flat-panel motherboards. Pins 1-4 deliver 12V standby; verify with a multimeter before powering on. Pins 5-8 supply 5V for backlight logic, while 9-12 carry 3.3V for the scaler IC. A deviation exceeding ±0.2V indicates a failing voltage regulator (commonly APA2065 or RT8205).
Examine the T-Con board connector: 30-pin models (e.g., J701) split signals into odd/even LVDS pairs at 1.2V. Measure between pins 29-30 for ground reference–any resistance below 0.5Ω suggests a shorted flex cable. For 4K models, HDMI port CN601 (19-pin) requires 5V on pin 18; absence confirms a blown fuse or faulty ESD protection diode. Use an oscilloscope to check TMDS signals on pins 2-9 during boot–for clean 1080p60, expect 1.485Gbps with ≤0.3UI jitter.
Critical Power Delivery Components
Focus on the PFC stage: Bridge rectifier output (after F101) should read 380-410VDC–values below 350V point to failed PFC IC (e.g., NCP1607) or bulging input capacitors (Kemet 450V series). Secondary-side regulation: Check the 12V rail at C8801 (1000μF/16V)–ripples above 50mVpk-pk indicate degraded ESR. Backlight boost converter (e.g., OZ9938) requires 16V on pin 6; trace back to Q201 (AO4496) if voltage drops occur.
For eMMC-related boot failures, probe U1001 (W25Q80DV) pins: VCC (3.3V), CS# (active low during SPI flash). Corrupted firmware manifests as no backlight or logo freeze–reprogram via CH341A using the board-specific binary (e.g., “T-CHL7DEUC.bin”). Always discharge primary capacitors (400V/100μF) through R501 (22Ω/5W) before handling to prevent arching.
When replacing the scaler IC (e.g., MST6A601VS), ensure thermal paste (Arctic MX-4) covers the entire die surface. Reflow profiles must reach 245°C for ≤10 seconds to avoid delamination. Post-repair, validate all rails with a load test: connect a 6Ω/10W resistor to the 12V rail and monitor for voltage sag–any drop below 11.8V suggests a weak switching MOSFET (usually STH260N6F6).
For HDMI handshake issues, force-pair EDID using a HDMI analyzer (e.g., Murideo Six-G) or manually inject 56-byte EDID data via I2C (pins 15-16 on CN601). Common shorts occur at C7001 (0.1μF/X7R) near the HDMI port–replace with higher voltage tolerance capacitors (25V) to prevent recurrence. Always use conformal coating (MG Chemicals 419C) on repaired areas to prevent humidity-induced corrosion.
Step-by-Step Guide to Diagnosing T-Con Circuit Failures with TV Schematics
Locate the timing controller layout in the display’s electrical blueprint–typically labeled as “T-Con” or “TCON Board.” Identify power input pins (e.g., 12V, 5V) and signal lines (LVDS/MIPI) marked near connectors CN1, CN2, or similar. Cross-reference these with the label on the physical board to confirm pin assignments.
Measure voltage at the board’s input using a multimeter. Compare readings against the schematic’s expected values (e.g., 11.8–12.2V for stable operation). Deviations over ±0.3V suggest regulator failure or capacitor degradation. Prioritize testing components in the power path, particularly SMD electrolytic caps near the DC-DC converter.
| Component Type | Schematic Symbol | Failure Signs | Quick Test Method |
|---|---|---|---|
| SMD Capacitor | Two parallel lines (polarized) | Bulging, leakage, no voltage | Capacitance meter >10% deviation |
| Voltage Regulator | Three-terminal block (IC) | Overheating, wrong output | Multimeter on output pin vs. input |
| Signal Driver IC | Rectangular outline (e.g., TCON1) | Garbage pixels, flickering | Oscilloscope on LVDS lanes |
Trace LVDS/MIPI lanes from the main processor to the T-Con circuit using the wiring diagram. Look for shorted or open traces indicated by continuity beeps (0Ω) or infinite resistance. Probe test points labeled TP1–TP5 on the schematic–missing signals here isolate faults to either the source (main board) or the timing controller.
Check for failed backlight inversion by examining the on-screen voltage indicators (ON/OFF) linked to the timing controller. Waveform disruption on an oscilloscope (e.g., missing 5–20kHz square wave) points to faulty gate drivers or damaged traces in the flex connector. Replace the entire timing module if waveform corrections require re-balling BGA ICs.
Inspect gate driver outputs by probing row/column lines on the panel’s edge connector. Randomly lit pixels or vertical/horizontal bands signal corrupted control signals–confirm this by swapping the timing module with a known-working unit of identical design. Label wires before disconnecting to avoid phasing errors during reassembly.
Document all readings and compare them with the reference values printed on the schematic’s margin. Replace components only after verifying surrounding circuitry isn’t causing cascading failures–focus on sections showing under 80% of expected values first, particularly voltage rails powering the IC core (often 1.8V or 3.3V).
