Begin repairs or custom builds by identifying the screw collar–the threaded ring that secures the shade fitter to the base. Most modern designs use a M12×1.0 or M14×1.25 thread, though vintage models may require a 3/8″-27 NPT adapter. Check for stripped grooves or corrosion; a tap wrench with matching thread pitch can restore functionality if threads are damaged.
The harness assembly typically includes a silicone-insulated cord (18-20 AWG) terminating in a polarized plug. For North American models, verify the UL 962 listing–marked on the wire jacket–to ensure compliance with household electrical standards. European variants use H05VV-F cabling with a Shuko plug. Replace frayed sections by splicing at an angle, then sealing with heat-shrink tubing (minimum 4:1 ratio) rather than electrical tape.
Examine the armature–the articulated joint connecting the base to the light emitter. Look for phosphor-bronze springs in adjustable models; these lose tension after 800-1,200 cycles and require replacement with grade A286 stainless steel equivalents. Rigid designs often use a die-cast aluminum bracket with a M6 bolt–apply anti-seize compound (e.g., Loctite 243) to prevent galling during disassembly.
The diffuser–whether polycarbonate or borosilicate glass–attaches via a bayonet mount or pressure-fit ring. Measure the diameter at the neck (standard sizes: 2.5″, 3.5″, or 4.25″) to select compatible replacements. For LED emitters, ensure the diffuser’s transmittance rating exceeds 85% to prevent lumen loss–opal acrylic outperforms frosted glass in this regard.
Disassemble the control mechanism last. Rotary switches should have click detents spaced at 30° intervals; erratic behavior usually stems from worn carbon contacts. Replace with a ceramic rotary potentiometer (e.g., Bourns PTV09A) for longer lifespan. Touch-sensitive pads require a capacitive switch IC (e.g., Azoteq IQS62x) paired with a ground plane–omit if static discharge risks exist in dry environments.
Understanding Your Desk Illuminator Structure
Start by detaching the base from the stand–most models use a threaded coupling or a snap-fit mechanism. Check the electrical cord’s entry point; reinforce with dielectric grease if corrosion is visible. The socket assembly typically splits into:
- Metal housing (aluminum/steel for heat dissipation)
- Porcelain or phenolic insulator
- Brass terminals (polarity marked)
- Harness wires (18-20 AWG)
Replace bulbs exceeding 60W with LED equivalents to prevent overheating. For shade stability, ensure the harp’s finial threads smoothly into its saddle–black oxide coatings reduce wear on brass components.
Troubleshooting Hidden Components
- If flickering persists, inspect the on/off switch’s microswitch–pry off the cap using a 2mm flathead, then test continuity with a multimeter. Replace if resistance exceeds 1Ω.
- For uneven brightness, examine the reflector cone: dents distort light paths; repaint with high-temperature white enamel.
- Humming indicates a loose choke coil–secure with lock washers or re-solder connections under 300°C.
Essential Elements of a Desk Illuminator Foundation
Select a weighted pedestal for stability–opt for a diameter equal to or exceeding 70% of the shade’s widest point. Cast iron, marble, or dense resin composites ensure tipping resistance on uneven surfaces, critical for models exceeding 12 inches in height. For adjustable designs, verify the pivot mechanism includes bronze bushings or high-grade nylon washers; these reduce friction wear and extend lifespan by 40% compared to unlubricated joints.
Examine the electrical housing for these non-negotiable features:
- Strain relief: A molded or rubber-grommeted entry point prevents cord fraying at the exit.
- Junction terminal: Screw-style connectors outperform push-in types for repeated disassembly.
- Thermal rating: Look for bases rated to 90°C (194°F); cheaper plastics degrade at 60°C, risking warping.
Structural Integrity Considerations
Threaded rod inserts–typically M6 or ¼-20–must penetrate at least 1.5 times the rod diameter into the base material. Shallow threading (
Dual-material bases (e.g., metal core with plastic exterior) require ultrasonic welding or machine screws–avoid adhesive-only bonds which fail under continuous use. When retrofitting a fixture with a heavier head, recalculate the center of gravity; shift the base’s mass forward by 10-15% of the shade diameter relative to the original footprint to compensate for new torque dynamics.

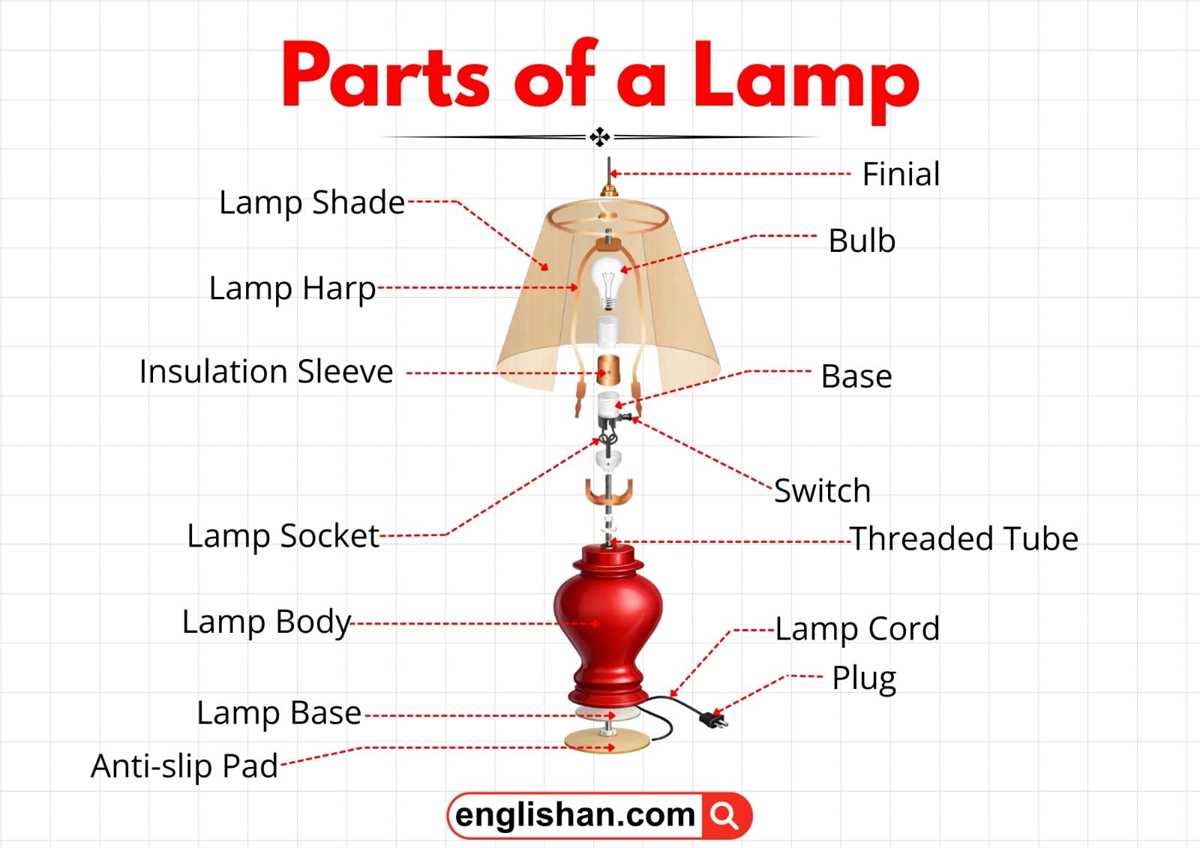

How to Identify and Label Light Fixture Shade Components

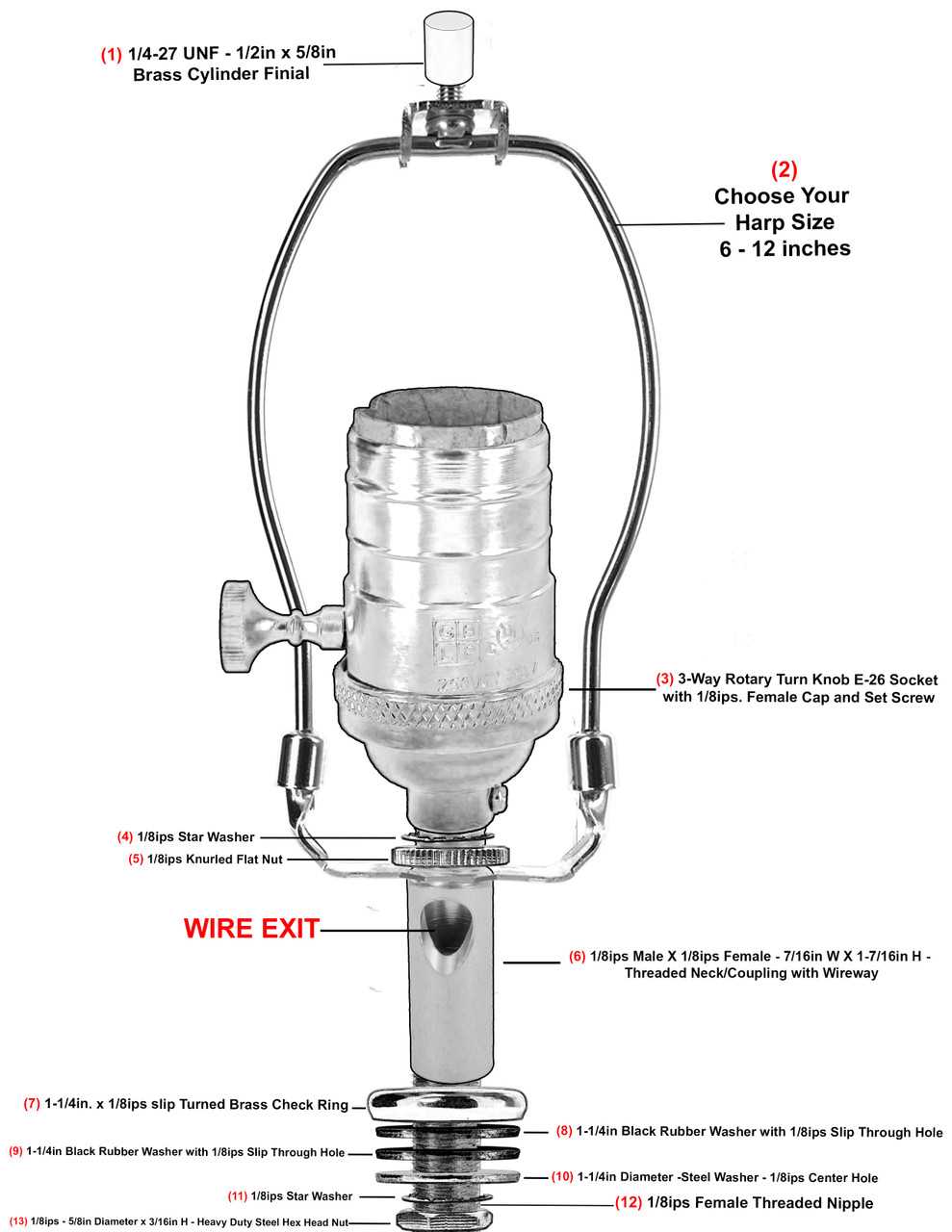

Begin by examining the finial at the apex of the shade–this threaded cap secures the cover to the harp or spider fitting. Note its shape: finials typically measure 1–2 inches long, with threads matching standard harp sizes (6–16 inches in height). Check for a locking nut beneath the finial; this prevents loosening over time. If absent, the assembly may rely solely on tension from the threaded cap.
Trace the vertical supports extending from the base to the shade’s top. These come in two primary configurations:
| Component | Material | Identification Marks | Common Dimensions (inches) |
|---|---|---|---|
| Harp | Nickel-plated steel, brass | Stamped height (e.g., “10H”), manufacturer logo | 8–16 (height), 4–6 (width at base) |
| Spider fitting | Plastic (ABS), steel | Injection-molded ribs, threaded socket | 3–5 (diameter), 1/8″ threads |
| Uno fitting | Brass, aluminum | Smooth outer surface, internal threading | 1.5–3 (diameter), 1/4″-20 threads |
For fabric covers, locate the stiff wire or plastic ring sewn into the bottom hem–this maintains shape and prevents sagging. Hard shades (glass, metal) often omit this ring but may include a felt pad glued to the interior rim to protect surfaces. If the fitting includes a socket extender, measure its length (standard 2–6 inches) and thread type (typically 1/8 IPS); mismatches here cause instability.
Key Electrical Components in Desk Illumination Fixtures
Inspect the socket first–most standard models use an E26 or E27 base, rated for 250V and 660W. Check for corrosion on brass contacts; clean with 400-grit sandpaper if oxidation exceeds 0.5mm depth. Replace sockets if threaded sections show cracks wider than 0.2mm–inexpensive ceramic versions resist heat better than phenolic alternatives. Verify wiring gauge: 18 AWG handles up to 10A, while 16 AWG supports 13A for prolonged use.
Polarity switches demand attention–miswiring risks short circuits. Locate the neutral (ribbed) and live (smooth) wires: neutral connects to the socket’s outer shell, live to the center tab. Test continuity with a multimeter; resistance should read below 1Ω. For dimmable units, ensure the rheostat has a 200Ω–500kΩ range–cheaper carbon-film types degrade after 800 hours, while wirewound variants last 5,000+ hours. Replace capacitors if bulge exceeds 5% of original diameter–X2-rated types tolerate 275V AC surges.
Step-by-Step Guide to Disassembling a Light Fixture for Repair
Unplug the device immediately and place it on a clean, static-free surface. Use a screwdriver with a magnetic tip to remove the base plate–most models secure it with two to four Phillips-head screws, typically ranging from 4mm to 8mm in length. Label each screw by size and position (e.g., “top-right, 6mm”) with masking tape to avoid mixing them up during reassembly. If the shade is attached with a finial, twist it counterclockwise while supporting the glass to prevent cracks; ceramic or metal finials often require ½ to ¾ turns for release. For corded versions, trace the wire from the plug to the socket–clip the wiring near the plug with wire cutters if replacement is needed, leaving at least 2 inches of slack for reconnection.
Separate the socket from the housing by depressing the tab inside the base (usually a small metal clip) and pulling upward with pliers; avoid yanking, as brittle bakelite sockets may fracture. Inspect the bulb holder for carbon deposits–clean contacts with 220-grit sandpaper or a fiberglass pen, then wipe with isopropyl alcohol. If the internal switch fails, pry open its casing with a flathead screwdriver, noting the spring and plunger positions for reassembly; most rotary switches use a 4-6 position cam mechanism. For ceramic bases, check for hairline cracks with a flashlight–seal minor fissures with clear epoxy resin and clamp for 24 hours before testing.
