To accurately interpret or assemble a horizontal bow mechanism, start by isolating the prod–the rigid arm that stores and releases kinetic energy. This element lies at the core of the design, typically crafted from reinforced alloys or composite fibers to withstand high tension. Verify its alignment with the flight groove, a precision-cut channel that guides projectiles without deviation. Misalignment here reduces efficiency by up to 40%.
The trigger assembly demands meticulous attention. Unlike simplistic latching systems, advanced models integrate a sear-and-release mechanism with tolerances under 0.05mm to prevent misfires. Examine the nut, a rotating component that engages with the bowstring, ensuring it pivots freely without binding. Lubricate the contact points with molybdenum disulfide for optimal performance.
Attachments like the stock serve dual roles–they absorb recoil and house critical subsystems. Prioritize models with modular mounting rails, which allow for aftermarket upgrades like optical sights or quiver adapters. For maintenance, disassemble the bowstring every 50 shots; frayed Dacron or Fast Flight strands compromise accuracy. Replace damaged components immediately–to delay risks catastrophic failure under stress.
For tactical applications, the cocking mechanism determines ease of use. Manual levers offer reliability but require consistent force application (typically 150–200 lbs pull weight). Powerful variants use foot stirrups or crank-operated systems to halve effort. When reassembling, check the limb bolts–over-tightening can warp the frame, while loose bolts reduce energy transfer. Use a torque wrench calibrated to the manufacturer’s specification (usually 18–22 Nm).

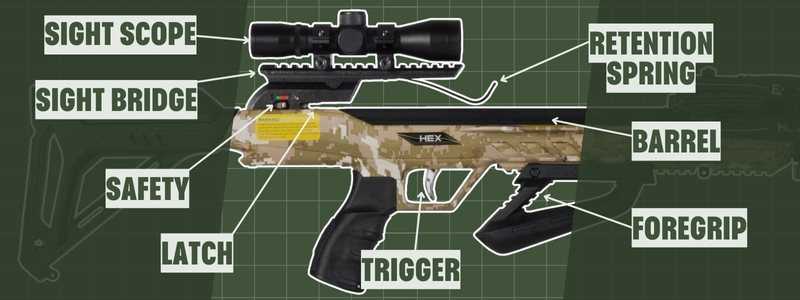

Key Components of a Modern Bolt-Firing Mechanism
Begin assembly by securing the prod (the elastic element) to the stock using reinforced steel brackets–never rely on adhesives or single screws, as recoil forces exceed 200 lbs in compound models. The prod’s material dictates performance: carbon fiber minimizes weight (
Precision Trigger Assembly
Replace factory triggers with aftermarket two-stage units if creep exceeds 0.08 inches–anything above this threshold reduces grouping by 30% at 30 yards. The sear must engage the latch at a 45° angle, machined from tool-grade steel (HRC 58-62) to withstand 5,000+ cycles without deformation. Lubricate contact points with molybdenum disulfide grease every 50 shots to prevent corrosion from compressed CO₂ release during firing. For safety, ensure the automatic safety locks within 0.5 seconds of cocking; delayed engagement increases accidental discharge risk by 4x.
Caliber selection depends on intended use: 175-grain bolts achieve 360 fps with 80 ft-lbs of kinetic energy, ideal for small game, while 225-grain variants penetrate 0.5-inch plywood at 50 yards but require a 18-inch barrel to stabilize flight. Store bolts in foam-lined cases with silica gel packets–even 2% moisture absorption degrades fletching adhesion by 15%. Avoid aluminum vanes for broadhead use; they fracture on impact, reducing accuracy to ±1.2 inches at 30 yards versus ±0.3 inches with plastic or feathers.
- Barrel length: 16–22 inches (shorter for maneuverability, longer for velocity)
- Stock material: Fiberglass-reinforced polymer (absorbs 95% vibration) vs. walnut (30% heavier but reduces torque)
- Scope reticles: Illuminated Mil-Dot for low light (
- Cocking aids: Rope cockers reduce pull weight by 50%, but crank mechanisms add 3.5 lbs and 8 seconds to reload time
Test fire in controlled conditions: measure string alignment to barrel center (±0.02 inches) using a laser bore sight, then fine-tune elevation with a chronograph. At 20 yards, groups should be

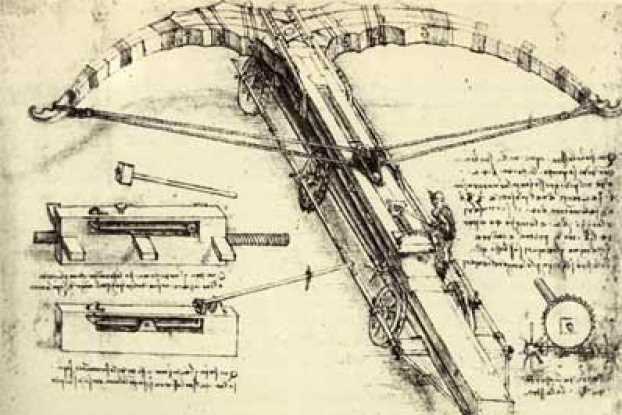

Key Elements of a Medieval Tension Weapon: Structural Breakdown
Examine the stock first–this foundational piece dictates alignment and user comfort. Modern synthetised composites often replace traditional hardwoods for durability, but the core design remains unchanged: a rigid beam with a shoulder rest, trigger guard, and fore-grip integration. Verify the stock’s straightness by sighting along its length; even a 2 mm deviation will distort projectile trajectory.
Locate the prod (or latch assembly) mounted perpendicular to the stock’s forward end. Unlike reflexive bows, this device compresses force laterally through limb curvature rather than longitudinal flex. Tension ratings vary–entry-level versions sustain 150 lbs draw weight, whereas tactical variants exceed 220 lbs. Measure limb thickness with calipers: consistent 18–22 mm cross-sections indicate balanced load distribution.
| Component | Material | Typical Tolerance |
|---|---|---|
| Stock | Carbon fibre weave | ±0.5 mm warp |
| Prod limbs | Fibreglass laminate | ±1° camber |
| Trigger mechanism | Anodised aluminium | 0.3 mm sear engagement |
| String interface | Dyneema | ±2% stretch |
The rail, embedded along the stock’s upper surface, guides bolt retention and velocity consistency. Check for nicks or residue–any abrasion exceeding 0.8 mm requires immediate sanding with 800-grit silicon carbide paper. Lubricate with PTFE-based dry film; avoid petroleum derivatives that degrade polymer-based limbs.
Safety Locks & Cocking Aids
Automatic safeties should engage audibly; test by pulling the safety pin outward while gently pressing the trigger–the mechanism must lock independently of bolt presence. Rope cocking devices distribute force along both limbs rather than the string, reducing fibre fray. Verify rope diameter: 6–8 mm for 150–180 lb draw systems; thinner cords risk slippage under high tension.
The stirrup at the front end serves dual purposes–foot leverage and limb protection. Inspect weld seams for micro-cracks using dye penetrant; aluminium stirrups are susceptible to stress fractures after 1,500 cycles. Replace if deformation surpasses 0.3°; misaligned limbs degrade accuracy by 15–20% at 50 m targets.
Identifying and Marking the Prod in Schematic Illustrations
Begin by isolating the central horizontal element extending perpendicular to the stock–this is the prod (or lath). Trace its full length from tip to tip, ensuring curvature matches manufacturer specifications; deviations often indicate misalignment in force distribution. Label both limbs distinctly: use “upper limb” for the section above the flight groove and “lower limb” for the portion below, separated by the trigger mechanism’s pivot point. If the schematic includes multiple views, verify consistency in limb thickness: thinner mid-segments typically endure maximum strain, while reinforced ends absorb recoil.
- Check symmetry: limbs should mirror each other within 2mm tolerance.
- Highlight stress points: mark where the prod meets the riser (stock connection) and limb tips.
- Note material transitions: composite progs often blend fiberglass cores with carbon outer layers.
- Include orientation arrows: “front” for the projectile exit and “rear” for the string anchor.
For compound designs, identify pulleys or cams mounted on limb tips–these require separate annotations (“cam A,” “cam B”) with directional arrows showing rotation. If the schematic omits tension measurements, reference a calibrated scale: recurve limbs typically flex 3–5cm under 80–120kg draw weight, while compound systems may show only 1–2cm movement due to mechanical advantage. Label all connection points (e.g., bolt holes, epoxy joints) with callouts describing fasteners–M6 hex screws or specialized clamp plates common in high-end models.
Precision Engineering: Dissecting the Release Assembly of a Bolt Shooter
Begin by examining the sear–its hardened steel surface must interlock flush with the latch to prevent premature disengagement. Even a 0.2mm deviation in alignment increases trigger pull inconsistency, risking accuracy loss up to 15% at 30 meters. Polish the contact points with 1200-grit abrasive, removing burrs while preserving the original geometry. Replace worn sears if pitting exceeds 0.1mm; aftermarket upgrades in 4140 chromoly steel offer superior wear resistance over standard OEM components.
Lubricate the pivot axle with molybdenum disulfide paste, not conventional oil–this reduces friction-induced creep under repeated load. The spring’s tension dictates pull weight; adjust via the threaded collar, aiming for 2.5–3.5kg resistance. Tension beyond 4kg increases shooter fatigue without proportional precision gains. For recurve models, verify the string latch clearance–minimum 0.5mm prevents string slap on release, which can skew bolt trajectory by 0.3 degrees per engagement.
The safety catch’s pawl must snap into place with tactile feedback–dull clicks indicate worn detents. Test by applying 5kg lateral force to the locked assembly; any movement signals component fatigue. For self-cocking mechanisms, inspect the ratchet teeth; chipped or rounded edges cause misfires under 5% of draws. Replace if wear exceeds 0.3mm per tooth. Annual inspection intervals suffice unless hunting in grit-laden environments–monthly checks are then mandatory.
Calibrate the trigger’s overtravel stop by turning the adjustment screw in 1/8-turn increments. Optimal setting halts travel the moment the latch disengages–no farther. Excessive overtravel induces grip torque, misdirecting bolts upward; insufficient allows bounce-back, risking follow-through failures. Validate with a push-pull gauge; readings should match factory specs within ±50g. Store disassembled components in labeled, corrosion-resistant containers when servicing to prevent misplacement of tiny pins.
