Start by locating the armature assembly–the core rotating element typically positioned centrally in the device’s internal layout. Verify its connection points: brush holders should align precisely with the commutator segments to prevent arcing or premature wear. If voltage irregularities occur, inspect the field coils for insulation breakdown; continuity tests with a multimeter should register resistance values between 5–20 ohms, depending on the model’s power rating.
Examine the voltage regulator next–it’s often mounted near the output terminals. Misconfigured settings here can lead to overcharging or insufficient power delivery. Adjust the potentiometer carefully; clockwise turns increase output, but excessive tweaking risks damaging sensitive electronics downstream. For diesel-driven units, prioritize the fuel pump relay: a faulty relay (usually clicking repeatedly under load) indicates a need for replacement, not just cleaning contacts.
The AVR (Automatic Voltage Regulator) sits adjacent to the exciter winding. If the unit fails to stabilize output, check for loose wiring–vibration can dislodge connections over time. For liquid-cooled variants, the coolant temperature sensor must remain intact; a compromised sensor triggers false shutdowns regardless of actual operating temps. Replace sensors every 1,500 hours of runtime to avoid diagnostic errors.
Focus on the stator housing–cracks or warping here compromise structural integrity. Bolts securing the end bells should torque to 25–30 ft-lbs; overtightening strips threads, while undertightening causes vibration issues. If the rotor exhibits excessive wobble, inspect the bearing races for pitting. Lubricate bearings with hi-temp grease (NLGI Grade 2) every 500 hours, but avoid overfilling–seals can rupture at pressures above 1,200 psi.
For maintenance, reference the wiring harness diagram–color-coded leads simplify tracing faults. A frayed red/black wire (24V excitation circuit) is common in older setups; splicing with heat-shrink tubing restores conductivity better than electrical tape. Finally, log all adjustments; noting baseline readings (e.g., 220V ±5% under load) ensures early detection of degradation trends before critical failures occur.
Visual Schematic for High-Capacity Power Unit Components
Refer to the AVR (Automatic Voltage Regulator) terminals–labeled S, L, and N–for correct wiring before first startup. Incorrect connections void the warranty and risk damaging the exciter coil. Use a multimeter to verify L reads 120V AC against ground; S should show 6-8V DC during operation. If readings deviate, inspect the brush assembly for wear or misalignment immediately.
Critical Wear Points and Replacement Intervals
| Component | Symptom | Replacement Cycle (hours) | Part Code |
|---|---|---|---|
| Brush set | Sparking, voltage drop | 300 | BM-BR-2023 |
| Air filter | Reduced airflow, overheating | 200 | BM-AF-89X |
| Spark plug | Misfiring, hard starts | 100 | NGK-BPR6ES |
| Fuel filter | Sputtering, fuel starvation | 150 | BM-FF-300 |
Clean the carburetor’s emulsion tube every 50 hours using compressed air and carb cleaner–never a wire brush. Clogged tubes cause fuel-rich mixtures, fouling the spark plug and reducing efficiency by up to 18%. For dual-fuel models, ensure the LPG regulator diaphragm (part #BM-RG-44) is intact; cracks lead to inconsistent pressure and engine stalling.
Align the engine’s flywheel with the stator for optimal magnetic flux. Use a feeler gauge to set a 0.3–0.4mm gap; deviations outside this range reduce output by 12% and increase harmonic distortion. Secure the flywheel with a torque wrench set to 55 Nm–over-tightening cracks the keyway. Verify alignment with a dial indicator during reassembly.
Critical Elements in Portable Power Unit Blueprints

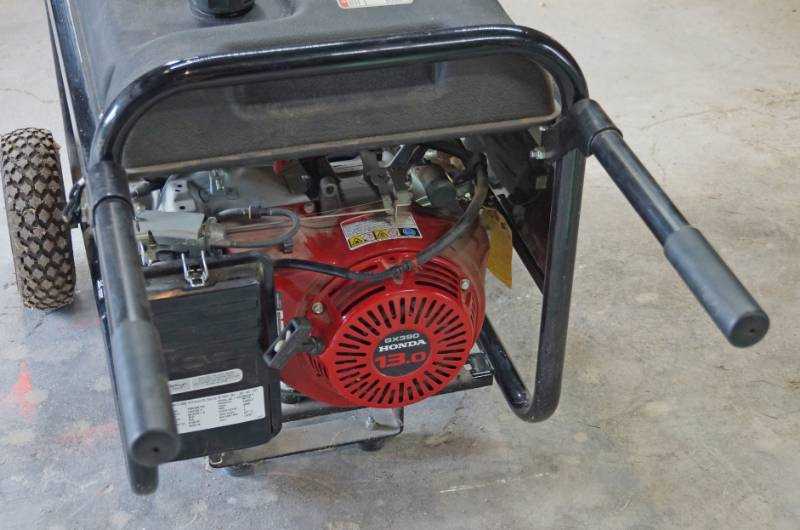

Locate the engine assembly first–it anchors the entire system, typically positioned centrally near the fuel intake. Verify the model’s serial number against the manufacturer’s reference manual to confirm compatibility with aftermarket components, especially for the piston and cylinder head. Misalignment here compromises efficiency and may void warranty claims if modifications are made without approval.
Examine the alternator’s voltage regulator closely; this module dictates output stability, preventing surges that damage sensitive electronics. On most schematics, it’s marked by a rectangular outline with labeled terminals for ground, excitation, and battery connections. Use a multimeter set to 20V DC range to test voltage at these points–readings should align with the specified 13.5–14.5V range under load. Deviations indicate faulty diodes or worn brushes.

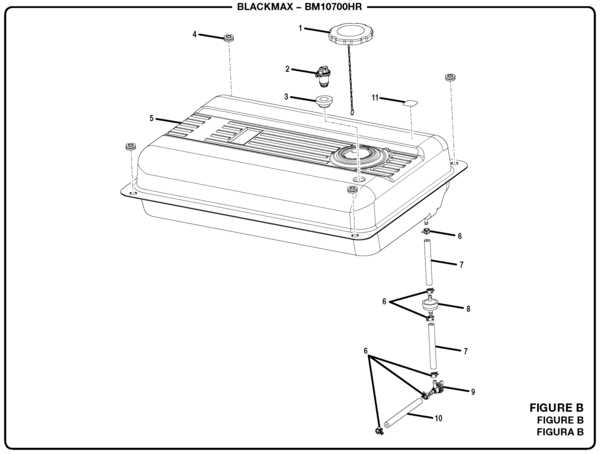

Fuel delivery systems demand scrutiny: the carburetor or fuel injector diagram reveals the flow path, including filters and pressure regulators. For units equipped with electronic fuel injection, trace wires to the ECU, ensuring no corrosion at connectors–a common failure point. Replace filters every 50 operating hours to maintain optimal combustion; neglected filters cause irregular RPMs and excessive carbon buildup.
Inspect cooling fins and fan blades for debris accumulation, particularly in air-cooled models. Overheating deteriorates insulation on wiring harnesses, leading to short circuits. Schematics often depict thermal sensors near the exhaust manifold–these must trigger shutdown at 105°C to prevent catastrophic failure. Apply dielectric grease to connectors during reassembly to prolong lifespan in humid environments.
Finding and Interpreting Your Power Source’s Electrical Schematic
Locate the decal on the side panel or inside the control box–most models embed the wiring layout here, often etched directly onto metal or printed on a durable sticker. If absent, check the owner’s manual under the “Technical Specifications” section; diagrams there detail terminal connections, fuse placements, and color-coding for leads. For older units, schematic sheets may be tucked beneath the fuel tank or secured with a rubber gasket near the engine block.
Decoding Symbols and Wire Colors
Identify the legend at the diagram’s edge–standard symbols include straight lines for wires, circles for connections, and dashed lines for optional or internal circuits. Trace each conductor from its origin (e.g., alternator output) to its termination (voltage regulator, breaker). Red leads typically carry positive charge; black (or dark green) denotes ground; blue, yellow, and white serve auxilliary roles like ignition or sensor feeds. Cross-reference these with the physical harness to avoid miswiring.
Use a multimeter in continuity mode to verify paths if labels fade. Probe terminals while following the schematic–expected readings include near-zero ohms along a continuous run and infinite resistance where circuits split. Mark ambiguous junctions with masking tape and note discrepancies between printed layout and actual assembly; factory revisions occasionally alter configurations without documentation updates.
Store a photographed copy on your device with annotations. Highlight critical paths: starter solenoid to battery, choke solenoid to carburetor, and AC output to breaker box. For generators equipped with digital controllers, separate diagrams often exist–search for a QR code on the control panel or a URL in the manual linking to manufacturer schematics with voltage drop calculations and surge protection specifics.
Step-by-Step Guide to Accessing Internal Components with the Schematic
Begin by locating the primary access panel on the right side of the unit–marked by two recessed screws and a triangular indicator near the base. Use a Torx T-15 driver to remove these fasteners, then slide the panel forward 3 millimeters to disengage the internal latch. Avoid forcing it; the panel should release with minimal resistance once the screws are fully removed. Store fasteners in a magnetic tray to prevent loss during disassembly.
Next, refer to the upper-left quadrant of the technical illustration for the wiring harness routing. Identify the three main connectors–labeled A1 (red), B2 (black), and C3 (yellow)–and depress the release tabs with a flathead screwdriver before unplugging them. Label each connector with masking tape to simplify reassembly. The central capacitor will now be exposed; note its orientation (positive terminal faces upward) before handling it to prevent short circuits. Use a non-conductive tool to carefully detach the grounding strap securing it to the chassis.
To reach deeper assemblies, remove the secondary shield by unscrewing the four Phillips #2 bolts around its perimeter. Lift the shield straight upward to avoid damaging the alignment pins. The internal framework will now be visible–pay close attention to the gear train layout, particularly the idler gear’s position (third from the left). If lubrication is needed, apply 3 drops of ISO 68-grade oil to the gear hubs, but avoid oversaturating them. Reassembly follows the reverse order, ensuring all connectors snap securely and the access panel latched before powering the unit.
Key Components for Your Power Equipment and Their Placement
Start with the air filter (part #831-0160) – it sits in the housing behind the recoil starter, secured by a plastic cover. Replace every 50 hours of operation or if clogged with debris; neglecting this leads to fuel mixture imbalance and reduced output. For coastal or dusty environments, switch to a high-efficiency pleated model (part #831-0160A) with a 30% larger surface area to extend intervals between servicing.
Next, the spark plug (NGK BPR6ES) threads into the cylinder head, accessible after removing the ignition wire boot. Gap it at 0.028–0.032 inches; wider gaps cause hard starting, narrower gaps misfire under load. If fouling occurs within 20 hours, check carburetor adjustment screws (idle mix: 1.5 turns out, main jet: 1 turn out from seated).
- Inspect porcelain for cracks–replace immediately if damaged.
- Use dielectric grease on the boot to prevent moisture ingress.
- Torque to 15 lb-ft; over-tightening strips threads in aluminum heads.

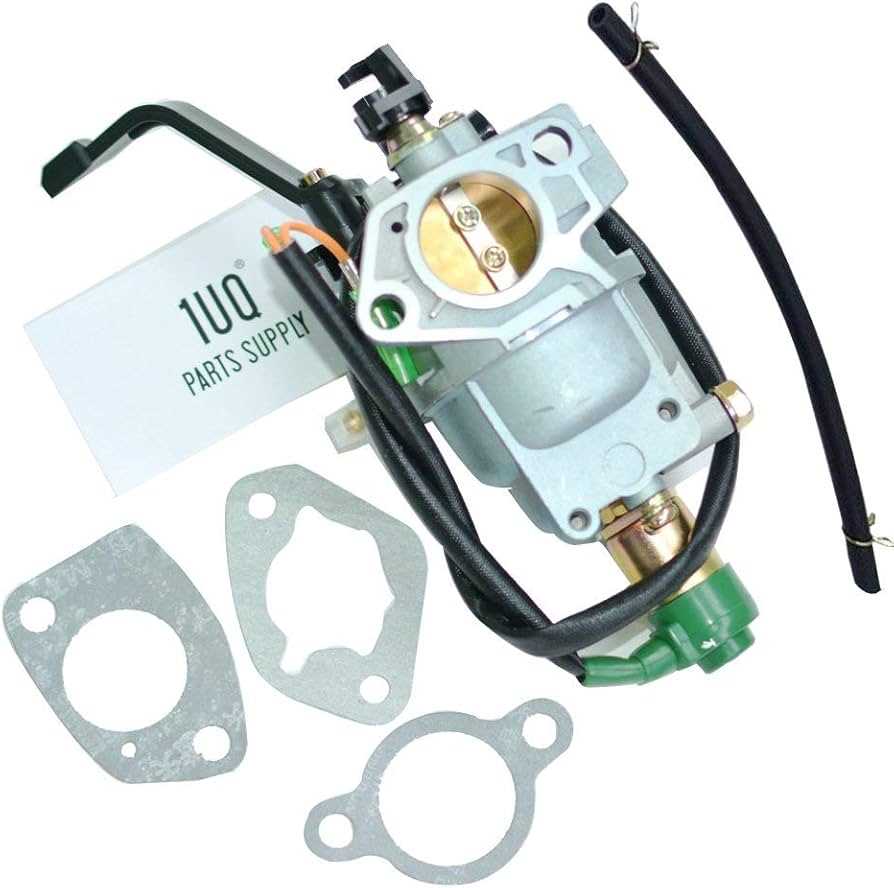

The carburetor rebuild kit (part #196174) targets the following spots:
- Float bowl gasket seals beneath the bowl; leaks here starve the engine of fuel.
- Needle and seat control fuel flow into the bowl–adjust float height to 0.24 inches (measured from the bowl mating surface).
- Diaphragm and gasket sit under the top cover; tears cause erratic RPMs.
- Idle speed screw (coarse thread) – set it to hold 3,000 RPM without load.
Clean jets with 0.013-inch wire (included in kit) after soaking in acetone for 15 minutes. Replace the kit every 200 hours or if ethanol-blend fuel has caused gumming.
