Replace the impeller every 100 operating hours or annually–whichever comes first–to prevent overheating and cavitation damage in 150-horsepower four-stroke models. The water pump housing, part number 6J5-45561-00, often cracks under prolonged use; inspect it during impeller service. A failed thermostat, marked 6E5-45310-00, triggers temperature alarms at 70°C, but false readings frequently stem from corroded sensor wiring at the harness connector.
Fuel filters, including the primary 6M6-13440-01 and secondary 6M6-13441-00, require replacement every 50 hours in ethanol-blended fuel to avoid injector clogging. The high-pressure fuel pump, located behind the flywheel, generates 50-60 psi; diminished pressure (
Anode plates degrade faster in saltwater; replace zincs when 50% eroded to protect the powerhead and gearcase. The trim sender, part 6M6-82550-01, fails silently, causing erratic tilt operations–test resistance (40-60 ohms at full trim) before condemning the motor’s hydraulic system. Shift cable routing through the transom bracket pinches over time; lubricate with marine grease every 20 hours to prevent binding.
Spark plugs, NGK MR7C or BR8HSM-10, last 200 hours but show fouling earlier with frequent idle periods. Inspect electrodes for erosion–gap should not exceed 0.9mm. The starter motor’s bendix gear wears prematurely if engaged for longer than 30 seconds during cold starts; allow 60 seconds between attempts to prevent overheating. For lower-unit disassembly, note shim locations–the large washer under the propeller shaft (0.5mm thickness) often gets misplaced during seal replacement.
Understanding Your Outboard Motor’s Component Layout: A Hands-On Reference
Begin by locating the electrical system’s fuse box beneath the cowling–marked with a red arrow in service manual illustrations–positioned adjacent to the powerhead’s left side. This area houses critical safety components, including the 20A main fuse and the rectifier-regulator, which converts AC to DC for battery charging. Verify fuse ratings before replacement: the primary fuse must match 20A; substituting with a 15A fuse risks overload during peak acceleration.
Inspect the thermostat assembly, mounted near the cylinder head’s cooling passages. The housing, identifiable by a brass-colored cap, regulates engine temperature via a wax pellet mechanism. Should overheating occur, remove the cap and submerge the thermostat in boiling water–proper operation will cause the valve to open at 71°C (±2°C). Failure to respond indicates replacement necessity, typically necessitating part #63Y-13550-00-00.
| Component | Location | Identification Tip |
|---|---|---|
| Starter motor | Lower powerhead, rear-facing | Look for a cylindrical housing with two thick cables |
| Fuel pump | Mid-engine, starboard side | White plastic casing with vacuum hose connections |
| Water pump impeller | Lower unit, driveshaft housing | Neoprene vanes visible when lower gearcase is disassembled |
When servicing the lower unit, disengage the driveshaft coupling by removing the trim tab bolt (10mm socket) and the four flange nuts securing the gearcase. The driveshaft splines must align precisely during reassembly–misalignment will trigger vibration at 3,500 RPM. Apply marine grease (NLGI #2) to splines before mating surfaces, avoiding excessive application near seals to prevent contamination.
Examine the anodes–two zinc rods (one on the trim tab, one inside the cooling system)–every 50 operating hours. Corrosion exceeding 50% depth renders them ineffective, requiring immediate replacement with same-density alloy (never substitute steel or aluminum). The trim tab anode alone protects against galvanic corrosion; neglect accelerates pitting in the propeller and gearcase housing.
Replace the oil seal on the propeller shaft housing if water intrusion is detected–identified by milky gear oil during routine lower unit checks. The seal (part #67Y-45940-00-00) demands precise installation: the lip must face inward, seated flush with the housing bore. Use a seal driver (or a socket matching the seal’s outer diameter) to avoid deformation during installation.
For carbureted models (pre-2018 units), adjust the idle mixture screw by turning clockwise until lightly seated, then back out 1.5 turns. Confirm proper mixture by observing spark plug color after a 10-minute run: light tan indicates optimal fuel-air ratio; black soot or white residue signals adjustment error. Electronic fuel injection systems (post-2018) require diagnostic software (e.g., Yamaha Diagnostic Tool) to recalibrate the ECU if hesitation occurs at partial throttle.
Understanding the Powerhead Assembly Mapping
Begin by identifying the upper cowling fasteners–two latch clips on the port and starboard sides. Remove these first to avoid damaging the plastic tabs, then lift the cowling straight upward to expose the motor’s core. The ignition coils sit directly above the flywheel, mounted on a heat-resistant bracket; trace their wiring to confirm connections before proceeding.
Locate the fuel pump beneath the carburetor assembly, adjacent to the intake manifold. Mark its position using a non-permanent marker if removing, as reinstallation demands precise alignment with the mounting grommets to prevent fuel leaks. The oil injection reservoir sits slightly aft, distinguishable by its translucent housing and threaded filler cap.
The timing belt cover runs vertically along the motor’s front, secured by six Torx screws. Remove these in a diagonal sequence to avoid warping the cover, then inspect the belt’s tensioner pulley for signs of wear. Replace the belt if cracks or fraying appear–compromised integrity risks sudden failure under load.
The thermostat housing is attached to the exhaust manifold, identifiable by two rubber coolant hoses. Detach these carefully to access the unit, checking for corrosion inside the housing that could restrict flow. The water pump impeller lies directly below, hidden behind a circular cover plate held by three Phillips screws.
Trace the shift cable from the control box to its terminal point at the lower unit’s shift shaft lever. Lubricate the cable’s outer sheath with marine-grade grease before reassembly to ensure smooth operation. The trim sender unit sits adjacent to the hydraulic pump, its electrical connector sealed against moisture ingress.
Inspect the stator plate beneath the flywheel, noting the alternating color-coded wires for correct reconnection. Misalignment during reinstallation can cause charging system failures–verify torque specs (12-15 Nm) for flywheel bolts before securing. The rectifier regulator is mounted inboard near the battery cables, heat-sinked for cooling efficiency.
Check the steering torque tube connections at the transom bracket, ensuring the universal joint rotates freely without binding. Apply corrosion inhibitor to the splines if disassembly is necessary. The tilt and trim cylinders attach via spherical rod ends–examine these for excessive play that could indicate worn bushings.
The lower unit’s propeller shaft housing contains the forward-neutral-reverse gears; drain the gearcase oil first using the designated port before disassembly. The anode plates must be replaced if more than 50% of their material is eroded to maintain sacrificial protection. Document shim selection during reassembly to preserve proper gear mesh alignment.

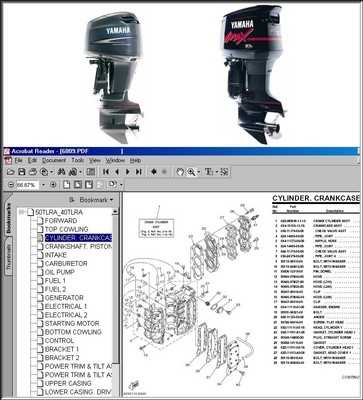

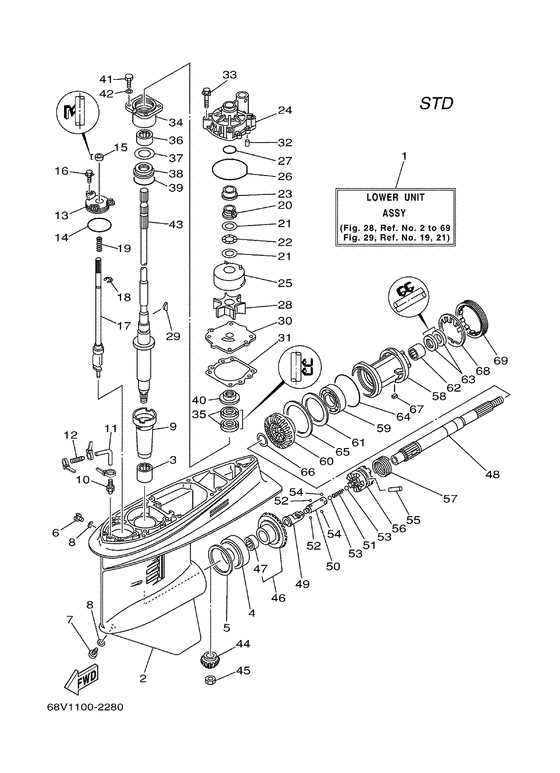

How to Pinpoint Exact Components with an Outboard Motor Exploded View
Locate the engine assembly section in the visual breakdown–typically clustered near the top–and cross-reference the numeric labels with the accompanying list. Each figure corresponds to a specific stock piece, such as the 63H-13521-00 (fuel pump diaphragm) or 6J5-12423-00 (thermostat housing gasket). Use a magnifying tool to verify tiny O-rings, clips, and seals often overlooked during cursory inspections.
Check torque specifications for critical fasteners before disassembly–values are listed adjacent to bolts and screws in Newton-meters. Replace any hardware showing thread corrosion or deformation immediately; original-grade replacements like 94310-336XX (stainless steel bolts) outlast generic equivalents. Always examine the water pump impeller (part 6C5-45962-00) for cracks or uneven wear if overheating issues occur.
Filter elements (oil, fuel, and water separator) appear under separate sub-assemblies–confirm micron ratings match OEM specs when sourcing aftermarket alternatives. The lower unit section details propeller shaft bearings (part 6E6-45211-00) and shift cam components; misalignment here triggers gear engagement failures. Keep a multimeter handy to test electrical connections on items like the ignition coil (6B6-85520-00) if misfiring persists.
Gaskets and seals appear in two distinct zones: engine block and gearcase. Prioritize replacing the exhaust cover gasket (6J5-12410-00) during every major service to prevent water ingress. For corrosion-prone models, apply dielectric grease to connectors like the 6N8-U7321-00 (rectifier/regulator harness) during reassembly to extend component lifespan in saltwater conditions.
Throttle and shift linkages require periodic adjustment–reference the cable routing diagrams to avoid binding. Lubricate pivot points with marine-grade grease, targeting parts like 6E6-45540-00 (shift rod guide) to prevent premature wear. Inspect the tilt lock mechanism (6E6-45230-00) for stripped threads if the motor fails to hold position under load.
Pre-assembled kits exist for complex maintenance tasks, such as the powerhead rebuild set containing pistons, rings, and seals. Compare these bundles against individual listings to avoid redundancy–for example, the 6C5-4501F-00 kit bypasses tracking down pistons (63H-11141-00), wrist pins (63H-11241-00), and cylinder head bolts separately. Retain original packaging for warranty claims if early failure symptoms reappear.
