Start by identifying the exact model year of your side-by-side; the 2003-2007 variants share most components, but later revisions introduced subtle differences in the drivetrain housing and electrical connectors. Obtain the official service manual for precise torque specifications–third-party “universal” schematics frequently omit critical updates like the updated throttle body linkage introduced in 2005.

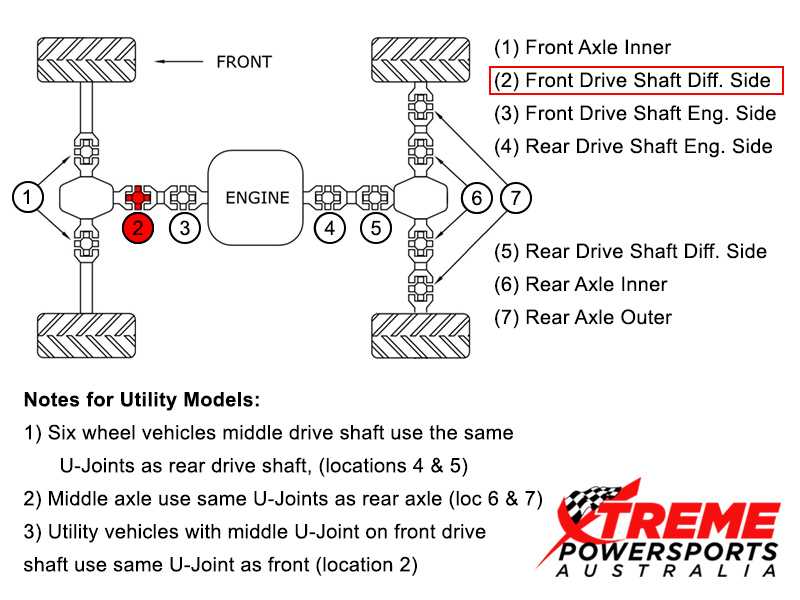

Prioritize OEM components for the CVT clutch assembly; aftermarket belts may fit, but sustained high-load operation risks premature wear. Verify spline count on the driveshaft before ordering U-joints–early models use a 24-spline configuration, while post-2006 units transitioned to 27 splines. Replace the fuel pump in conjunction with the fuel filter to avoid repeated disassembly.
For electrical troubleshooting, isolate the ignition switch wiring harness first; corrosion at the main connector often mimics ECU failure. Use dielectric grease on all relays and fuse contacts during reassembly. When servicing the rear differential, drain the gear oil and inspect the ring gear teeth for pitting–this typically indicates worn bearings rather than insufficient lubrication.
Track down the auxiliary engine cooling lines separately; these are often overlooked in generic component lists but fail at nearly the same rate as the primary radiator hoses. Replace both front and rear shock absorbers simultaneously–uneven damping creates handling instability even with new tires. Confirm the exact model of your winch if equipped; mounting plates differ between Warn and Comeup units.
Inspect the parking brake mechanism thoroughly–misadjusted cables frequently cause uneven pad wear, and replacement drums require precise machining tolerances. Order gaskets in advance; critical seals like the valve cover and oil pan use non-standard compounds and are prone to dry rot after 1,500 operating hours. Keep a digital caliper on hand to measure wear limits on critical components like piston rings and cylinder bores.
Visual Breakdown of Utility Vehicle Components: Step-by-Step Reference
Locate the engine assembly schematics first. The manufacturer’s exploded view identifies critical elements like the crankcase (part #21030-1913) and cylinder head (#21006-1523) with precise measurements–bore 72mm, stroke 60mm. Cross-reference these with the serial number stamped on the frame near the driver’s seat to confirm compatibility before ordering replacements.
Brake system diagrams detail hydraulic lines (#43032-1412), calipers (#43012-0967), and brake pads (#43026-0118). Check pad thickness–minimum 3mm–to avoid rotor damage. The parking brake cable (#44041-0197) should have no fraying along its 1,200mm length; lubricate pivot points with molybdenum disulfide grease annually.
Suspension schematics include A-arms (#52001-1258), shocks (#52003-0132), and sway bars (#52009-0311). Measure shock shaft diameter–12mm for stock models–before upgrading to aftermarket units. Ball joints (#53012-1179) require torque of 45-55 Nm; overtightening shears the tapered fit.
Electrical wiring layouts pinpoint the main harness (#22101-1012), fuses (15A/20A/30A), and ignition coil (#22019-1147). Use a multimeter to test resistance: primary coil should read 0.5-1.5 ohms, secondary 6-12k ohms. Label each connector with masking tape to simplify reassembly.
Body panels–hood (#71010-1134), cargo bed (#72010-1589), and doors (#71020-0763)–are attached with Torx-25 bolts, requiring a ¼-inch drive socket. Replace damaged panels immediately to prevent water ingress, which corrodes the subframe. The bed hinge pins (#72050-1127) should rotate freely; apply anti-seize compound during installation.
For fuel system diagnostics, study the pump (#17012-1318), filter (#17009-0145), and injectors (#17015-0231). The filter’s micron rating (10μm) must match OEM specs to prevent fuel starvation. Injector flow rates–30cc/min at 3 bar–should be balanced within 5% across cylinders. Use a scan tool to clear ECU fault codes after repairs.
Locating Manufacturer-Authorized Utility Vehicle Schematic Resources
The primary source for authentic component illustrations is the brand’s dedicated support portal. Visit kawasakimotors.com/parts and input the exact model identifier–no alternative naming conventions work here. The system generates interactive exploded views with OEM reference numbers, pricing, and stock availability. Bookmark the exact URL after filtering to bypass repeated searches.
Local authorized dealers maintain proprietary databases only accessible in-store. Request a printout of the specific subsystem–engine assembly, drivetrain, or hydraulic circuits–using the vehicle’s serial plate details. Some locations charge a nominal fee for full-color copies; call ahead to confirm policies.
| Provider | Access Method | Update Frequency | Content Depth |
|---|---|---|---|
| Official portal | Online search | Quarterly | Complete assemblies |
| Dealer network | In-person visit | Monthly | Targeted subsystem |
| Third-party manuals | Purchase/Download | Annually | General maintenance |
Haynes and Clymer publish aftermarket service guides that include simplified overviews. Purchase the physical manual or digital PDF from haynes.com–filter by the precise model year and configuration, as early and late production runs differ in component placement. Cross-reference critical items with OEM illustrations to verify accuracy.
Specialized agricultural and construction equipment forums archive user-compiled schematics. Search threads on tractorbynet.com or atvillager.com using the model’s engine code–KF620D or KF750D–to uncover member-uploaded scans. Prioritize posts marked “verified by dealer” or those with multiple confirmation replies.
EBay and Amazon list individual sellers offering scanned factory documents. Examine seller feedback beyond 98% positive rating and confirm the document includes the specific submodel designation–transmissions, for example, vary between 4×2 and 4×4 variants. Pay via protected methods and request a preview sample page before finalizing payment.
Parts suppliers like Partstree and Jack’s Small Engines host searchable catalogs mirroring OEM data. Enter the exact VIN prefix or engine model series to retrieve matching illustrations. These platforms integrate with major distributors, enabling direct ordering–verify part compatibility by examining adjacent items in the schematic.
Archive.org preserves historical snapshots of the official parts portal. Navigate to web.archive.org, paste the original parts URL, and select a capture date from a period when the vehicle was actively supported. This method retrieves discontinued component layouts but lacks real-time updates.
How to Pinpoint Key Powertrain Elements Using Official Schematics
Locate the crankcase cover on the right side of the engine by referencing section 3B of the official layout. The cover should match the numbered outline–typically four bolts securing it–and house the oil filter. If the filter appears swollen or leaks, cross-check the adjacent O-ring (item 42) for wear; replacement requires precise torque specs (8-10 Nm) to avoid deformation. Note the overflow tube nearby–its placement confirms correct assembly.
- Inspect the camshaft sprocket (item 17) for chipped teeth; rotate the crankshaft manually to verify timing alignment.
- Trace the intake manifold toward the valve cover; loose bolts (item 29) often cause vacuum leaks detectable via soapy water test.
- Mark the ignition coil leads (red/yellow wires) on the wiring map before disconnecting–their polarity affects fuel-injection timing.
The exhaust manifold’s flange bolts (item 56) loosen predictably under thermal stress. Apply anti-seize compound (spec: Molykote 1000) during reassembly but avoid over-tightening–12 Nm max. Nearby, the lambda sensor threads into the header pipe; verify its connector isn’t corroded by probing pins with a multimeter (resistance: 0.5-1.5 kΩ). Missing ground straps accelerate sensor failure.
Identify the alternator’s stator plate (item 7) by following the flywheel’s peripheral bolts. Use a feeler gauge (0.3-0.4 mm) to check rotor-stator air gap if charging issues arise–the gap widens unevenly over time. Adjacent sensors (rectifier, pickup coil) attach via snap-lock tabs; tug gently to confirm secure seating. If voltage readings drop below 13.8V, rule out diode bridge failure by measuring AC ripple (should not exceed 0.1V).
- Trace fuel pump wiring to the tank sender unit–incorrect routing melts insulation under heat.
- Compare the thermostat’s bypass valve (item 33) position to the schematic; misalignment causes overheating.
- Confirm throttle body synchronization using vacuum gauges at both intake runners–variance above 1% indicates stuck butterflies.
- Replace damaged gaskets with updated part numbers (e.g., item 82A replaces 82); older versions degrade faster.
Replacing Drivetrain Components: Precise Steps Using the Off-Road Utility Vehicle Schematic
Begin by securing the rear differential housing with a torque wrench set to 28-32 ft-lbs after installing new bearings; refer to label D-14 on the exploded view for proper alignment. Loosen the driveshaft coupling bolts in a star pattern to prevent warping–start at 35 ft-lbs, then finalize to 45-50 ft-lbs. For CV joints, pack each with 4.2 oz of molybdenum disulfide grease before seating; misalignment here causes premature wear detectable by a metallic knock at 15-20 mph under acceleration.
Clip the shift cable adjuster (ref. C-7) to the transmission bracket with the engine in neutral–free play should not exceed 3mm. Replace the final drive gear oil within 100 miles post-installation; use SAE 80W-90 GL-5 (fill to the lower edge of the fill plug hole). When reassembling the belt pulley system, ensure the secondary sheave springs (ref. B-3) compress evenly–uneven tension reduces belt lifespan by 30%.
