Replace faulty segments in less than 30 minutes using a standard 9/16″ wrench and a T25 Torx driver–no specialized tools required. Start by disconnecting the inlet supply line and draining residual pressure: open the nearest outlet valve before loosening any fasteners to prevent water spillage. Label each removed component with painter’s tape; mark orientation arrows on springs and springs seats to ensure correct reassembly.
Focus on the first check valve subassembly–the most frequent failure point. Remove the poppet retaining ring with needle-nose pliers, then slide out the disc and seat assembly. Inspect the rubber seal: a single hairline crack or uneven wear warrants replacement. Clean the mating surfaces with 600-grit wet/dry sandpaper, followed by isopropyl alcohol on a lint-free cloth. Apply a thin coat of food-grade silicone grease to both the disc and seat faces to reduce friction and extend service intervals.
The reduced-pressure zone components demand methodical attention. Extract the relief valve piston using a magnetic pick-up tool–excessive corrosion here directly affects downstream protection efficiency. Measure spring tension against factory specs: a loss greater than 15% (typically 8–12 lbs at full compression) requires full spring kit replacement. Reinstall sequences matter–always reinsert springs concave-end first, ensuring the lower retainer’s groove aligns with the housing indexing notch.
Test integrity immediately post-assembly. Connect a regulated air compressor set to 7 psi at the inlet and a water column manometer at the outlet. A pressure drop exceeding 0.5 psi/minute indicates improper seating; recalibrate disc alignment if values stabilize above 1.0 psi. For field adjustments, rotate the test cock handles clockwise only–counterclockwise rotation risks thread galling on brass ports.
Key Components of an Anti-Siphon Assembly Schematic
Inspect the pressure-reducing chamber first–it’s the most failure-prone element in hydraulic safety valves. Locate the spring-loaded diaphragm inside; signs of corrosion or mineral buildup on its surface indicate imminent malfunction. Replace if pitting exceeds 0.5mm depth or if the seal lip appears flattened. Always match replacement seals to the original durometer rating (typically Shore 70A) to maintain crack resistance under fluctuating line pressures up to 150 PSI.
The check valve housing contains two opposing rubber-clad poppets; verify their alignment by pressing each simultaneously–misalignment beyond 2° will cause uneven closure and back leakage. Lubricate the guide rods with FDA-compliant silicone grease (thickness 0.3mm) every six months to prevent binding under thermal expansion cycles between -10°C and 60°C. Replace cracked poppet seats immediately; even hairline fractures compromise pressure differential sealing below 1 PSI.

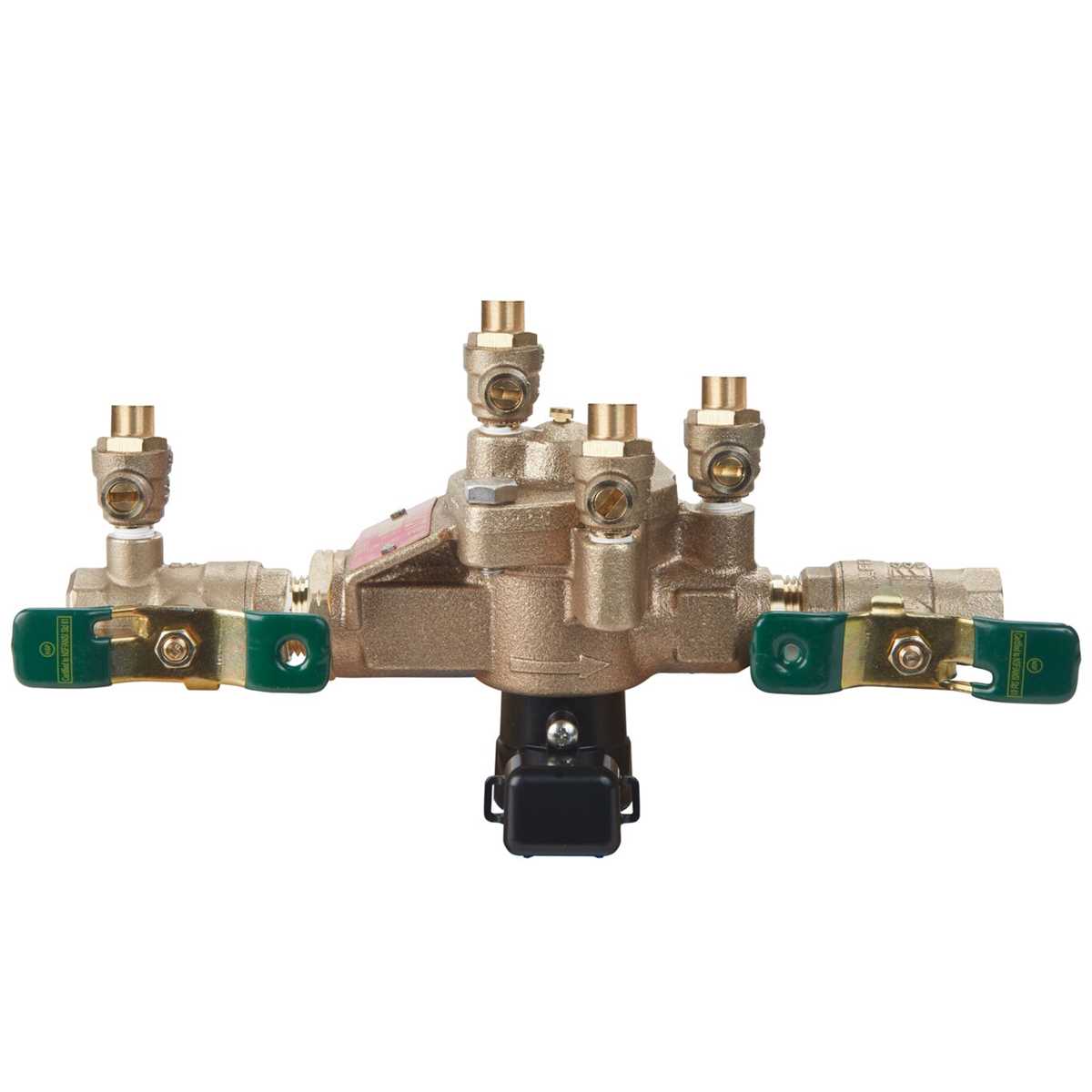

Examine the test cocks–four brass ports angled at 45° along the body’s midsection–for thread integrity. Corrosion here disrupts accurate pressure readings during annual certification tests. Use a caliper to measure port wall thickness; discard if reduced below 1.8mm (original spec is 2.1mm). The lower cock must withstand 300 PSI without weeping; seal with PTFE tape only on male threads to avoid blocking sensor pathways during flow verification.
Focus on the air inlet valve seated atop the assembly–a spring-loaded brass piston with a 3mm orifice. Clogging here starves the vacuum breaker, leading to slow drainage after shutoff. Clean with a 0.018-inch wire annually; ensure the orifice remains concentric, as oval distortion (tolerance ±0.1mm) hinders proper air intake sequencing. Replace the full assembly if piston travel exceeds 0.5mm beyond the housing stop, a common failure after 2,500 operating cycles.
Trace the internal bypass channels–cast into the bronze body–using a fiber-optic scope. Sediment accumulation here reduces flow efficiency by up to 30% over two years. Flush with heated citric acid solution (60°C, 5% concentration) in reverse for ten minutes; avoid hydrochloric acid, which etches the lead-free alloy junctions. Confirm restoration by measuring static pressure drop–target is less than 2 PSI at 8 GPM for systems below 1.25-inch pipe diameter.
Identifying Core Components in an Anti-Siphon Valve Assembly
Begin by locating the primary pressure regulator–typically a cylindrical housing with inlet and outlet ports–positioned at the unit’s base. This element controls upstream water pressure to ensure downstream mechanisms operate within safe limits. Inspect the spring-loaded diaphragm inside; corrosion or residue buildup here disrupts calibration, leading to leakage or failure under backpressure events.
Next, examine the check modules. Most assemblies integrate two independently operating valves stacked vertically. The lower disc responds to inlet pressure while the upper disc reacts to downstream conditions. Verify that both seals are intact; cracks or deformation require immediate replacement. A single compromised seal renders the entire system ineffective.
Critical Inspection Points
| Component | Material | Failure Signs | Replacement Interval |
|---|---|---|---|
| Spring mechanism | Stainless steel | Rust, tension loss | 5-7 years |
| Elastomeric diaphragm | EPDM/Nitrile | Hardening, tears | 3-5 years |
| Brass seating surface | Silicon bronze | Pitting, scaling | 7+ years |
Pay special attention to the relief vent aperture. This small opening–often mistaken for a drainage port–activates during pressure differentials, discharging water to prevent cross-contamination. Clogging here inhibits emergency release, compromising flow reversal protection. Clean it annually using a 0.5mm wire probe; avoid aggressive tools that may widen the orifice.
During disassembly, document the sequence of springs and washers. Many models incorporate washers with directional grooves; installing them backward creates a false seal, causing intermittent failures. Use the original manufacturer’s exploded view–available through product-specific technical bulletins–as a reference. Third-party schematics often omit critical tolerance notes.
Testing Procedures Without Specialized Equipment
Isolate the unit and apply 10 psi upstream using a garden hose adapter. Observe the relief vent: a continuous drip indicates a faulty first check valve, while no discharge suggests a stuck second check. For the air inlet test, pressurize the downstream side; bubbling at the vent confirms internal leakage, requiring full disassembly. These methods approximate ASSE 1013 certification checks without gauge clusters.
Step-by-Step Breakdown of a No. 8 Single-Disc Reverse Flow Regulator Illustration
Begin by locating the inlet and outlet ports on the schematic–typically marked with pressure ratings (e.g., 150 PSI) and directional arrows. The inlet sits opposite the spring-loaded disc assembly, identifiable by its threaded housing cap. Verify the disc’s orientation: the concave surface must face upstream to ensure proper sealing against backpressure. If disassembling, place components in sequence–spring first, followed by the disc, then the guide washer–to prevent misalignment during reassembly. Note the O-ring groove near the outlet; it requires replacement if flattened or hardened.
Critical Component Interaction
The coiled compression spring exerts 8–12 lbs of force onto the disc, calibrated to open at 1–2 PSI differential. Check the guide washer’s integrity–warping or cracks reduce disc movement precision. During pressure surges, the disc’s brass or stainless steel face rebounds against the seat, a machined flat surface within the body. If leakage occurs, inspect the seat for pitting or debris; lapping with fine-grit compound restores smooth contact. Avoid over-tightening the housing cap–torque to 30–35 ft-lbs–to prevent thread stripping or spring compression deformation.
For maintenance, flush the regulator with clean water to remove sediment before disconnecting. Replace both the O-ring (Buna-N or Viton) and spring every 24 months, regardless of visual condition, as fatigue weakens performance. Ensure the replacement disc matches the original diameter (±0.003 inches) to maintain flow dynamics. Test functionality by applying low-pressure air (5 PSI) at the outlet while monitoring the inlet; the disc should remain closed. If it opens, recalibrate the spring or replace the disc guide assembly.
Finding Replacement Components with Hydraulic Assembly Blueprints

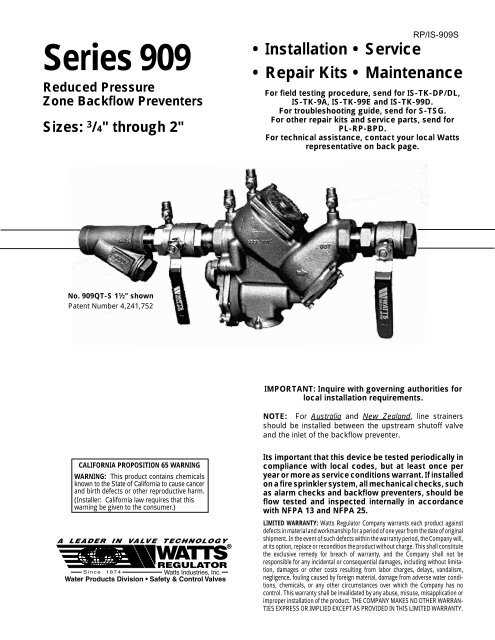

Start by identifying the serial number on your device’s casting–typically etched near the inlet or on the body’s lower section. Cross-reference this with the manufacturer’s official exploded views, available via their product support portal or authorized distributors like Ferguson, PlumbersStock, or SupplyHouse. Industrial models (e.g., 909, 709 series) often share core internals; verify compatibility by matching O-ring grooves, spring tensions, and seat diameters listed in the technical sheets.
Key Resources for Precision Identification
- BrassCraft Toolkit: Offers interactive schematics with part numbers hyperlinked to inventory; filter by valve type (reduced pressure, double check) and size (½” to 10″).
- Local Codes & Standards: Municipal water authorities frequently publish approved replacement lists–consult AWWA M14 or ASSE 1013 for dimensional tolerances if OEM parts are unavailable.
- Third-Party Kits: Vendors like Zurn or Wilkins provide universal seat spring assemblies, but ensure thread pitch (usually NPT) and check disc orientation align with your assembly’s design.
For obsolete units, consult the original installation manual–archived versions on Archive.org often retain part nomenclature absent from newer documents. Critical wear items (diaphragms, poppets) exhibit distinctive failure modes: deformed diaphragms suggest pressure spikes, while grooved poppets point to debris erosion. Replace in pairs to maintain balanced flow dynamics.
- Measure orifice sizes with calipers (±0.005 inch tolerance) if substituting generic seals.
- Lubricate all moving components with silicone grease–petroleum-based agents degrade rubber compounds.
- Pressure-test assemblies at 80% of rated PSI before reinstallation to confirm seating integrity.
