Start repairs by locating the diagonal actuator on Model 5.0L Alpha. Its schematic shows a four-bolt flange connecting the unit to the lower housing; misalignment here causes gimbal bearing failure within 40–60 operating hours. Verify torque specs–65 lb-ft for 10mm bolts–before disassembly. Replace the actuator gasket (Part #805275) every overhaul; micro-fractures lead to water intrusion and corrosion of the shift cable assembly.
Examine the universal joint next. Schematics reveal three spline variations–14, 17, and 21 tooth–for the driveshaft connection. Cross-reference serial number prefix (e.g., “W” indicates 17-tooth) to avoid mismatched components. Lubricate the joint with NLGI 2 marine grease before installation; dry runs shear needle bearings within 15 hours. Inspect the coupling ring for cracks–schematics pinpoint stress zones at the 7 o’clock and 11 o’clock positions (viewed from aft).
Water pump impellers fail predictably. Schematics show six vanes on standard replacements (Part #27-835772); aftermarket versions with five vanes reduce flow by 18%. Replace impeller housing every 300 hours–aluminum erosion at the outlet port exceeds 0.3mm tolerance. Pressure-test the system at 12–15 psi post-installation; leaks at the gasket surface indicate improper seating or nicks in the machined groove.
Thrust bearings require exact positioning. Schematics detail axial preload adjustment–shim thickness between 0.004″ and 0.008″ eliminates play but prevents binding. Over-torqued nuts (max 40 lb-ft) compress bearings, causing heat buildup and premature failure. Check alignment lasers–misalignment >0.002″ at the propshaft splines accelerates wear on the reverse gear assembly.
Exhaust elbows corrode internally. Schematics highlight three critical bends–entry, mid-section, and exit–where pitting occurs first. Replace elbows if wall thickness drops below 2.1mm (original spec: 3.2mm). Use stainless steel fasteners (Part #96427A) for mounting; standard bolts corrode within one season in brackish water. Apply anti-seize to threads but avoid contact with mating surfaces–contamination disrupts torque readings.
Understanding Your Marine Propulsion System Blueprint
Begin by locating the upper gearcase assembly on any reference schematic, typically positioned beneath the anti-ventilation plate. This section includes critical components like the drive shaft, propeller hub, and water pump impeller–elements prone to wear after 200 hours of operation. Replace the impeller every two seasons, regardless of visible condition, as degraded rubber compromises cooling efficiency and risks overheating.
The shift cable connects the helm control to the engine’s transmission mechanism, requiring adjustment if shifting feels sluggish or delayed. Disconnect the cable at both ends and lubricate with marine-grade grease annually. Ignoring this maintenance leads to premature clutch plate wear, evident by grinding noises during gear engagement. A 0.125-inch gap between the cable end and the transmission lever ensures precise control.
Inspect the anode–usually zinc–mounted on the lower unit’s exterior quarter annually. Corrosion rates accelerate in saltwater, necessitating replacement when 50% degraded. A corroded anode cannot protect vital metal surfaces, such as the trim cylinders or bellows, from galvanic corrosion. Always use manufacturer-specified anodes to avoid compatibility issues, which invalidate warranty coverage in most cases.
Examine the bellows–flexible rubber seals connecting the exhaust, shift, and water tubes–for cracks, dry rot, or hardening. Replace all three bellows simultaneously, even if only one shows damage, to prevent water intrusion into the transom assembly. Use a flashlight to peer inside the bellows cavity; moisture or mildew indicates a failed seal. Torque the bellows clamps to 8-10 ft-lbs to prevent leaks without deforming the rubber.
Check the exhaust elbow for carbon buildup every 100 hours of runtime, especially in engines running on ethanol-blended fuels. A clogged elbow restricts exhaust flow, causing power loss and potential backpressure damage to the powerhead. Tap the elbow lightly with a rubber mallet to dislodge loose carbon deposits, then flush with a 50/50 vinegar-water solution for stubborn buildup. Never use wire brushes–these scratch the ceramic coating and accelerate corrosion.
The power trim system relies on hydraulic fluid levels checked at the reservoir near the pump. Low fluid causes slow or erratic trim operation, often misdiagnosed as a faulty pump. Use OEM-spec fluid and bleed the system completely when refilling to purge air pockets. A single air bubble in the trim cylinders reduces lifting force by 15-20%, forcing the pump to work harder and shortening its lifespan.
Refer to the assembly breakdown for torque specifications–critical when reinstalling the drive unit. Over-torquing the gimbal bearing housing bolts, for example, distorts the bearing race and causes premature failure. Use a beam-style torque wrench for accuracy, as click wrenches often over-tighten by 5-7 ft-lbs. Mark each bolt with paint after installation to track loosening over time, a common issue in models subjected to frequent docking impacts.
How to Identify Critical Assembly Elements in an Outboard Gearcase Breakdown
Begin by isolating the upper gearcase section in the illustrated layout. Focus on the bell housing and input shaft–these connect the engine’s flywheel to the lower unit. The bell housing typically appears as a large, conical or cylindrical flange adjacent to the engine coupling; verify its position by matching the bolt pattern in the schematic to the physical assembly.
Trace the propeller shaft from the gearset toward the water pump housing. In most schematics, it runs parallel to the trim cylinders, terminating at the propeller hub. Note the thrust bearing location–usually embedded near the shaft’s midpoint–since misalignment here accelerates wear on seals and splines. Cross-reference shaft diameter with the parts list to confirm compatibility.
Common Component Locations and Markers
| Element | Schematic Indicator | Physical Landmark |
|---|---|---|
| Universal joint | Adjacent to gimbal bearing | Rear of bell housing, splined interface |
| Exhaust elbow | Curved conduit exiting gearcase | Port side, cooled by raw water flow |
| Shift actuator | Concentric with drive shaft | Mid-section, connected to shift cable |
| Trim sender | Small cylindrical protrusion | Upper rear quadrant, wired to gauge |
Locate the water pump impeller assembly by following the raw water inlet hose. It sits atop the driveshaft housing, directly beneath the gearcase. The impeller’s blade count and diameter should match the service manual: six vanes for 3.0L models, eight for larger variants. Inspect the housing for scoring, as erosion here leads to overheating.
Check the gimbal bearing’s condition by rotating the drive shaft manually while observing the schematic. It sits just forward of the U-joint, pressed into the transom plate. Grease channels must align with lubrication ports–misalignment causes binding. Replace the bearing if play exceeds 0.003 inches when measured with a dial indicator.
Identify the trim cylinders by their external hydraulic lines and mounting bosses. These attach to the intermediate housing and articulate the lower unit during adjustment. Ensure piston rod seals appear intact; corrosion on the rods signals internal fluid contamination. Cross the schematic’s exploded parts numbers with the cylinder serial tags to confirm rebuild kits.
Troubleshooting Hidden Elements
For the sacrificial anode, scan the lower gearcase exterior for a threaded zinc plug, often beneath the propeller. Its position varies: some models attach laterally, others vertically. Verify zinc alloy composition–Pure Anode zinc (99.9%) resists electrolysis better than aluminum mixes.
Finally, confirm the shift interrupt switch location by tracing the shift cable to its termination point. This safety switch prevents starter engagement when the unit is in gear. It typically appears as a small electrical connector near the shift rod mechanism. Test continuity with a multimeter; resistance should drop to zero when engaged.
Key Components Prone to Degradation in Marine propulsion schematics
Inspect the gimbal bearing assembly first–located where the lower unit interfaces with the transom plate. This bearing endures extreme torque and water ingress, leading to corrosion of its spherical races or cracking of the rubber seal. Replace it if play exceeds 0.010″ or visible pitting appears on the races. Next, scrutinize the universal joints inside the bell housing; worn spider cross bearings create misalignment and vibration, often detectable by a metallic clicking at RPM above 2500. Swap the entire joint kit if the needle bearings show flat spots.
Examine exhaust bellows–soft rubber ducts between the engine and drive that channel hot gases and cooling water. Bulging, hardening, or cracked bellows restrict flow, causing overheating; discard if shore hardness exceeds 80A or cracks deeper than 1 mm appear. Propeller shaft seals sit behind the impeller; a faulty seal drips water near the bilge pump outlet. Install a dual-lip replacement seal pre-coated with marine-grade grease to prevent immediate failure, ensuring static lip pressure remains between 12–15 psi during installation.

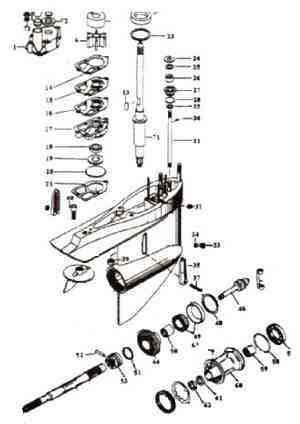

How to Interpret Your Marine Propulsion System Gear Housing Schematic
Locate the identification label on the upper section of the gear housing schematic–this typically lists the model variant, serial codes, and revision date. Match these details against the engine’s physical tag to confirm compatibility, as mismatched schematics can lead to incorrect component selection. Pay attention to prefixes like “Alpha,” “Bravo,” or “Gen II,” which denote distinct gear case designs requiring different seals, bearings, or shafts.
Identify the exploded view by scanning for numbered callouts; these correspond to a separate legend beneath or adjacent to the illustration. Cross-reference each number with the part description–focus on torque specifications for fasteners (e.g., 15-18 ft-lbs for drain plugs, 40-55 ft-lbs for prop nuts) and material types (e.g., stainless steel vs. anodized aluminum). Note symbols indicating gaskets, O-rings, or adhesives, which often appear as dotted or shaded outlines.
- Prioritize wear-prone items: propeller shaft bearings, input shaft seals, and trim cylinder components. These fail more frequently and are often grouped in a highlighted inset.
- Check for color-coded annotations–red typically marks critical components requiring immediate replacement if damaged, while blue may denote optional upgrades.
- Measure shaft diameters using the provided scale bar if dimensions aren’t listed numerically; even 1mm discrepancies can affect performance.
Compare the schematic against the actual gear case during disassembly by laying components in the same orientation as depicted. Document deviations–such as missing washers or reversed spline alignments–before reassembly. For assemblies with shims (e.g., bearing preload spacers), follow the thickness adjustment chart included in the margin, as improper shimming leads to noise, overheating, or premature wear.
