Begin by examining the tree, the foundational structure beneath the seat. Verify that the gullet width matches your horse’s back–too narrow causes pressure, too wide risks instability. The headplate and cantle should be aligned; misalignment leads to uneven weight distribution. Measure from the front of the pommel to the rear of the cantle–adjust stirrup bars if this length exceeds 18 inches for English styles or 22 inches for Western.
Inspect the panels. Flocking density affects shock absorption: synthetic fills settle faster than wool, requiring adjustments every 6–12 months. Check the billets (or latigo straps for Western models)–fraying or stretching compromises security. For leather billets, apply neatsfoot oil every 2–3 months; synthetic materials need only a wipe-down with glycerin soap.
Evaluate the skirt or jockey. A too-thin skirt offers inadequate protection against sweat; a too-thick one restricts movement. The stirrup leather should be doubled for safety–single straps snap under 300+ pounds of force. Replace any leather showing cracks or dry rot, regardless of age. For synthetic leathers, check for UV degradation after 2–3 years of regular use.
Examine the knee rolls (if present). Overstuffed rolls limit leg movement; understuffed ones fail to stabilize. The thigh blocks should sit 2–3 inches below the seat’s deepest point–not higher, or they’ll dig into the rider’s hip bones. Finally, test the girth attachments: English designs use a three-bar system (one front, two rear), while Western uses a single wide dee-ring. Ensure dee-rings are riveted, not welded–welded joints crack under prolonged stress.
Prioritize maintenance based on materials. Chrome-treated leather lasts 5+ years but repels conditioning oils; oil-tanned leather softens faster but absorbs moisture. Synthetic covers (like Cordura) resist water but trap heat–ventilation holes should be drilled every 4–6 inches. Always store gear in a humidity-controlled space (40–50% RH) to prevent mold or cracking.
Visual Guide to Equestrian Seat Components
Begin by identifying the tree–the framework determining fit and durability. A well-constructed tree distributes rider weight evenly across the horse’s back, preventing soreness. Look for materials like rawhide-covered wood or synthetic fiberglass, which offer flexibility without sacrificing strength. Avoid rigid designs that can pinch or create pressure points.
Check the gullet width to match your horse’s withers. A too-narrow channel restricts movement, while an overly wide one fails to provide stability. Measure the distance between the panels at the pommel; standard widths range from 2.5 to 3.5 inches, but custom options exist for unique conformations. Adjustable gullets allow modifications as the horse’s condition changes.
Key Structural Elements
| Component | Function | Common Materials |
|---|---|---|
| Cantle | Provides back support, influences rider posture | Leather, suede, or memory foam |
| Pommel | Located at the front, determines clearance over withers | Wood, fiberglass, or carbon fiber core |
| Skirt | Covers stitching, protects rider’s leg from hardware | Full-grain leather or synthetic alternatives |
Inspect the panel construction–foam-filled panels conform better than those stuffed with wool or fiber, reducing the need for frequent refluffing. Luxury models use high-density memory foam for shock absorption, crucial for horses prone to back tension. Ensure panels extend uniformly to avoid uneven pressure distribution.
Examine the stirrup bar placement for safety. Bars should sit flush against the seat’s underside and rotate freely to release stirrups during a fall. Look for reinforced mounting points; weak attachments can fail under stress. Adjustable bars let riders fine-tune stirrup length for different disciplines.
Prioritize billets and girth straps. Traditional leather billets require conditioning but mold to the horse over time. Synthetic options repel sweat and dry quickly, though they may lack the same break-in period. For girth straps, reinforced nylon or elastic inserts prevent pinching while accommodating the horse’s movement. Replace frayed straps immediately to avoid sudden failure.

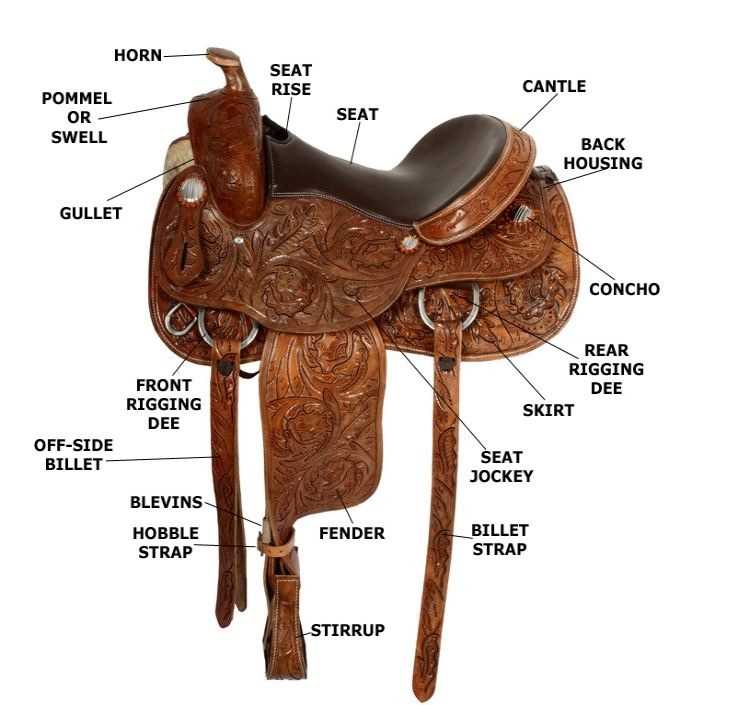

Decoding the Anatomy of a Western Riding Gear Exploded View
Begin by locating the seat jockey–the leather flap covering the underside of the rider’s area. This piece connects the cantle and pommel, preventing friction between the tree and the rider’s thighs. Check for uniform stitching and smooth edges; irregularities signal wear or poor craftsmanship that may affect balance during extended rides. Pair this with the skirt, the large leather panel beneath the seat, which distributes weight across the horse’s back. Measure its dimensions against the horse’s build–too small reduces stability, too large adds unnecessary bulk.
The gullet plate, hidden beneath the seat jockey, determines clearance for the horse’s spine. Western gear typically requires a width between 6.5 to 7.5 inches, but verify with a flexible ruler to match the withers. A misaligned gullet causes pressure points even on well-padded models. Directly beneath it, the rigging dee–a D-shaped metal ring–secures the cinch. Ensure welds are smooth; rough edges can chafe both the horse and billet straps over time.
Observe the fender, the leather cover shielding the stirrup leathers. It should align vertically when dangling, with no twists that could pinch the rider’s leg. The stirrup leather beneath it must rotate freely–test by lifting and releasing; sluggish movement indicates stiff or improperly oiled straps. Attached to this, the stirrup iron should have a 1.25-inch clearance at the base for boot clearance. Polish chrome-coated irons monthly to prevent rust that weakens structural integrity.
Inspect the hobble strap, a thin leather loop connecting the stirrup leathers to the rigging. This prevents stirrups from swinging wildly if dropped. Replace if dry or cracked–failure here risks losing a stirrup mid-ride. Above the skirt, the concho–often brass or silver discs–serve dual purposes: decoration and reinforcing rigging anchor points. Tap them; hollow sounds suggest loose screws that need tightening to avoid detachment during sharp turns. Pre-lubricate screws with beeswax to resist moisture.
Trace the back jockey, the leather piece extending from cantle to back housing. Its length determines rider support; too short offers no grip, too long obstructs cantle grip. The latigo keeper, a small leather loop near the front rigging, secures excess latigo leather after cinching. Ensure it doesn’t fray near the buckle–reinforce with saddle soap every six months. Finally, the saddle strings, braided leather ties, should measure 12–16 inches for functionality; trim frayed ends to prevent tangling with reins or girths.
Step-by-Step Guide to Identifying Key Components of an English Jumping Seat
Begin by positioning the seat upside down on a clean, flat surface to expose the underside. The first element to locate is the tree, the rigid framework that dictates the seat’s shape and fit. English jumping models feature a moderately flat profile with slightly raised pommel and cantle to provide security during lifts and landings. Check the tree’s material–modern versions often use composite or laminated wood with reinforced steel plates at stress points.
Trace the skirt along the perimeter of the seat. This leather flap covers the stirrup bar mechanism and should lie smoothly without wrinkles. Beneath the skirt, identify the stirrup leather keeper, a small loop secures excess leather to prevent tangling. Jumping designs incorporate a forward-cut flap angle, typically 3–5 cm ahead of the vertical, to facilitate shorter stirrup lengths without interference.
- Locate the gullet, the central channel running along the underside. Width varies by discipline: jumpers require 4–6 cm clearance to avoid pressure on the horse’s spine during tight turns or bascule over fences.
- Pinpoint the knee rolls, padded protrusions beneath the flap where the rider’s leg rests. Jumping seats often have pronounced, contoured rolls for enhanced stability during takeoff and landing.
- Find the thigh blocks, if present, which aid in lateral support. These may be fixed or adjustable, depending on the model.
Underside and Hardware Details
Flip the seat to its right side and inspect the stirrup bars. These metal brackets pivot to release in emergencies–test functionality by lifting the bar gently; it should click back into place without resistance. Jumping variants often have widened bars to accommodate bulkier stirrup leather widths (minimum 2.5 cm).
The billet straps (usually three) extend from the tree’s front arch. For jumping, billet placement prioritizes quick girth changes: the lowest strap sits 2–3 cm above the elbow to prevent rubbing. Check for reinforced stitching on billet guards, especially near the buckle, where stress is highest. Premium seats use riveted attachment points instead of glue for added durability under dynamic loads.
- Examine the seat itself, noting the depth and padding distribution. Jumping seats typically have a slightly hollowed center (1–2 cm deeper than dressage models) to aid in balance during two-point positions.
- Observe the nail head pattern along the seat’s perimeter. Jumpers use evenly spaced, flush-mounted nails to minimize bulk under the rider’s thigh.
- Count the flaps–jumping seats usually have two: an inner flap protecting the horse’s side and an outer flap interfacing with the rider’s leg. Some high-performance models include a third, adjustable flap for fitting versatility.
Finishing Touches and Custom Elements
Assess the stitching quality at high-wear areas: the flap’s edge, billet guards, and girth straps. Hand-stitching with waxed thread lasts longer than machine-sewn seams under jump-specific stresses. Look for double-stitching on the outer flap’s lower edge, where boots frequently brush against the seat.
Modern jumping seats often integrate shock-absorbing layers beneath the seat leather. These may include closed-cell foam or gel inserts, typically 3–5 mm thick, positioned under the cantle and pommel to dampen impact. Verify that these layers are bonded securely–peeling indicates poor manufacturing.
Finally, confirm the presence of soft loops or buckle guards for the girth straps. These prevent metal hardware from contacting the horse’s skin during movement. Jumping models prioritize minimal bulk, so opt for synthetic guards over leather if adjustability is a concern. Properly fitted components ensure the seat remains stable during lateral jumps or rotational movements, where misalignment risks slippage.
