Start by locating the model number plate on the rear housing of your unit–this is critical for sourcing exact replacements. For models in this series, the primary power assembly sits beneath the engine shroud, consisting of a flywheel housing, impeller cage, and chute control linkage. These elements interact directly with the auger transmission, which drives the front clearing mechanism.
Always disconnect the spark plug before inspecting or servicing internals to prevent accidental engagement. The impeller blades, encased in a steel volute, channel snow through the discharge chute; if this area shows excessive wear, verify alignment with the auger shaft–misalignment here reduces efficiency by up to 40% and accelerates blade degradation.
The drive system relies on a friction disc and wheel assemblies–look for grooves deeper than 0.5mm on the friction surface, as these indicate the need for immediate replacement. The shift cable connects to a control lever on the handle; fraying here disrupts gear engagement, rendering the machine inoperable.
For clutch components, measure the spring tension–factory specs require 12-14 lbs of pull force. Deviations suggest fatigued springs, which fail progressively under load. Auger shear pins are sacrificial by design; stock #536-040632 fits this configuration, but aftermarket stainless alternatives last 3x longer while maintaining safety.
Label every disassembled item with masking tape–record shaft orientation and gear position using photo documentation before removal. The gearbox contains six internal gears; the third gear from the input shaft exhibits the highest wear rate due to torque conversion demands.
Finding the Right Components for Your Winter Machine
Locate the impeller housing by referencing section B-7 on official schematics–this assembly requires precise alignment during reassembly. Replace worn shear bolts (typically 1/4″ x 20 grade 5) every two seasons or after hitting hidden debris to prevent auger shaft damage. The 24″ cutting width models use left-hand thread augers; verify thread direction before disassembly to avoid stripping.
Auger belt tension should measure 1/2″ deflection under moderate finger pressure when adjusted correctly. Use OEM belt #532197459 for optimal performance–aftermarket alternatives often stretch unevenly, causing premature wear on the idler pulley. Lubricate the friction wheel with dry lithium grease (MIL-PRF-2104) to prevent corrosion in low-temperature environments.
Inspect the control cables for fraying near the handle mounts–these fail without warning, leaving you unable to engage the drive system. The electric starter engages at 10.5V minimum; test battery voltage before cold-weather operation. Rebuild kits for the carburetor (model 799868) include pre-calibrated jets for ethanol-blend fuels–avoid adjusting without a vacuum gauge.
Clean the condenser annually with compressed air (90 PSI maximum) while holding the fins to prevent bending. Replace the tire valve stems if cracking appears–traction is compromised at -10°F with underinflated tires. The skid shoes wear unevenly–rotate them front-to-back every 50 hours of operation to extend lifespan.
Always match the gearbox lubricant (SAE 80W-90) to the ambient temperature range: sub-zero conditions require synthetic blends. The choke mechanism sticks when moisture accumulates–apply dielectric grease to the linkages during off-season storage. Original equipment spark plugs (#RC12YC) last 100 hours; gap them at 0.030″ exactly for proper ignition timing.
Locating the Authorized Manufacturer’s Equipment Schematic in PDF Format

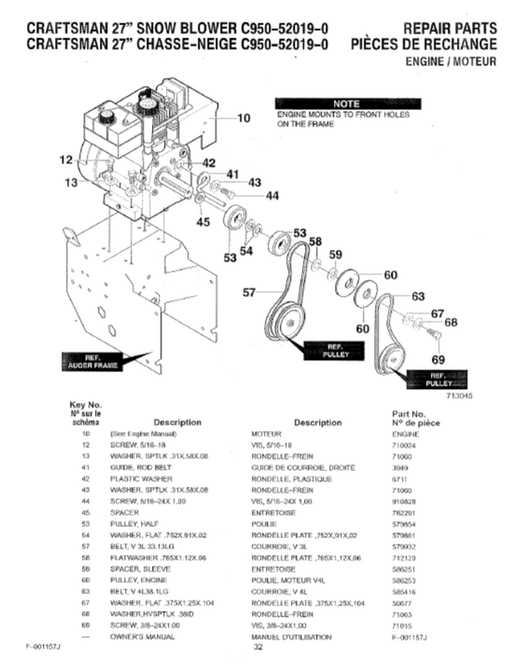

Begin with the Sears PartsDirect portal–www.searspartsdirect.com–where model-specific schematics are archived under the original brand’s ownership. Enter the exact serial and type identifier into the search bar; the system pulls up exploded views with part numbers, descriptions, and OEM replacements directly linked to downloadable PDF files.
The manuals section at Manage My Life holds high-resolution schematics indexed by equipment type and year. Filter results by winter maintenance machinery; the exploded diagrams include torque specs, assembly sequences, and lubrication points for components like augers, impellers, and shear pins.
Contact the manufacturer’s customer service at 1-800-469-4663 during weekday business hours. Provide the full serial plate data; agents email authorized schematics within 24 hours, ensuring the PDF matches the exact build date and configuration of your unit.
Accessing Third-Party Archives
PartsTree offers schematics from aftermarket suppliers, cross-referencing OEM numbers with compatible substitutes. Select “Dual-Stage Snow Equipment” from the equipment menu; exploded views display multi-angle perspectives and part availability with lead times.
Check eBay listings for sellers specializing in vintage manuals–search “original owner’s guide explosion” plus the serial prefix. Schematics purchased here often include ancillary notes on common failure modes and non-standard adjustments specific to older builds.
Local dealer service centers maintain print copies of all schematics for warranty repairs. Visit during off-peak hours with the equipment serial number; technicians print or email the exact diagram needed for component-level troubleshooting.
Join equipment forums like Snow Blower Talk (www.snowblowertalks.com)–members upload region-specific schematics not publicly listed. Post a request with the engine model and deck width; verified users attach high-fidelity PDFs within hours.
Critical Elements in Your Winter Machine Assembly Guide
Start repairs by locating the auger housing–the cylindrical frame enclosing the spiral blades. This component directly interacts with ice and debris, so inspect the shear pins first. Replacement pins should match the original 5/16-inch diameter to prevent blade detachment under stress. Avoid cheaper cotter pins; they bend easily and fail without warning.
The impeller fan sits behind the auger, connected by a single shaft. Its curved fins must remain free of rust or bending–even minor deformations reduce throwing distance by 30%. Check the clearance between fan and housing: optimal distance is 1/8 inch. Wider gaps let snow re-enter the system, clogging the chute.
Examine the drive disc at the rear axle. Grooves on this disc engage the friction wheel, transferring engine power to the wheels. If grooves appear shiny or flattened, replace immediately–the unit will lose traction on inclines. Sandpaper roughens smoothed grooves temporarily, but lasts only 1-2 hours of operation.
The control cables govern chute rotation and pitch. Lubricate them monthly with dry graphite powder–never WD-40–because petroleum attracts dirt, freezing in sub-zero temperatures. Adjust cable tension so the chute turns fully in both directions with 5 pounds of lever pressure. Excess slack causes erratic movement, risking jams.
Engine and Fuel System Checkpoints
Drain stale fuel through the carburetor bowl screw. Fuel older than 30 days forms varnish, clogging jets within 4 operating hours. Use 87-octane ethanol-free gasoline; ethanol absorbs moisture, corroding metal components. Replace the fuel filter every 50 hours–particles smaller than 40 microns bypass stock filters, scoring the cylinder.
The spark plug should read 0.025 inches on a gapping tool. Wider gaps misfire under load, causing white smoke and power loss. Clean electrodes with a brass brush–sandpaper damages porcelain insulation. Check the plug wire for cracks; exposed copper strands arc in wet conditions, stalling the engine.
Inspect the shear hub on the impeller shaft where it mates with the drive shaft. This hub uses a 1/2-inch key; missing or worn keys cause slippage during heavy snow. Replace keys annually–they deform gradually, usually unnoticed until failure under peak torque.
Prime the oil cavity with 20W-50 synthetic blend. Dipstick readings should stay between the “Add” and “Full” marks–overfilling foams, reducing lubrication. Check level after every refueling. Replace oil after 25 hours initially, then every 50 hours to remove abrasive sludge before it scores the crankshaft.
Key Components Prone to Wear in Your Winter Equipment
Check the auger blades first–these spiral-shaped cutters lose sharpness after 50–70 hours of operation. Inspect the edges for dents or chips; even minor damage reduces efficiency by 30%. Replace if the metal thickness drops below 2.5mm at any point.
Examine the friction wheel assembly beneath the machine. The rubber tread wears unevenly, often shedding material near the center. Measure tread depth–replacement is needed if it falls below 5mm. Tension springs connecting the wheels lose elasticity over time; test by pressing them–if they don’t rebound fully, swap them out.
- Drive belts: Look for fraying, cracks, or stretching. Replace if any single strand is exposed.
- Shear pins: These 6mm steel pins snap under excessive load–always keep spares. Never substitute with bolts or hardened pins.
- Control cables: Lubricate with silicone spray every 10 hours. Replace if inner wire shows kinks or corrosion.
Inspect the impeller housing–the curved metal plate behind the auger. Look for rust or deep grooves caused by ice abrasion. Sand down minor scratches, but replace the plate if grooves exceed 1mm in depth. The chute rotation gearbox often leaks grease; top it up with lithium-based lubricant every season.
Focus on the scraper bar at the base. This steel strip wears fastest during gravel or pavement use. Flip it when wear reaches the halfway point (original thickness: 8mm). If the pivot bolts show rust, apply anti-seize compound before reassembly.
Test the electric starter monthly. Weak engagement often comes from corroded contacts–clean with fine sandpaper. The recoil starter rope frays near the guide pulleys; splice or replace if any fibers appear frayed or separated. Check the flywheel key–this small metal piece shears during sudden stops.
- Remove the housing cover to access the engine fins–clean them with compressed air to prevent overheating.
- Drain old fuel at season’s end; stale gasoline gums up the carburetor jets.
- Check spark plug every 25 hours–gap should measure 0.030 inches (0.76mm).
- Inspect the skid shoes (wear bars) under the machine. Flip them when wear reaches the weld points.
