Start by locating the upper receiver–this segment houses the bolt carrier group and charging handle. Remove the rear pin first, then the front, separating it from the lower receiver. Store the buffer tube assembly (including spring, buffer, and detent) in a labeled container to avoid misplacement.
Identify the barrel nut–it secures the handguard and requires a specialized wrench (typically a torque spec of 30–80 ft-lbs) for disassembly. For precision work, use a headspace gauge when reinstalling the barrel to verify proper chamber alignment. The gas block (fixed or adjustable) mounts near the muzzle; ensure the gas tube aligns with the bolt carrier’s key without binding.
Inspect the fire control group in the lower receiver: trigger, hammer, disconnector, and selector switch. The trigger spring tension should be 4.5–6.5 lbs for standard models; deviations indicate wear or improper installation. Replace the pivot and takedown pins if corrosion is present–MIL-SPEC pins measure 0.154″ diameter with a tolerance of ±0.001″.
For optics and rail attachments, the Picatinny interface spans the length of the upper receiver. A torque driver (15–20 in-lbs) prevents rail shift under recoil. When reassembling, apply molybdenum disulfide grease sparingly to the bolt carrier’s cam pin and firing pin to reduce friction.
Critical wear points include the extractor/spring/plunger assembly and the bolt’s lugs. Replace the extractor if brass flakes are found–significant wear leads to failure-to-extract malfunctions. Verify the buffer weight matches the gas system: carbine buffers (3.0 oz) for standard setups, H2 (4.6–5.0 oz) for suppressed or short-barrel configurations.

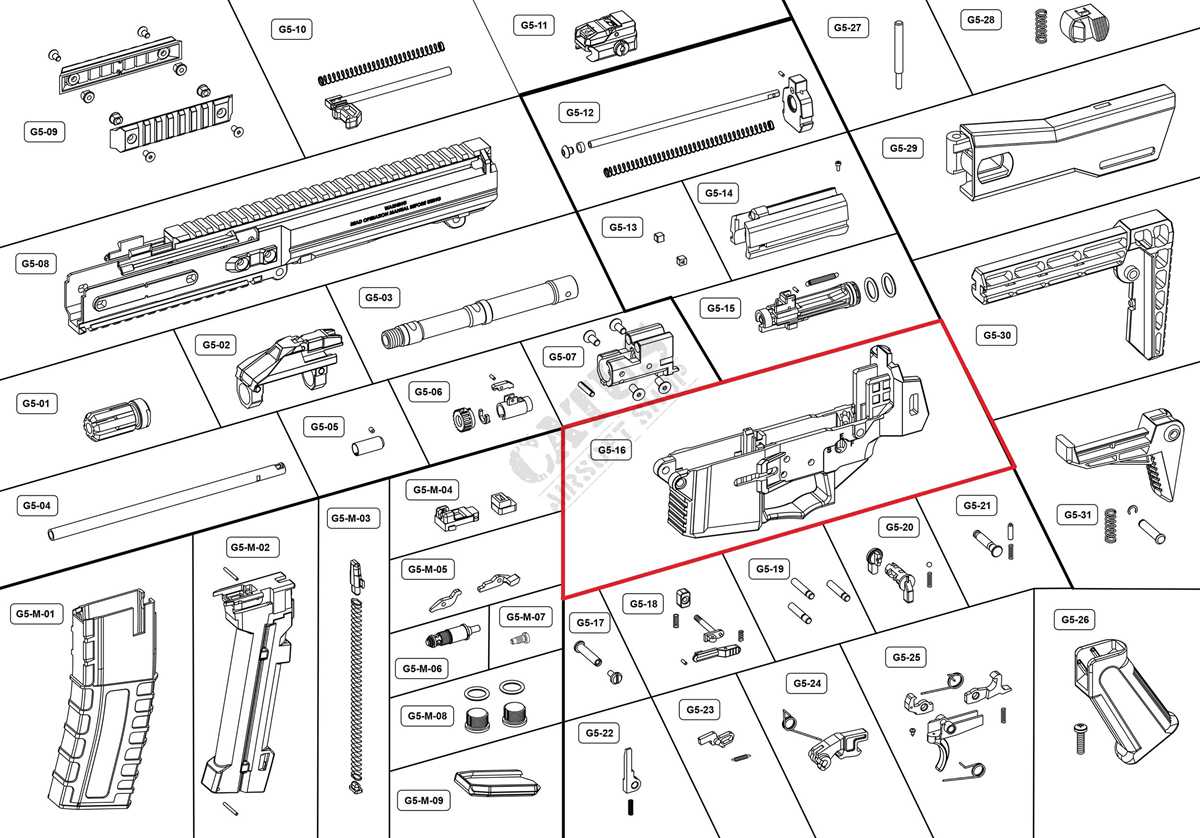

M4 Parts Diagram: Practical Breakdown
Start by identifying the upper receiver group–critical for accuracy and firearm stability. The flat-top rail accepts optics, mounts, or backup iron sights (BUIS), while the forward assist ensures proper bolt closure if dirt or residue interferes. For those modifying their setup, aftermarket rails like the Daniel Defense RIS II or BCM MCMR offer picatinny slots for accessories without requiring permanent changes to the weapon.
- Bolt carrier assembly: The gas key must be staked securely to prevent loosening. Check for carbon buildup after 500 rounds–clean with a brass brush and solvent.
- Barrel twist rate: Standard M4s use 1:7 for effective 5.56 NATO performance. Shorter barrels (under 14.5″) may need a 1:8 twist for optimal accuracy with lighter projectiles.
- Charging handle: Upgrade to an ambidextrous option like the Radian Raptor if frequent manipulations under stress are expected.
Gas System Variations
M4 variants use either a carbine-length (7″) or mid-length (9″) gas system. Mid-length reduces recoil impulse and prolongs component life but adds slight weight. Carbine-length excels in compact builds–ideal for SBRs. For suppressors, a adjustable gas block (e.g., Superlative Arms) prevents excessive back pressure, maintaining reliability.
Lower receiver components determine ergonomics and trigger pull. A standard M4 trigger averages 6-8 lbs, but single-stage options (Geissele SSA, LaRue MBT) drop to 3.5-4.5 lbs for precision shooting. Pins–both takedown and pivot–should be checked for deformation annually; replace if gaps exceed 0.005″. Magazines: PMAGs feed more reliably than GI-issue in dusty or wet conditions, but always test feed characteristics with your ammo.
- Buffer system: H (3.8 oz) or H2 (4.6 oz) buffers suit most builds. For .300 BLK, use a pistol-length (3.0 oz) buffer to avoid bolt-over-base malfunctions.
- Stock: Collapsible stocks adjust length-of-pull but may rattle. Fixed A2 stocks offer consistent cheek weld for optics users.
- Handguard: Free-float tubes (like Aero Precision) eliminate barrel contact, improving accuracy by ~10%. Ensure proper indexing to align with the rail.
Examine the fire control assembly before disassembly. The hammer spring (standard: 37 lbs) can be swapped for lighter options (30 lbs) if using a match trigger. Detents and springs for the selector and takedown pins are often lost during cleaning–keep spares in your cleaning kit. For left-handed users, ambi-selector levers (e.g., Colt or LMT) prevent awkward manipulations.
Ammunition compatibility is often overlooked. 55gr rounds perform adequately with standard gas ports, while 77gr +P require a slightly enlarged port (drill to 0.072″) to ensure proper cycling. Barrel life averages 10,000-12,000 rounds for 4150 CMV steel, but chromium-lined barrels (like FN’s CHF) extend this to 20,000+ rounds. Cold-hammer-forged barrels also exhibit tighter tolerances for sustained fire without cook-off at higher temperatures.
Key Components of an M4 Rifle and Their Locations
Locate the upper receiver by identifying the flat metal housing at the rifle’s top. This section houses the bolt carrier group, charging handle, and barrel–critical for cycling rounds. The forward assist, a small serrated button on the right side, manually pushes the bolt into battery if it fails to lock. Directly above it, the ejection port cover shields internal mechanisms from debris when closed.
The lower receiver contains the fire control group, buffer tube, and magazine well. Trigger assembly sits inside the lower, with the safety selector (a rotating lever near the pistol grip) allowing safe, semi-automatic, or full-automatic fire modes. The magazine release button, positioned behind the trigger guard, permits quick detachable magazine swaps. Ensure the buffer retainer spring is properly seated–misalignment causes failure to eject.
Inspect the barrel and handguard next. The M4’s 14.5-inch barrel terminates in a flash hider, reducing muzzle flash while maintaining accuracy. Underneath, the gas tube runs from the gas block (mounted mid-barrel) back into the upper receiver, directing gas rearward to cycle the action. Free-floating handguards improve precision by eliminating pressure on the barrel; check for cracks if using rail systems.
Critical Assembly Points
- Bolt Carrier Group: Slide it fully back until it locks into place. The gas key atop the carrier must align with the gas tube–misalignment prevents gas impingement. Staked screws on the key prevent loosening under recoil.
- Buffer System: The buffer inside the tube softens recoil. Heavy buffers reduce cyclic rates in automatic fire; standard buffers work for general use. Weight differences alter felt recoil–test variants before modifying.
- Stock: Adjustable stocks house the buffer tube and offer cheek weld stability. Six-position collapsible models enable customization for body armor; ensure the release button engages securely.
Front and rear sights require zeroing for accuracy. The front sight post adjusts via a detent pin, while the rear aperture (on the upper receiver) flips for close or distant targets. Rail-mounted optics replace iron sights but demand consistent mounting torque to prevent zero shift. Backup iron sights remain mandatory in military doctrine–train with both.
Field-stripping reveals the firing pin and extractor within the bolt. Clean carbon deposits post-operation, focusing on the bolt face and chamber. Lubricate the bolt cam pin track lightly–excess oil attracts fouling. The extractor claw must snap crisply onto rimmed cartridges; replace if spring tension weakens. Magazines, though external, dictate reliability–feed lips warp with heavy use; replace after 200–300 rounds.
Maintenance Checklist
- Disassemble the upper and lower receivers after every 500 rounds or exposure to harsh conditions.
- Inspect the gas tube for carbon buildup–blockages cause short-stroking.
- Check torque on rail screws (30 in-lbs standard) to prevent rail shift.
- Verify the ejection port cover spring tension; weak springs fail to close after cycling.
- Test the trigger reset in both safe and fire modes–grinding noises indicate worn components.
Replace worn components promptly. Springs lose tension, gas rings degrade, and barrels erode at 10,000–20,000 rounds. Aftermarket upgrades (e.g., nickel-boron coatings) improve longevity but void some military specifications. Use mil-spec parts for guaranteed compatibility–commercial variants may fail under sustained fire.
How to Identify Upper and Lower Receiver Components in an M4 Schematic
Locate the charging handle at the rear of the upper assembly–it’s the elongated, L-shaped latch. On the opposite side, find the forward assist, a serrated button that presses inward. These two elements sit adjacent to the ejection port cover, which flips open when the rifle cycles. Below the charging handle, the bolt carrier group (BCG) is visible when the upper is separated, identifiable by its gas key and extractor claw.
Examine the lower receiver’s fire control group: the trigger hangs centrally, flanked by the safety selector (rotating lever) on the left. Directly above the trigger, the hammer rests cocked when the rifle is ready to fire. The magazine catch sits on the right side, a push-button release, while the takedown pins–one at the rear, one near the front–secure the upper and lower together. The pistol grip threads into the rear, housing a storage compartment.
Upper Assembly Breakdown
The barrel screws into the upper via the barrel nut, visible when the handguard is removed. The gas tube runs parallel to the barrel, feeding gas from the gas block (mounted near the muzzle) back into the BCG. The delta ring–a spring-loaded collar–holds the handguard in place. At the muzzle, the flash hider or compensator disperses gases; check for timing marks if installing a suppressor.
Lower Assembly Key Markings
The buffer tube protrudes from the lower’s rear, housing the recoil spring and buffer (a weighted cylinder). Inside the tube, the carbine-length spring coils around a guide rod. The trigger guard wraps around the trigger, molded as a single piece or detachable. Serial numbers are engraved on the lower’s right side, often near the magwell.
Compare the schematic’s callouts to physical stamping: fire selector markings (“SAFE/FIRE”) must align with the lever’s position. The magwell often has witness holes for alignment during assembly. On mil-spec uppers, the bolt release sits near the takedown pin–a thumb-activated lever that locks the BCG open. Polymerk lowers blend components seamlessly, but metal lowers clearly separate rails from the receiver walls.
