Start by locating the engine assembly breakdown–identify the impeller housing (Item #823-0657) and auger drive belt (Part #754-0477) on the illustrated layout. These components fail most frequently under heavy use; cross-reference the numbered labels with the corresponding list to confirm torque specifications (typically 25-30 ft-lbs for shear bolts).
The gearbox section (clutch assembly) requires periodic lubrication–use SAE 80W-90 gear oil (or equivalent viscosity) every 25 operational hours. Note the pinion gear spline count (12 teeth standard); mismatched replacements lead to premature wear. Inspect the skid shoes (Part #490-900-146) for wear–replace if thickness drops below 1/8″.
For the chute control mechanism, verify the cable tension (adjusted via the turnbuckle, max 1/4″ deflection). The deflector linkage (Item #372-0501) often seizes–apply white lithium grease to pivot points biannually. Prioritize the electric starter solenoid (Part #725-0836) if experiencing slow cranking: test voltage drop across terminals (>0.2V indicates replace).
Order genuine replacements through official dealers–aftermarket substitutes for the friction disk (Part #734-0476) may lack proper heat-treated coatings, leading to rapid degradation. Photocopy the schematic or save the digital file to a USB drive before field repairs–battery-powered tablets fail in sub-zero conditions.
Essential Schematics for Your 3X Equipment Maintenance
Start by locating the official model-specific schematic from the manufacturer’s repair manual–available as a PDF download on the MTD Products support portal. Key assemblies to identify first include the impeller housing (part #731-06328), auger gearcase (part #954-04380), and chute rotation mechanism (part #731-06150). These schematics break down subcomponents into numbered callouts, matching them to OEM part numbers for precise ordering. Avoid third-party diagrams unless verified by the manufacturer, as even minor misalignments in torque specs or part tolerances can compromise performance.
Pay special attention to the drive system section: the friction disc (part #731-06104) and hex shaft (part #951-12340) pairings must align exactly as shown–reverse-engineered illustrations often omit critical clearance dimensions. For auger-related repairs, the shear pin (part #738-04124) is a consumable; keep at least three spares on hand. The schematic’s exploded views also highlight weld points (e.g., frame reinforcements near the engine mount), which rarely require replacement but can confuse diagnostics if overlooked.
Troubleshooting with Accurate Visuals
Use the labeled illustrations to isolate issues like uneven throwing: check the scraper blade (part #731-06058) gap–it should sit 0.125″ above the ground when adjusted properly. If the chute clogs frequently, cross-reference the assembly sequence for the paddle (part #951-11040) and its retaining bolt (part #956-03060); overtightening will strip the threads. For electrical faults, trace wires in the wiring harness schematic back to the switch box–common failure points include the auger engagement switch (part #731-06546) and headlight bulb (part #738-04062).
When replacing the skid shoes (part #731-06217), note their orientation in the diagram–left and right pairs are mirror images. The 3X’s one-stage design relies on the auger’s precision alignment with the housing; misalignment by as little as 0.030″ will cause snow buildup. For storage, consult the “pre-season checklist” subsection, which details lubrication points for the auger shaft bearings (use SAE 5W-30 synthetic oil) and gearcase (refill with 80W-90 GL-4 gear oil to the fill plug). Always verify fastener torque specs against the diagram before reassembly–overtightened bolts can crack the gearcase housing.

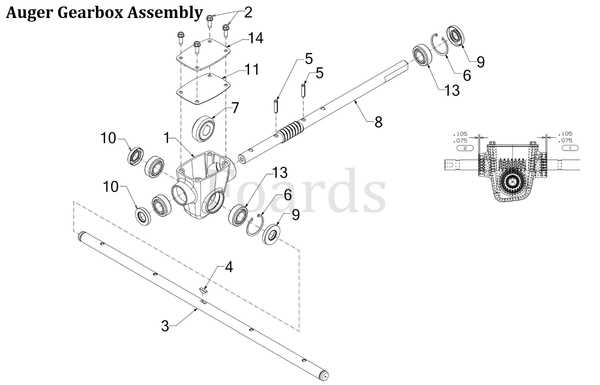

Identifying Auger Gearbox Elements in the 3X Series Schematic
Locate the gearbox assembly near the front of the unit’s impeller casing. In most models, it appears as a rectangular housing with two to three bolts securing it to the frame. Reference the exploded view–typically numbered between 15 and 25–to confirm placement. The gearbox will sit directly behind the helical cutter blades, encased in metal with a grease fitting on the side.
- Shear pins: Positions 18–22, flush with the shaft, often marked in red or yellow
- Worm gear: Positioned internally, mesh with the helical drive; verify torque specs (30–40 ft-lbs)
- Grease zerk: Identified as a small brass nipple on the side; requires lithium-based lubricant
The impeller housing splits horizontally–remove the lower half to expose the gearbox. Use a 10mm socket to detach bolts; keep track of spacers (part #790-0344) between the housing and gearbox flange. Misalignment here causes excessive vibration; torque bolts to 22–25 ft-lbs in a cross pattern.
Check the helical cutter drive interface (parts #790-0342/#790-0343) for wear–pitting or grooves indicate replacement. The gearbox’s input shaft should engage smoothly with the helical drive; test rotation by hand before reassembly. Seized components often signal failed bearings or contamination; disassemble only if trained, as internal tolerances are tight.
- Align shear pins (1/4″ diameter) with the auger shaft; gaps over 0.5mm require new pins
- Secure gearbox to frame with Loctite 242 on bolt threads
- Inspect rubber vibration dampeners (part #771-04217) for cracks–replace if hardened
If noise persists, tap the gearbox lightly with a mallet–dull thuds suggest internal wear. Compare serial numbers against the schematic; early models (pre-2018) used thicker housing walls. For electric versus gas versions, verify voltage specs (120V/240V) on the thermal overload relay–incorrect settings trip breakers under load.
Locating Impeller and Chute Components in the 3X Equipment Schematic
Begin by isolating the auger housing section near the center of the exploded view–this is where impeller components cluster. The primary fan disc (typically part #731-3071) appears directly behind the discharge opening, secured with six cap screws. Verify its alignment against the spindle assembly (#731-1103) to confirm symmetry; misalignment here causes uneven material ejection or excessive vibration.
Trace the chute rotation mechanism upward from its base plate (#731-0410). The deflector assembly (#731-0408) attaches via a single pivot bolt, often paired with a friction washer (#731-0409)–replace both if wear exceeds 0.5mm on the washer’s contact surface. Side chute components include a hardened steel collar (#731-3069) that prevents ice buildup; lubricate it with marine-grade grease every 10 operating hours to prevent corrosion.
Troubleshooting Common Wear Points
The impeller’s cutting edges (#731-3075) should retain at least 3mm of their original thickness–thinner edges risk fragmenting into the ejection path, damaging the fan housing. For chute control cables (#731-0414), inspect for fraying at the sheath’s exit point; a kinked cable increases resistance, causing sluggish chute rotation. Replace the entire cable if free movement exceeds 2mm of play at full extension.
Examine the shear pins (#760-0001P) connecting the impeller hub–these 4mm pins are engineered to fail under 120Nm of torque. If replacement is frequent, check the auger’s engagement with the gearbox (#684-040041); overtightened belts on the driven pulley (#756-0447) generate excessive force, prematurely shearing pins. Use only OEM pins–generic alternatives may not meet torque specifications, risking shaft damage.
Locating Engine and Drive Components in the 3X Series Equipment Guide
Begin by referencing page 42 of the official manual where the power unit schematic is displayed. Key elements include the throttle assembly (position 18), carburetor linkage (position 23), and recoil starter assembly (position 31). Each component is labeled with a numerical identifier that corresponds to the replacement inventory list on pages 78–81. Verify compatibility by cross-checking these numbers with the engine type–typically a 357cc or 420cc model–printed on the valve cover.
For propulsion system identification, turn to section 6.3 on page 56. The friction disc (part #733-06350) sits adjacent to the drive plate and requires periodic inspection for wear, indicated by grooves deeper than 0.5mm. The impeller shaft (part #733-06345) connects to the auger transmission via a shear pin (part #713-05270), which should be replaced immediately if broken. Lubrication points for these mechanisms are specified on page 62, with recommended grease types listed in the maintenance schedule.
- Auger transmission housing: Locate the gearcase on page 67, positions 45–52. The input shaft (position 46) meshes with the output gear (position 49), which drives the auger via a keyed connection.
- Shift cable assembly: Illustrated on page 71, this linkage (part #733-06010A) engages the friction wheel. Adjust tension by turning the barrel nut at the control lever until resistance is felt when moving the shift lever through its full range.
- Wheel drive components: The axle assembly (page 74) includes the differential (positions 58–64). Torque specifications for the axle nut (65 lb-ft) are critical–overtightening risks bearing failure.
Troubleshooting Common Engine Issues Using the Schematic
If the machine fails to start, inspect the ignition coil (position 12 on page 45) for continuity using a multimeter set to 20kΩ. Resistance should read between 2,500–5,000Ω. Fouled spark plugs (position 15) often indicate incorrect fuel mixture–refer to page 92 for the proper 50:1 ratio. For erratic operation, examine the fuel pump diaphragm (position 27) for cracks; replace if the surface shows signs of hardening. The air filter housing (position 35) must seal tightly–check the gasket (part #733-06640) for deformation.
