Begin by identifying the soundboard, located beneath the strings. This component amplifies vibrations, converting them into audible tones. Measure its thickness–typically 8–12 mm–to gauge resonance quality. A thinner soundboard may produce brighter tones but risks cracking under tension, while thicker variants offer durability at the cost of projection. Examine the grain direction: straight, even lines indicate high-quality spruce or cedar, materials chosen for their stiffness-to-weight ratio.
The frame (often iron in modern designs) bears the string tension, averaging 20–22 tons in a full-sized grand. Check for cracks or warping, especially near the agraffes or capo tasto bar, where stress concentrates. Vintage uprights may use wooden framing, but these require annual humidity regulation (45–55%) to prevent structural failure.
Focus on the action mechanism: each key connects to a hammer via a series of levers (whippen, jack, repetition lever). Lubricate pivot points with talc or specialized action lubricant every 6–12 months to maintain responsiveness. Adjust the hammer strike point–ideally 1/7th to 1/9th the string’s speaking length from the capo bar–for optimal tone. Misalignment causes “double strikes” or muted notes.
Inspect the dampers: felt pads must sit flush against the strings when the key is at rest. Worn dampers fail to mute strings, creating a blurred sustain. Replace felt if it appears compressed or hardened. For grands, the sostenuto pedal selectively lifts dampers, requiring precise alignment with the damper tray–a common source of mechanical failure in older instruments.
Strings divide into three zones: plain steel (treble), wound copper-coated (midrange), and bass strings with heavy copper winding. Replace strings individually when tuning stability declines (sharp or flat pitch despite adjustments). Avoid removing more than one string at a time in the bass section, as the frame’s equilibrium depends on cumulative tension. Use micrometers to confirm wire gauge–deviations of ±0.02 mm affect timbre.
The pinblock (usually laminated hardwood like maple or beech) anchors the tuning pins. Twist a pin gently with a tuning hammer–resistance should be firm but not brittle. Loose pins necessitate pinblock repair or replacement; over-tightening strips the wood, rendering tuning impossible. Apply pinblock sealer to prevent moisture absorption, which warps the wood and destabilizes tuning.
Pedals warrant equal scrutiny: the una corda (soft pedal) shifts hammers sideways in grands or moves them closer in uprights, altering timbre. Test its return speed–sluggish movement indicates worn bushings or misaligned linkages. The sostenuto pedal’s clutch must engage only the selected dampers, requiring sub-millimeter precision in regulation. Misadjusted pedals waste energy and distort articulation.

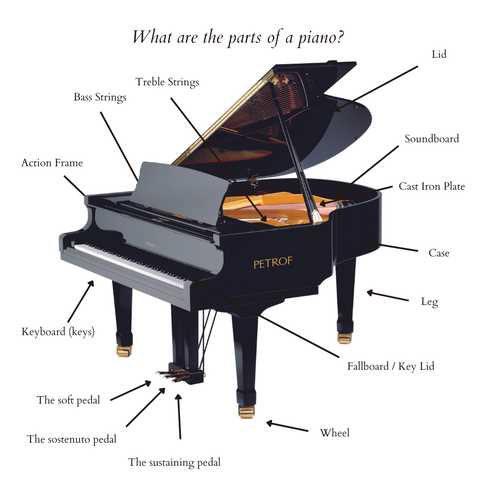

Key Components of an Acoustic Keyboard Instrument
Label each section of your illustrated guide with precise terminology to avoid confusion. The frame (often called the plate) supports tension from strings–modern versions are typically steel, while older models may use cast iron. Include measurements if possible: a grand’s frame can weigh up to 450 kg, withstanding over 20 tons of string tension.
Highlight the soundboard beneath the strings, noting its curved design to amplify vibrations. Specify spruce as the standard material due to its resonant properties. Add a note on thickness (usually 8–10 mm) and how cracks or warping mute volume.
Detail string grouping: bass strings wrap copper wire around a steel core, mid/treble use pure steel. Mark the agraffes or bridge pins where strings terminate–these dictate tuning stability. Indicate string lengths: a concert grand’s longest bass string stretches ~2 meters.
Action Mechanics and Hammers
Dissect the action assembly–show the escapement mechanism where the hammer strikes the string then rebounds. Label the whippen, jack, and repetition lever for clarity. Explain felt quality: premium hammers use layered wool, cheaper ones mix synthetic fibers, affecting tone longevity.
Photograph or sketch the damper pedal linkage–trace its path from pedal to damper lift rail. Note that grands use a continuous rail while uprights rely on individual dampers. Include a tip: lubricate action rails with Teflon powder every 2–3 years to prevent sticking.

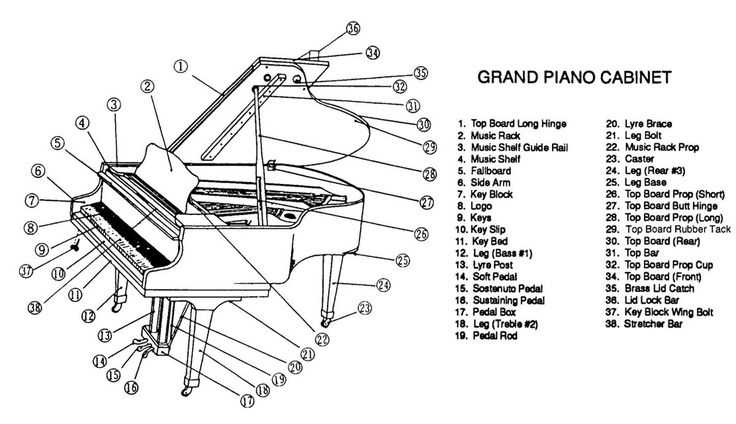

Exterior and Structural Elements
Identify the keybed where keys rest–show its leveling screws for height adjustment. Use arrows to demonstrate key dip (typically 10 mm) and aftertouch (1–2 mm). List key materials: bass keys often use weighted acrylic for balance, while tropical hardwoods resist warping.
Sketch the music desk angle (usually 15–20 degrees) and its sliding mechanism to emphasize functionality. For grands, label the prop stick that prevents lid closure accidents–mention safety springs in older designs require periodic tension checks.
Add a cross-section of the pedal lyre on grands, showing how the soft pedal shifts the entire action slightly right to alter tone. Upright models utilize a “practice” pedal that drops felt between hammers and strings–explain this rarely-used feature often confuses beginners.

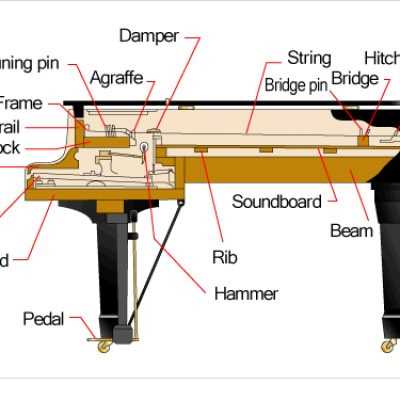

The Core Framework of a Concert Grand Instrument
Begin by examining the cast iron plate–the backbone of the instrument’s integrity. Positioned beneath the soundboard, this component withstands over 20 tons of string tension, preventing warping and ensuring stability. Verify its fastening: lag bolts near the pinblock and counterbearings at the tail must be torqued precisely to manufacturer specifications. Loose bolts distort tonal sustain and risk structural failure under dynamic playing.
The pinblock, typically crafted from layered hardwoods like maple or beech, anchors tuning pins at a 90-degree angle. Look for cracks or delamination–common in older models–using a flashlight at a low angle. Replace compromised blocks immediately; even minor fissures accelerate pitch instability. Lubricate pins with graphite powder annually to reduce friction, easing tuning adjustments without damaging wood fibers.
Trace the strings from the hitch pins at the tail to the tuning pins at the front. Bass strings feature a copper wrap around a steel core, while treble strings are plain steel. Check for uneven winding or oxidation, which deadens resonance. Replace corroded strings individually; mixing new and old strings disrupts harmonic balance. Use a string lifter during installation to avoid kinking, which shortens lifespan by up to 30%.
The soundboard, a tapered spruce panel beneath the strings, acts as the instrument’s amplifier. Observe its crown–subtle curvature must be convex, not flat or concave. Tap lightly across its surface; dull thuds indicate internal splits or glue failure. Avoid placing the instrument near radiators or windows; humidity swings above 50% or below 40% cause irreversible warping. Use a hygrometer to monitor conditions weekly.
Inspect the action assembly’s pivot points: wippen flanges, hammer butts, and jack knuckles. Dust accumulation here increases key travel resistance by 15%. Clean with a fine brush, avoiding compressed air–moisture in the stream can swell felts. Lubricate pivot pins with dry Teflon powder, not oil, which attracts grime. Adjust hammer let-off to 2–3mm from strings; excessive let-off causes double-striking, while insufficient clearance mutes volume.
The Core Elements of Grand Keyboard Action Demystified
Inspect the hammer assembly first–it converts finger pressure into sound by striking strings. A properly regulated hammer should rest 4–5 mm above the strings (measured at the strike point) and rebound instantly. Misalignment here causes inconsistent tone or delayed repetition. Check the felt for compacted grooves; rotate or replace if compression exceeds 2 mm depth. Whalebone or synthetic shanks outlast wooden ones by 30–40%, reducing maintenance cycles.
Critical Escapement and Repetition Lever Dynamics
- The jack must clear the knuckle by 0.2–0.3 mm–any tighter and keys won’t repeat; looser risks “blocking” notes. Adjust via the regulating button (turn clockwise to raise the jack).
- A well-lubricated pivot (center pin) ensures smooth action: use 98% pure Teflon powder; avoid oils that attract dust. Apply sparingly–excess leads to sluggish response.
- Repetition levers on grand models should sit 0.5 mm below the hammer butt when at rest. Elevate via the spring tension screw (¼ turn increments) for faster repetition but expect slightly heavier touch weight.
Damper timing dictates articulation: dampers should lift just before hammer contact (≈2 mm string proximity). Adjust damper wires so pads sit parallel to strings when engaged–angled pads cause buzzing or premature damping. Replace felt if damping unevenly, especially in bass notes where greater mass requires firmer contact.
Key dip depth (normally 10 mm) directly impacts touch sensitivity. Uniform dip across all keys prevents uneven playing; shim front rail punches with precision-cut paper or mylar strips. Too deep (>12 mm) strains fingers; too shallow (
Regulation Priorities for Optimal Performance
- Set let-off: Hammer should escape at 3 mm string distance (measured vertically). Adjust via capstan screw (grand) or action bracket (upright).
- Check aftertouch: After escapement, hammer should fall back smoothly, not bounce. A 1–2 mm gap between hammer butt and backcheck ensures clean rebounds.
- Test repetition: Keys should repeat at least 8 times per second. Slow repetition signals weak springs (replace with clock springs) or sticky felts (clean with naphtha).
Action frame alignment must be square: misaligned frames cause keys to bind or strike off-center. Secure frame screws in a star pattern (torque: 12–15 in-lbs) to prevent warping. For hybrids, ensure sensors align precisely with hammer tails–misalignment delays MIDI response by 20–50 ms.
