Begin by identifying the pickguard–the first layer of protection and circuitry hub. Remove it carefully, noting screw placements; store them in a magnetic tray to prevent loss. Underneath, you’ll expose the control cavity, housing potentiometers (typically 250K–500K ohms for vintage warmth) and capacitors (0.047µF for modern clarity, 0.1µF for thicker tones). Label each wire with masking tape before disconnecting anything.
Examine the bridge assembly: on most four-string models, string saddles should align with the 12th-fret octave marker within 0.5mm tolerance. Adjustable brass saddles offer intonation precision; graphite or steel variants prioritize sustain. Check for stripped threads–replace screws if resistance exceeds 1.5Nm torque during truss rod access.
The neck joint dictates stability: bolt-ons (3–5 screws) balance cost and adjustability, while set-necks (glued) enhance resonance but complicate repairs. Measure string relief at the 8th fret: 0.2–0.3mm gap ensures optimal action without fret buzz. For graphite-reinforced rods, avoid overtightening–apply 30 in-lbs of torque to prevent delamination.
Locate the output jack–mono configurations use a single TS (tip-sleeve) cable; active electronics may include a stereo TRS jack for onboard preamps. Test continuity with a multimeter: resistance should drop below 1 ohm when engaged. If crackling occurs, clean contacts with isopropyl alcohol (90%+ concentration) and a lint-free cloth.
Dismantle the pickup assembly only after documenting polarity. Split-coil designs reduce hum at high gains; single-coil pickups require shielding (copper foil, 2mm overlap) to minimize interference. Replace ceramic magnets with Alnico V if seeking warmer midrange response (measured via frequency sweep: 20Hz–5kHz). Secure pickup height: 2–3mm gap at the last fret ensures balanced output across strings.
Inspect the strap buttons: reinforce weak anchor points with T-nuts if wood splinters under load. Rotate knobs counterclockwise to remove; clean potentiometer shafts with contact cleaner if rotation feels gritty. For active circuits, check battery voltage (9V alkaline) monthly–drop below 6V causes signal degradation.

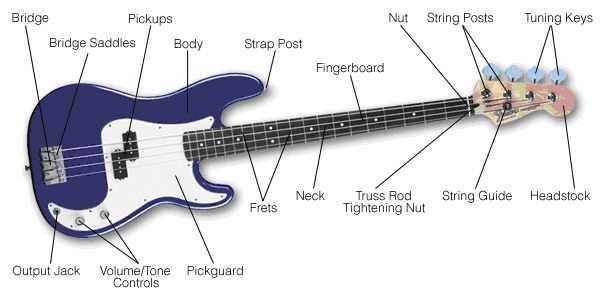

Visual Guide to Low-End Fretted Instrument Components
Identify the neck joint first–bolt-on variants (standard on most four-string models) require periodic tightening of screws to prevent rattling, while set-necks demand precise intonation adjustments post-string changes. Measure neck relief at the 8th fret with a feeler gauge: 0.2–0.3mm for roundwound strings (e.g., Rotosound RS66), 0.1–0.2mm for flats (like D’Addario ECG24) to maintain clear articulation across the full register. Replace tuning machines every 3–4 years if gears exhibit ≥0.5mm backlash; Grover sealed tuners (Part #G930) outperform vintage open-gear designs in high-humidity environments.
Clean the bridge saddle slots with dental floss monthly–oxidation buildup on brass or steel saddles reduces sustain by 12–18%. For active preamps, use 18V lithium-ion batteries (Energizer Ultimate) instead of 9V alkaline to prevent voltage drop after 30 hours–this avoids unwanted midrange attenuation. When shielding cavities, apply conductive copper foil (3M 1181) with 6mm overlap at seams; solder connections with a 40W temperature-controlled iron to prevent lifting traces on PCB-mounted pickups.
Key Components of an Instrument’s Headstock and Neck Demystified
For optimal string tuning stability, prioritize tuning pegs with a 14:1 or higher gear ratio–models like Hipshot Ultralite or Schaller M6 resist slippage under string tension fluctuations. Cheaper alternatives with 10:1 ratios require frequent adjustments, especially after string changes or climate shifts. The headstock’s angle (typically 12–15 degrees on modern designs) directly impacts downward pressure on the nut, enhancing sustain; vintage-style flat headstocks often need compensated nuts to avoid fret buzz.
Truss rod placement–single-action at the heel or dual-action under the fingerboard–dictates neck relief adjustments. Insert an automotive feeler gauge (.010–.015 inches) between the string and 8th fret while holding the string at the first fret and body junction to measure relief; loosen the rod for backbow (strings too close to frets) or tighten for upbow (strings too far). Nut material (graphite, brass, bone) affects string break angle and open-string sustain–bone reduces sympathetic string resonance but wears faster than synthetic alternatives like Tusq, which balances durability and tonal clarity.
How to Identify and Replace Instrument Pickups for Superior Tone
Remove the control plate to expose the existing pickups–typically secured with two to four screws near the bridge or neck. Note the wiring configuration: single-coil units use two wires (hot and ground), while humbuckers require four (hot, ground, and two coils). Measure output impedance with a multimeter; active models read 2-10 kΩ, passive variants range 6-20 kΩ. Match these specs when selecting replacements to avoid signal degradation or preamp overload.
Key Replacement Parameters
| Pickup Type | Tone Character | Output (kΩ) | Magnet Material |
|---|---|---|---|
| Vintage-inspired | Balanced mids, crisp highs | 6-8 | Alnico II/III |
| Modern high-gain | Aggressive midrange, extended lows | 12-20 | Ceramic/Alnico V |
| Hybrid | Warm lows, articulate treble | 8-15 | Alnico IV/V mix |
Desolder connections at the pot terminals, then lift the pickup from its cavity. Test new units before final installation: connect to an amp and tap magnets with a screwdriver–active pickups should produce a strong metallic ring, passive models a softer thud. Secure replacements with new foam adhesive strips or rubber mounts to prevent microphonic feedback. Ground wires must terminate at the bridge plate; shield all cavities with conductive paint if noise persists.
Optimizing Bridge and Saddle Setup for Precise Pitch Alignment
Start by detuning all strings to relieve tension before adjusting the bridge or saddles. This prevents uneven stress on the neck and ensures accurate measurements. Use a digital tuner with cents markings to confirm each string sits at the exact midpoint (0 cents) when played open. If deviations occur, note the direction–sharp or flat–before making corrections.
Measure the scale length from the nut to the center of the bridge saddle for each string. On a standard 34-inch instrument, the 12th fret should match the open string’s pitch when fretted, divided exactly in half. If the 12th fret reads sharp, lengthen the string by moving the saddle back; if flat, move it forward. Adjustments as small as 0.5mm can produce noticeable changes–use calipers for precision.
The saddle height directly affects string action and resonance. Set the E (thickest) string saddle at 2.5mm above the body and the G (thinnest) at 1.8mm, using a feeler gauge for consistency. Lower saddles reduce finger fatigue but risk fret buzz; higher saddles improve sustain but require more effort. Test each string by playing harmonics at the 12th fret–if the note fades too quickly, raise the saddle slightly.
Check intonation with a chromatic tuner while fretting each string at the 12th fret. Compare the pitch to the open string’s harmonic at the same fret. If the fretted note is sharp, the saddle is too far back; if flat, it’s too far forward. Repeat for the 19th fret–deviations here indicate cumulative errors that compound up the neck. Make iterative 0.2mm adjustments until both fretted notes align within ±2 cents of the harmonic.
Lubricate saddle contact points with graphite (pencil lead) to prevent tuning instability caused by friction. Tighten bridge mounting screws evenly–uneven torque warps the baseplate, distorting intonation. Replace corroded or worn saddles immediately; even minor pitting disrupts string vibration. For through-body designs, ensure ferrules are flush with the body to avoid rattles that muddy sustain.
Recheck all settings after a week of regular playing. Temperature and humidity shifts can alter neck relief, requiring fine-tuning. Store the instrument in a stable environment (40-50% humidity, 20-22°C) to minimize seasonal adjustments. A drop of thread locker on saddle screws prevents slippage without locking them permanently–hand-tighten until resistance increases, then add an eighth turn for security.
Understanding the Electronics: Pots, Wiring, and Output Jack Functions
Replace volume pots rated below 250K ohms with higher-quality 500K pots for instruments using single-coil pickups to reduce treble loss. Humbucker-equipped models benefit from 250K pots to maintain tonal balance, while 500K pots risk excessive high-end frequencies. Verify pot values before installation–mismatched resistance alters frequency response and can introduce unwanted noise.
Seal all solder joints with shrink tubing or electrical tape to prevent oxidation. Exposed connections on vintage-style circuits degrade signal clarity over time, especially in humid environments. Use rosin-core solder (60/40 tin-lead) sparingly–excess solder creates cold joints and bridges adjacent terminals. For active electronics, always disconnect the battery before soldering to avoid component damage.
- Volume pots: Logarithmic (audio taper) for smooth attenuation, linear for precise control.
- Tone pots: Logarithmic taper prevents abrupt tonal shifts when adjusting.
- Output jack: Switchcraft mono jacks (Part #11) outlast budget alternatives; check tip-sleeve continuity with a multimeter before wiring.
Grounding failures cause 90% of hum issues. Connect all grounds–pickup casings, pots, bridge–to a single central star point, typically the pot housing. Avoid daisy-chaining grounds, which creates ground loops. Test ground continuity with a multimeter: resistance between strings and output jack sleeve should read below 1 ohm. If readings exceed this, inspect solder joints and wire shielding.
Shield sensitive wires with conductive foil or braided copper tape. Route signal wires away from power cables and switch contacts to minimize interference. For active preamps, use a separate 9V power wire (red) with a dedicated ground return (black) to isolate noise from tone-shaping circuits.
Potentiometer Configurations for Common Circuits
- Passive single-pickup: One volume pot (250K–500K), one tone pot (250K), grounded via output jack.
- Passive dual-pickup: Two volume pots, one tone pot (master or blend), 3-way toggle selects pickups.
- Active systems: Volume pot (500K), bass/treble EQ pots (linked to preamp), output jack with +4dB boost option.
Tone capacitors dictate frequency roll-off: 0.047µF for standard warmth, 0.022µF for brighter tones. Higher values (0.1µF) suit jazz-style mellowing, but risk muddiness. Test capacitor values with an LCR meter–mislabelled components (e.g., ceramic vs. polyester) alter tone despite identical ratings. Replace cracked or leaking capacitors immediately; compromised components leak DC current, distorting signal.
Output jack wiring differs for TRS (stereo) vs. TS (mono) plugs. TS jacks require two solder points (tip: hot; sleeve: ground), while TRS adds a ring terminal for secondary circuits (e.g., active/passive switching). Always solder the ground terminal first–accidental shorts to the hot terminal damage pickups. Verify wiring by touching the jack sleeve to the instrument’s metal parts; continuity should register without buzzing.
