Complete Guide to Identifying Sunroof Components with Clear Diagram

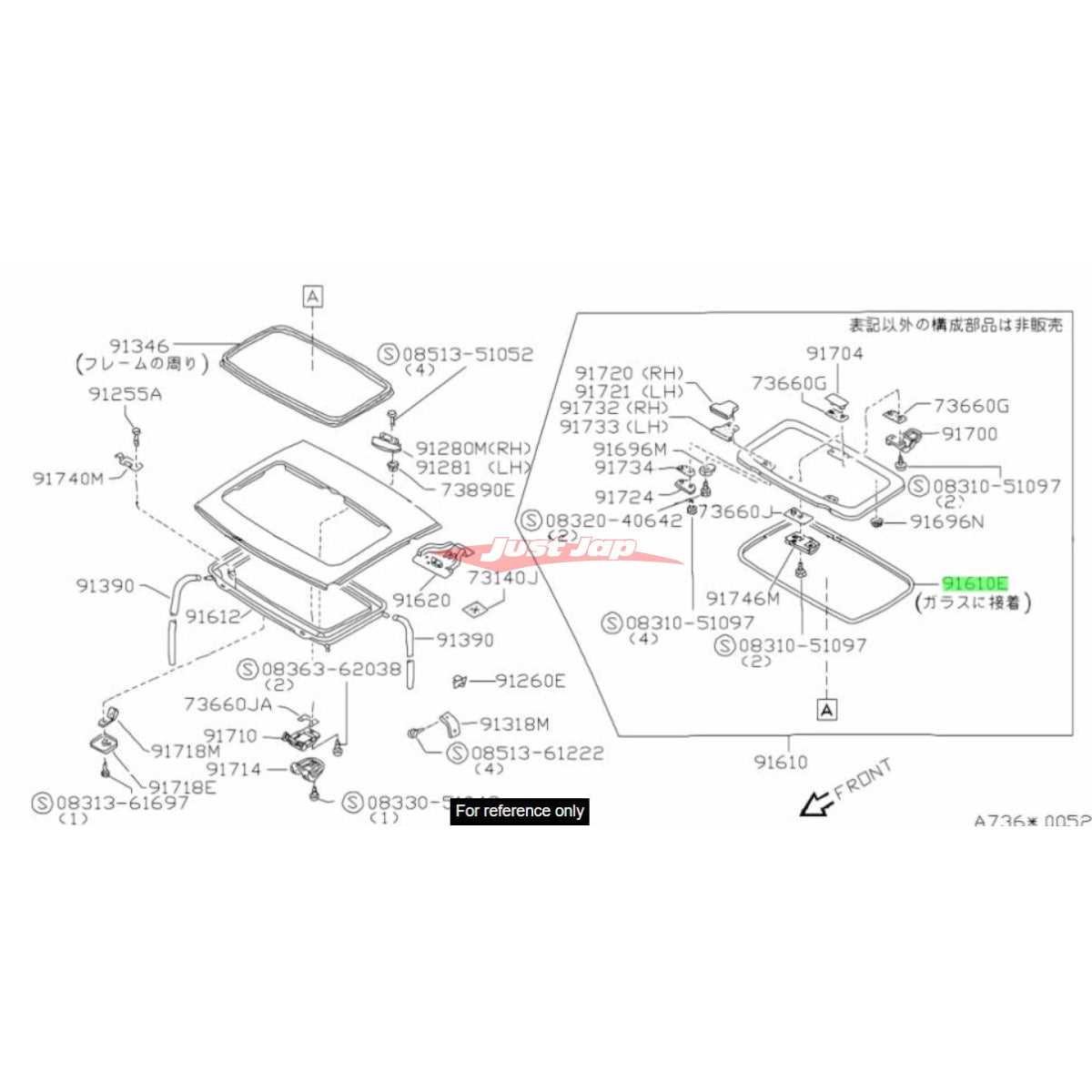

sunroof parts diagram

Replace broken seals before moisture damages the motor. Most failures trace back to cracked rubber gaskets along the track–inspect them every 10,000 miles. If discoloration or splits appear, order replacements matching the original thickness (typically 3.5–4.2 mm). Avoid universal kits; OEM-matched seals prevent wind noise and leaks.

Locate the adjustment screws at the rear of the frame–turning them clockwise tightens tension on the cable drive. Over-tightening causes jerky movement; aim for smooth glide with no sag. Use a torque screwdriver set to 4 Nm. Lubricate the track with PTFE dry spray, never silicone–it attracts dirt and accelerates wear.

The lift arms pivot on bushings hidden beneath the glass panel. Replace worn bushings (ID 8 mm, OD 12 mm) if play exceeds 1.5 mm. Misaligned arms scrape the roof liner; center them by measuring equal gaps on both sides (target 3 mm). Diagnostic mode activates by holding the close switch for 5 seconds–listen for motor clicks to confirm fuse integrity.

Track debris collects in drainage tubes–flush them with compressed air monthly. Clogged tubes overflow during rain, shorting the control module. Test drainage by pouring 200 ml of water into the channel; exit flow should match intake volume within 30 seconds. If delay occurs, disassemble the carrier and clear blockages with a 2 mm probe.

Replace the motor if it doesn’t reset after fault codes clear. Bench-test by applying 12V directly–healthy motors spin at 120 RPM. Failed units buzz but don’t rotate; rebuilds rarely last more than 6 months. Install a surge protector (30A) to prevent voltage spikes from frying the circuit board. Keep spare fuses (15A) in the glove box–blown fuses mimic motor failure.

Understanding Your Vehicle’s Overhead Panel Components

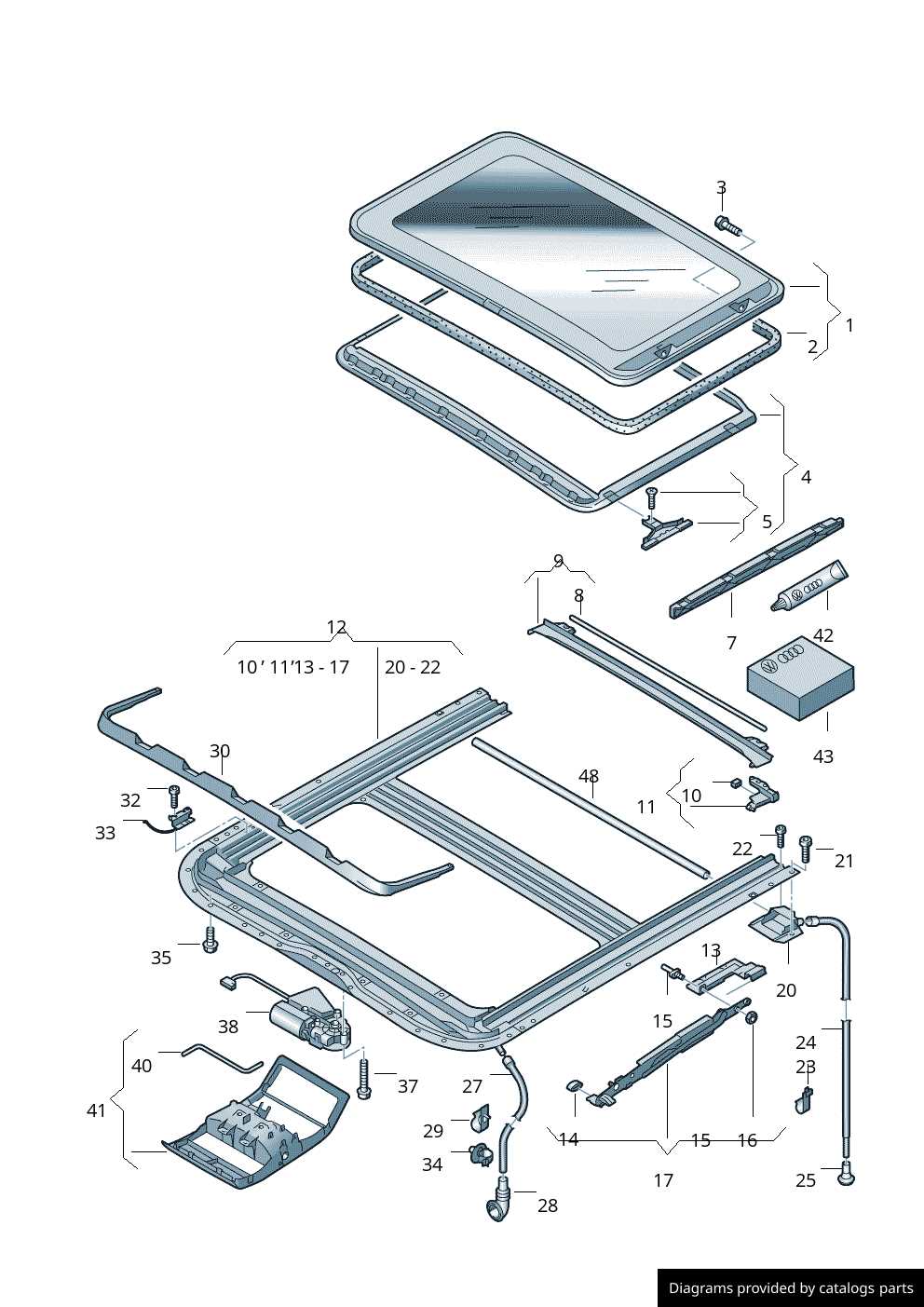

sunroof parts diagram

Begin by locating the sliding mechanism track–typically a metal rail along the roofline’s perimeter. This guides the pane during operation; debris here causes jamming or misalignment. Clean it monthly with a dry microfiber cloth, avoiding lubricants unless specified by the manufacturer. Most failures stem from neglected maintenance of this area.

Examine the drainage tubes next. These transparent or black hoses run from the corners of the panel frame to the vehicle’s rear quarters, channeling water away. Pinch points or kinks are common; gently straighten them using pliers if flattened. Blockages here lead to interior leaks–flush with compressed air every six months.

Key Functional Elements

  • Glass Carrier Frame: Secures the transparent panel to the motorized system. If rattling occurs, check the rubber gaskets for cracks–replace immediately to prevent leaks. Most frames are secured with Torx screws (T20 or T25).
  • Electric Motor Assembly: Mounted beneath the headliner, this unit drives the opening/closing sequence. Listen for unusual whirring–this signals worn gears. Disconnect the battery before servicing to avoid electrical shorts.
  • Switch Panel: Usually integrated into the overhead console. If unresponsive, test with a multimeter for 12V continuity. Corrosion on connectors is a frequent culprit; clean with contact cleaner.

Front and rear bows (the structural crossbars) often rust if exposed to moisture. Inspect weld points for flaking–apply rust converter followed by touch-up paint to prevent structural weakness. Some models use adhesive bonding; heat (>160°F) can degrade this over time.

Replacing a faulty seal requires removing the entire assembly. Cut the old seal with a utility knife, ensuring no adhesive residue remains. Apply butyl tape in a single continuous strip–gaps will compromise weatherproofing. Press firmly along the frame’s groove to avoid air pockets.

  1. Disconnect the battery’s negative terminal.
  2. Remove the headliner clips (plastic retaining fasteners).
  3. Unplug the motor wiring harness.
  4. Support the glass panel before removing mounting screws.

For tilt-only systems, the pivot mechanism relies on a torsion spring. If the panel fails to stay elevated, the spring likely requires adjustment or replacement. Use channel locks to compress it gradually–sudden release risks injury. Torque specs vary: consult service manuals for exact values (e.g., 7-9 Nm for most sedans).

How to Pinpoint Critical Elements in an Auto Roof Panel System

Start by locating the sliding mechanism track–typically two parallel rails running along the frame’s inner edges. These guide the panel’s movement and house the electric motor or manual drive gears. Check for debris accumulation in the rail grooves, as even small particles can disrupt alignment and cause binding. Lubricate the tracks with silicone-based grease every 6,000 miles to prevent premature wear.

Inspect the sealing gasket around the panel’s perimeter. This rubber strip prevents water ingress and reduces wind noise. Look for cracks, hardening, or gaps–common failure points. Replace if the material feels brittle or no longer compresses uniformly when the panel closes. A faulty seal often leads to leaks detectable by water stains on headliners or dampness near interior light fixtures.

Motor and Control Unit Checks

  • Listen for unusual motor whirring or clicking during operation–signs of failing gears or a dying motor.
  • Test the limit switches by manually overriding them (consult the vehicle’s service manual). If the panel stops at incorrect positions, the switches need adjustment or replacement.
  • Check electrical connections for corrosion, especially in humid climates. Use a multimeter to verify 12V supply to the motor when activating the switch.

The tilt/slide mechanism’s pivot points require annual inspection. These consist of nylon bushings or ball bearings where the panel attaches to the carriage. Apply lithium-based grease sparingly to avoid attracting dust. If bushings show excessive play, order OEM replacements–aftermarket parts often lack precision tolerances, leading to misalignment.

  1. Remove the headliner section above the roof panel to access the drain tubes. These channels divert water away from the cabin but clog frequently with leaves or dirt.
  2. Blow compressed air through each tube to verify unobstructed flow. If blockage persists, use a flexible wire to clear debris–avoid rigid tools that may puncture the thin tubing.
  3. Reinstall tube brackets securely; loose fittings cause sagging and water pooling near the sealants.

How to Decode Roof Panel Assembly Illustrations

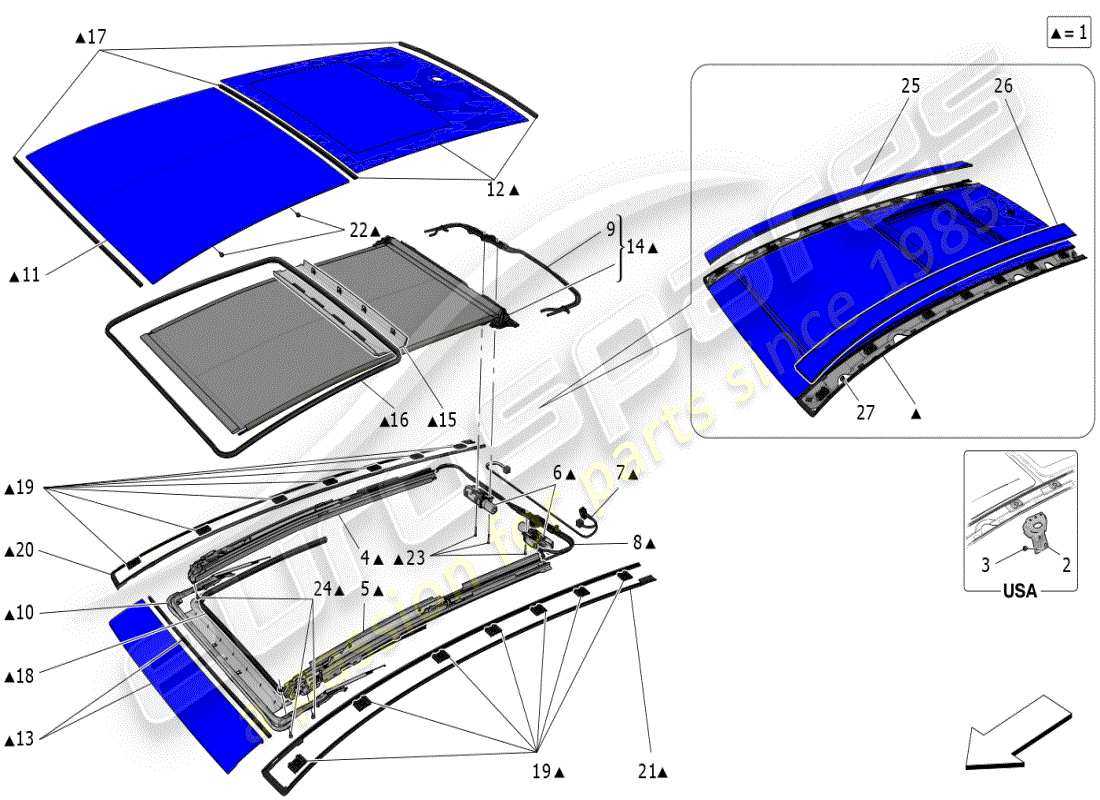

sunroof parts diagram

Locate the legend first–it’s usually a small table near the edges of the schematic. Each symbol or number corresponds to a component listed by name and often includes OEM part numbers. Cross-reference these with your vehicle’s service manual for accuracy, especially if dealing with aftermarket replacements.

Identify the primary structural elements: the sliding mechanism rails, glass pane, and housing frame. These are drawn in thick lines or shaded for distinction. Note mounting points–typically marked with circles or triangles–where bolts or clips secure the assembly. Check torque specifications if present; mismatched values can cause leaks or misalignment.

Trace electrical connections if shown. Wiring harnesses to the motor or control module are often color-coded in exploded views. Match these colors to physical wires; discrepancies indicate incorrect diagrams or model variations. Look for fuse ratings near the motor illustration–exceeding these can damage the drive unit.

Observe gasket placement–these are thin, curved lines hugging the edges of the glass or frame. Verify material type (rubber, foam, or silicone) and thickness; thicker seals compensate for worn tracks. Replace damaged seals immediately; cracks lead to water ingress and wind noise.

Count fasteners–screws, rivets, or adhesive strips–and their exact locations. Missing one during reassembly can prevent proper sealing. Note fastener type: Torx, Phillips, or hex heads require specific tools. Some schematics include length measurements; shorter screws than specified may not reach the mounting boss.

Check for sub-assemblies like drain tubes or wind deflectors. These obscure components are often depicted as detached sections with arrows pointing to their installation positions. Clogged drains cause water pooling inside door panels; clear them using a pipe cleaner or compressed air during maintenance.

Examine tolerance annotations–numbers next to floating gaps indicate maximum clearance. Use feeler gauges to verify these spaces; excessive play leads to rattling. For adjustable components, like rear brackets, schematics might show alignment marks–misaligned parts strain the motor.

Compare side views with top-down perspectives if available. Variations in geometry–like angled rails–explain why some assemblies fit only specific vehicle generations. Measure physical dimensions before ordering replacements; even minor deviations prevent proper operation.

Common Slide Panel Mechanism Failures: Motors and Rails

Replace the drive unit immediately if it emits a high-pitched whine during operation–this indicates bearing wear or lubricant breakdown, typically occurring after 8,000–12,000 actuation cycles. Use OEM-spec 75W-90 synthetic gear oil for relubrication; aftermarket alternatives like lithium grease thicken at temperatures below -5°C, causing sluggish movement or stalling. Check the torque limiter clutch: if the panel moves unevenly during manual override tests, the clutch plates are likely glazed or contaminated with debris from failed nylon drive gears.

Failure Mode Root Cause Early Symptoms Recommended Action
Motor gear stripping High torque spike during obstruction Intermittent grinding during closing Inspect drive gear teeth; replace if >30% wear visible
Track misalignment Worn slider blocks (>1.5mm play) Panel binds at 75–80% extension Retime sliders with laser alignment tool; replace if grooves exceed 0.8mm depth
Hall sensor drift Moisture ingress at connector (IP65 seal failure) Panel reverses unpredictably mid-cycle Recalibrate via scan tool; apply dielectric silicone to connector pins

Clean the guide rails with isopropyl alcohol every 15,000 km to remove oxidized lubricant residue–this buildup increases current draw by 18–22% and accelerates motor brush wear. Verify proper drainage tube routing: if clogged, water accumulates at the rear seal (1.2L capacity) and corrodes the lower track extrusion, causing the panel to skew 3–5mm off-center. For vehicles parked outdoors, install a 12V heating pad under the forward track section; frost formation at -7°C increases rail friction by 40%, leading to premature motor failure.
