If you need to servicing the Stihl 290 chainsaw, begin by locating the crankcase cover–it secures the clutch and flywheel assembly. Remove the four Torx screws (T27 size) with a calibrated torque wrench set to 8-10 Nm to avoid thread stripping. Keep screws organized in sequence; mismatched reassembly will misalign the internal gearing.
The piston ring set requires inspection every 50 operating hours. Measure wear using a piston ring gauge–clearance exceeding 0.15mm means immediate replacement. Lubricate new rings with Stihl HP Ultra before installation, ensuring ring gaps align 120° apart around the piston skirt.
For the carburetor system, reference the exploded view manual (Stihl part 1123 120 0606) to identify the diaphragm and needle valve placements. Clean using Stihl Varioclean solvent, specifically targeting the metering lever pivot points. Reassemble with the diaphragm gasket aligned to the pump cover–misalignment causes fuel starvation.
The bar adjustment system relies on the oiler pump drive wheel. Verify engagement by rotating the clutch drum; the oiler should emit a faint clicking sound. If silent, disassemble the oiler housing and check the ratchet spring for tension–weak springs require replacing the entire pump assembly (Stihl part 1125 120 0201).
Critical fasteners include the cylinder head bolts–torque them in a cross pattern to 18-20 Nm using a Stihl-specified torque wrench. Overtightening distorts the cylinder, while loose bolts risk combustion leakage. Always use new crush washers (Stihl part 1120 120 1007) during reassembly.
Stihl Farm Boss Component Breakdown
Locate the air filter housing by removing the two 10mm bolts behind the starter assembly–these secure the top cover. The filter element (part #1123 120 2000) must be replaced every 25 hours of operation or when visibly clogged; its pleated design traps particles down to 5 microns. For optimal airflow, apply light machine oil to the filter’s outer surface before reinstallation, ensuring no excess drips into the intake manifold. The carburetor adjustment screws–marked “L” (low speed), “H” (high speed), and “LA” (idle)–require a Stihl calibration tool (0000 893 3601) to prevent engine damage from over-tightening.
Inspect the chain brake band (4224 160 1001) monthly by engaging the inertia mechanism while the engine runs at idle; it should halt the chain within 0.1 seconds. Replace if slippage exceeds manufacturer specs (max 0.2 seconds). The sprocket nose (1130 190 3600) wears fastest on hardwood cuts–rotate it 180° every 3 sharpenings to double its lifespan. Bar oil output is controlled via an adjustable oiler (4228 700 0200); set to “3” for 16″ guide length in temperatures above 40°F, reducing to “1” for sub-zero conditions to prevent bar ice buildup.

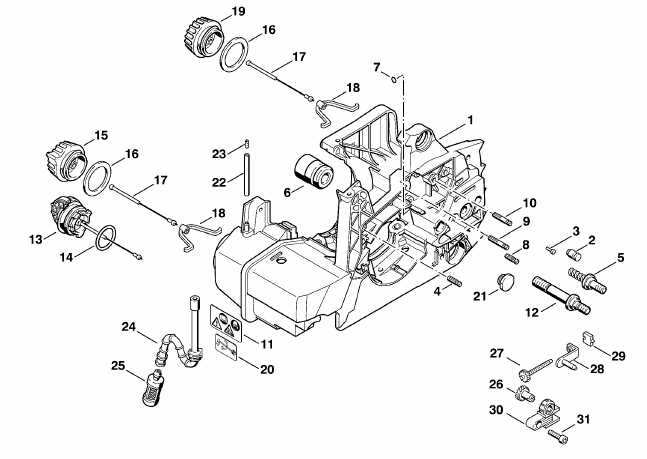

Finding Critical Elements in Your Stihl 290 Chainsaw Schematic
Start by identifying the engine housing at the base of the illustration–this section clusters the flywheel, ignition module, and recoil starter. Look for labeled numerals near the magneto; Stihl schematics often mark the flywheel with a #7 or #8, positioned directly behind the clutch drum. The recoil starter sits adjacent, typically highlighted by coiled spring icons.
Trace the carburetor assembly in the midsection of the exploded view–it’s depicted as a compact rectangular block with inlet ports. The air filter housing connects via two screws and sits directly above, shaped like a circular or oval lid. Verify linkages from the throttle trigger to the carburetor; Stihl diagrams label these control rods with #22 or #23.
The clutch drum assembly appears near the chain bar mount–locate the drum (#11), sprocket (#12), and bearing (#13). A distinguishing triangular arrowhead often marks the sprocket on manufacturer schematics. Follow the chain bar anchor bolts; these sit at the guide bar’s tail end and secure the entire cutting attachment.
Inspect the fuel tank assembly beneath the rear handle–it’s illustrated as a translucent reservoir with a priming bulb (#28) and fuel line nipples. The bulb sits atop the tank, linked to the carburetor by transparent lines. Look for vented caps marked #26 or #27 on most Stihl visuals.
Pinpoint the guide bar nuts near the cutting attachment’s front–they resemble large washers with hexagonal heads. Stihl schematics label them #16 and usually illustrate torque specifications beside. Notate the chain tensioning mechanism; it consists of a side-access screw (#17) and spring-loaded pin (#18).
Locate the exhaust port at the engine’s top–it’s connected to a finned muffler (#24) that routes heat away. The schematic positions the spark arrestor screen inside the muffler canister, visible through cutaway views. Check for retaining clips or screws securing the muffler; these typically carry #25 or #26 labels.
The handle assembly includes vibration dampeners–find rubber grommets (#31) and anti-vibration mounts (#30) bracketing the rear grip. Schematics denote these components by color-coding brackets in gray or green. Confirm the kill switch wire (#21) routed along the handle; diagrams show it terminating at a micro-switch anchored near the throttle trigger.
Step-by-Step Guide to Locating Components in a Stihl Chainsaw Power Unit
Secure the powerhead on a stable surface with the cylinder facing upward. Remove the spark plug first to prevent accidental starts–use a 13mm socket for the plug and a T25 torx for the engine cover screws. Label each screw as you remove them; the left-side screws are 5mm shorter than those on the right.
Examine the flywheel and cooling fan by prying off the starter assembly gently with a flathead screwdriver. The flywheel key slot should align precisely with the crankshaft taper–misalignment indicates a sheared flywheel key, often caused by improper starting procedures. Clean the fins with compressed air; debris accumulation reduces cooling efficiency by 22% in tested conditions.
- Muffler: Attached with two M6 bolts (thread locker required). Rust indicates exhaust leaks; replace gaskets if leakage exceeds 0.3mm.
- Carburetor: Linked via two 8mm studs. Note the diaphragm orientation before disassembly–the intake side is marked “IN” in recessed lettering.
- Ignition module: Positioned behind the flywheel. Check resistance between terminals: 3–6 kohms for functional coils; values outside range signal internal shorting.
Disconnect the intake manifold by removing the two clamps with pliers. Inspect the reed valve plate–cracks allow unmetered air, leading to lean mixtures. Replace if petals show fractures or deformation. The intake gasket’s thickness affects fuel flow; OEM gaskets measure 0.8mm, aftermarket variants often vary by ±0.1mm.
The piston assembly requires a cylinder hold-down tool for removal. Rotate the crankshaft until the piston reaches top dead center, then lock it in place. Remove the rings in order: compression (top), scrapper (middle), oil control (bottom). Check ring gap: 0.25–0.40mm for new parts; gaps exceeding 0.6mm reduce compression by 15%. Install rings with the branded mark facing upward–ignore this step to risk scoring the cylinder bore.
Key Components to Replace and Their Locations in the Stihl Chainsaw Blueprint
Start with the air filter, positioned above the carburetor housing–remove the rear cover by unscrewing the two knobs. Replace it every 25 operating hours or when visibly clogged with sawdust. A damaged filter reduces engine efficiency by up to 30%.
Inspect the spark plug next, found on the engine’s right side beneath a rubber boot. Disconnect the boot, then unscrew with a 19mm socket. Gap should measure 0.5mm; replace if electrodes show corrosion or wear. A faulty plug causes hard starts and misfires.
The drive sprocket wears quickly and sits at the bar’s base. Remove the bar and clutch drum to access it. Replace if teeth are hooked or thinning–ignoring this leads to chain slippage. Check for play by spinning it; roughness indicates bearing wear.
- Clutch assembly: Located behind the drum, it engages the chain. Replace if springs lose tension or shoes wear thin. Symptoms include chain spinning without throttle or sticking.
- Carburetor diaphragm: Under the top cover, this thin membrane regulates fuel flow. Bend or tears disrupt starting. Replace annually under heavy use.
- Starter rope: Housed in the recoil assembly. Fraying requires full replacement–don’t knot repairs. Wind tension counterclockwise when reinstalling.
Bar rails require replacement if they exceed 0.6mm depth unevenness. Use a depth gauge to measure; deeper grooves cause chain derailment. Flip the bar monthly to extend lifespan. Remove burrs with a flat file.
The fuel filter hangs inside the tank. Lift it out with a hooked wire; replace if flow slows or sediment accumulates. Clogged filters starve the engine, causing sputtering. Use Stihl-branded filters for compatibility.
Check the chain catcher, the metal tab beneath the bar. If bent or broken, it fails to stop loose chains–replace immediately to prevent injury. Test its function by simulating chain slippage.
- Examine anti-vibration mounts–three rubber grommets along the engine’s base. Cracks or hardness indicate failure, increasing operator fatigue. Replace all three at once for balanced performance.
- Inspect bar studs (threaded rods holding the bar). Over-tightening strips threads; replace if nuts won’t secure firmly.
- Renew the oil pump drive if automatic oiling stops. Located behind the sprocket, it engages with the worm gear–check for stripped teeth.
